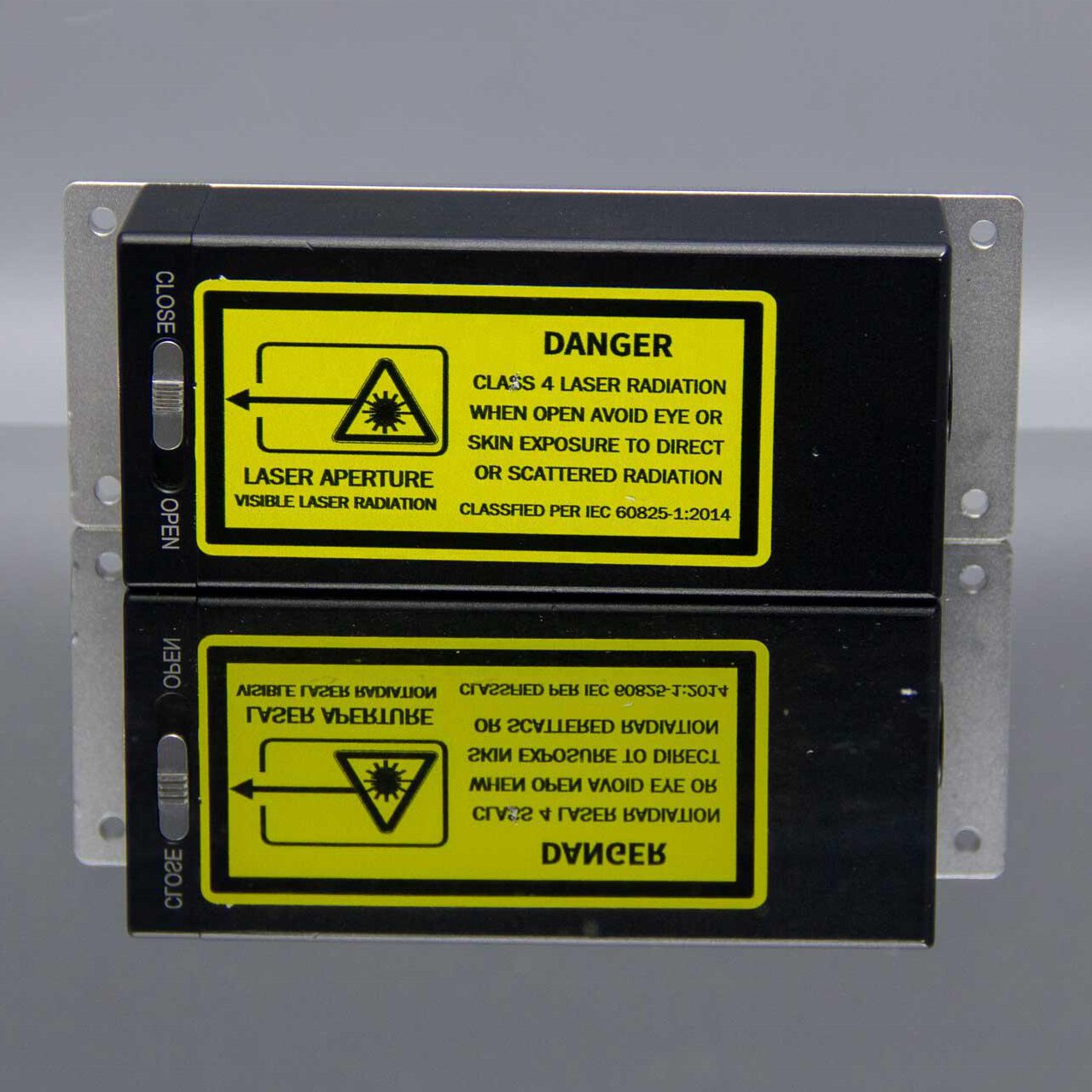

266nm-10mW-750ps Microchip Laser System of MCC Series

MCC-266-5-002



Demand profile:

MCC series realsubns microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passive Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has excellent performance in the application of laser seeds. We can also provide 1064nm and 532nm isolators.



Main features:

Pulse width up to 700ps

Pulse energy up to 80 μJ

* External pump source fiber pump pulse energy can reach 500μJ

Repetition frequency up to 10kHz

Beam mode is TEM00

Fully sealed design, high reliability



Application:

Seed source

Micromachining

Laser ionization mass spectrometry

Laser ultrasonic inspection

Optical Parametric Oscillating Pump Source

Biomedical Science

Laser-induced fluorescence

Laser induced breakdown spectroscopy



Main Parameters

Model	MCC-266-5-002
Optical parameter	Wavelength (nm)	266
	Repetition frequency (kHz)	5
	Average power (mW)	10
	Output energy (μJ)	2
	Pulse width (ps)	700
	Power stability (8h)	±3%
	Beam mode	TEM00
	Full-angle divergence angle Typ. (Mrad) level @ 1/e2	<4
	Vertical @ 1 / e2	<4
	Polarization characteristics	>100:1
System parameters	Power input	100-240 VAC,50/60Hz
	Modulation input	TTL0-5V,SMA interface
	Control interface	RS232,USB
	System power consumption (W)	<30
	Power supply size (W × H × L, mm)	150×76×146/150×76×200*
	Laser head size (W × H × L, mm)	45×30×120
	Working temperature (℃)	15-35
	Storage temperature (℃)	0-60

*It is an external optical fiber pump. The power supply and laser head are not detachable. Power size: 150 × 76 × 200mm

Product continuous improvement, all specifications are subject to change without notice







Product model list

MCC series model list
Wavelength(nm)	Model	Repeat frequency(kHz)	Single pulse energy(uJ)
266	MCC-266-5-002	5	2



Mechanical dimension drawing
