Description
- Brand Name: CRONOS
- Model Number: 1W/1.6W/2.5W
- Working substance: Semiconductor

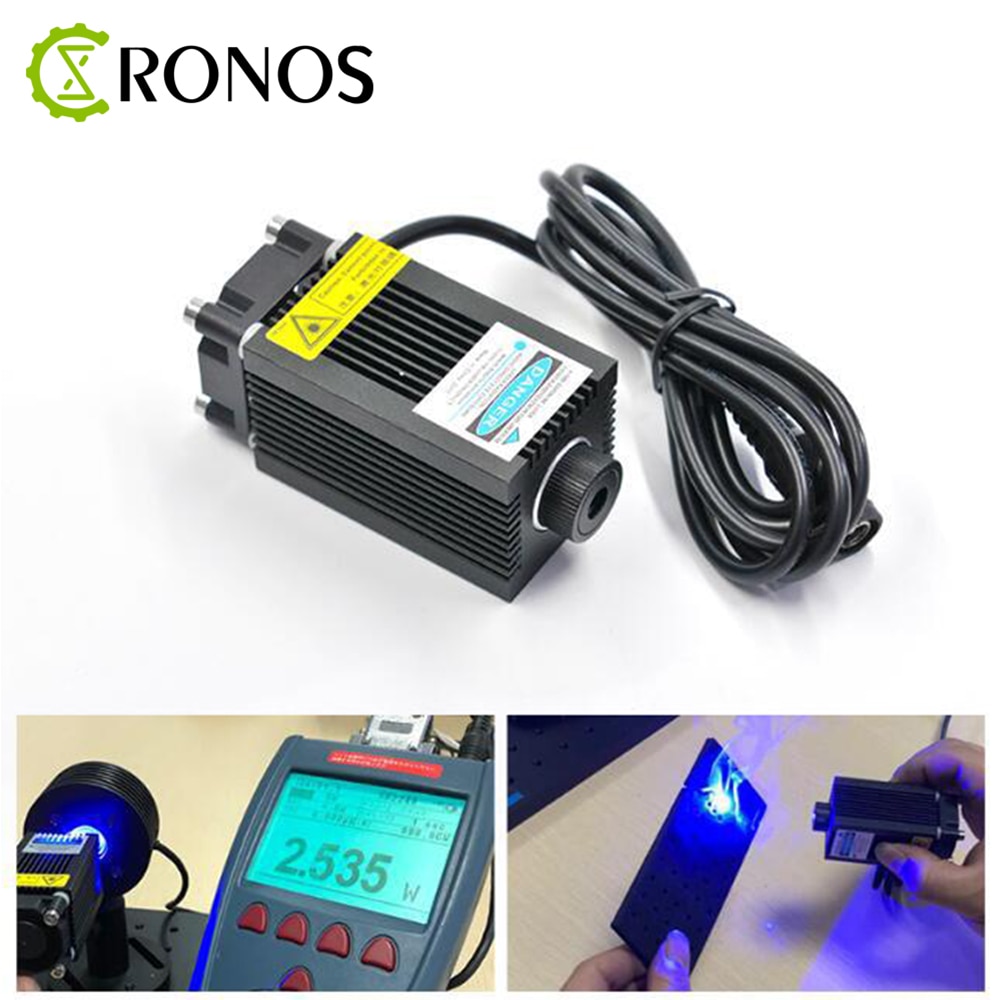

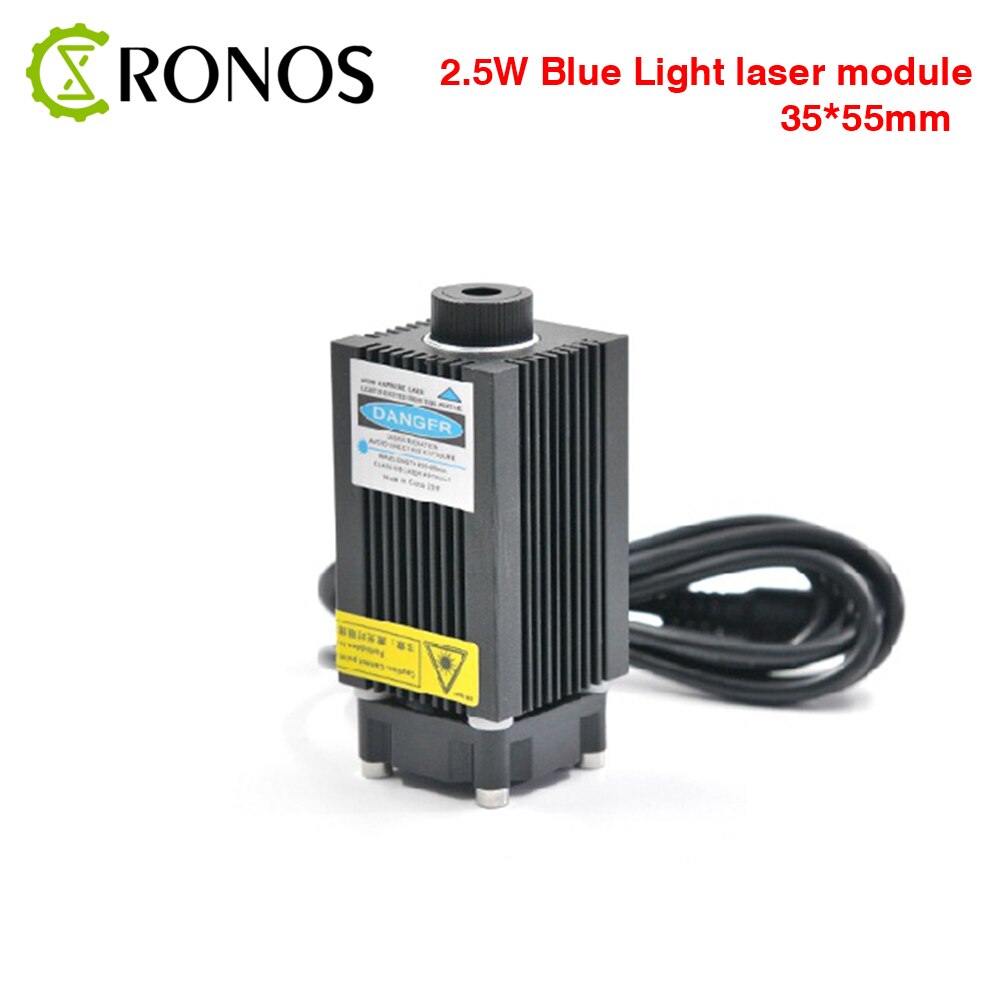

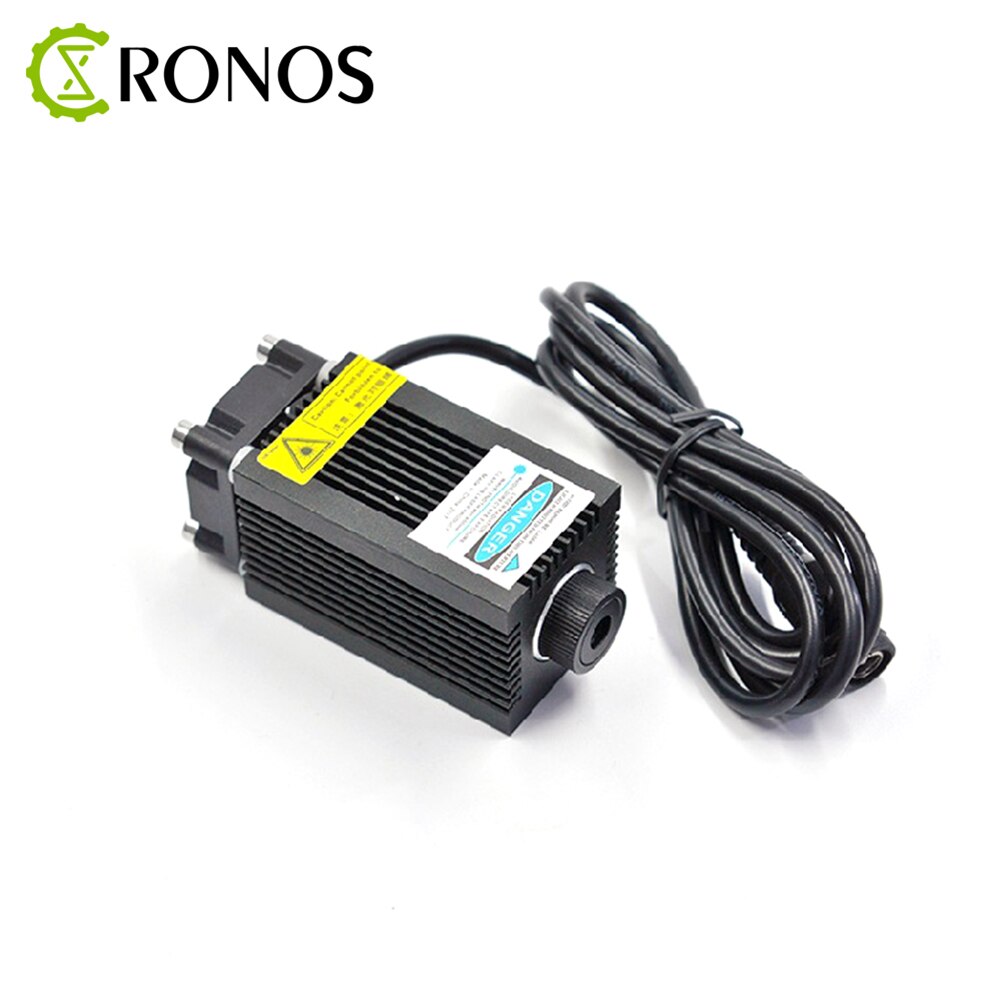

2500mW 450nm Blue Light Laser Module Diode For Laser Tube Engraving Machine High-power 2.5W Can Focusable
User must read:
1. Laser module power is relatively large, to prohibit the exposure of the eye, otherwise it will
cause permanent blindness, the consequences at your own risk
2. Do not use in flammable and gas atmospheres to avoid fire and explosion.
3. Prohibit children from exposure to this laser product
4. Do not open the module to avoid damage.
–Can not process metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent
material.
–Carving wood / bamboo / paper / plastic / leather / rubber / horn.
–Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.
- Laser wavelength: 450nm (blue violet)
- Spot type: dotted (adjustable)
- Light power: 1W/1.6W/2.5W
- Drive mode: external ACC constant current drive
- Cooling method: forced air cooling
- Operating voltage: 12V DC
- Operating temperature:-40°C-75°C
- Lifetime:8000 hours

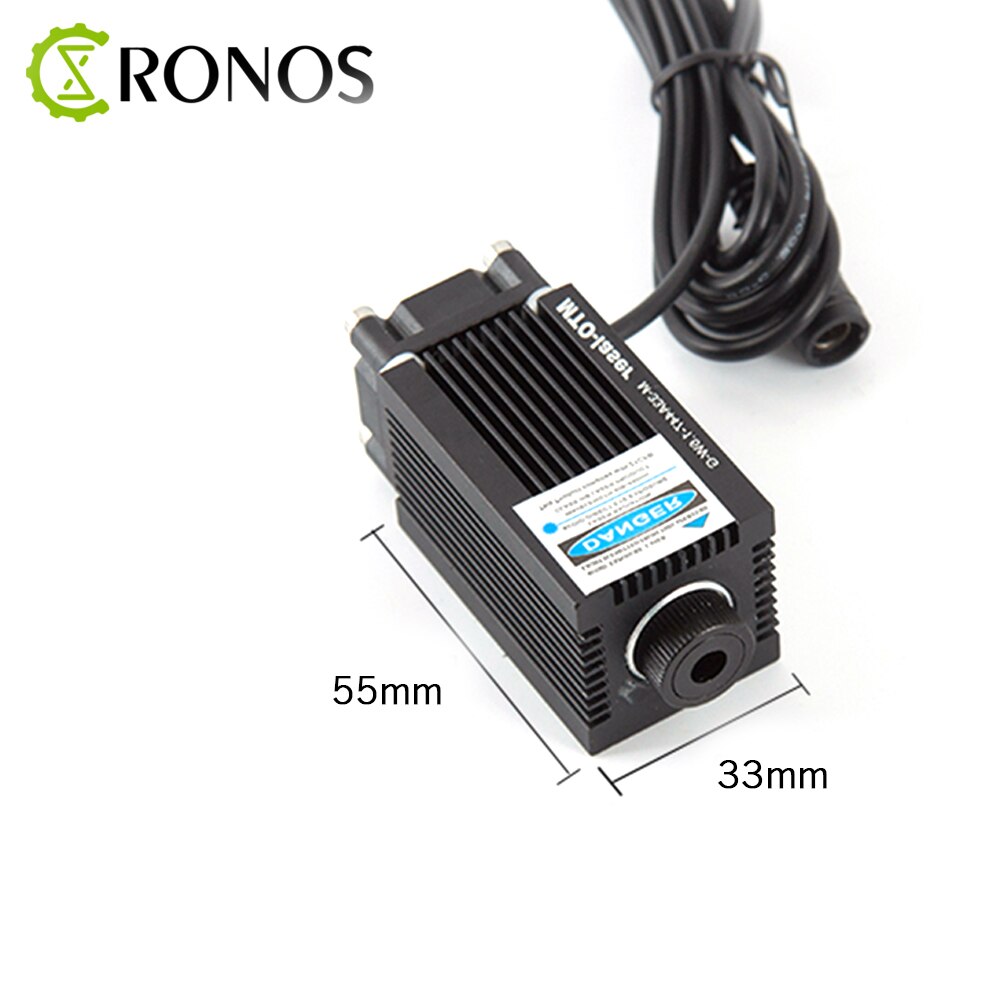

- Dimensions:33mm*55mm (adjustable focus)
- Output band:Visible light
Can engrave the following materials:
wood, some plastic, paper, bamboo, horn, thin leather (wallet), rubber stamp, photosensitive stamp, printing
paper (mainly used for engraving, less material to cut),sponge paper Other materials that are easy to burn.
The following materials cannot be engraved:
Metal (whether thick), stone, ceramic, jewellery, reflective material, transparent glass, ivory, colorless
transparent material, partially white plastic (usually very smooth plastic is difficult to engrave)
FAQ:
Q : How To Focus The Laser ?
Q:Where is the TTL port? I can only see the PWM?
A:TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module’s PWM port
to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
Q:How can I connect this module to the my engraver?
A:If you don’t need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control
board and leave the PWM port unconnected.
User must read:
–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
–Do not use in flammable and gas atmospheres to avoid fire and explosion.
–Prohibit children from exposure to this laser product.
–Do not open the module to avoid damage.
