Description

22*70mm 405nm 250mw Thick Fat Beam Violet Blue Laser Locator Module w Holder Clamp

Parameters
wavelength: 405nm  blue/violet
Output power: 250mW
Working time:2 hours of continuous work
Working current: 300 mA
diode: Nichia NDV4512
Power supply: DC 3.6-5V (Available single 18650 or other 3.7V lithium battery)
Spot diameter: dot 14-16mm  Light crude
Storage temperature: －40℃～80℃
Laser class: B3 class
Working life:  8000hours
Material:  Aluminum

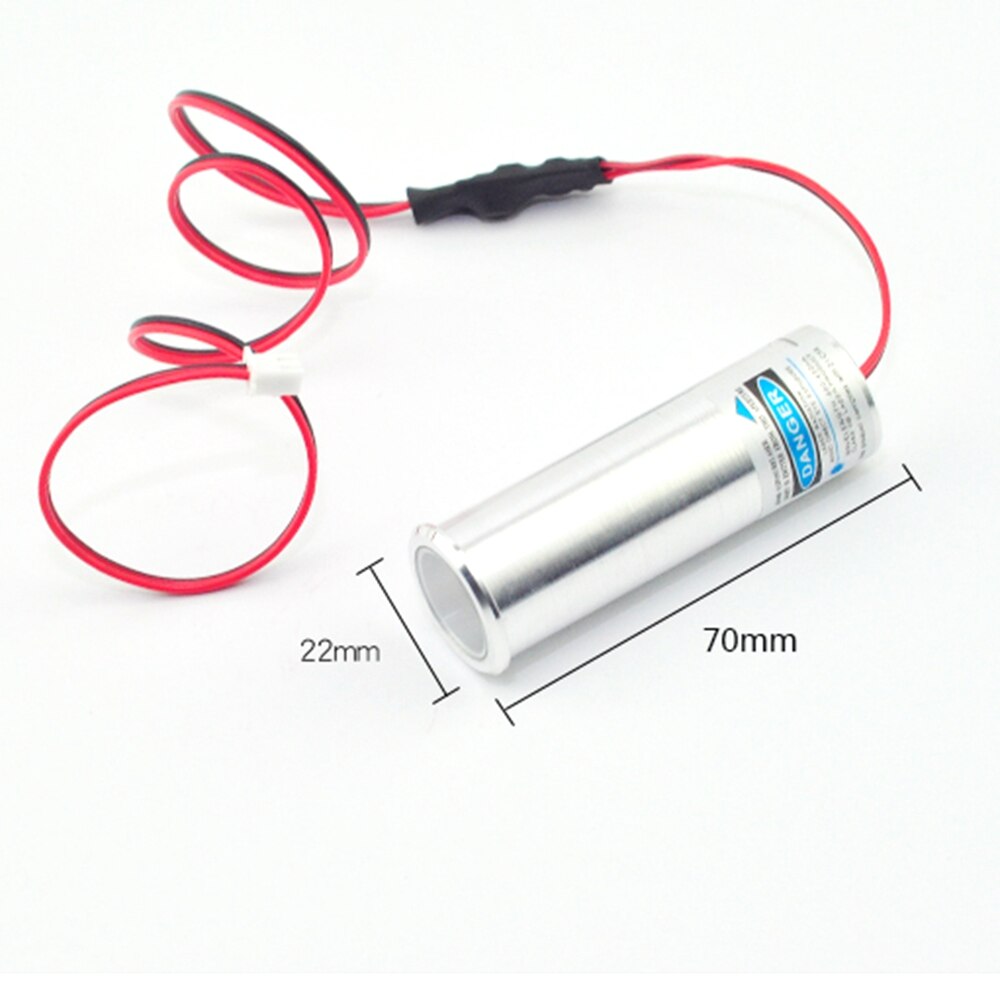

size: 22*70mm
Mounting cutout 22mm mirror waterproof

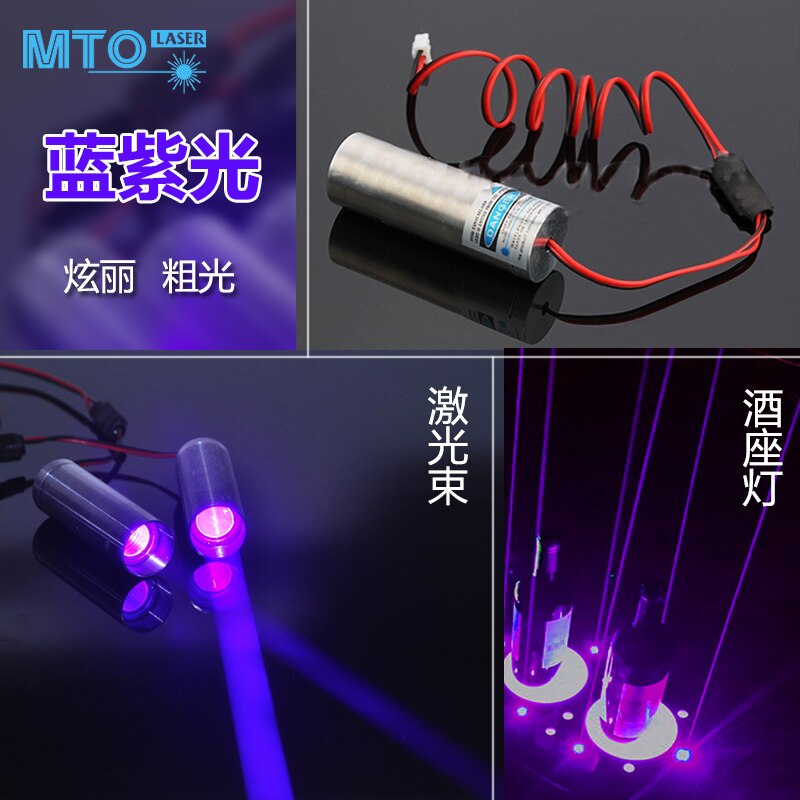

Notice:All the photos are taken by ourselves.But the effect photos are all take in dark and foggy environment.In normal conditions,the fat beam will not be shown like the product photos.Kindly please understand it.Thanks.

Features
it can not directly to the naked eye
1 Structure: Japanese original laser diode + large area coating copper sleeve + quality coated lens + microcontroller controls the drive circuit + wire
2. Materials Features: laser tube: Japanese factory output power guaranteed; copper pieces: a large volume of work designed to ensure the stability of performance
3 circuit characteristics: unique to the industry MCU control circuit, with anti-surge, brownout protection, secondary purification, LDO technology features: stable
4 Main purpose: bar supplies, wine display stand, wine holder laser, laser effects stage chamber to escape, and other widely used
5.Main features: sprinkled it or KTV room environment, gorgeous spot, the light mirror waterproof, can work long hours, etc.

Package

1pc 250mW 405nm Purple Blue Laser Diode Module Thick Beam Bar Stage Light 3.6-5V

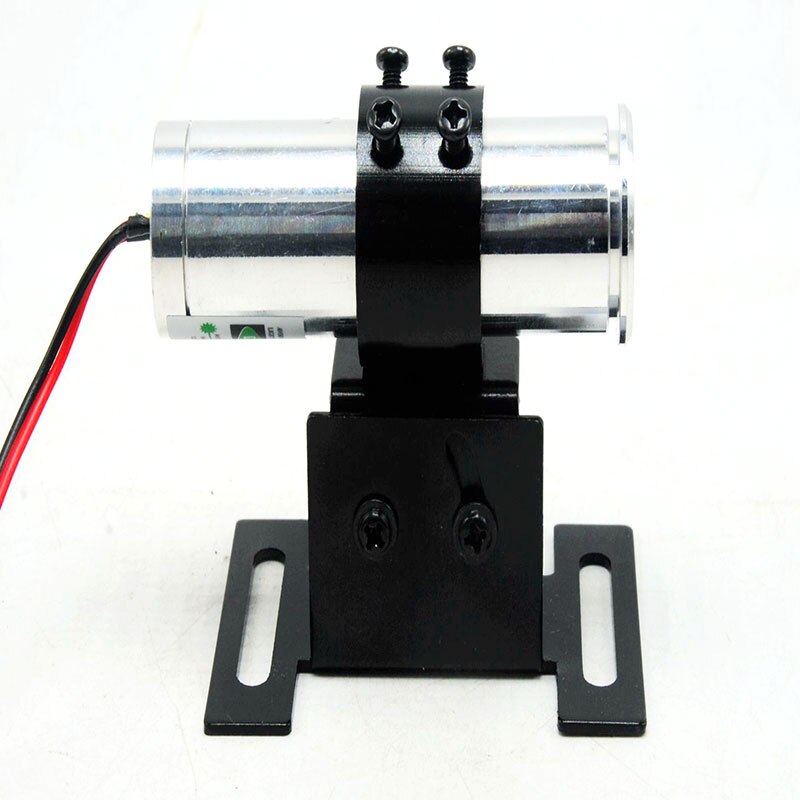

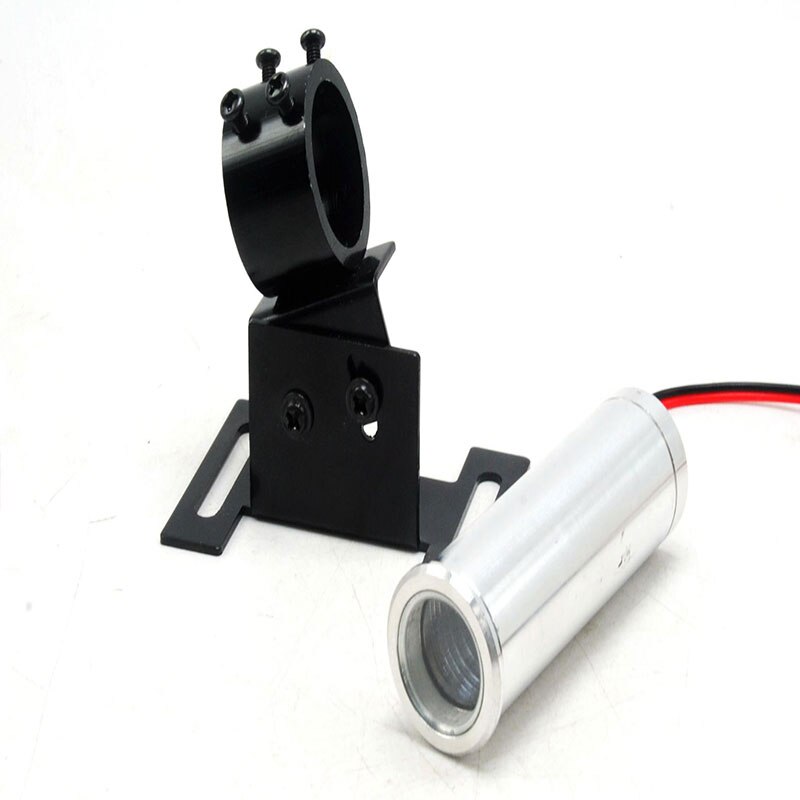

1pc 22mm Holder
