Product Overviews

Xinlandlaser have many types of dot laser diode module for different application.

The light spot can e ellipse and round shaped with varied beam size, aperture and divergence. The difference depends on the glass lens or plastic lens.

Customers can chose different types according to their specific applications.













Caution:

1. The laser light is harmful to human body especially to eye no matter what directly or indirectly.
The laser beam shall be observed or adjusted through infrared camera or equivalent.
2. Design your application so that the product is used within the range in the datasheet.
3. The above product specification is subject to change without notice.



Opctical and Electrical Characteristics



Model No.
Wavelength	405+/-5 nm
Spatial Mode	Multi mode
Output Power	100mw,200mw,300mW,500mW,1W
Operation Mode	CW or Modulation
Beam Size	6mm
Beam Divergence(full angle)	2mrad
Power Stability	<3% per 4 hrs
Temperature Stabilizing	TEC
Warm Up Time	<1 minute
MTTF	10,000 hrs
Laser head dimensions	XL-ML: 100(L)x34(W)x45(H)mm3 XL-NL: 100(L)x40(W)x50(H)mm3
Power Supply	A. OEM type XL-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input   B. Lab Adjustable type XL-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input
Modulation	0~30khz Analog or TTL

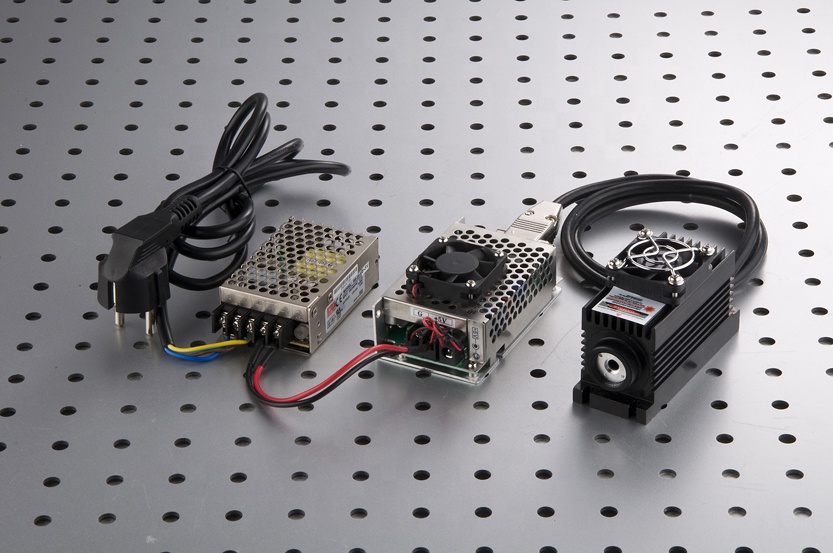

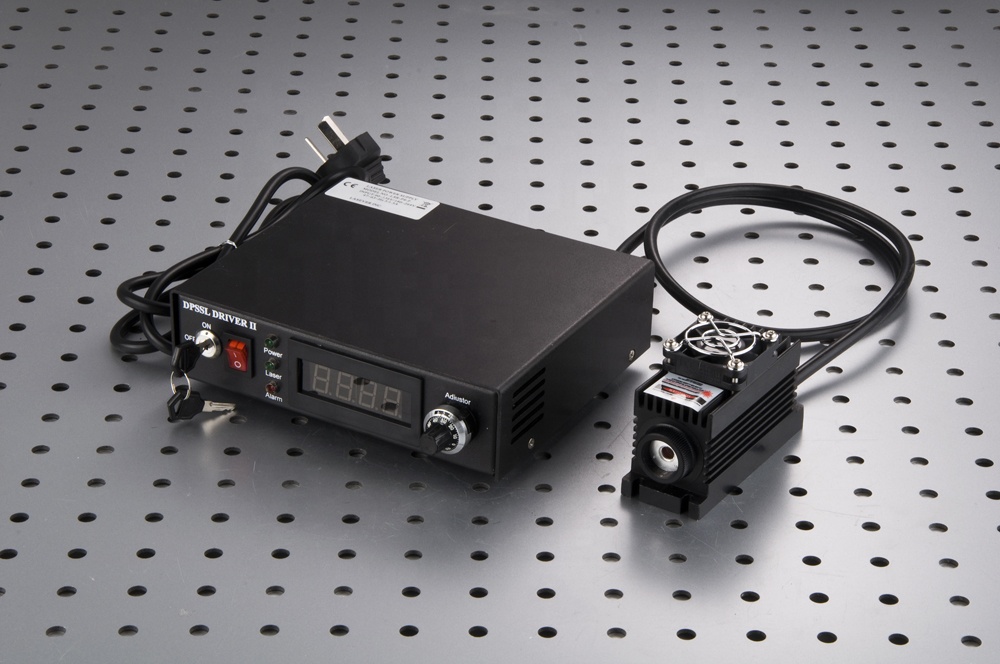

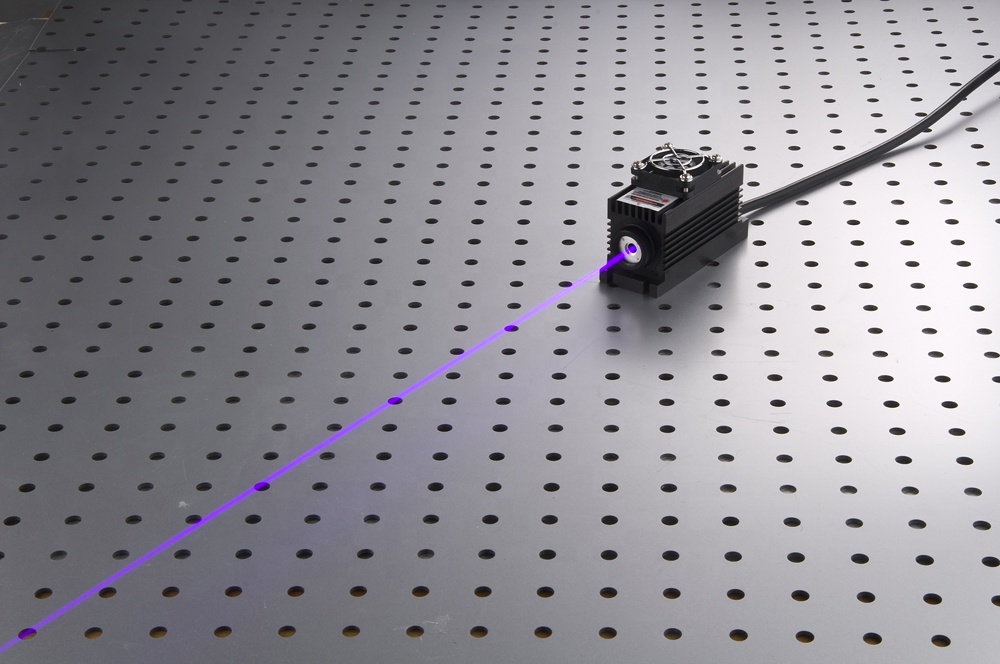

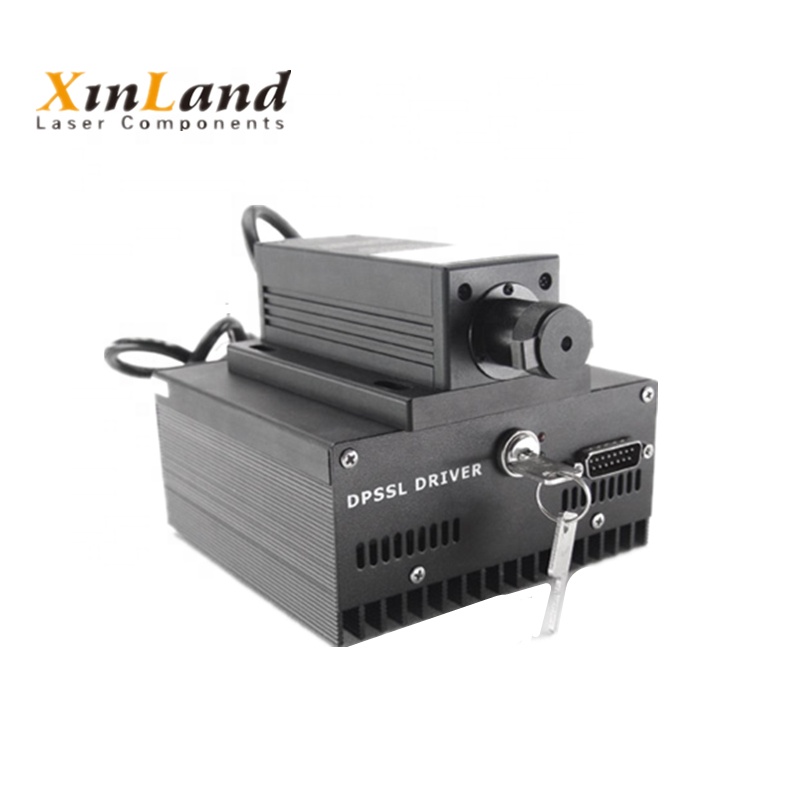

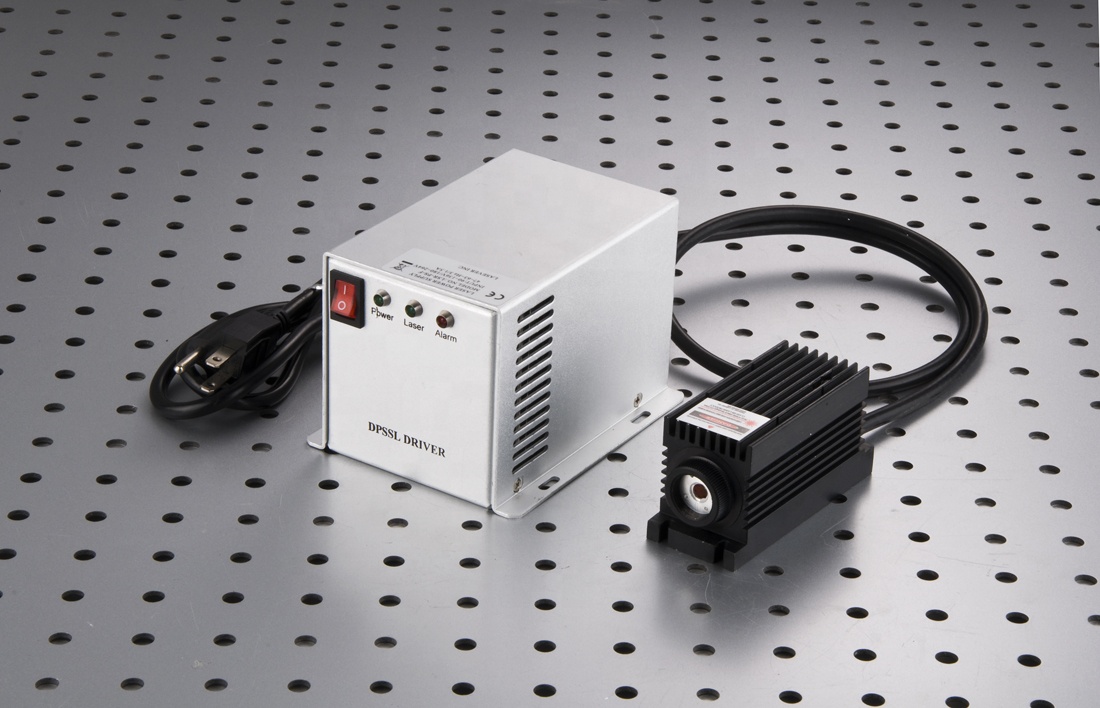

Detailed Images

 Before our Quotation pls confirm the specifications as following,

1 Output power
2 Housing Dimension
3 Working distance
4 Beam size/Line thickness
5 Wavelength







Key Features

1)Wide Temp. Operating
2)High brightness
3)High Reliability
4)Long Lifetime
5)Feasible Solutions
