Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: FB-05 FB-06 fiber laser marking machine
- CNC or Not: CNC
- Is Smart Device: No
- Effective marking area: 150*150mm
- With 1: Computer screen
- With 2: Wireless mouse
- Computer system: Computer system
- Output Power: 20W
- Fiber laser brand: Raycus
- Software: Gold Orange
- Date input: USB
- Wavelength: 1064nm
- Marking Speed: Max 7000mm/s
- Marking Depth: Max 0.3mm
- Min line Width: 0.015mm
- Min character Size: 0.15mm
- For metal: Gold, Silver, Stainless Steel, Brass, etc
- For non metal: Wood, ABS, Nylon,etc

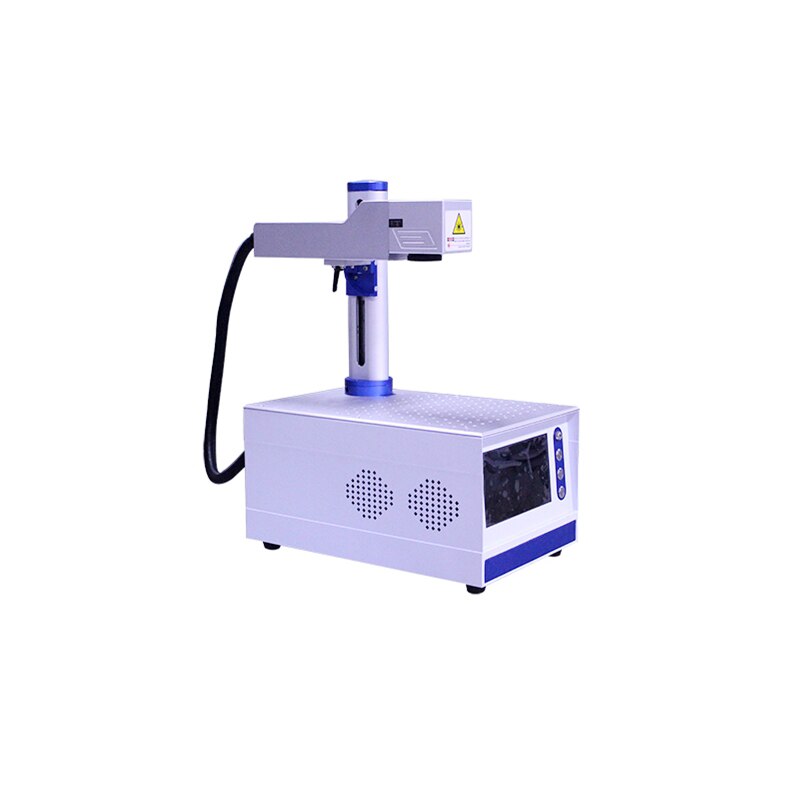

20W mini Portable Raycus fiber laser metal marking machine with computer for stainless steel aluminum gold silver brass wood pvc plastic diy cnc engraving
————————————————————————————————————————
Russia and EU Buyes FREE TAX!!!
We can send Seller’s Shipping Method land transportation (Train or car) to EU and Russia, DDP terms, we pay the tariffs , but it will take at least 30-40 days, buyers please wait patiently , thanks !
————————————————————————————————————————
Laser marking machines use laser beams to mark permanent surfaces of various subst-ances.
The effect of the marking is to reveal the deep material through the evaporation of the surface material, thus engrave the exquisite designs, trademarks and texts.
It can be used for marking logo, serial number, bar code and other beautiful patterns.

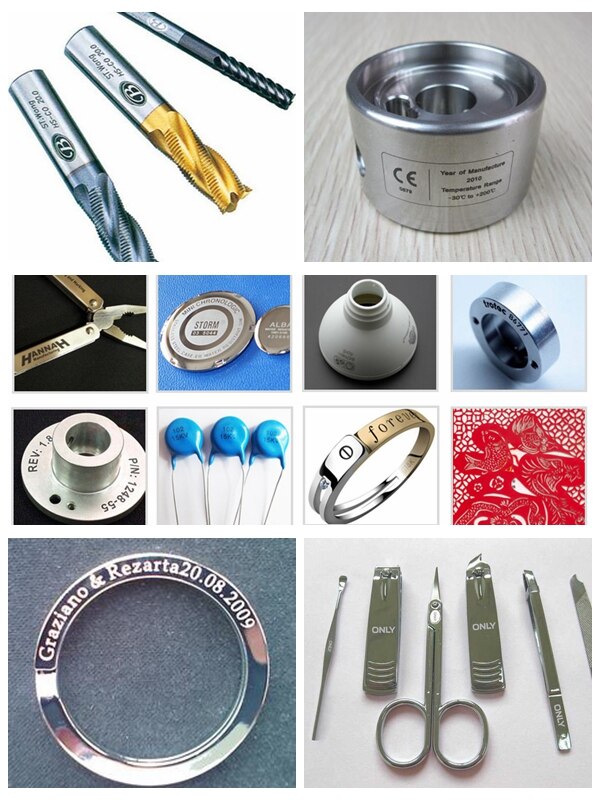

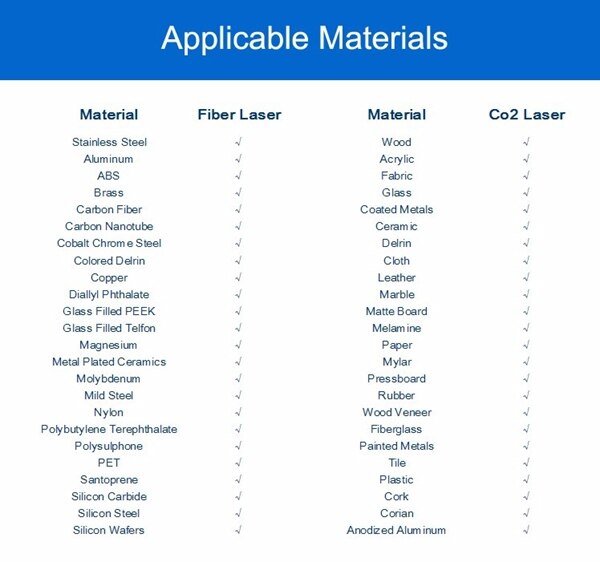

Applicable Materials
Fiber laser marking machine is suitable for most metal, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, chrome Brass etc.
It can also mark on many non-metal materials, such as wood, ABS, Nylon, PES, PVC, Makrolon, silicon wafer, ceramics, plastic, rubber, epoxy resi, Printing ink, Plating, Spraying, Coating film etc.
Applicable industries
Phone keys, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, buckles cookware, stainless steel products and other industries.
Technical parameter
|
Description
|
Fiber laser marking machine
|
||
|
Model
|
FB-05
|
FB-06
|
|
|
Computer screen
|
7 inches
|
10 inches
|
|
|
Control
|
Wireless mouse
|
||
|
Computer system
|
Win 7 64 bits.
|
||
|
Output Power
|
20W
|
||
|
Fiber laser brand
|
Raycus
|
||
|
Software
|
Gold Orange (Developed by LY.GROUP.CHINA)
|
||
|
Date input
|
USB
|
||
|
M2 Beam Quality
|
＜2
|
||
|
Wavelength
|
1064nm
|
||
|
Pulse frequency
|
20KHz -100KHz
|
||
|
Effective marking area
|
150*150mm
|
||
|
Marking Speed
|
≤7000mm/s
|
||
|
Marking Depth
|
≤0.3mm
|
||
|
Min line Width
|
0.015mm
|
||
|
Min character Size
|
0.15mm
|
||
|
Repeating Accuracy
|
±0.003mm
|
||
|
Weight
|
40kg
|
||
Packing List:
1 x Fiber laser machine FB-05 or FB-06
1 x Power cord
1 x Rule
1 x Foot pedal
1 x USB line

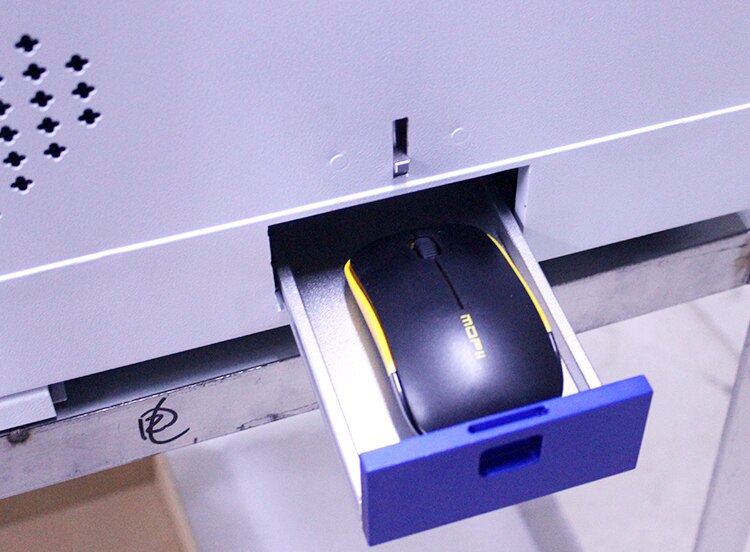

1 x Wireless mouse
1 x USB disc

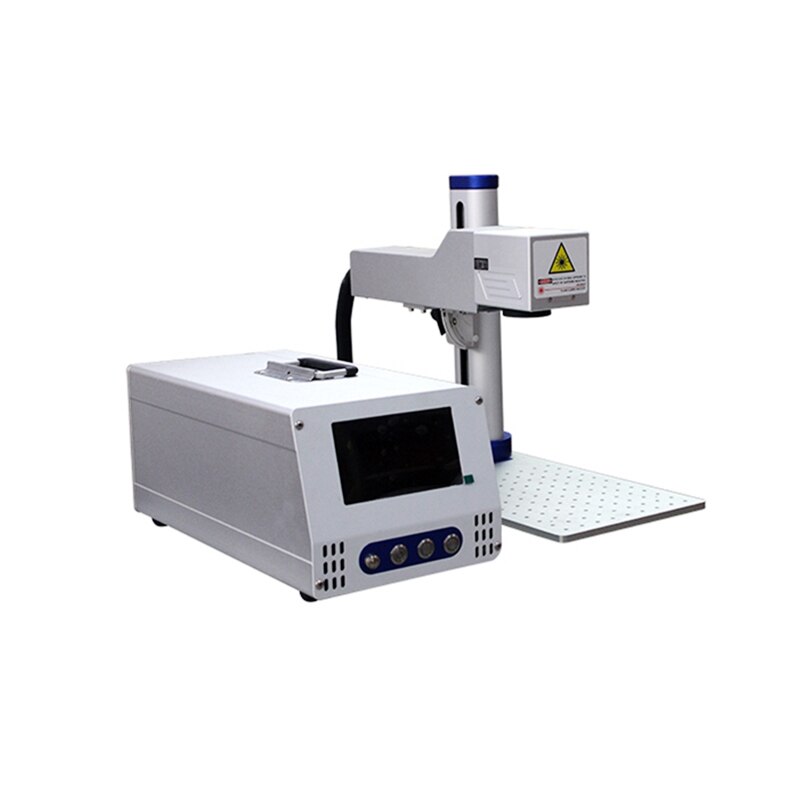

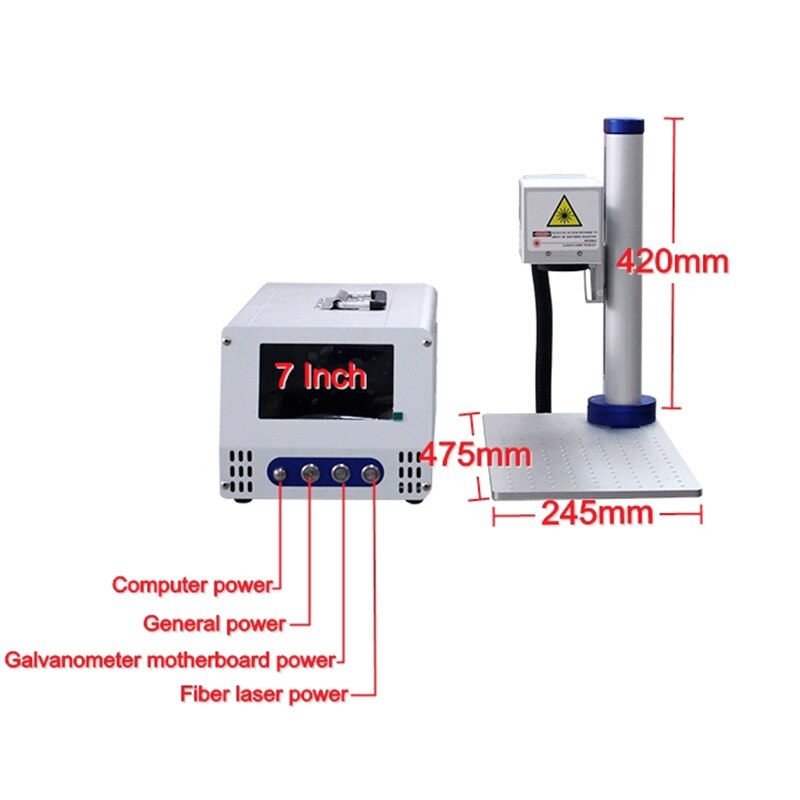

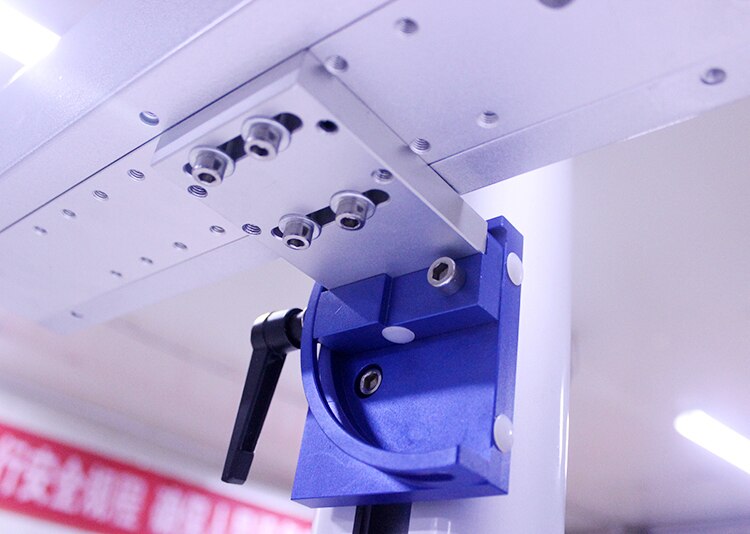

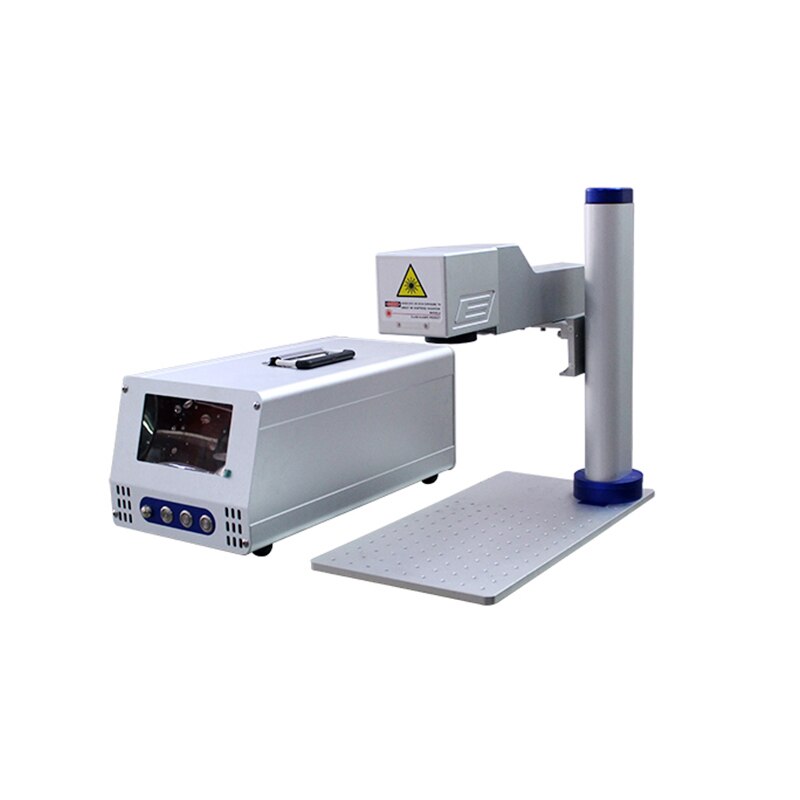

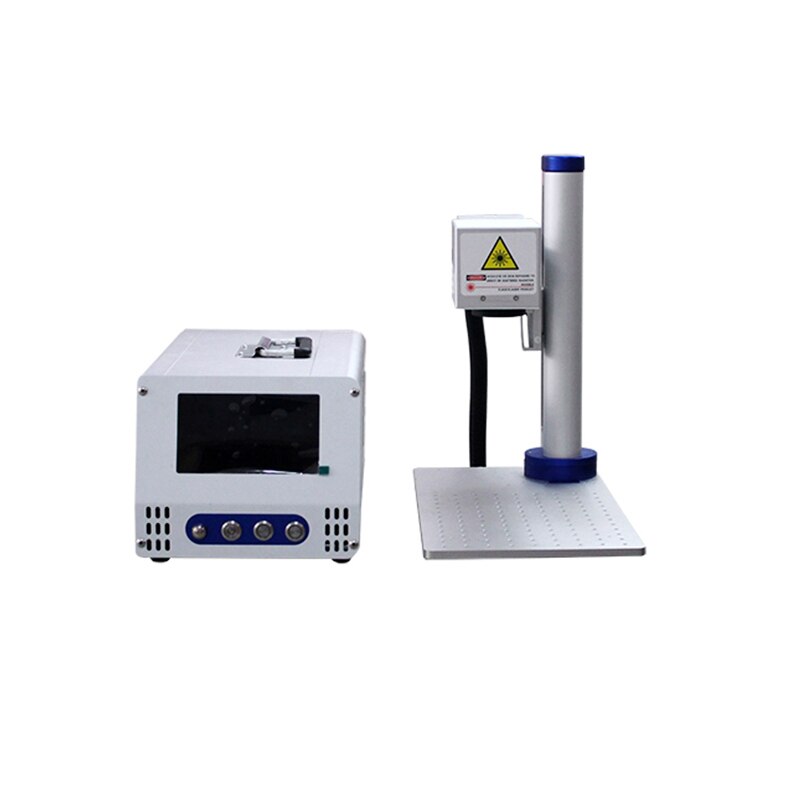

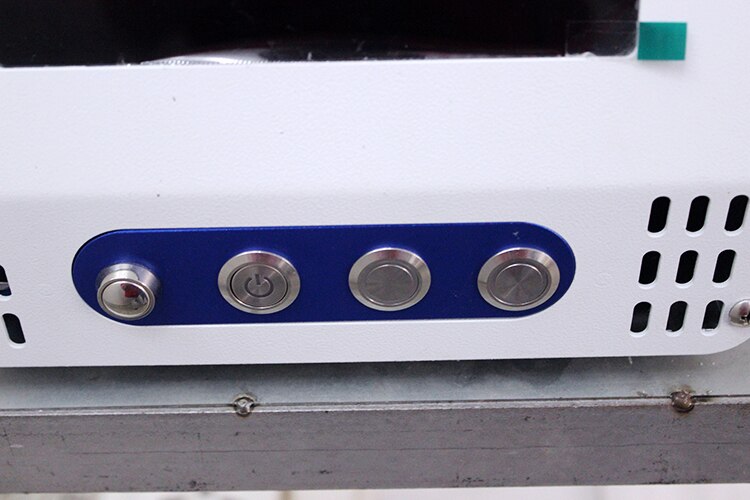

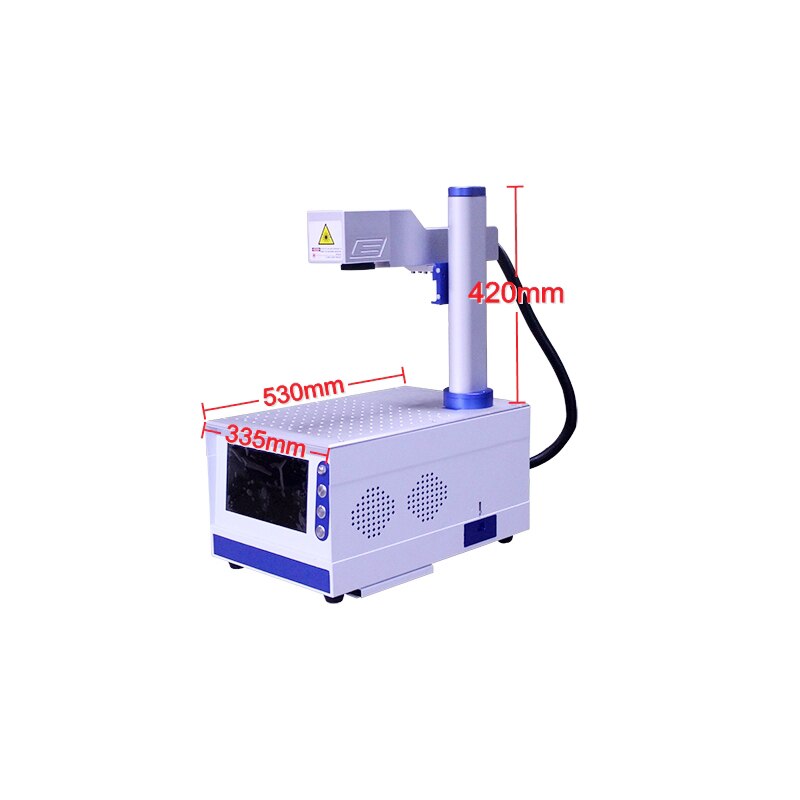

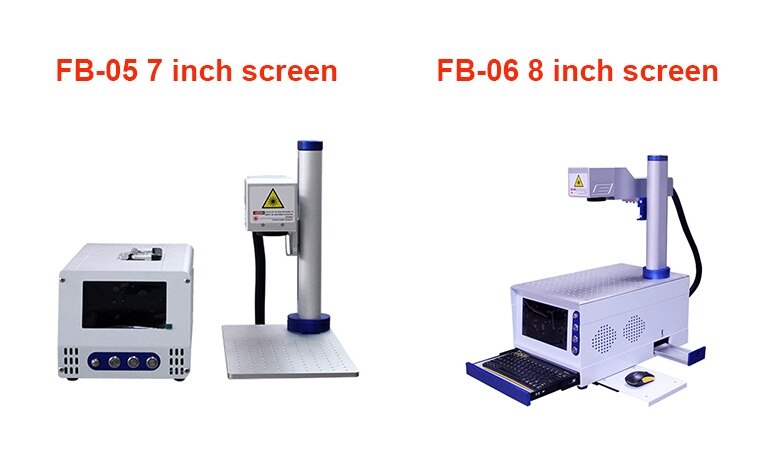

FB-05 Fiber Laser Machine Details

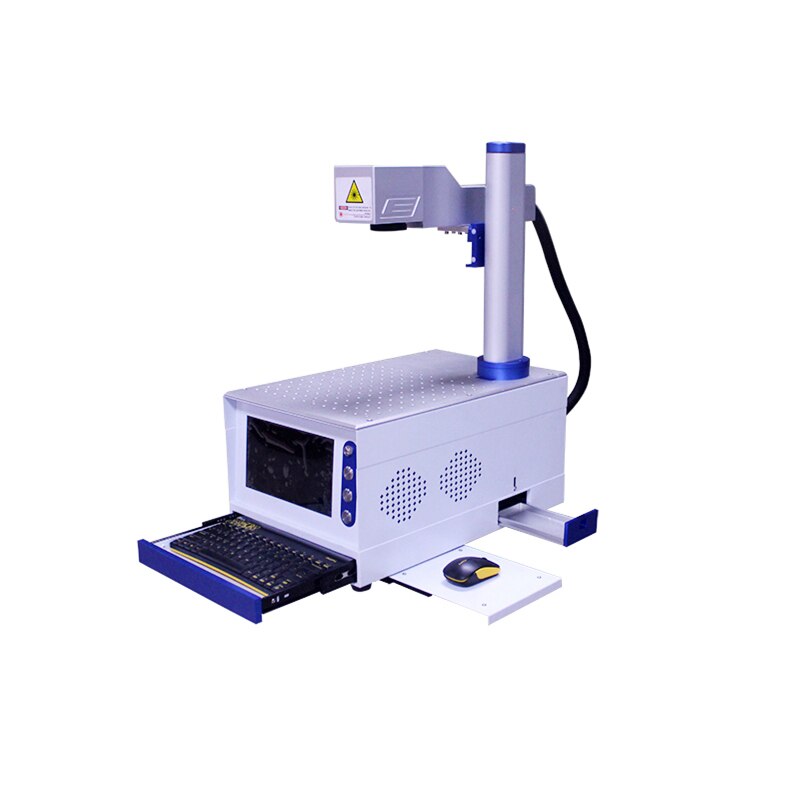

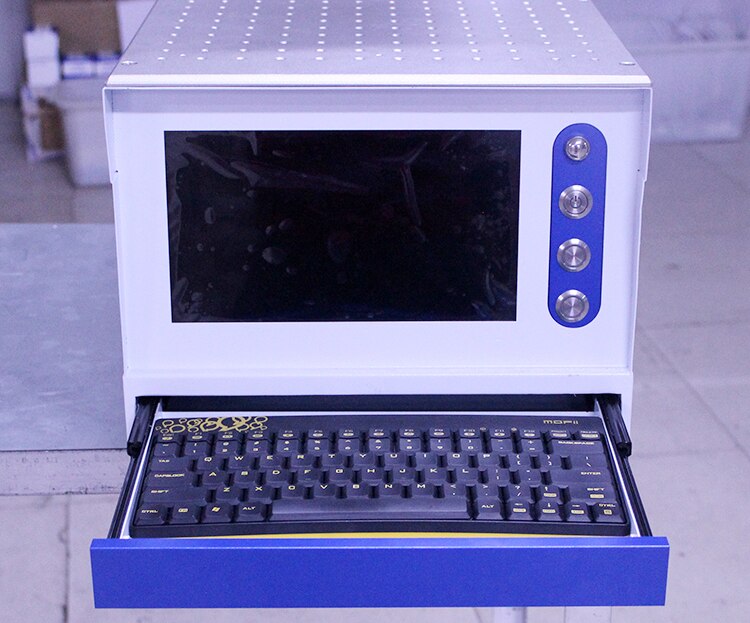

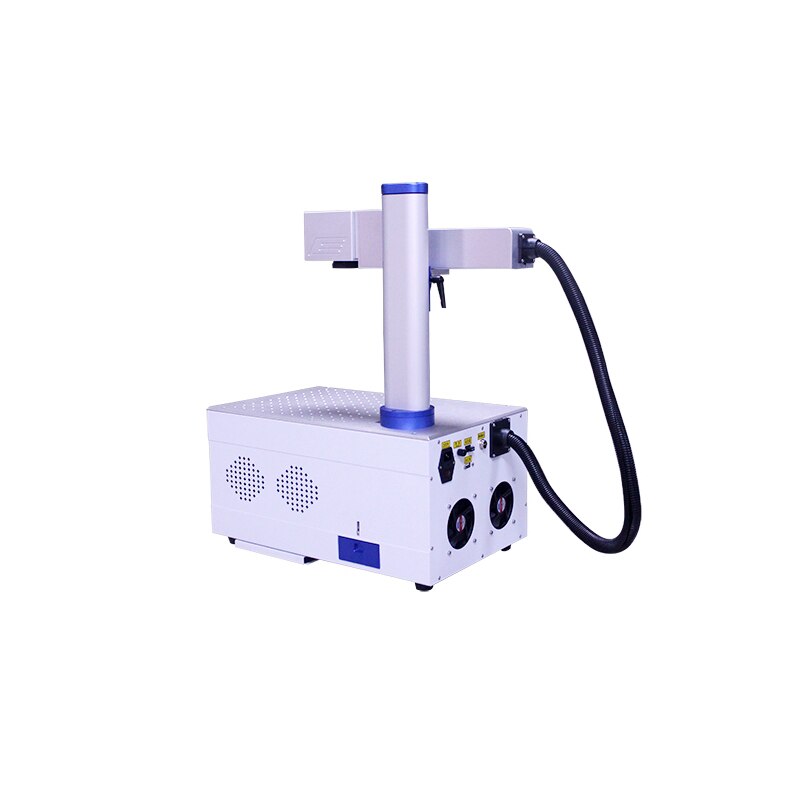

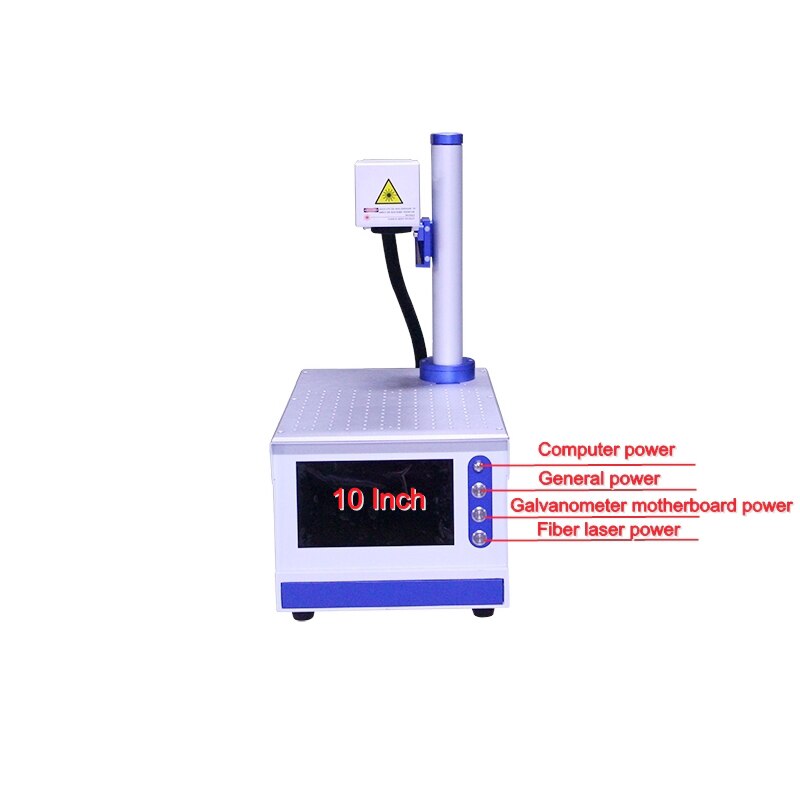

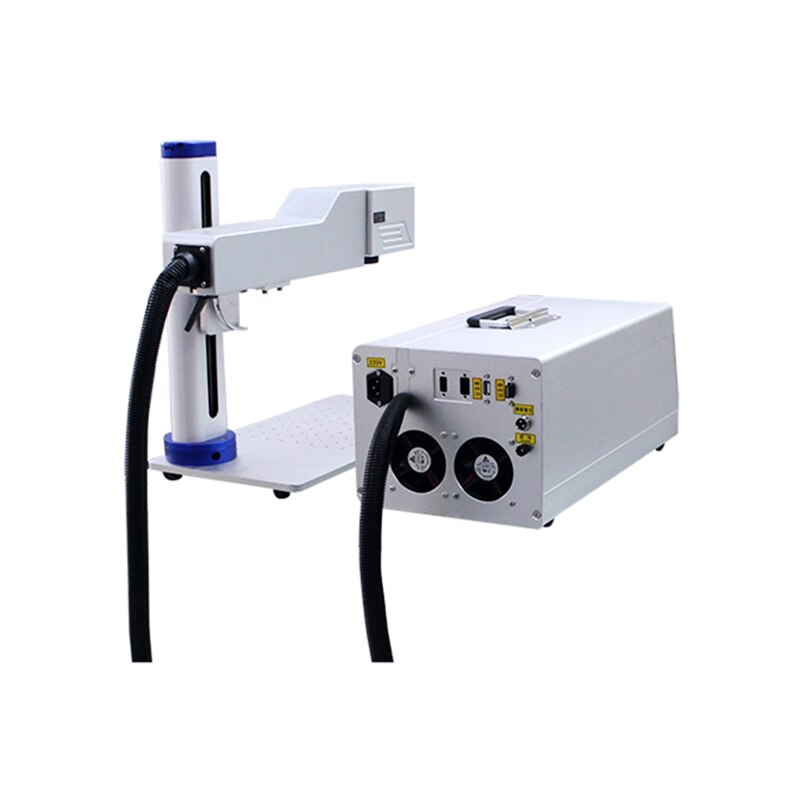

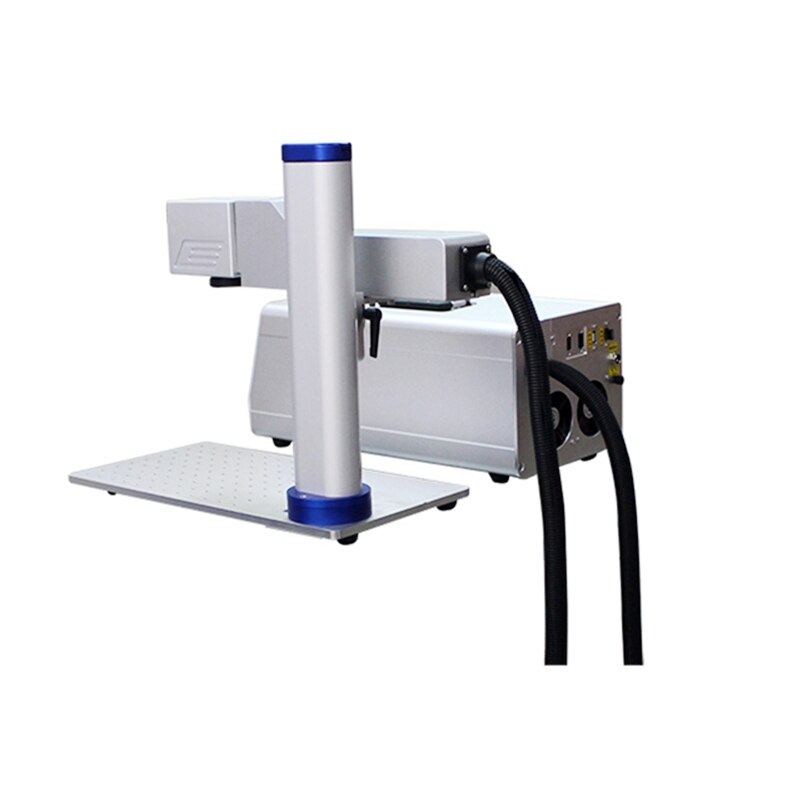

FB-06 Fiber Laser Machine Details
