Description
- Brand Name: IGOLDENCNC
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 20
- CNC or Not: CNC
- Keywaords: fiber laser marking machine
- Working area: 110*110/200*200/300*300mm
- Laser power: 20/30/50W
- Control system: Beijing JCZ
- Working table: 2D/3D
- Application: Metal, plastic, gold, silver etc

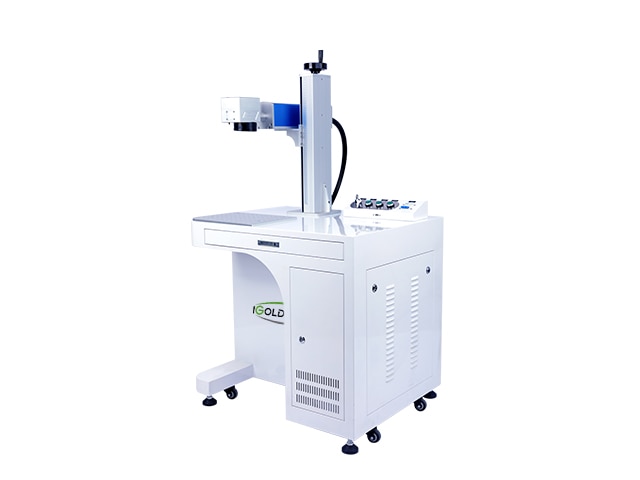

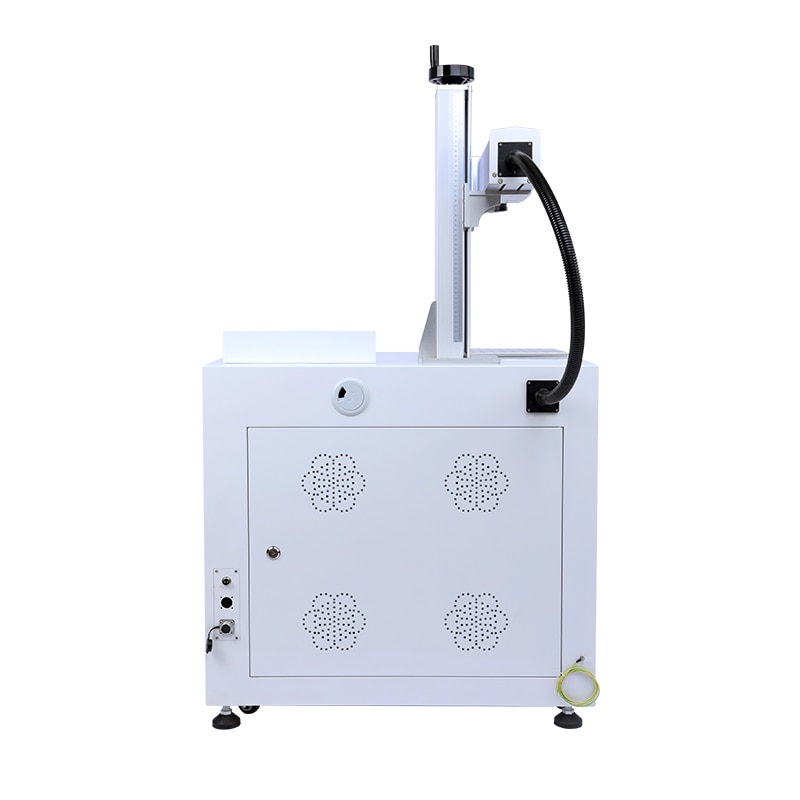

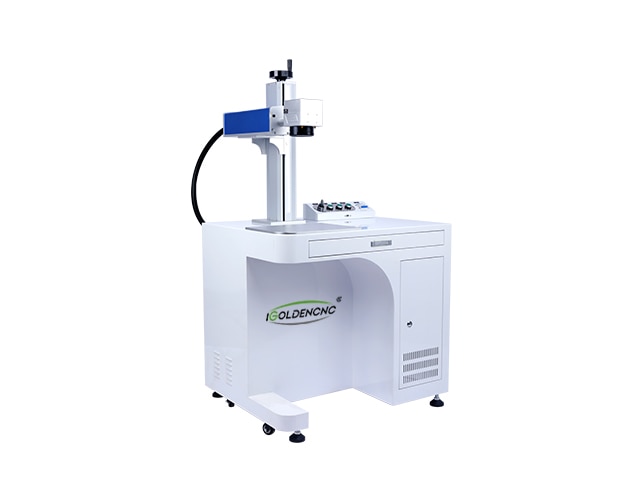

20w fiber laser marking machine 30w 50w laser marking machine price
Features:
1.Adopts the USA RF laser generator, high speed scanning vibrating lens and extending focusing system, high precision, high speed.
2.Red light positioning system,ensure accurate positioning,avoid waste.
3.Professional marking software owns strong graphics drawing and editing funcion,enable direct marking of color graphic or marking after color convert from RGB to grey scale.
|
Model |
20w 30w 50w 3d fiber laser marking machine |
|
Laser power |
20W/30W/50W |
|
Working area |
110*110mm/70*70mm/90*90mm |
|
Laser Wavelength |
1064nm |
|
Response time |
0.5m/s |
|
Frequency of pulse |
20-80KHz |
|
Max marking depth |
≤0.005mm |
|
Marking speed |
≤7000mm/s |
|
Marking lines |
1-10 lines(in the marking area) |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.15mm |
|
Repeatability accuracy |
±0.005mm |
|
Resolution ratio |
0.1mm |
|
Marking content |
Text,pattern,date,bar code,etc |
|
Operation system |
Microsoft Windows XP or Windows 2000 |
|
Control software |
JCZ |
|
Graphic format supported |
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
|
Unit power |
≤1.2KW |
|
Operation temperature |
5℃-35℃ |
|
Relative moisture |
≤ 90%,no fog |
|
Supply Voltage |
220V/50Hz/10A |
|
Focusing system |
Autofous and electric Bella |
|
CO2 marking machine |
Non-metal,fabric,leather,wooden packing,paper packing,acry;ic pipe,PET,plastic,som of the paint layer,ceramics,glass |
|
Fiber marking machine |
Ordinary metal,rare metal and alloy,alloy powder,ceramic materials,after surface treatment of metal,oxides,plastics.polymers 3M label paper. |
|
Portable marking machine |
This device can print the minium character height is 0.8mm-18mm,suit for cable,auto parts,cosmetics,pharmaceutical and some industries which need micro character in small product |
All the machine can be customized according to your own requirements. For example the machine is designed with linear or carouse tool changer, the amount of head or spindle can be added, also the rotary device is allowed to be installed on the machine……All in all, all the specification of machine can be customized!!! Now just click the following machine for more details!
|
|
|
|
|
ATC CNC Machine |
Pneumatic Multi Spindles |
Plasma CNC |
shandong igolden cnc technology co. ,ltdis a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
