Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AK6090F
- CNC or Not: CNC

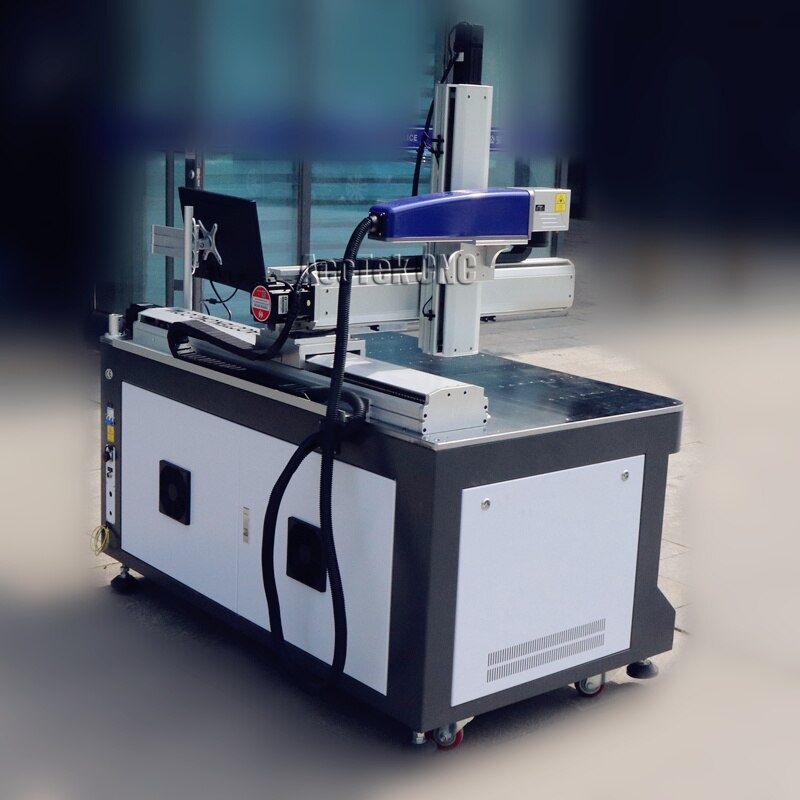

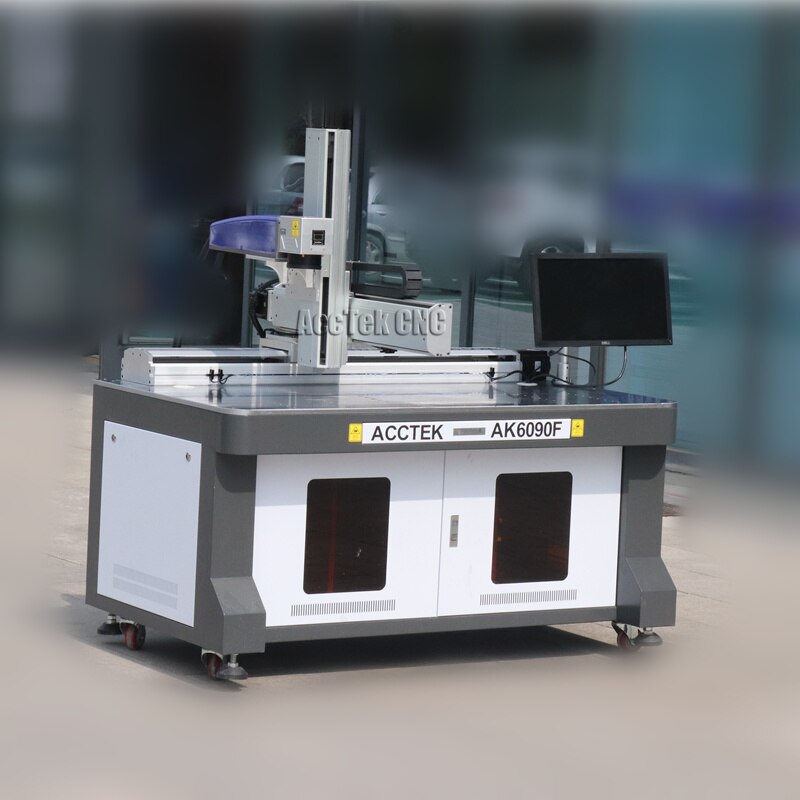

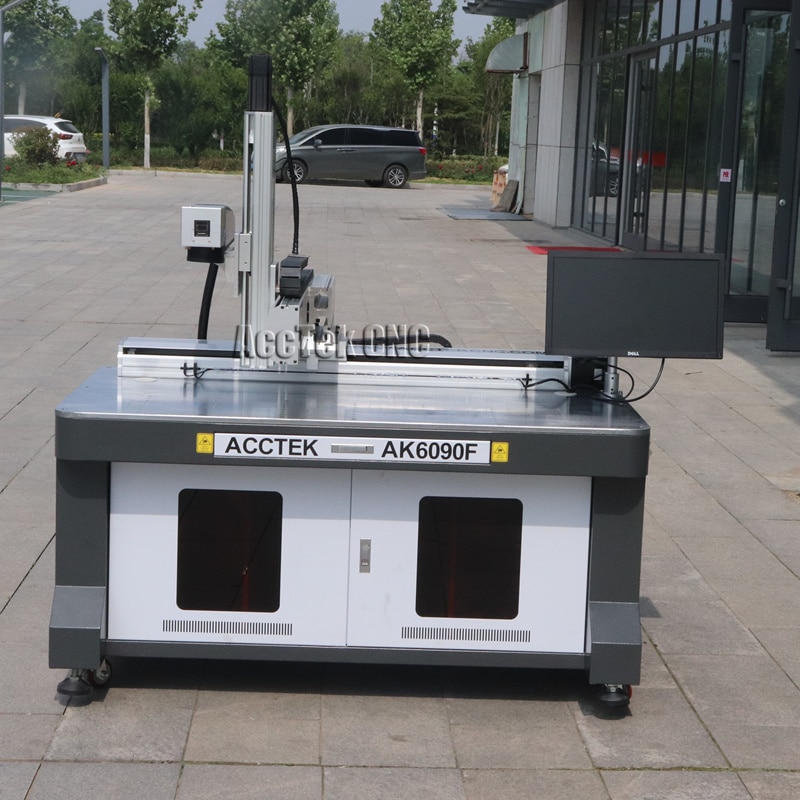

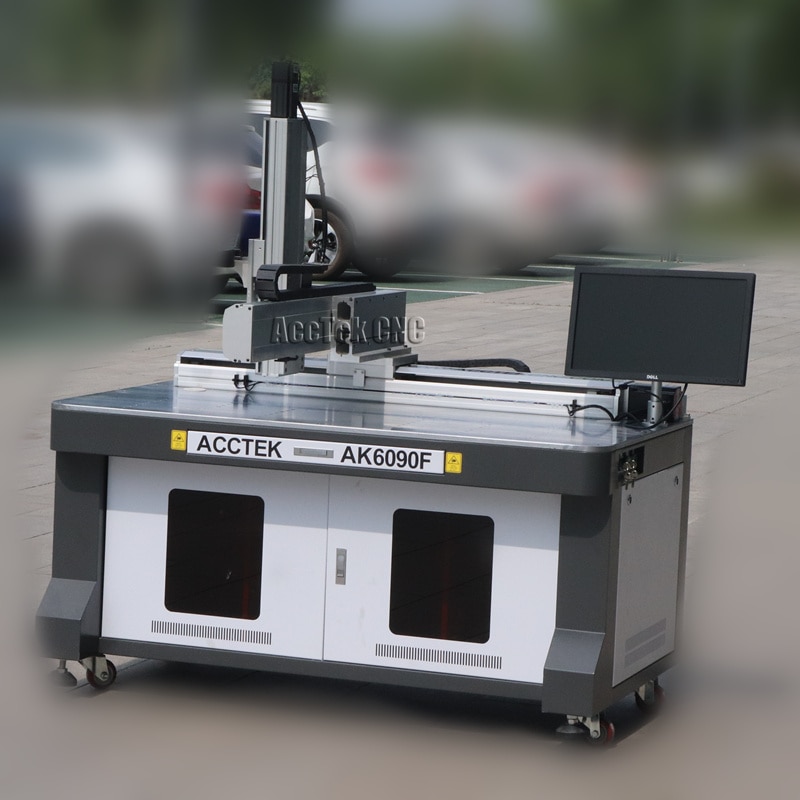

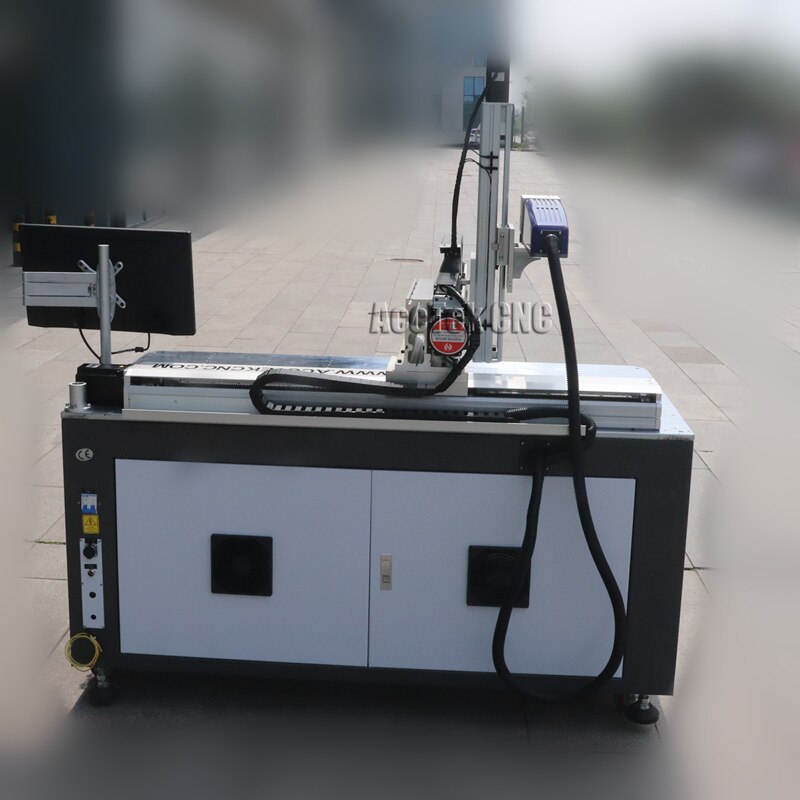

- Product name: Fiber laser printer engraver marking machine
- Applicable Material: steel, iron, copper, aluminum etc
- Laser wavelength: 1064nm
- Rotary device: Optional
- Marking depth: 0-0.4mm
- Graphic Format Supported: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
- Working Accuracy: 0.001mm
- Cooling mode: Air Cooling
- Control Software: EZCAD
- Warranty: 18 months
Contact Person: Miss Monica Yang
E-mail: export05@acctekcnc.com
20W 30W 50W 100w deep engraving mopa color ipg fiber laser metal engraving machine 3d fiber laser marking machine price
1) Compact:The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
2) High Precision:Re-position precision is 0.002mm
3) High Speed:Imported scanning system makes the scanning speed is up to 7000mm/s
4) Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5) High Reliability: MTBF>100,000 hours
6) Energy Saving: The efficiency of optic-electrical converting is up to 30%
7) Low Running Cost: No consumable parts. Free maintaining.
|
Model
|
AK6090F
|
|
Laser Generator
|
Raycus/IPG/JPT
|
|
Laser Power
|
20W/30W/50W
|
|
Laser Length
|
1064nm
|
|
Quality of Lase Beam
|
m2<1.5
|
|
Laser Repetition Frequency
|
≤100 KHz
|
|
Standard Marking Area
|
600*900mm
|
|
Engraving Depth
|
≤1.2mm
|
|
Engraving Speed
|
≤12000mm/s
|
|
Minimum Line Width
|
0.01mm
|
|
Minimum Character
|
0.05mm
|
|
Resolution Ratio
|
±0.001mm
|
|
Gross Power
|
≤500W
|
|
Working Voltage
|
200V/50Hz/10A
|
|
Cooling Mode
|
Air cooling
|
Applicable MaterialsIt is capable of carving the metal materials and partial non-metal materials, especially suitable for some fields required more precise and higher smoothness.Applicable IndustryIt is widely used in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelry accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.
1) Guarantee18 months guarantee of the whole machine, 6 months guarantee of the laser tube.2) Software issueOur technician is able to re-install or set up by remote for free.3) Hardware issueMain parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.4) Support onlineOur technician is able to teach you online to run the machine or eliminate the fault for free.5) Training in AccTek factoryWe are able to train your staff after placed order in our factory for free.6) On-site training (Recommended, the most effective way)We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs(flight, visa, hotel, training costs, etc.)
