Description

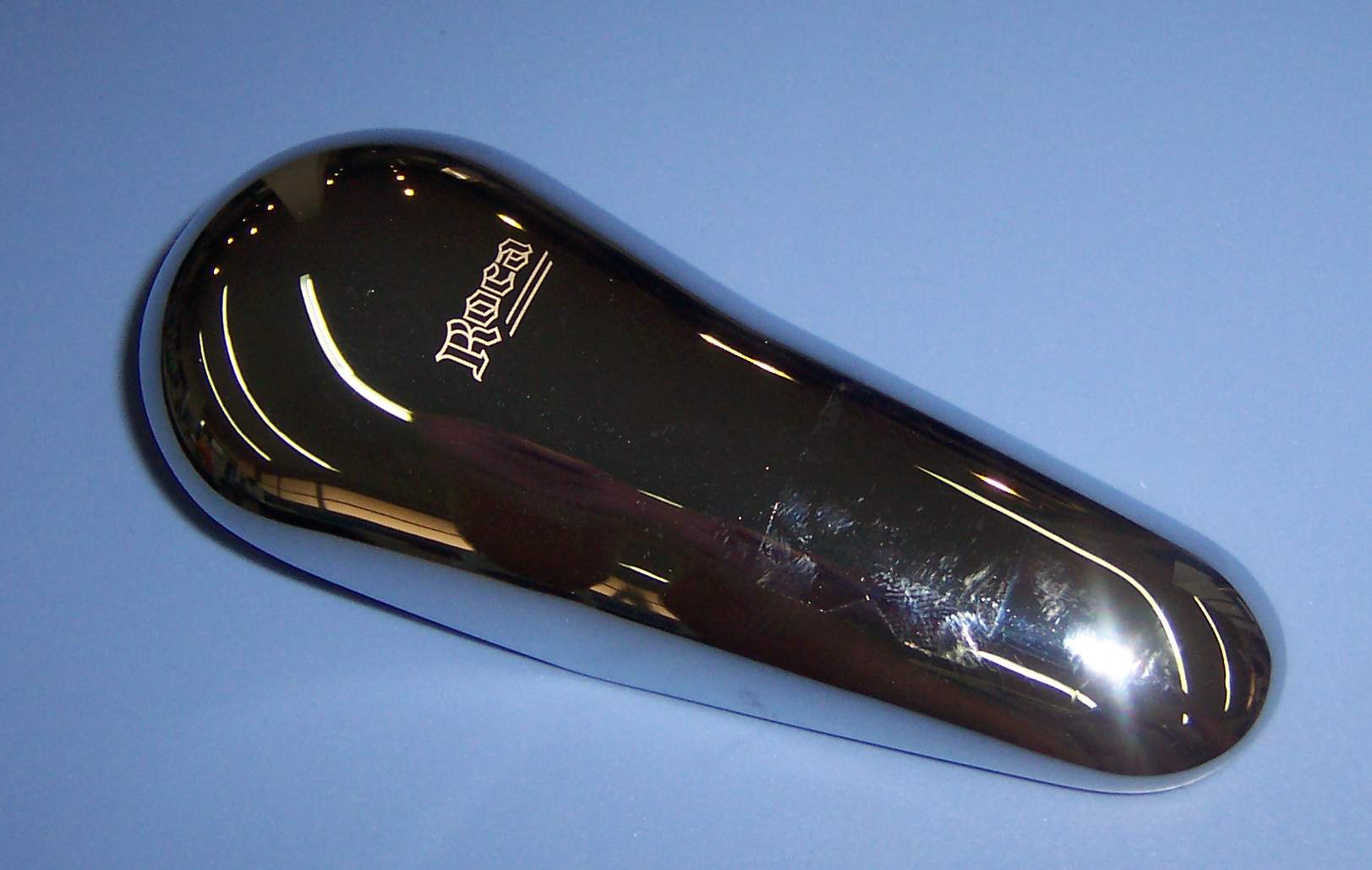

20W 30W 50W Fiber Laser Marker For Metal Faucet

Technical Parameter

Model	ASML-P03
Laser source	20W 30W 50W(Raycus / MAX  or JPT)
Working  Area	110*110mm, 150*150mm or 175*175mm, 200*200mm, 300*300mm optional）
Cooling Mode	Air Cooling
Laser Wavelength	10.64 um
Frequency of pulse	30-60 KHz
Marking Depth	≤0.3 mm
Marking Speed	7000 mm/s
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, qr code, etc
Operation System	Microsoft Windows XP , WIN 10
Control Software	EZCAD, multi-language for option
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Power consumption	≤500 W
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Package Dimensions(L*W*H)	83 x 52 x 59cm
Power supply requirements	220 V or 110V
Weight	55KG
Warranty	24 months

ACCESSORIES

20W / 30W / 50W Raycus laser marking machine	1set
U disk	1 piece
Hexagon tools	1 piece
fixed position Bar	2 pieces
Foot switch	1 piece
Test metal cards	1 Package
Power wire	1 piece
USB wire	1 piece
Screw	1 package
Laser Goggles	1 piece

Functions:laser marking / printing / engraving on all metal material and some plastic material.

This fiber laser marking machine is suitable for marking custom logo, text, symbol, pattern,

barcode, 2D code, serial number, etc.

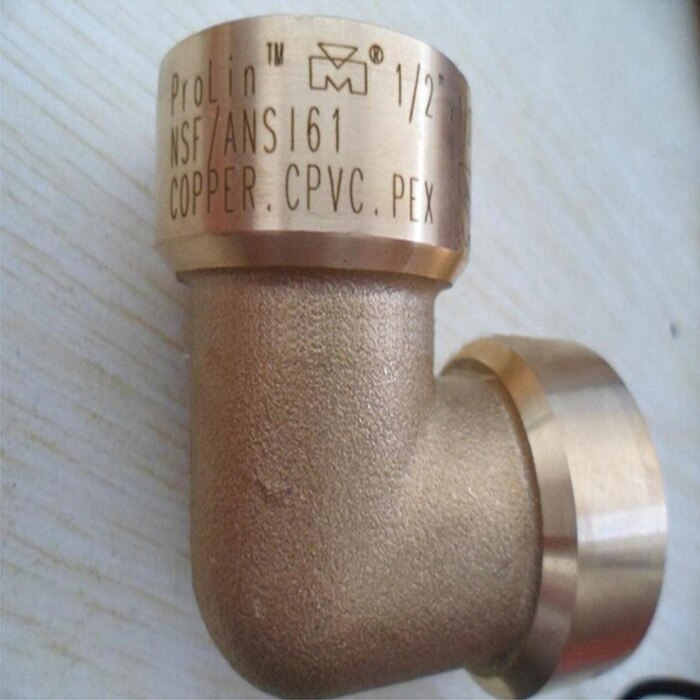

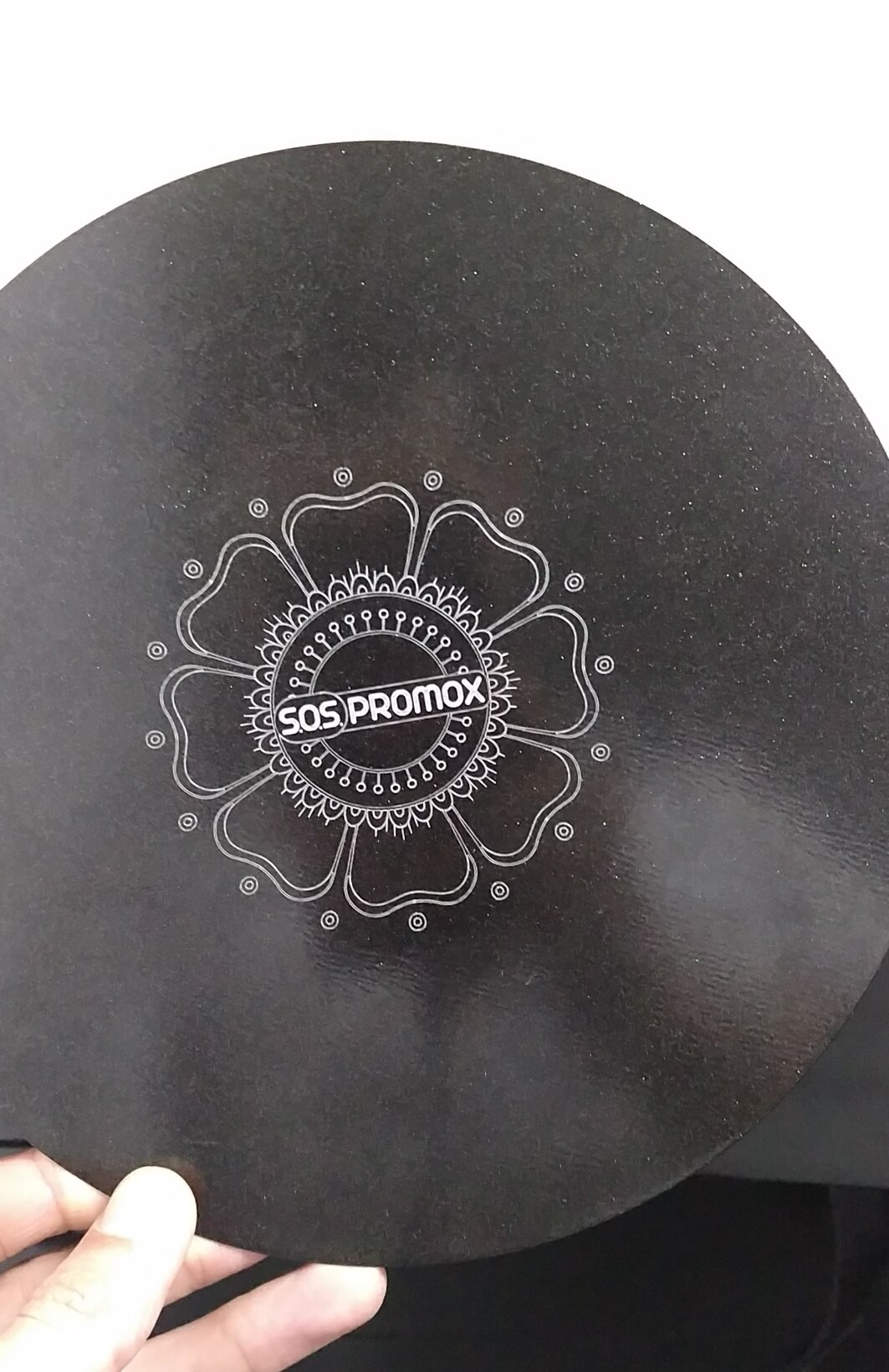

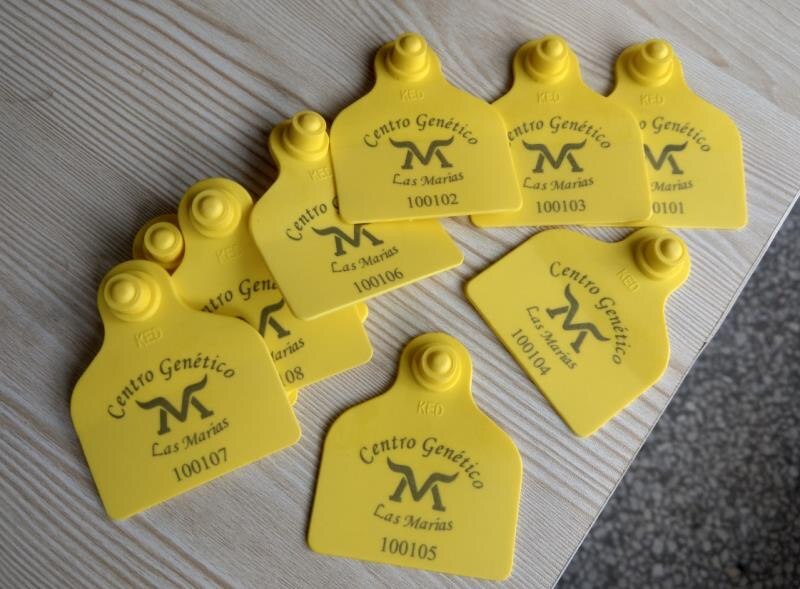

Applicable material: Gold, copper, silver, aluminum, anodized aluminum, stainless steel, carbon steel, chrome, alloy, plated metal, PVC plastic, ABS, etc

Main Features:

1.Fiber laser marking machine can mark on flat surface or round surface with rotary jig, like rings inside and outside, pipes,bottles, etc.

2.Working area:  70*70mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm for option.

3.Laser source: China top brand Raycus, MAX and JPT for option. Lifetime is up to 100000+ hours.

4. High speed SINO-Galvo scanner head,china top brand.

5.Red light preview shows the marking position before laser marking.

6.double red pointer help to adjust the focus distance. Easy to marking on different workpiece.

7. Permanent marking on products, can’t be erased.

8. No consumables, free maintenance

9. High precision, fast marking. Air cooling, small size,low power consumption.
