Description

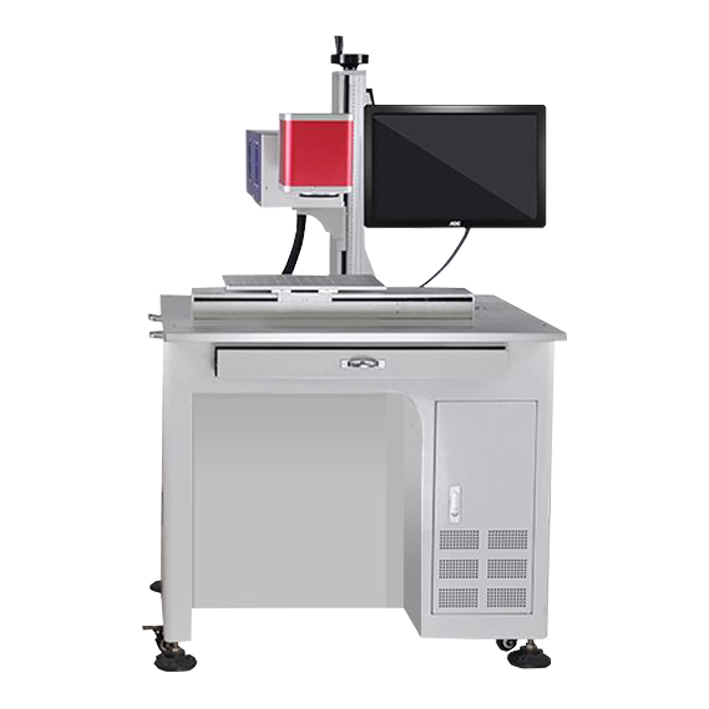

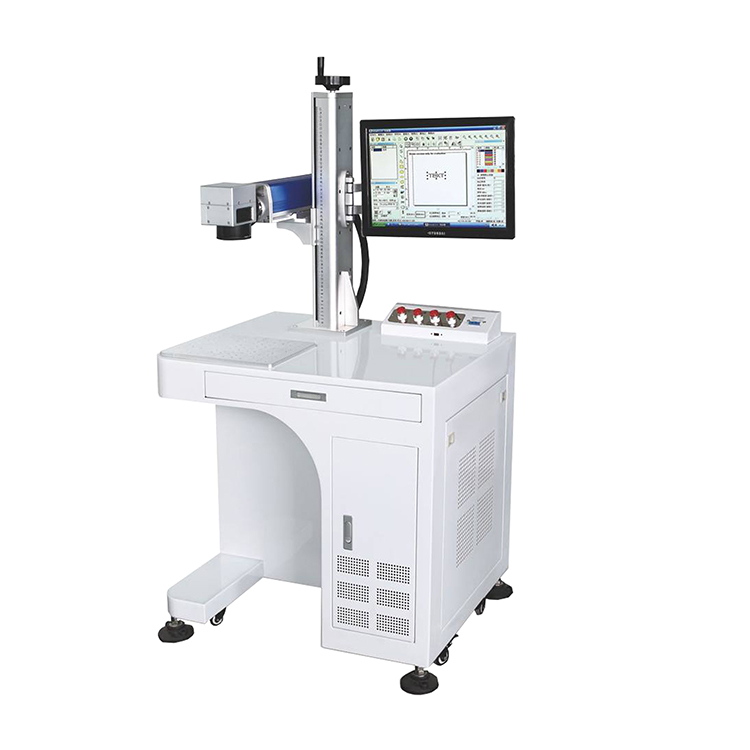

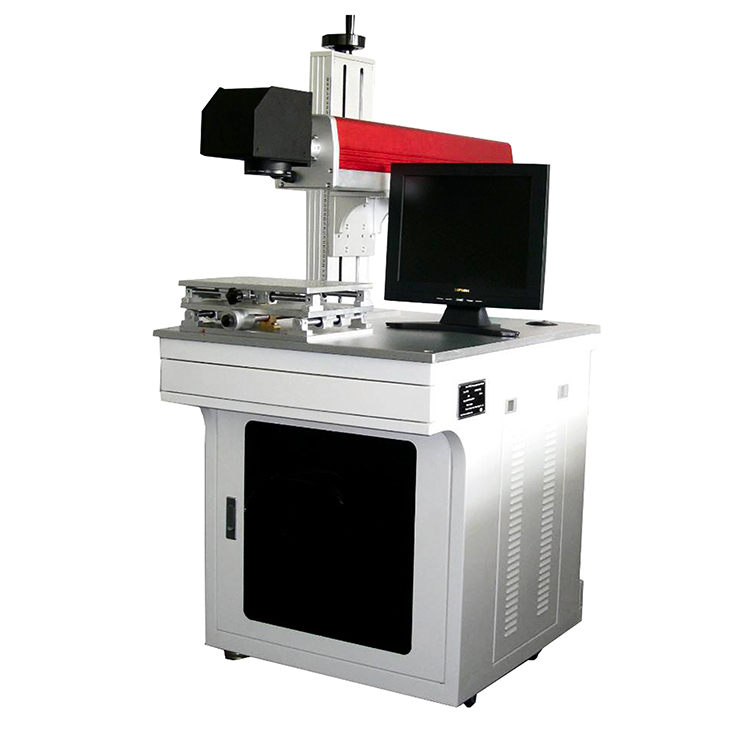

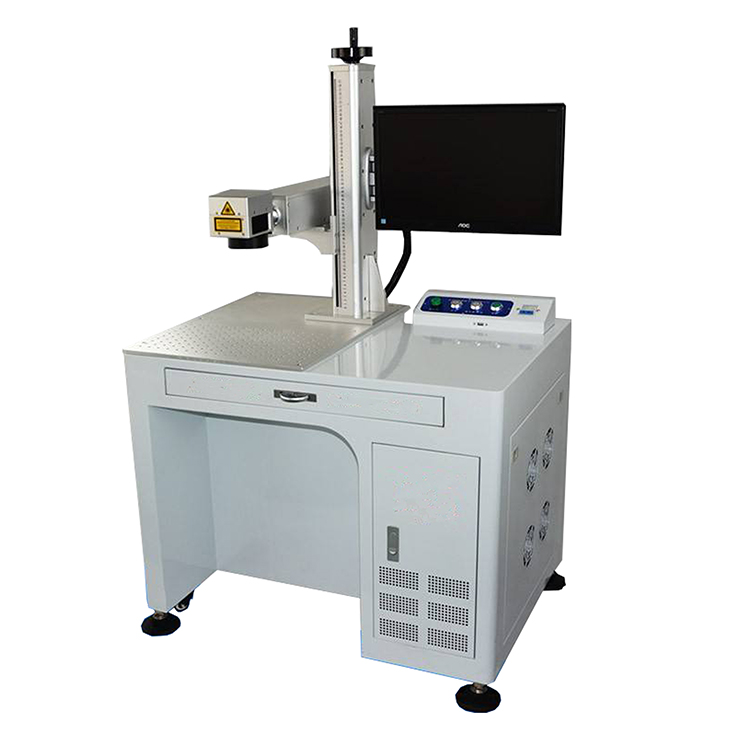

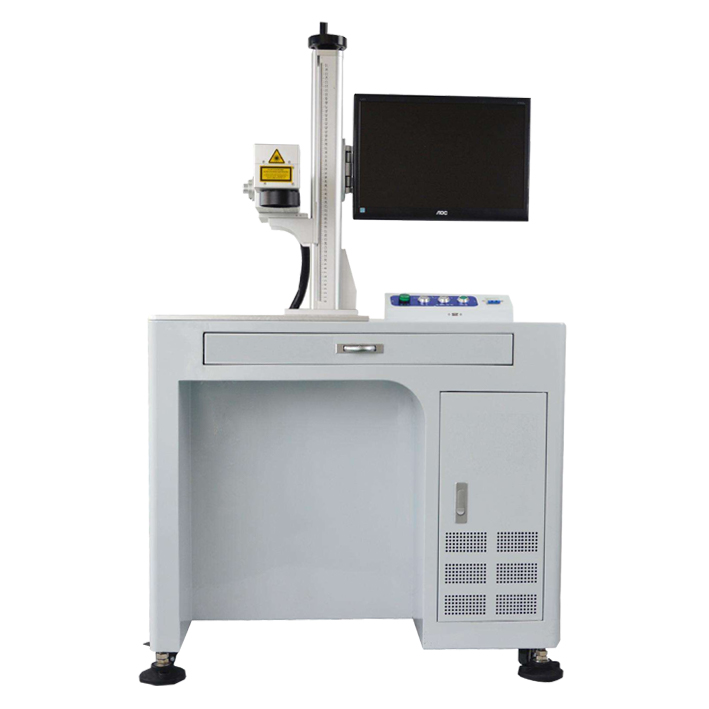

20W/30W/50W/70W/100W fiber laser marking machine price
1.High speed with galvanometer
2. Small volume,light weight;
3.Low power, consumption power is less than 500w.
4.Completely air cooling,low energy.
5.No influence of the severe environment and temperature change.If no power,battery and car cigarette lighter can be used for working;
6.Greatly reduce the depreciation cost,satisfying customers’stable large qantities produing.
|
Model Type |
MK-20M |
|
Max laser power |
20W |
|
Marking area |
100*100/200*200/300*300/600*600/800*800mm |
|
Laser type |
Co2 metal tube |
|
Laser source |
DAVI,Leiye ,Synrad,Coherent |
|
Laser repetition frequency |
≤50KHZ |
|
Marking speed |
8000mm/s |
|
Laser waver-length |
10.64u m |
|
Marking depth |
0.01mm—0.3mm |
|
Min. Line width |
0.015mm |
|
Min.character size |
0.4mm |
|
Repetition accuracy |
±0.01mm |
|
Cooling mode |
Air cooling or water cooling |
|
Total power consumed |
≤2KW |
|
Power supply |
220V/380V(50-60HZ) |
|
Suction machines |
optional |
1. co2 laser High quality SYNRAD BRAND metal laser tube importable from USA
2. Mainboard (Add anti-static device)
100% Genuine EZCAD board Quality Genuine
EZCAD control board andprogram(BJJCZ
brand) which support XPWIN7 /8 /10 32/64
bit operating system.
3. Galvanometer
Best quality co2 digital Galvotech scan head
4.Quality Wavelength optical lens
we have optional size:110*110mm,150*150mm,175*175mm,200*200mm,300*300mm etc.
