Description
- Brand Name: IGOLDENCNC
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: laser marker
- CNC or Not: CNC
- F-theta lens: Wavelength brand from Singapore
- Cooling way: Air cooling
- Modulation: 20kHz~80kHz
- optical maser: Raycus laser
- Repositioning precision: ±0.005mm
- Manual working table stroke: Movements itinerary 285 mm (desktop type)
- Keywords: Fiber Laser Markng Machine
- customized: laser marker machine

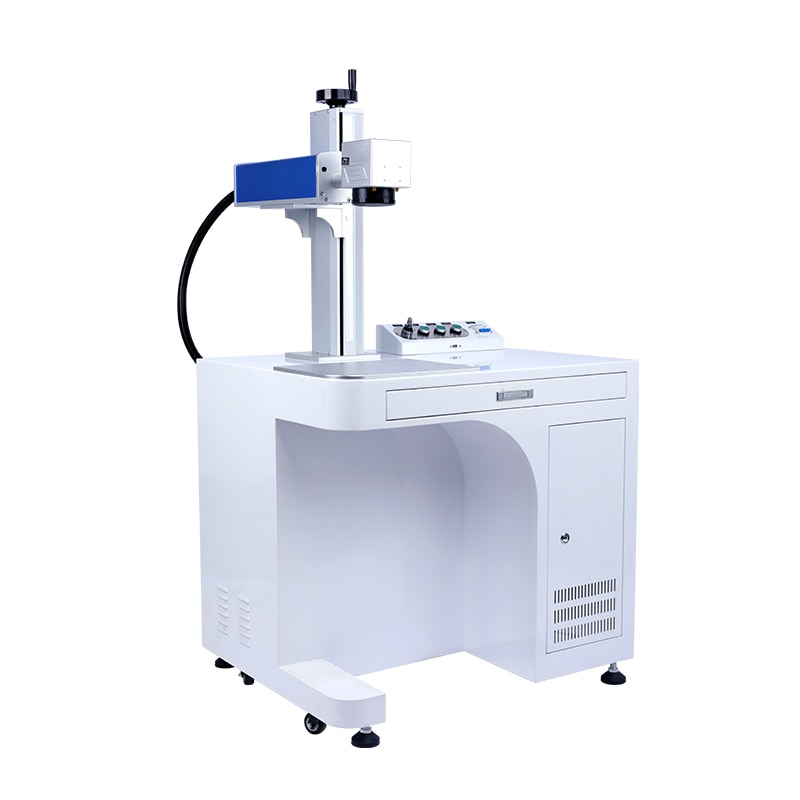

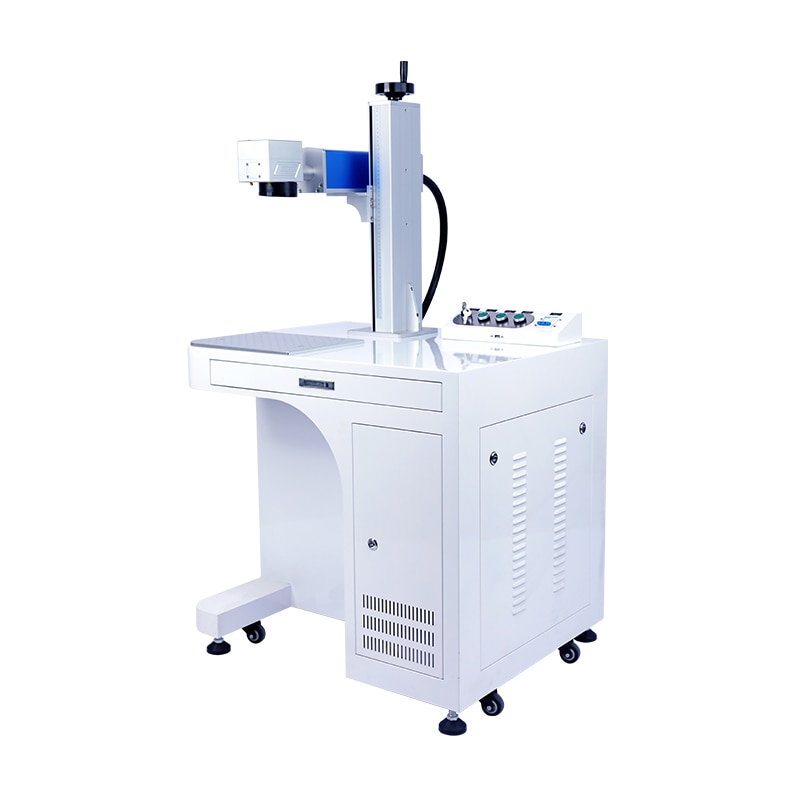

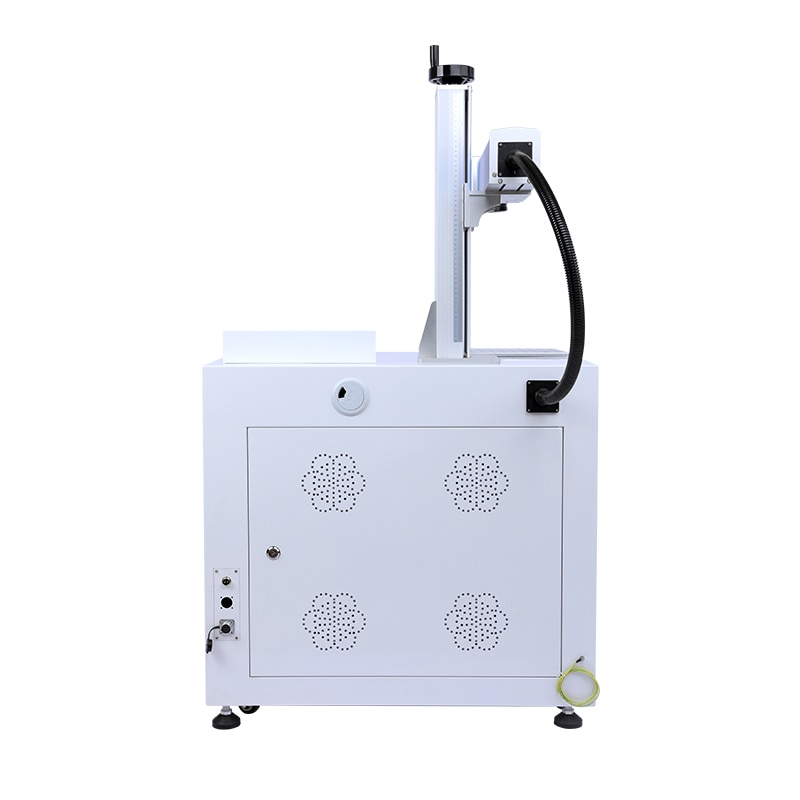

20w fiber laser marking machine 30w 50w 3d metal laser marking machine price
Features:
1.Adopts the USA RF laser generator, high speed scanning vibrating lens and extending focusing system, high precision, high speed.
2.Red light positioning system,ensure accurate positioning,avoid waste.
3.Professional marking software owns strong graphics drawing and editing funcion,enable direct marking of color graphic or marking after color convert from RGB to grey scale.
4.It is popular with it's high precision, high speed, carving depth of random control. It can be applied to a variety of non-metal engraving. No consumables, Marking clear, not easy to wear and tear.
Technical Parameters:
|
NO |
Model |
20w 30w 50w 3d fiber laser marking machine |
|
1 |
Laser power |
20W/30W/50W |
|
2 |
Working area |
110*110mm/70*70mm/90*90mm |
|
3 |
Laser Wavelength |
1064nm |
|
4 |
Response time |
0.5m/s |
|
5 |
Frequency of pulse |
20-80KHz |
|
6 |
Max marking depth |
≤0.005mm |
|
7 |
Marking speed |
≤7000mm/s |
|
8 |
Marking lines |
1-10 lines(in the marking area) |
|
9 |
Minimum line width |
0.01mm |
|
10 |
Minimum character |
0.15mm |
|
11 |
Repeatability accuracy |
±0.005mm |
|
12 |
Resolution ratio |
0.1mm |
|
13 |
Marking content |
Text,pattern,date,bar code,etc |
|
14 |
Operation system |
Microsoft Windows XP or Windows 2000 |
|
15 |
Control software |
JCZ |
|
16 |
Graphic format supported |
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
|
17 |
Unit power |
≤1.2KW |
|
18 |
Operation temperature |
5℃-35℃ |
|
19 |
Relative moisture |
≤ 90%,no fog |
|
20 |
Supply Voltage |
220V/50Hz/10A |
|
21 |
Focusing system |
Autofous and electric Bella |
Function:
1, marking content: any text or icon in English, Arabia digital, serial number, VIN number, two-dimensional code, logos, etc.;
2, character arrangement: horizontal, inclined, arc, arbitrary permutation;
3, any optional font;
4, the character size, spacing can be adjusted freely;
5, applicable materials: metal, hard alloy, ceramic, plastic etc.;
6, the bar code scanning input marking or labelling and print bar code;
7,The output data from the network 7, read
8, and other equipment to contact PLC function.
| CO2 marking machine | Non-metal,fabric,leather,wooden packing,paper packing,acry;ic pipe,PET,plastic,som of the paint layer,ceramics,glass |
| Fiber marking machine | Ordinary metal,rare metal and alloy,alloy powder,ceramic materials,after surface treatment of metal,oxides,plastics.polymers 3M label paper. |
| Portable marking machine | This device can print the minium character height is 0.8mm-18mm,suit for cable,auto parts,cosmetics,pharmaceutical and some industries which need micro character in small product. |
These machines are all popular among different customers. Why not to take one minutes for clicking to get more details. All the specification of machine can be customized according to your own requirements, and there will be one machine suit for you.
|
|
|
