Description
Product Overview

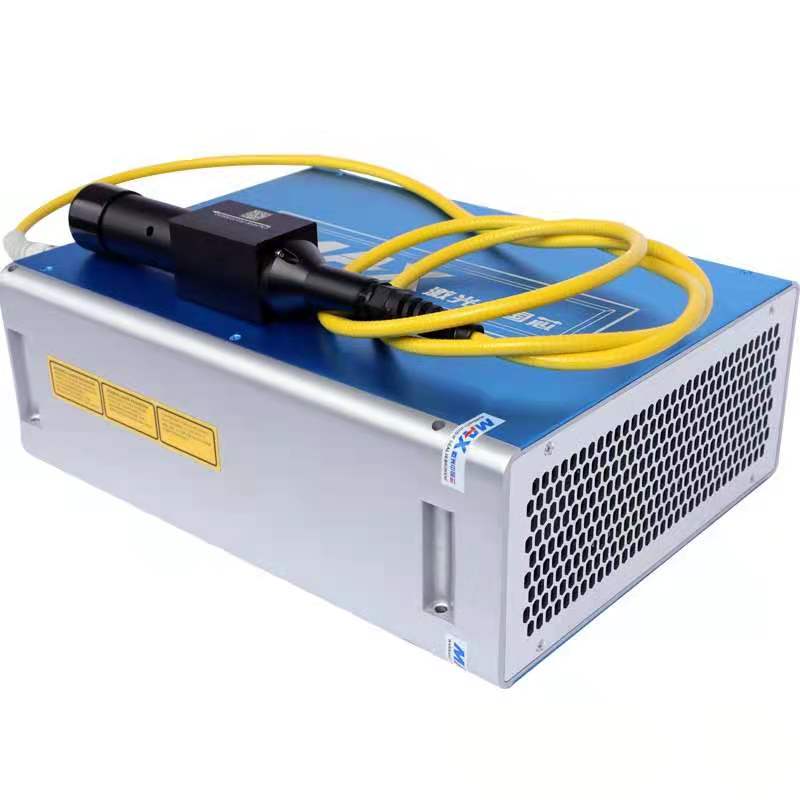

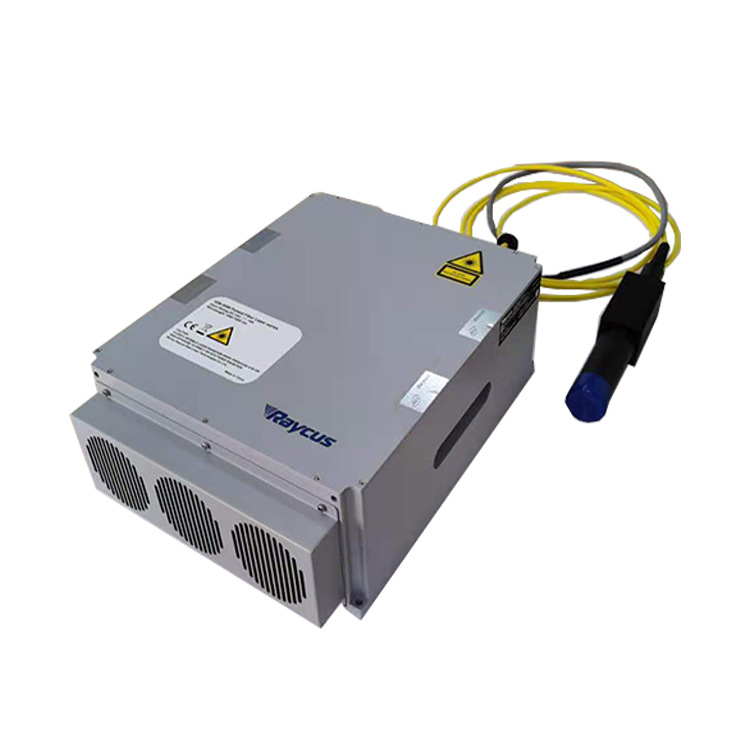

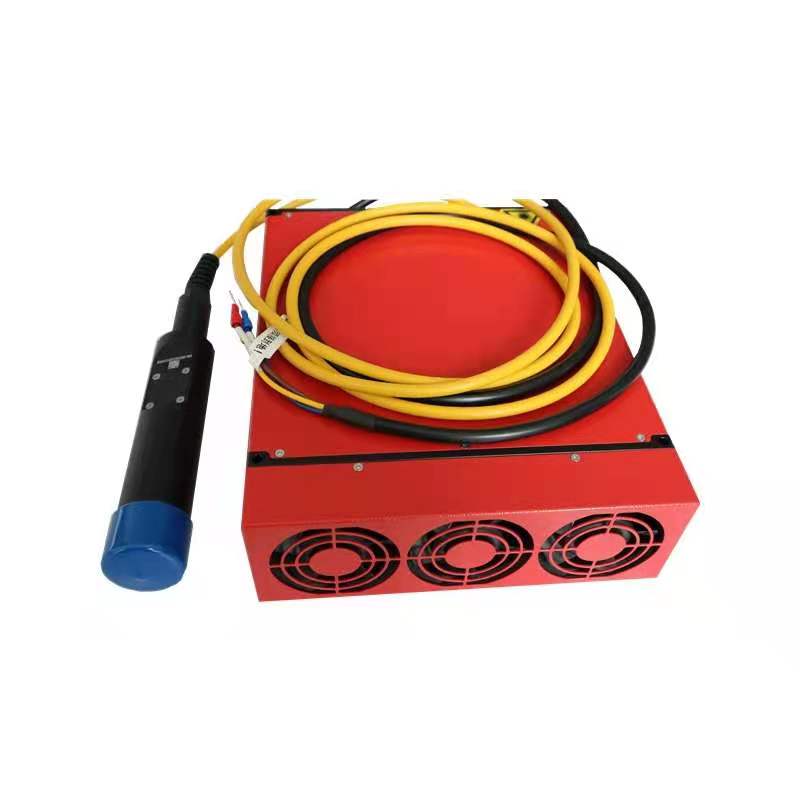

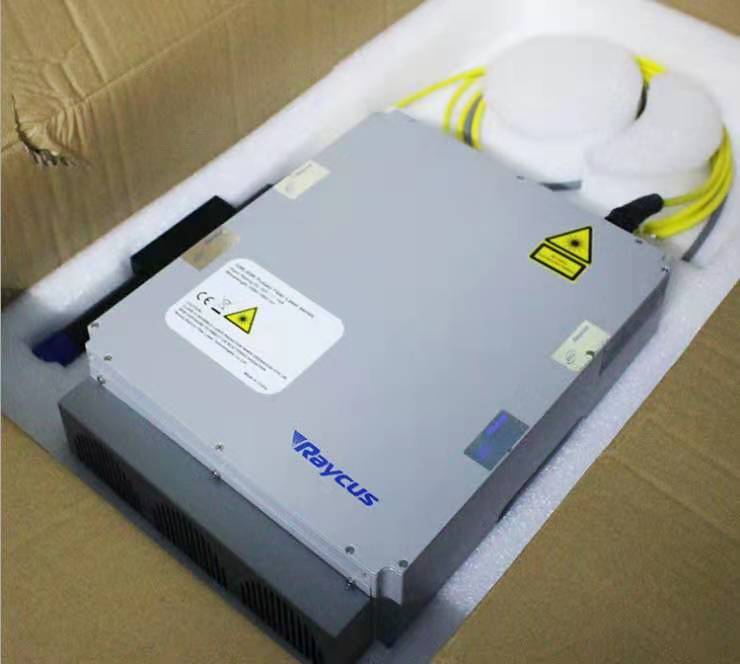

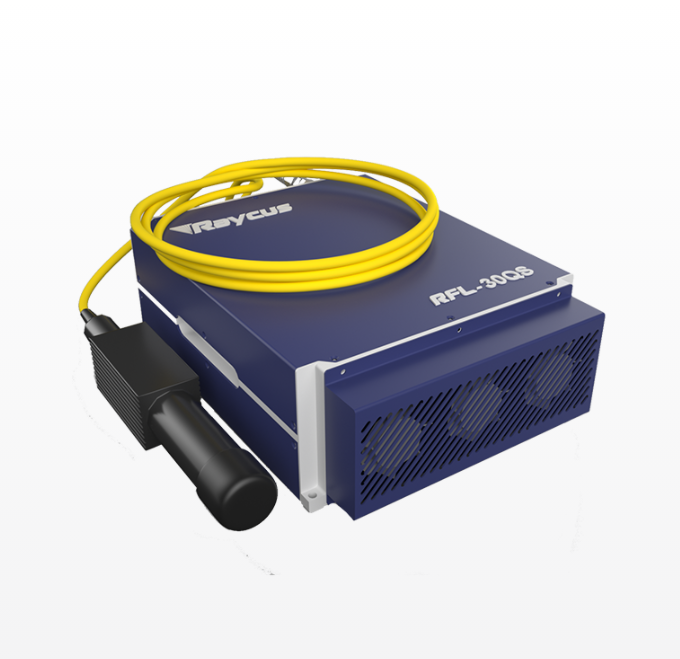

Laser source
The so-called fiber laser marking machine means that the marking machine uses a fiber laser. The fiber laser has the characteristics of small size (no water cooling device, air cooling), good beam quality (fundamental mode), and maintenance-free. It is mainly composed of lasers. , Vibrating lens and marking card. The marking machine adopts fiber laser to produce laser. The beam quality is good. Its output center is 1064nm. The life of the whole machine is about 100,000 hours, which is longer than other types of laser markers. Long, the electro-optical conversion efficiency is more than 28%. Compared with other types of laser marking machines, the conversion efficiency of 2%-10% has a great advantage, and it has outstanding performance in energy saving and environmental protection.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
||
|
1
|
Power
|
20W/30W/50W/60W/100W
|
||
|
2
|
Red light
|
Yes
|
||
|
3
|
Output connector
|
QBH
|
||
|
4
|
Output power stability
|
<3%
|
||
|
5
|
Central wavelength: (nm)
|
1064
|
||
|
6
|
Repetition frequency
|
10-50KHZ
|
||
|
7
|
M²
|
<1.5
|
||
|
8
|
Working temperature (℃ )
|
0-40
|
