Description

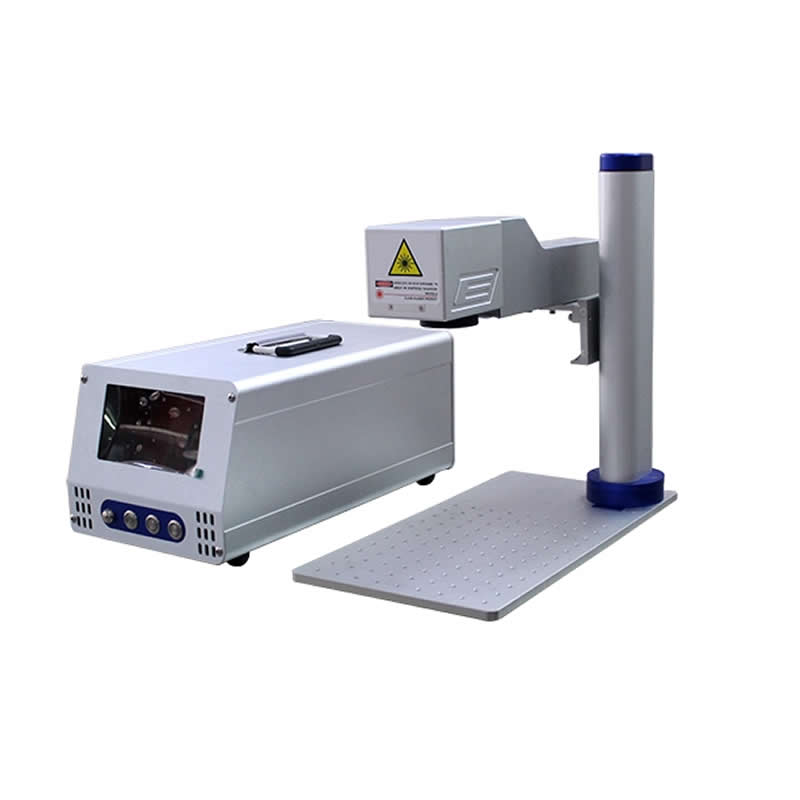

1064nm 20W Fiber Laser Engraver FB-05 CNC Laser Metal Marking Machine





Applicable trade

Plastic printing opacity button, IC chip, part of the digital products, precision optical machinery, jewellery, cleaners and polishes, cutting tool of measuring tool, clock and watch glasses, electrical engineering and electric apparatus, electronic devices and components, five metals ornaments, hardware & tools, communication part of the mobile phone, vapour rub high-accuracy products identifications such as fittings, plastic products, medical equipment, building materials pipe,etc.

Applicable material

Metal and many kinds of nonmetallic materials, high hard alloy, oxide, electroplating, plating membrane, ABS, epoxy resin, printing ink, engineering plastics,etc.. Apply to to depth, smooth degree, meticulous degrees of requirement higher field, if the clock and watch, mould trade, location picture type and mark  Wait.

Technical parameter

Mode:FB-05

Output Power:20W

Fiber laser brand: Raycus

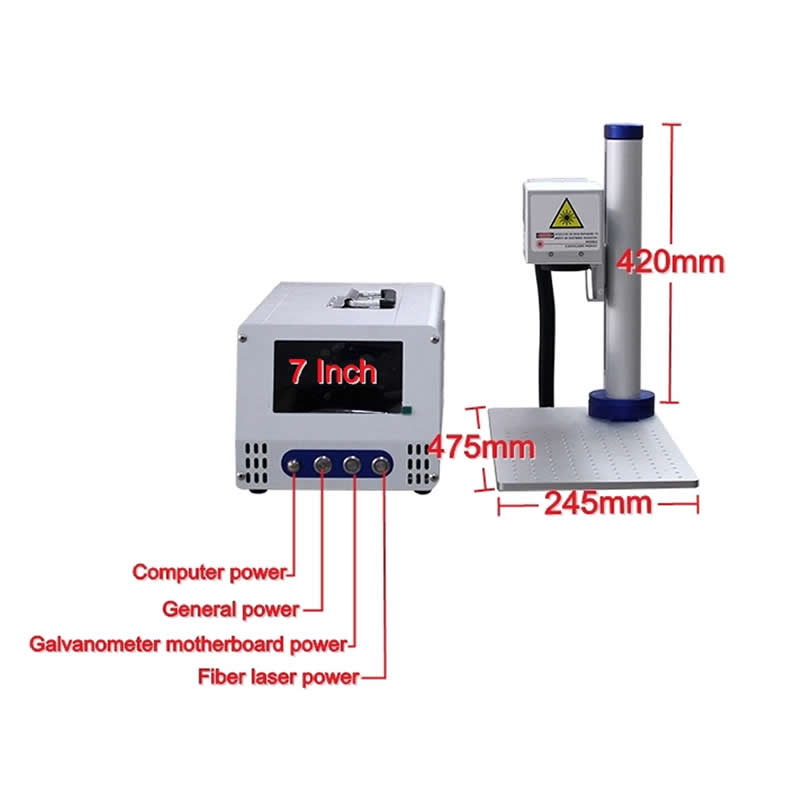

Computer screen:7 inches

Control: Wireless mouse

Computer system: Win 7 64 bits.

Software: Gold Orange (Developed by LY.GROUP.CHINA)

Date input:USB

M2 M2 BeamQuality: MAX 2
Wavelength: 1064nm
Pulse frequency:20KHz -100KHz

Effective marking area: 150*150mm

Marking Speed: MAX 7000mm/s
Marking Depth: MAX 0.3mm
Min line Width: 0.015mm
Min character Size: 0.15mm

Repeating Accuracy: ±0.003mm
Voltage:220V / 110V

Packing List

FB-05 x 1

Power cord x 1

Rule x 1

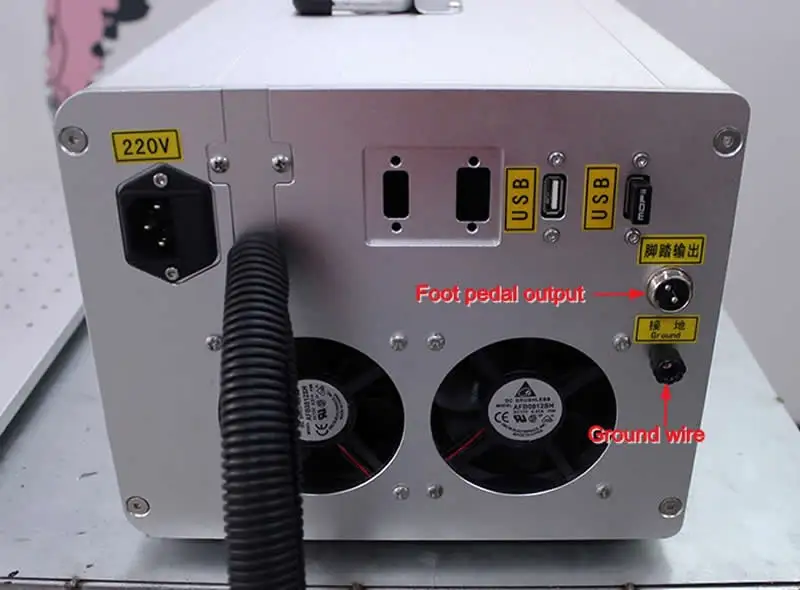

Foot pedal x 1

USB line x 1

Wireless mouse x 1

USB disc x 1

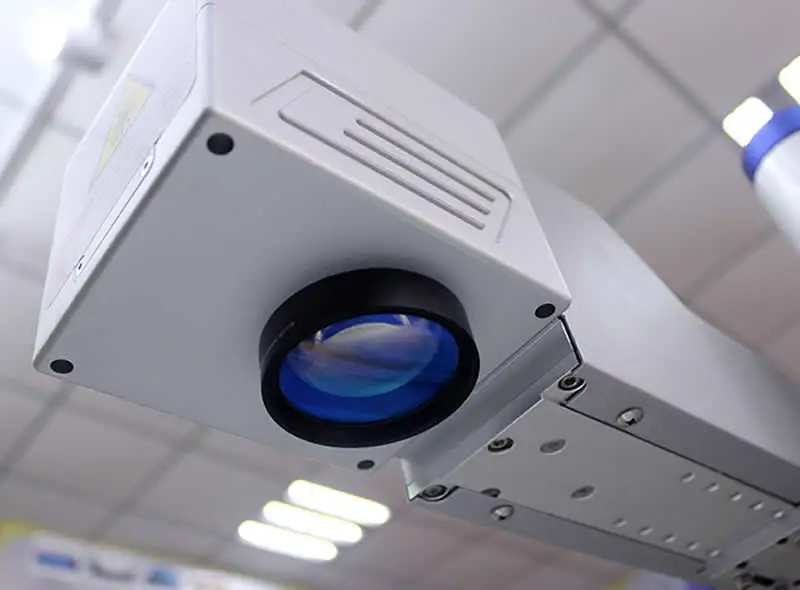

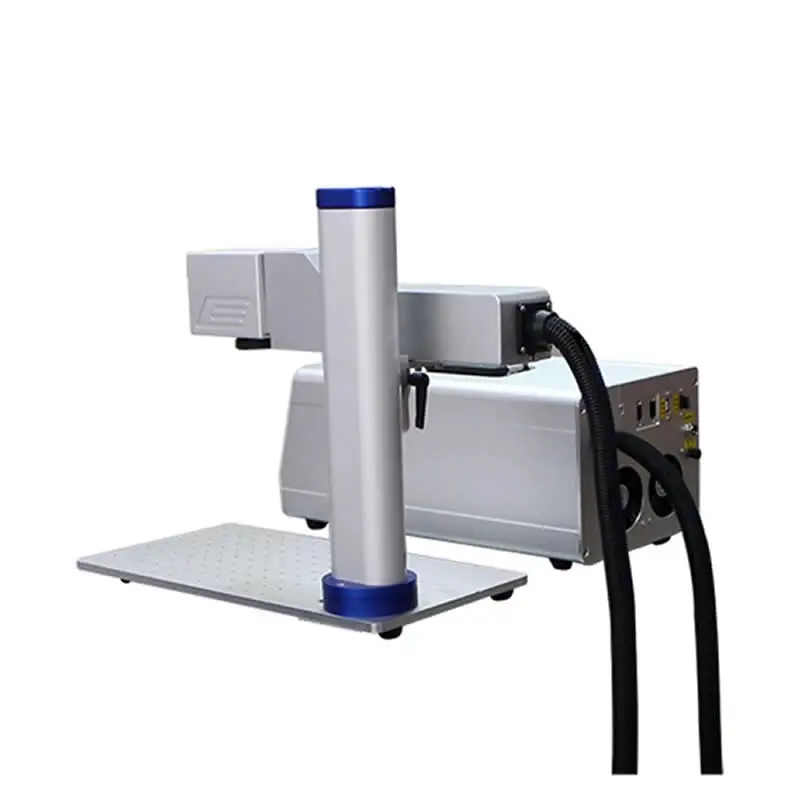

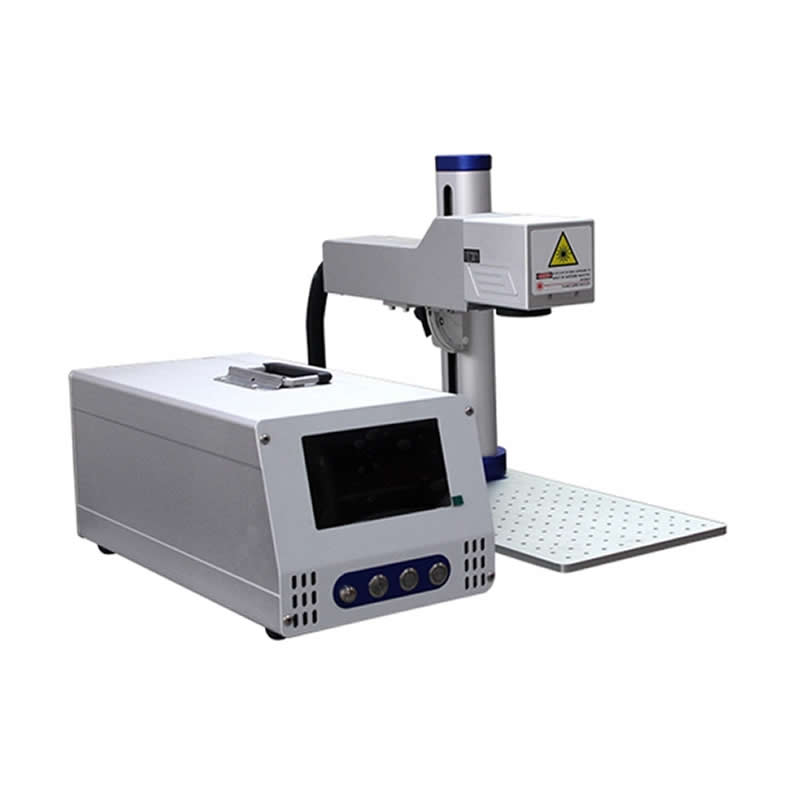

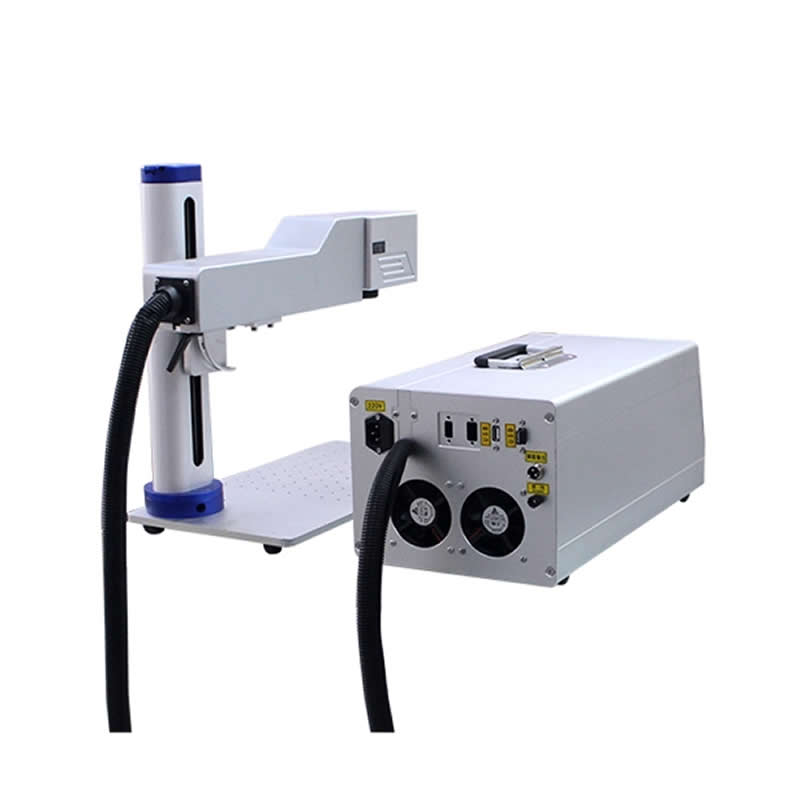

Item pictures
