20PCS Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 RM065 Trimpot Trimmer Potentiometer

  • Home
  • 20PCS Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 RM065 Trimpot Trimmer Potentiometer
Sale!

20PCS Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 RM065 Trimpot Trimmer Potentiometer

$0.52

SKU: 4000414286076 Category:

Description

  • Brand Name: diymore
  • Condition: New
  • Origin: CN(Origin)
  • Resistance Tolerance: ±30%
  • Technology: Carbon Film
  • Type: Trimming Potentiometer
  • is_customized: Yes
  • Max. Operating Voltage: 50V
  • Model Number: RM-065 WH06-2
  • Rated Power: 0.1W

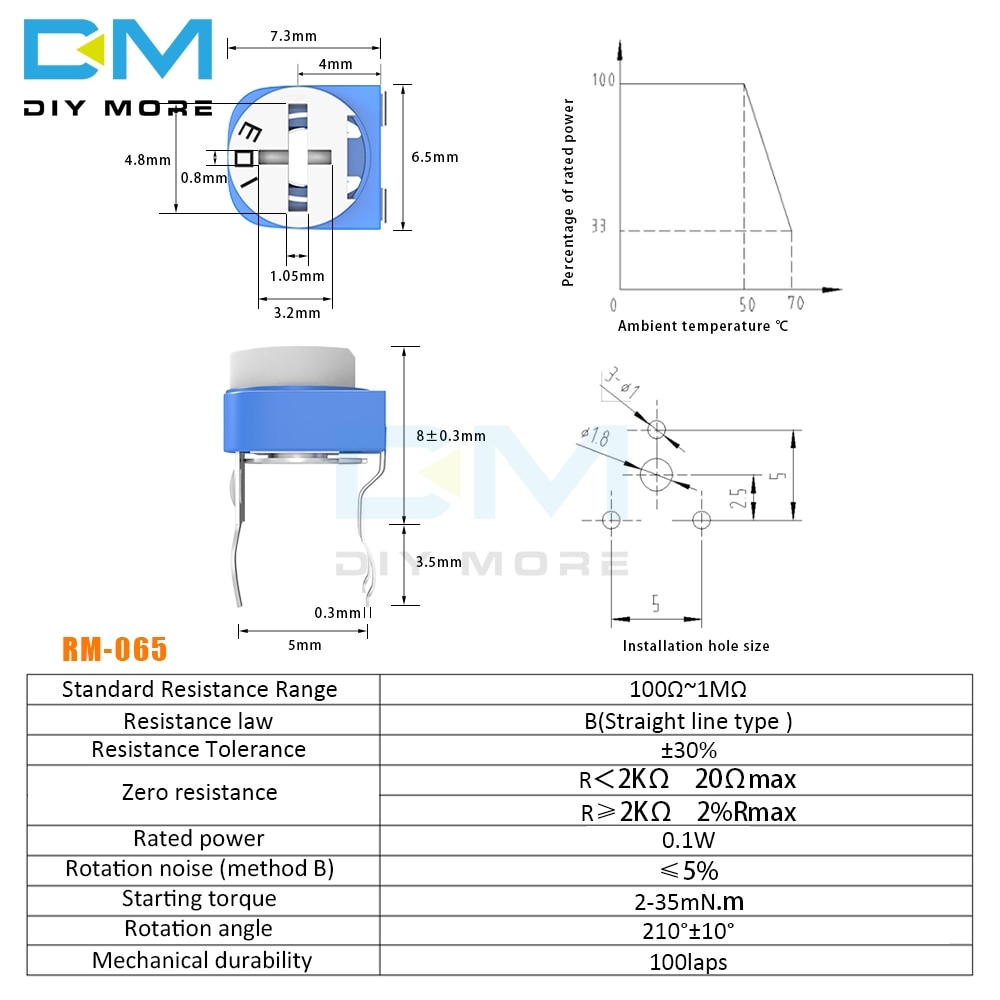

Specification:

Model number: RM065 WH06-2

Technology: Carbon Film Resistance

range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ

Resistance Tolerance: ± 30%

Rotation angle: 210 ° ± 10 °

Starting torque: 2-35mN.m

Mechanical strength: resistance film can withstand 1kg pressure does not break

Resistance change characteristics: B

Maximum use voltage: 50V

Rate Power: 0.1W

Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20Ω

Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%

Load life: load rated power 3 hours, the maximum resistance change of ± 5%
