Description
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: 10%
- Technology: Cermet
- Type: Trimming Potentiometer
- Operating Temperature: -55-125
- is_customized: Yes
- Size: 3pin
- Max. Operating Voltage: 300V
- Model Number: 3362 potentiometer
- Rated Power: 0.5W
- Key words1: Trimming Potentiometer
- Key words2: 100R 1K 10K 100K 200R 2K 20K 200K 500R 5K 50K 500K
| The following is Top Selling products buy navigation Recommend – Best Match |
| Follow the store to get fan coupons and exclusive fan discounts! You can click here |
|
|
|
Electrolytic Capacitor |
||
|
100pcs 1N4148-1N5408Rectifier Diode set |
|
|
|
|
50pcs Transistor 10Values LM317T-L7824

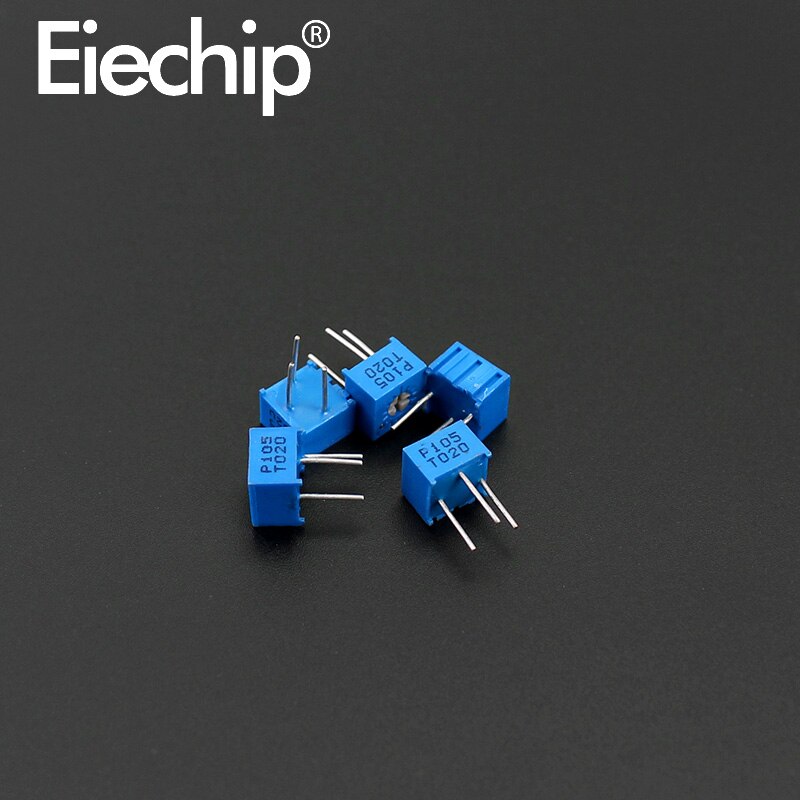

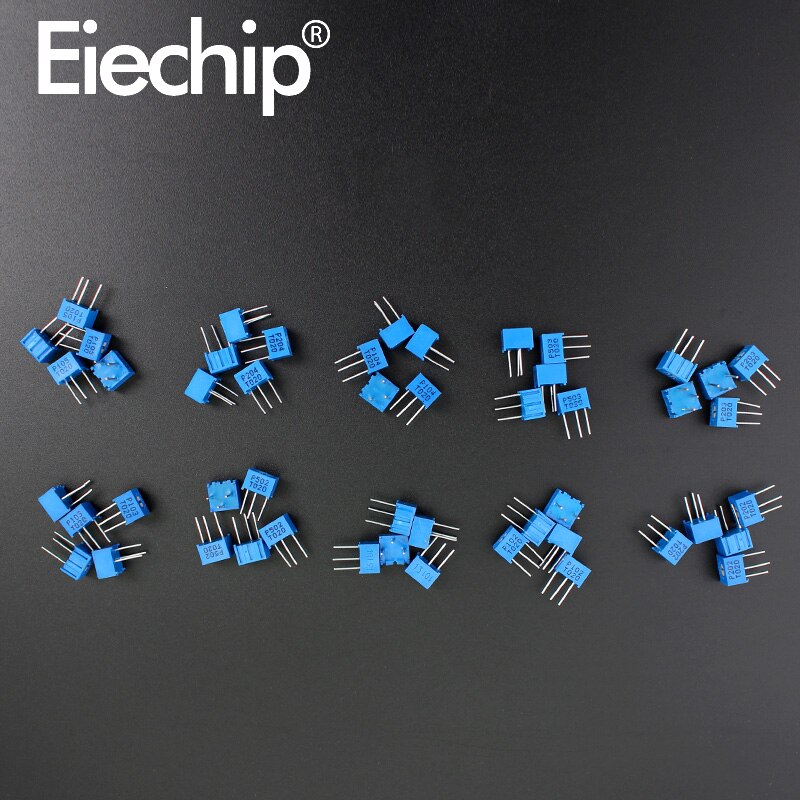

3362 series adjustable potentiometer/trimming resistor
100R (101) 1k(102) 10K(103) 100K(104) 1M(105)
200R (201) 2k(202) 20K(203) 200K(204)
500R(501) 5K(502) 50K(503) 500K(504)
Accuracy: ±10%
Contact resistance change: 1% or 2Ω (whichever is greater)
Power: 1/2W (0.5W)
Maximum voltage: 300V
Number of revolutions: 1 circle
Linear or logarithmic: linear
Rotation life: 200 cycles
Working temperature: -55+125℃
Temperature series: ±100ppm/℃
