Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1 YEAR
- Customized support: OEM
- Place of Origin: Zhejiang, China
- Brand Name: Aliyiqi
- Model Number: ANL-20
- Power: Electronic, NI-MH BATTERY 1.2V*6
- Range: 20Nm 204kgf.cm ,177Lbf.in
- Load division value: 0.001Nm ,0.001 kgf.cm, 0.01Lbf,in
- Accuracy: 1%
- Speed: 900RPM
- Data storage: 999 data
- G.W.: 5~37kg
- Charger voltage: 110 or 240V
- Display: LCD display
- Certification: CE,ISO9001

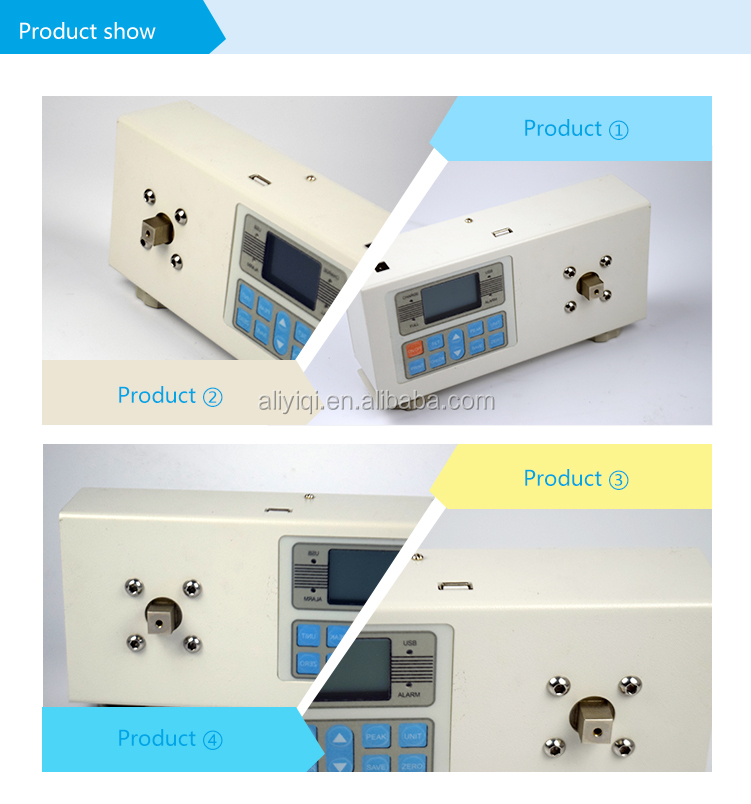

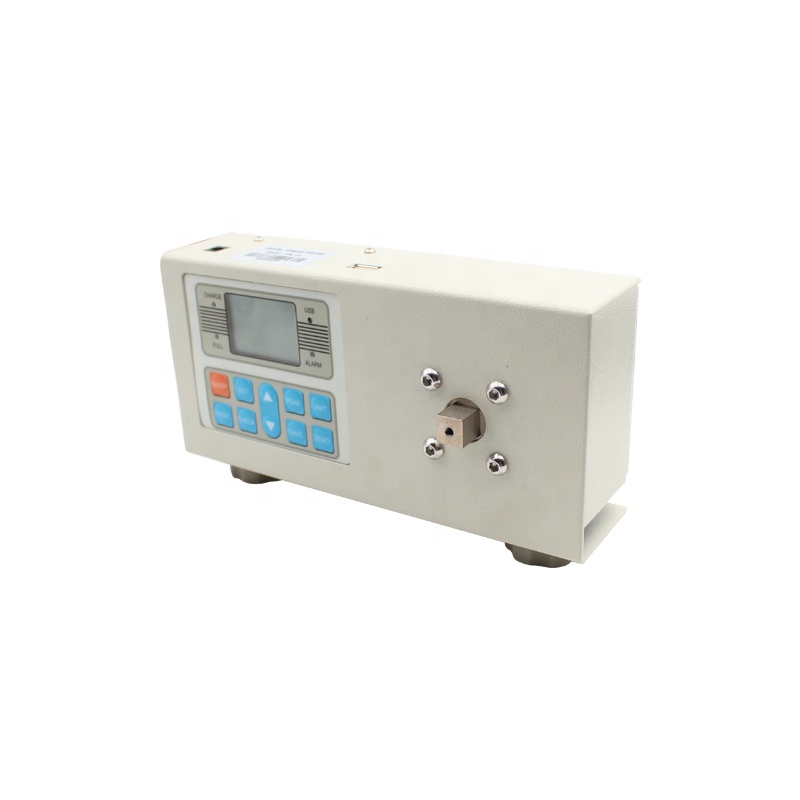

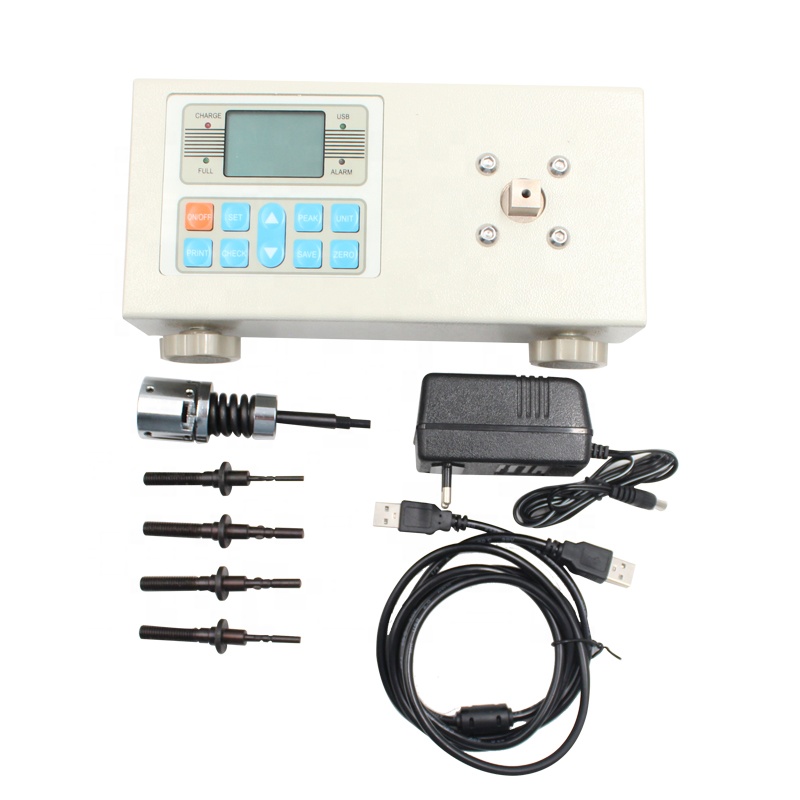

20Nm 200kgf.cm manual torque driver torque screwdriver tester
Function:

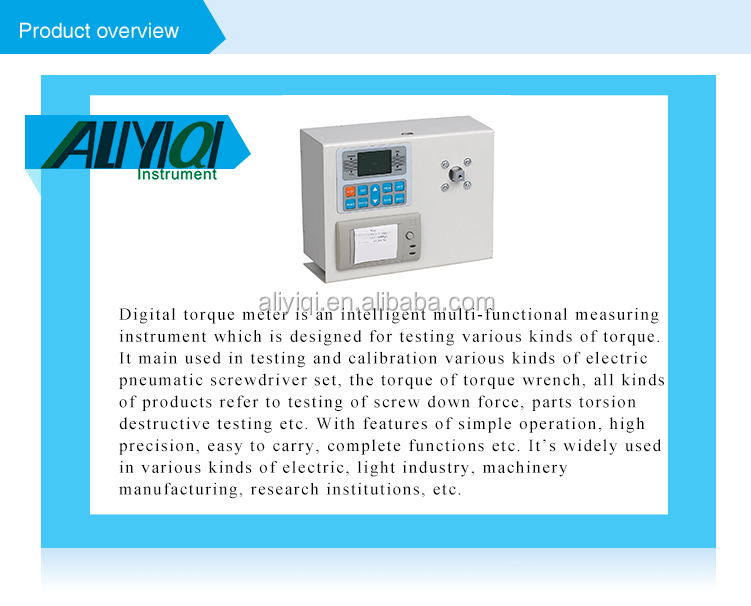

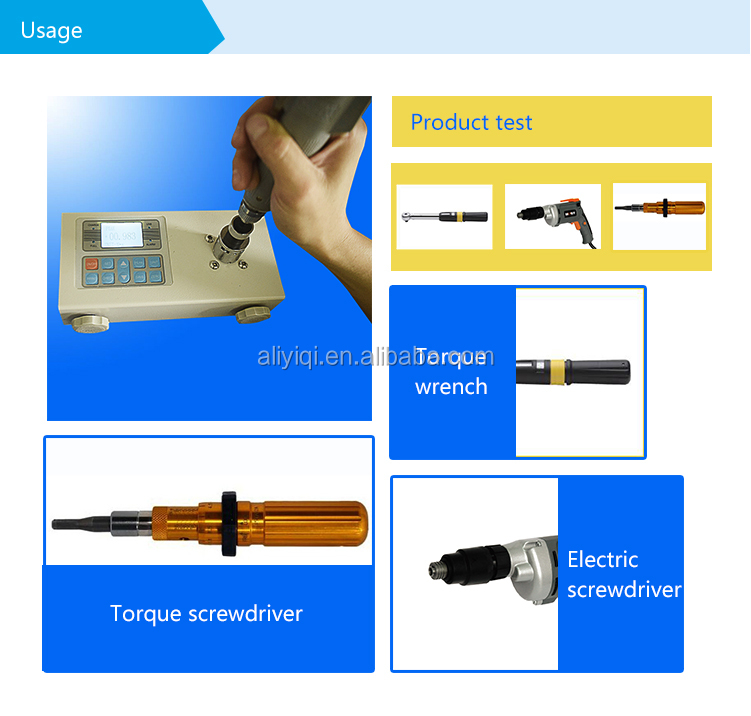

Digital torque meter is an intelligent multifunctional measuring instrument which is designed
for testing various kinds of torque. It main used in testing and calibrating various kinds of
electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer
to testing of screw down force, parts torsion destructive testing etc.
Main features:
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible
and visual alarm.
4. Three units can be switched each other (N·m,Kgf·cm,Lb·in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to
the computer
7. Peak holding, remove automatically function, remove time to set freely.
8. Large storage, can save 99 groups of test data.
9. Without automatic shutdown function, time can be set freely.

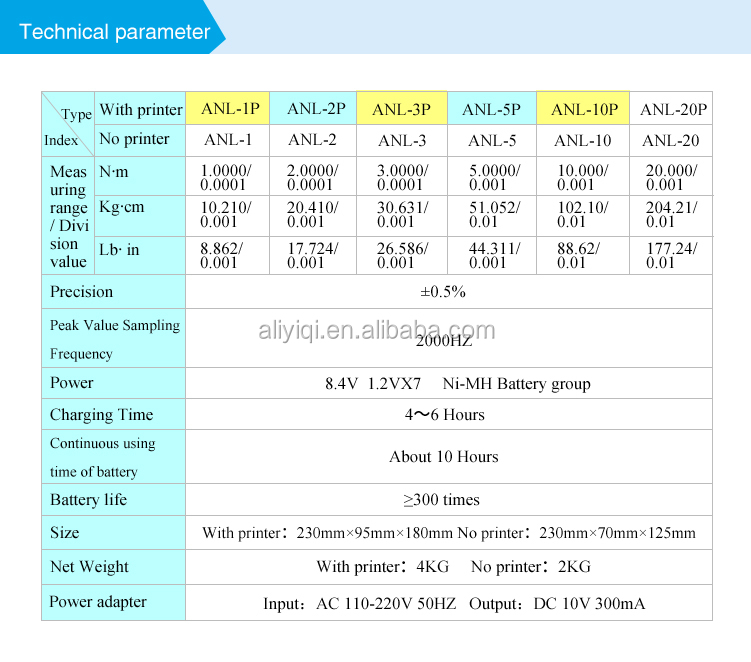

Parameter:

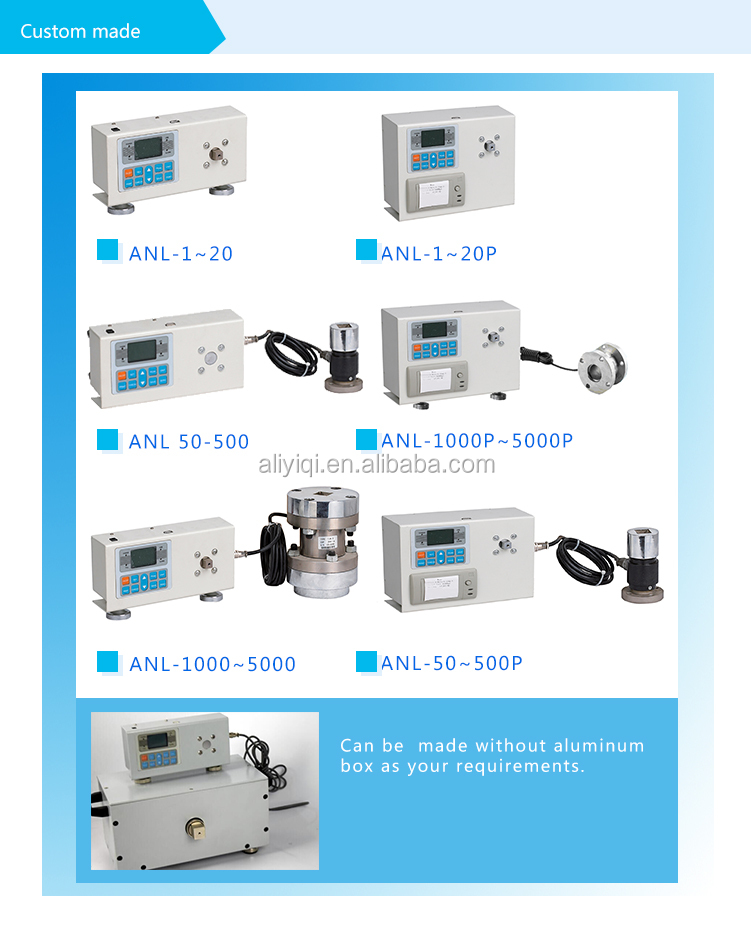

| Item No. | Measuring range / division value | ||
| N.m | Kg.cm | Lb.in | |
| ANL-1 | 1.0000/0.0001 | 10.210/0.001 | 8.862/0.001 |
| ANL-2 | 2.0000/0.0001 | 20.421/0.001 | 17.724/0.001 |
| ANL-3 | 3.0000/0.0001 | 30.631/0.001 | 26.586/0.001 |
| ANL-5 | 5.0000/0.0001 | 51.052/0.001 | 44.311/0.001 |
| ANL-10 | 10.000/0.001 | 102.10/0.01 | 88.62/0.01 |
| ANL-20 | 20.000/0.001 | 204.21/0.01 | 177.24/0.01 |
| ANL-50 | 50.000/0.001 | 510.52/0.01 | 443.11/0.01 |
| ANL-100 | 100.00/0.01 | 1021.0/0.1 | 886.2/0.1 |
| ANL-200 | 200.00/0.01 | 2042.0/0.1 | 1772.4/0.1 |
| ANL-300 | 300.00/0.01 | 3063.1/0.1 | 2658.6/0.1 |
| ANL-500 | 500.00/0.01 | 5105.2/0.1 | 4431.1/0.1 |
| BIG | |||
| ANL-1000 | 1000.0/0.1 | 10210/1 | 88622/1 |
| ANL-2000 | 2000.0/0.1 | 20420/1 | 17724/1 |
| ANL-3000 | 3000.0/0.1 | 30630/1 | 26586/1 |
| ANL-5000 | 5000.0/0.1 | 51051/1 | 44311/1 |
