Description
450nm Diode Laser Marking Machine Qr Code Laser Engraving Machine

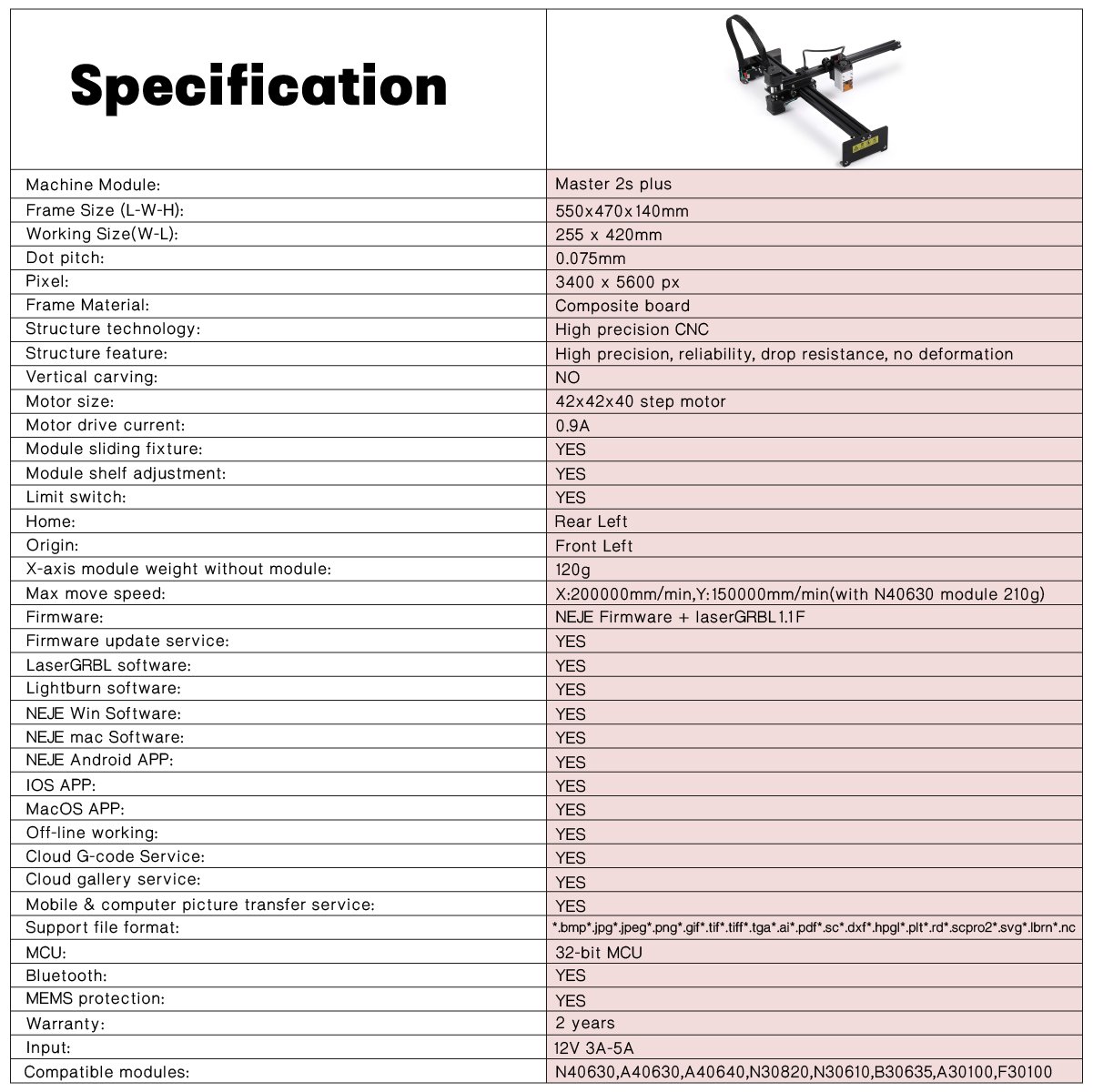

Specifications:
|
Product name
|
NEJE Master 2S plus A40640 80W pro 255 x 420 mm engraving machine, laser cutter
|
|
Model
|
NEJE Master 2S plus A40640 80W pro
|
|
Control Board
|
1 x MCU + Wireless control + MEMS
|
|
Optical Power
|
450nm 15W
|
|
Dot pitch
|
0.075mm
|
|
Luminous Color
|
blue
|
|
Satety Protection
|
MEMS
|
|
Application
|
APP Wireless Control by phone or PC
|
|
features
|
High Speed
|
|
system supported
|
windows/ android / iOS / macOS
|
|
Material
|
Aircraft Aluminum + Brass Shell
|
|
Working area
|
420*255mm
|
|
Luminous Color
|
Blue
|
|
Section Size:
|
40mm x 40mm
|
|
Cooling Mode:
|
Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
|
|
Dimension
|
60 * 40 * 40mm
|
|
Adapter Plug:
|
5.5 2.1 port
|
|
Module Input
|
80W
|
|
Life Time
|
10000-20,000 hours
|
|
Wavelength
|
445-450nm
|
|
Optical power output
|
15W (1500mW)
|

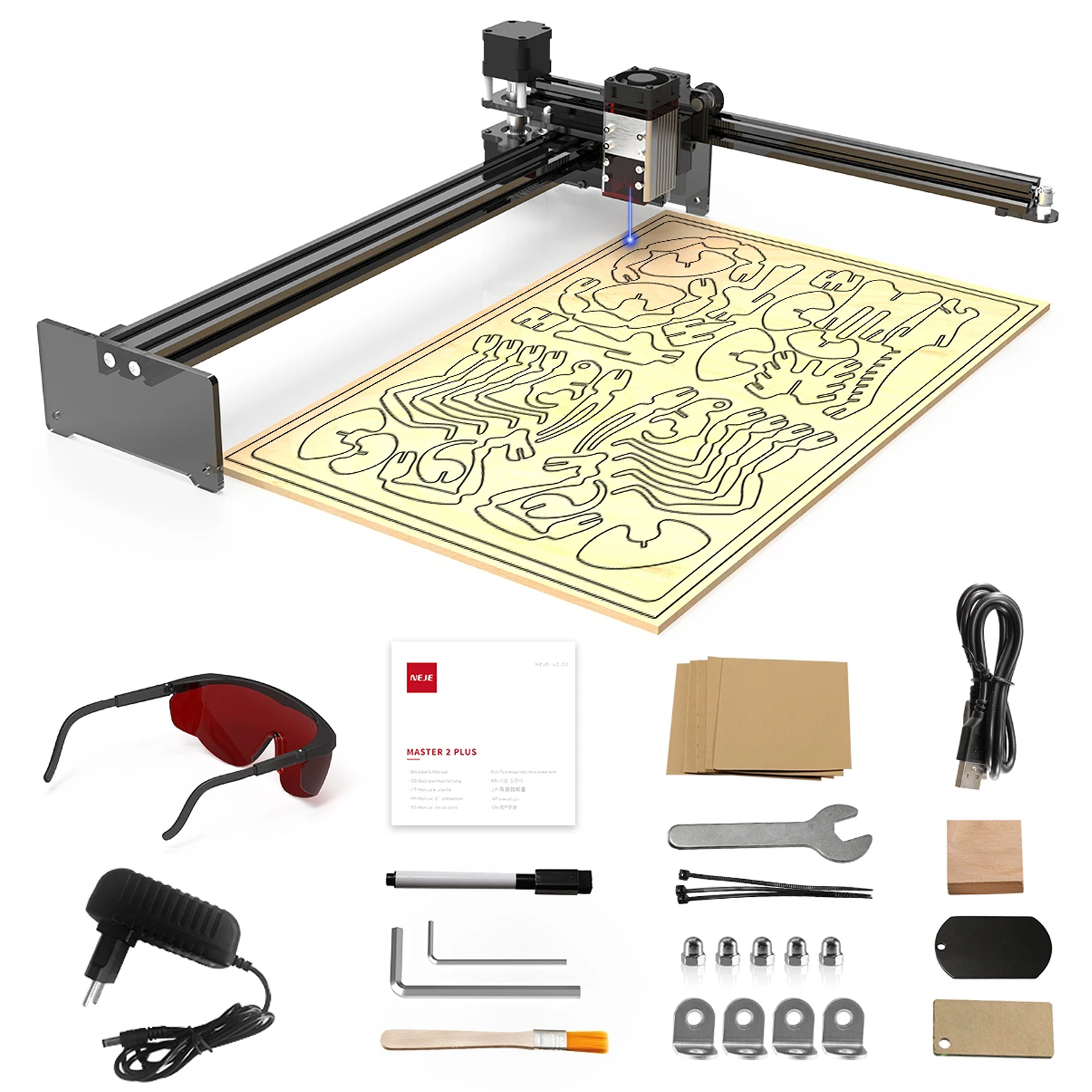

【420 x 255 mm】Just fit on a desktop with a width of 600mm, and the left side of the machine is not limited by the size of the
material. It is suitable for processing large area materials. Under the protection of the MEMS vibration protection sensor, the
engraving and cutting processes can be completed at the same time. The X-axis motion module is only 120g and is driven by a 40mm
thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure, 3400 x 5600 pixels,
engraving accuracy: 0.075 mm dot pitch, 339 dots/inch. The whole machine function test requires only 4 screws to complete the
installation.

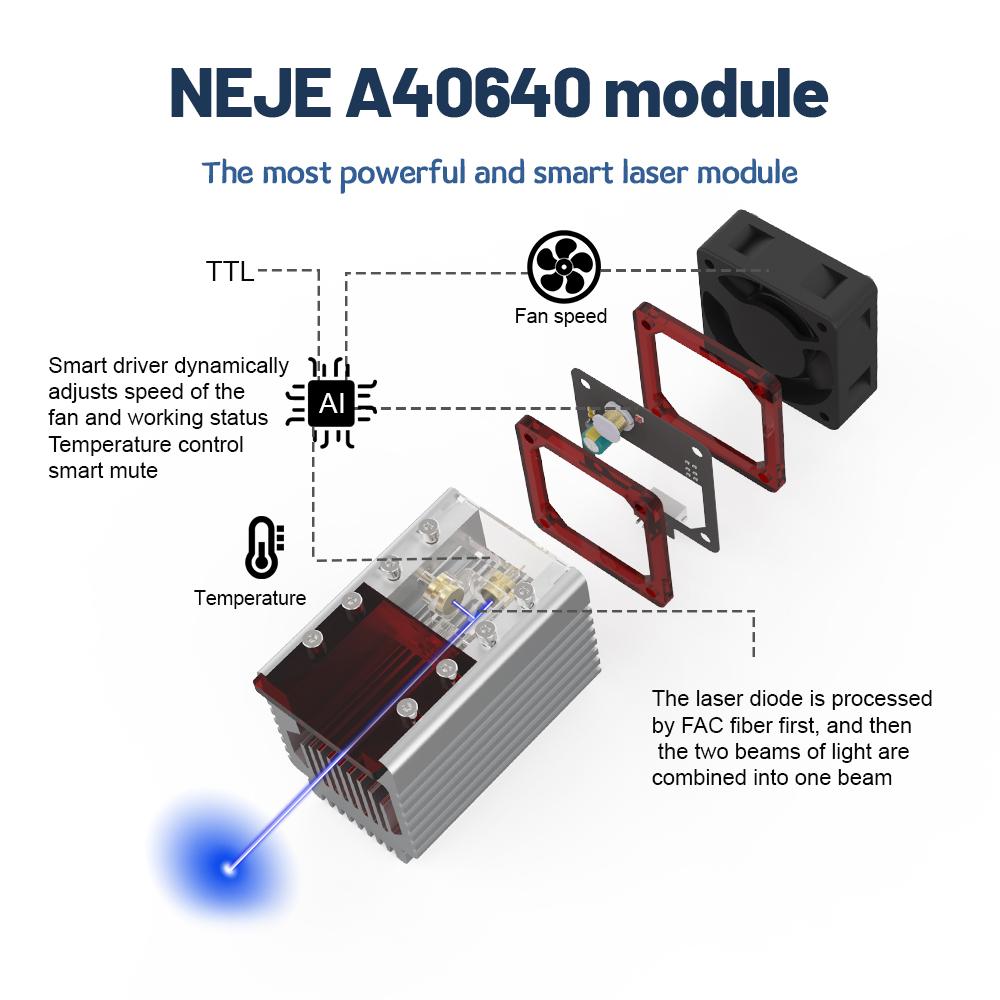

-【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum
focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature
feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.
-【More materials, clearer】 Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs air-assisted cutting
once (A40640), and the cutting is very clean. Can directly engrave stainless steel, glass, transparent acrylic and so on.
-【Portable professional control software]】32-bit control system, the fastest speed can reach 200,000mm/min, supports LaserGRBL,
Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS), you can change it by taking photos with your mobile phone or
selecting images from the album To complete the work quickly, NEJE provides free software upgrade services.
-【Perfect after-sales service]】The whole machine is guaranteed for free for 2 years (laser module: 2 years and 20,000 hours
warranty), and vulnerable parts are shipped worldwide within 24 hours.
