Description

Brand Name: LanYuXuan
Type: Hand Tool Parts
Origin: CN(Origin)
Model Number: SPMI-100-1.5
Type: Laser Diode, Laser diode
Place of Origin: Germany
Brand Name: Oriental 308nm laser diode
Package Type: Through Hole
Max. Forward Voltage: 2V
Max. Reverse Voltage: 2V
Max. Forward Current: 100A
Max. Reverse Current: 90A
Key word: 810nm laser diode bars
Wave length: 808/810
Origin: Germany
Pitch: 1.8mm
Application: laser hair removal
Bar Numbers: 1-20 pcs
Arrange Ways: Liner array or standrad arrange
Output Power per bar: 60/80/100 W
Channel: Micro or macro channel

2018 High Quality 810nm laser diode bars for hair removal machine

Get a free solution for your laser diode bar immediately, contact me here:

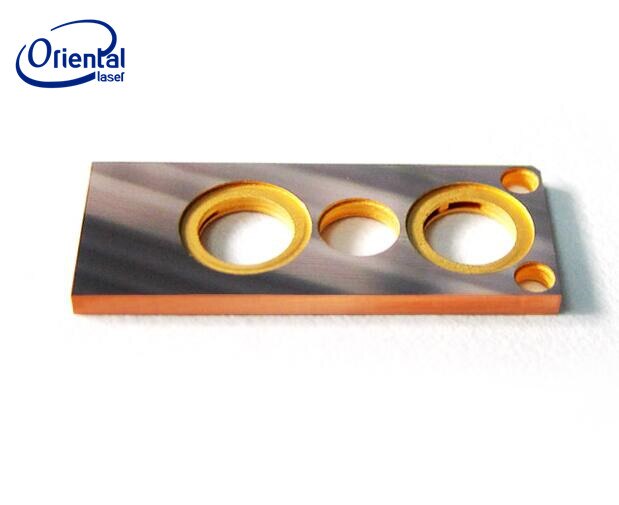

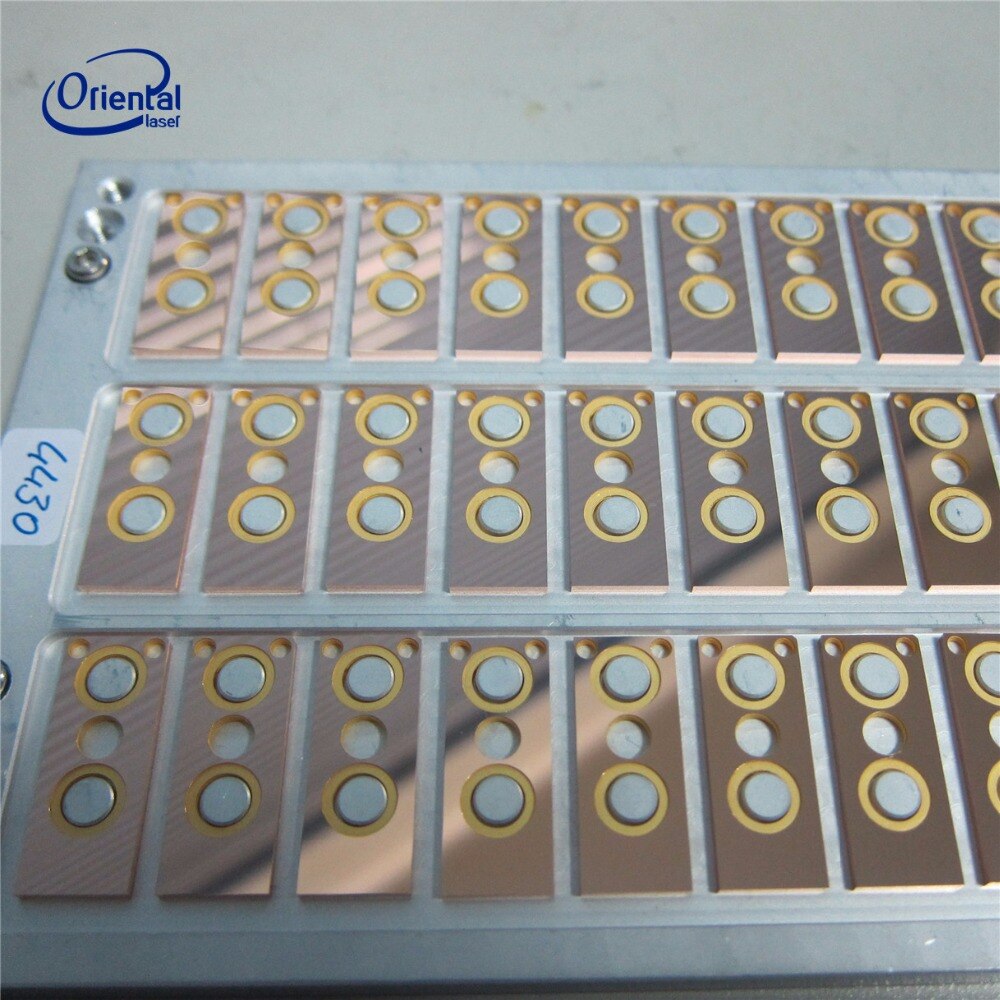

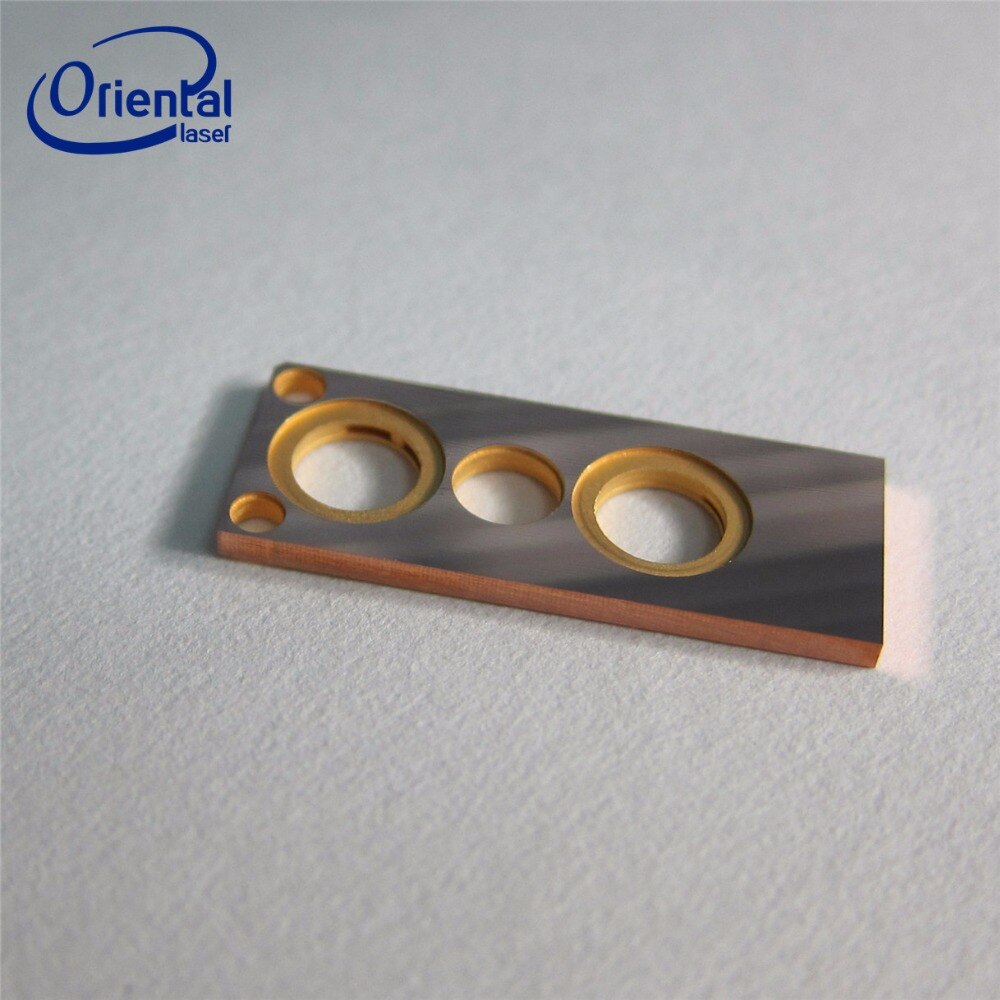

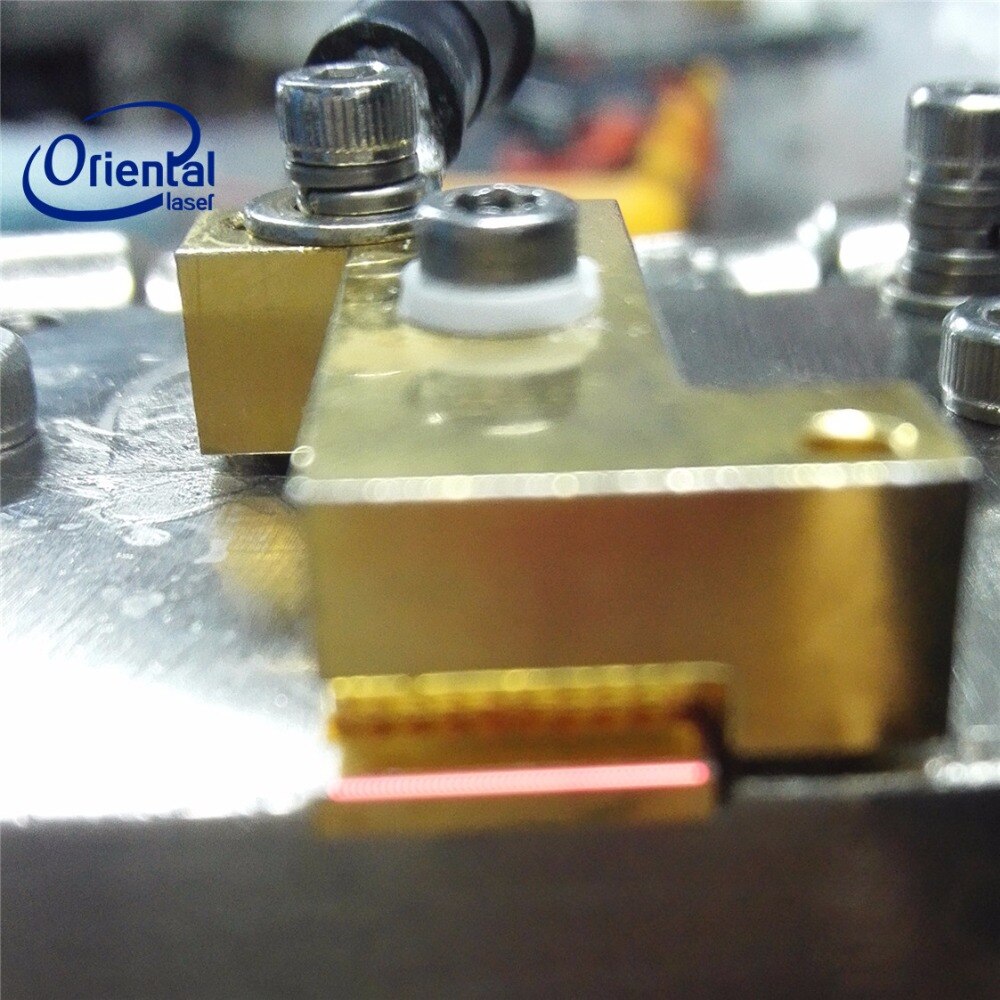

1.diode bars Pictures

2. diode bars Specifictaions

Model No	SPMI-808-100-1.0
Application	Laser hair removal beauty machine and industry application
Operation Mode	CW
Power per submounts	100W
Central wavelength at 25℃	808 ± 2.5nm
Maximum Operating Voltage	2V
Fast Axis Divergence (FWHM)	No
Slow Axis Divergence (FWHM)	No
Expected lifetime	>10000 hours
Typical pitch per bar	1.8mm
Cooling:
Flow rate	0.3L/min ±10% / bar
Water Temperature	15-25 ℃
Water Quality	Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
cooling system	Do not use any material that combination with copper would form galvanic elements

3.diode bars Dimension

4. diode bars Description

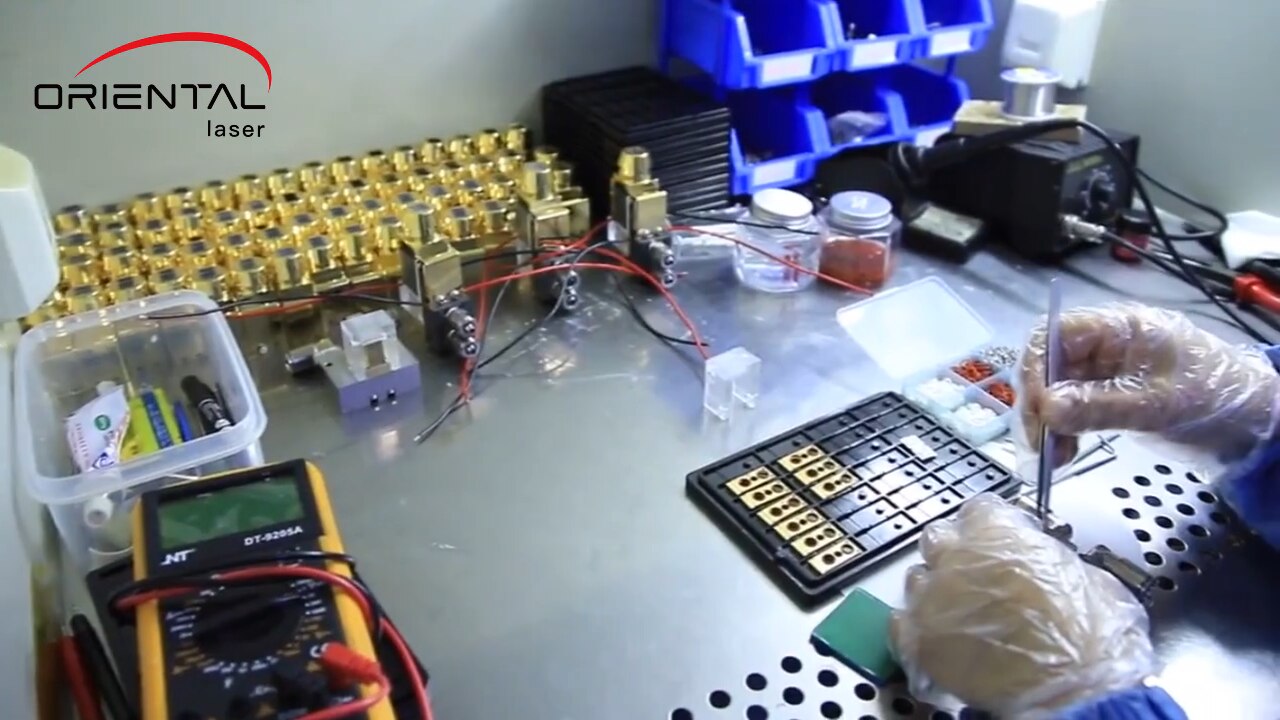

This Single Bar Diode 100W is used for diode laser hair removal machine repairing and replacement service.Also it can be used for industrial pumping and laser coupler. Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks also other brand diode handles.So we can offer the same or similar diode laser bar to recover your diode handles.

(1)Features
>Diode laser bar from Jenoptik
>Micro channel cooler Germany imported >lifetime: over 10000 hours
>Special design for micro channel diode laser machine
