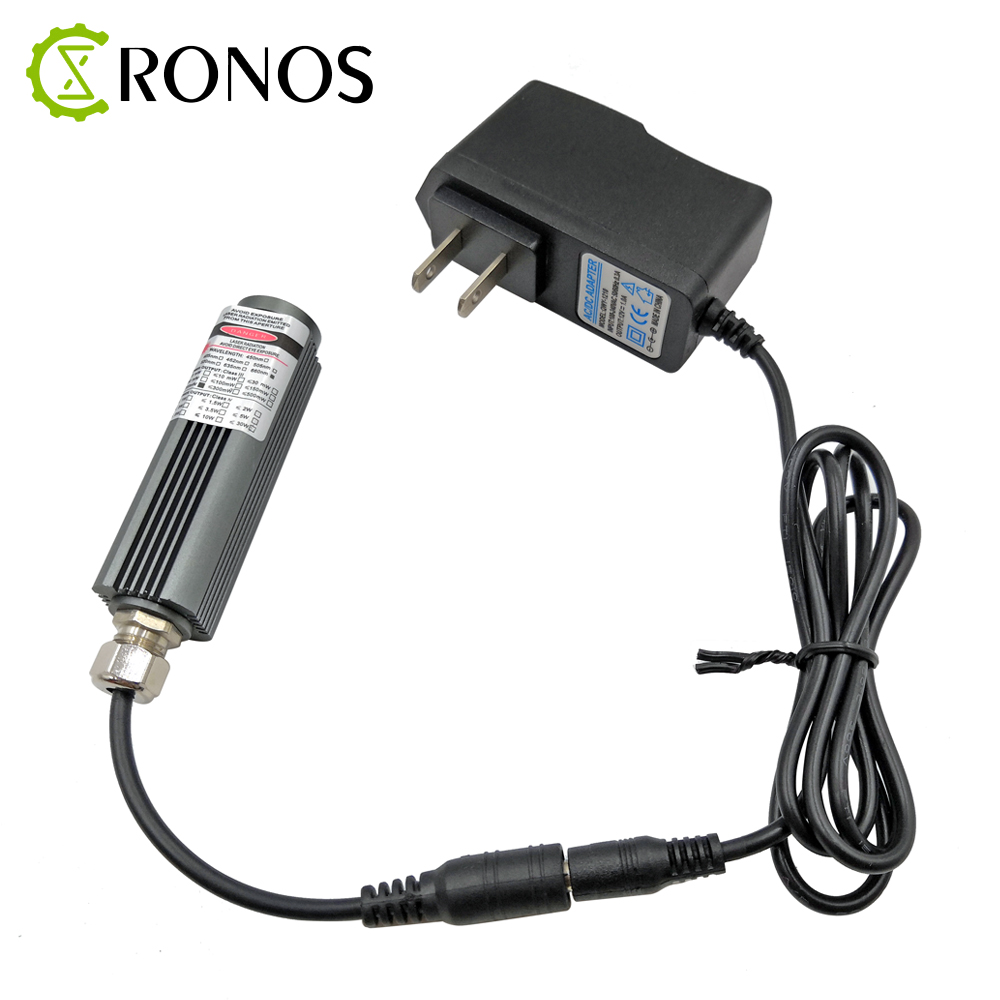

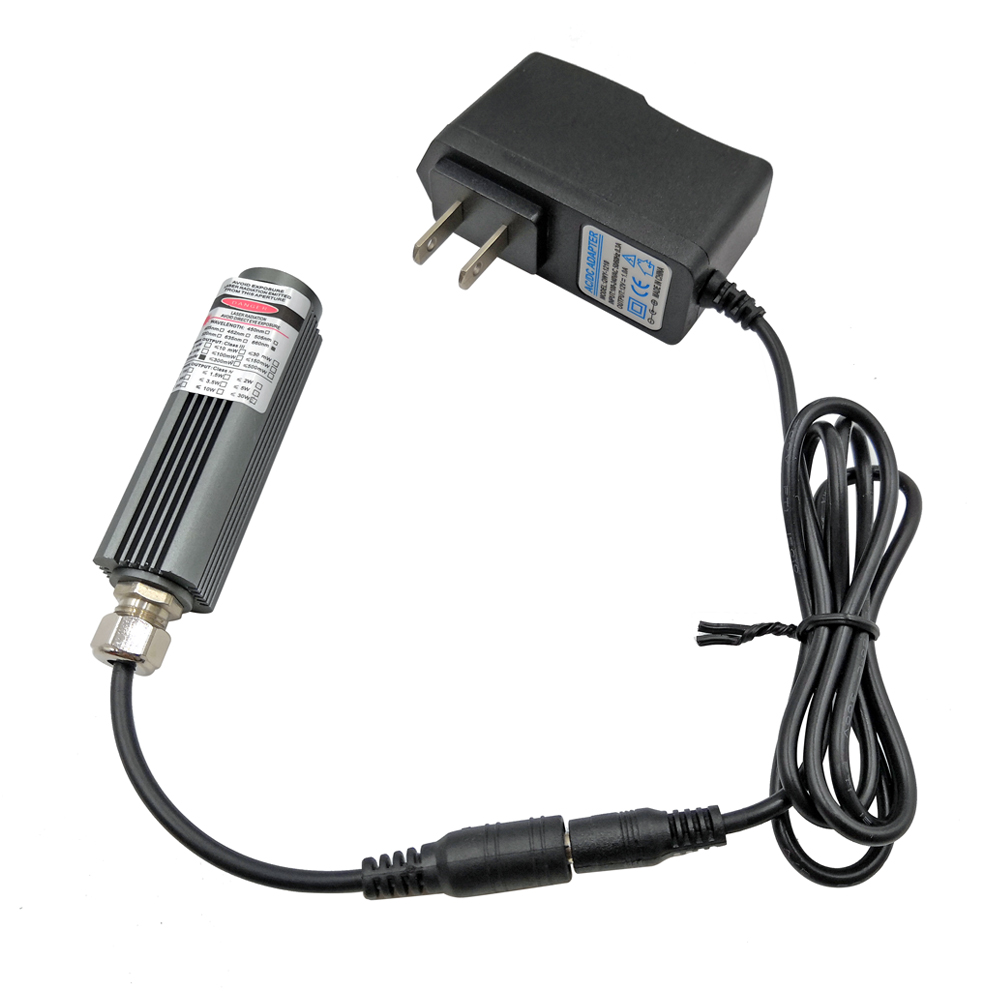

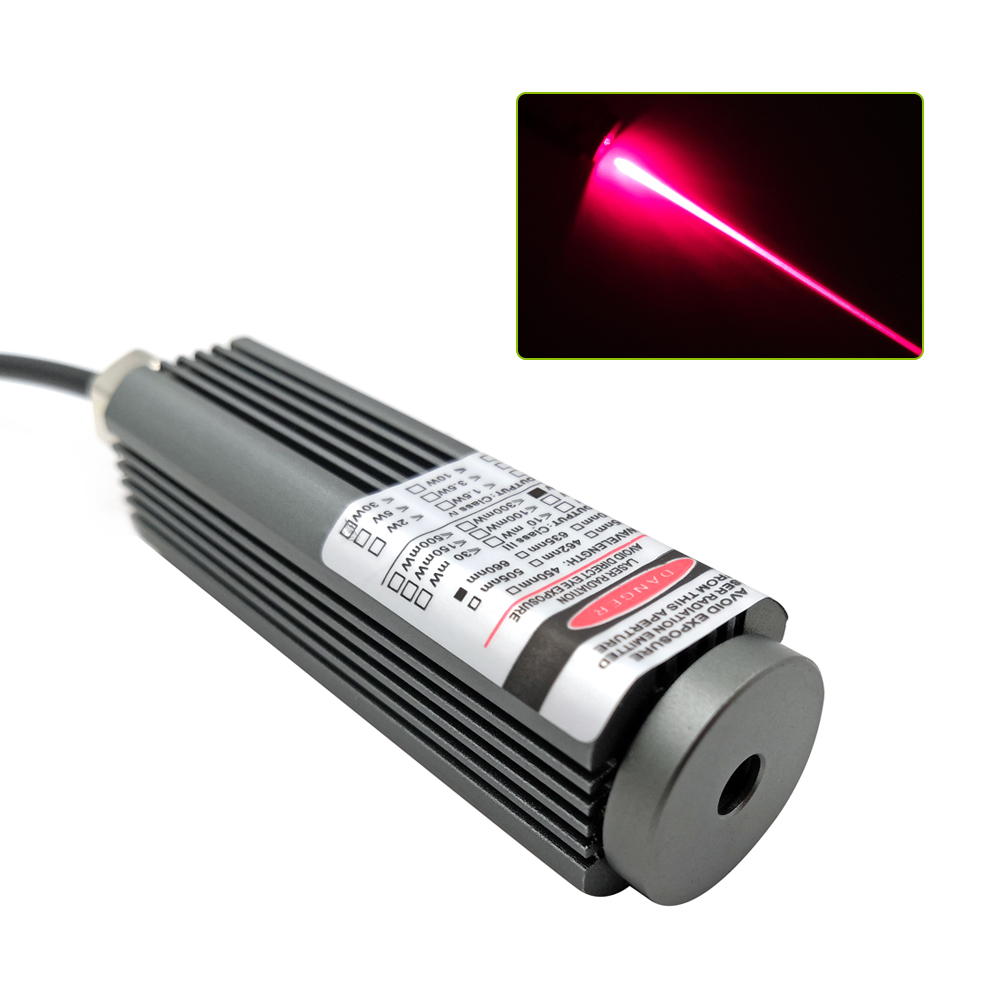

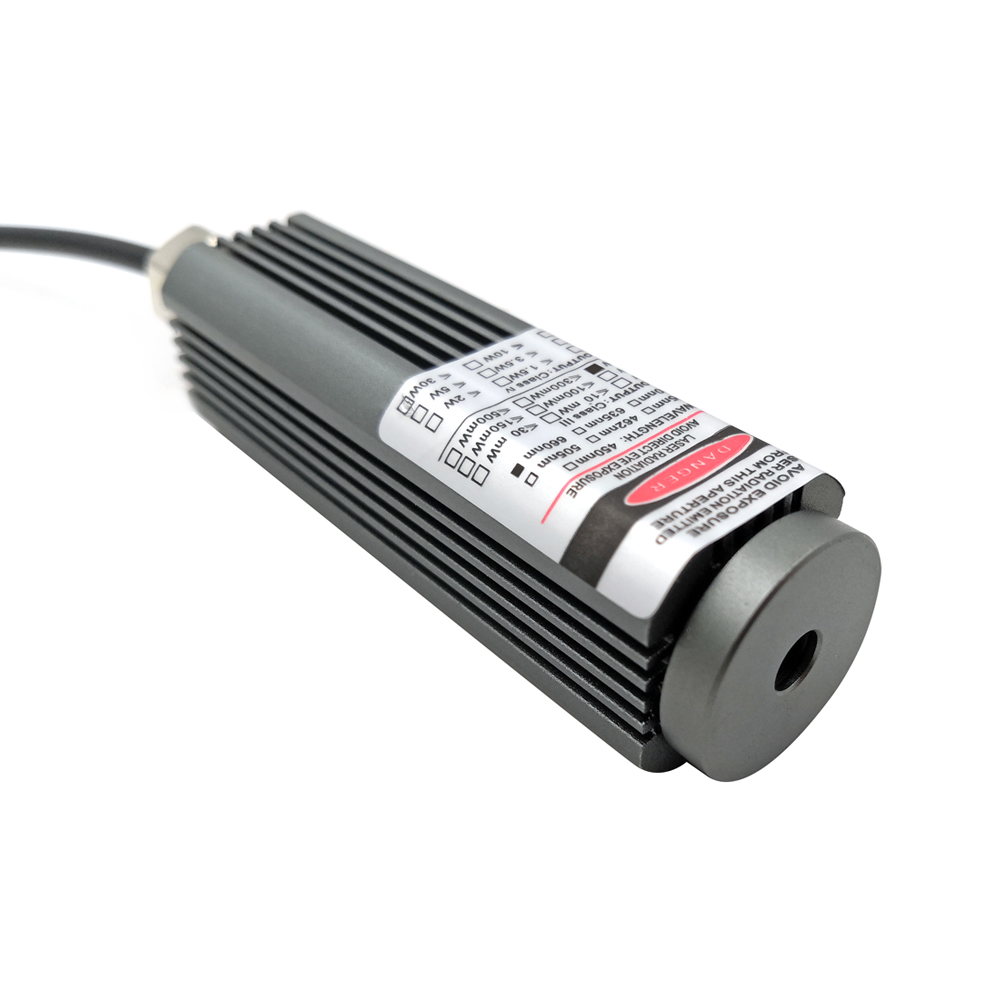

200mW 660nm Red Line laser Module High Power Laser With Focusing DIY Engraving Machine Waterproof Laser Head

$83.46

99 in stock

SKU: 4000083530162 Category:

Description

  • Brand Name: CRONOS
  • Certification: NONE
  • Origin: CN(Origin)
  • Model Number: 660nm 200mW

200mW 660nm  Red Line laser Module High Power Laser With Focusing DIY Engraving Machine Waterproof Laser Head

02

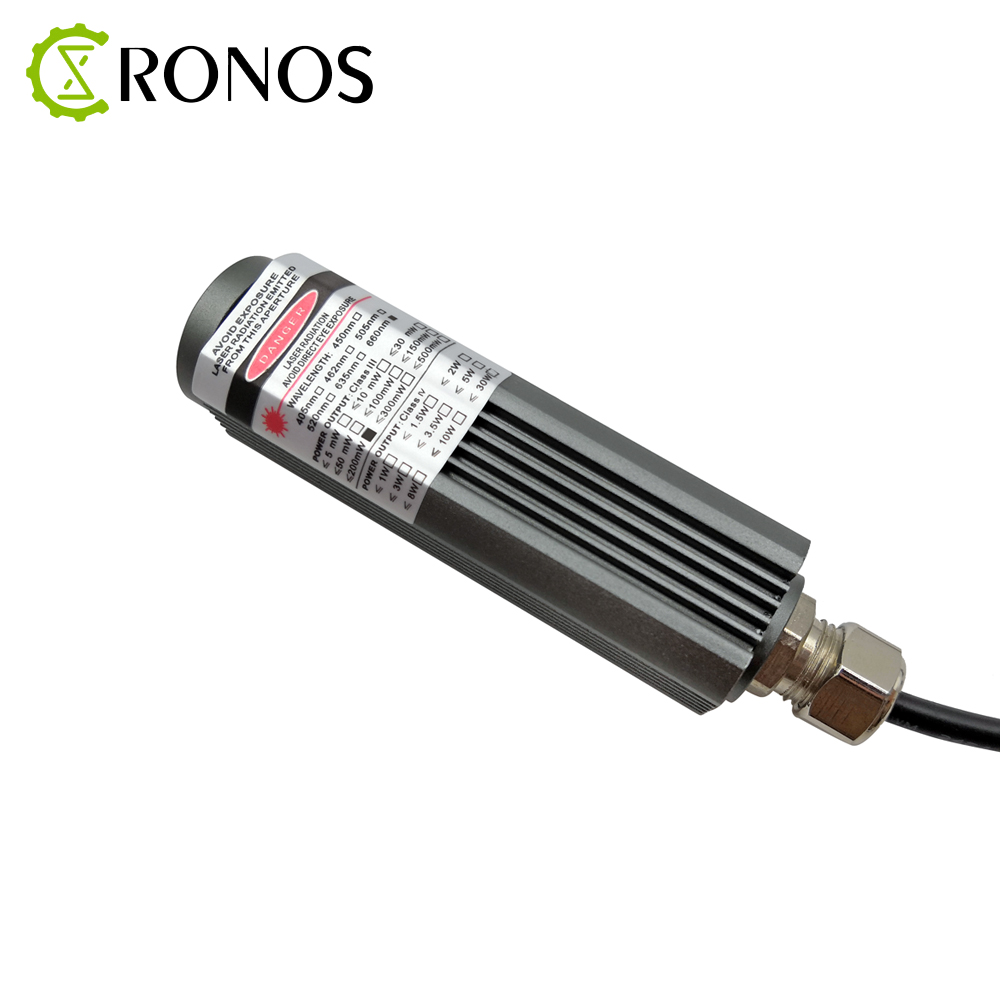

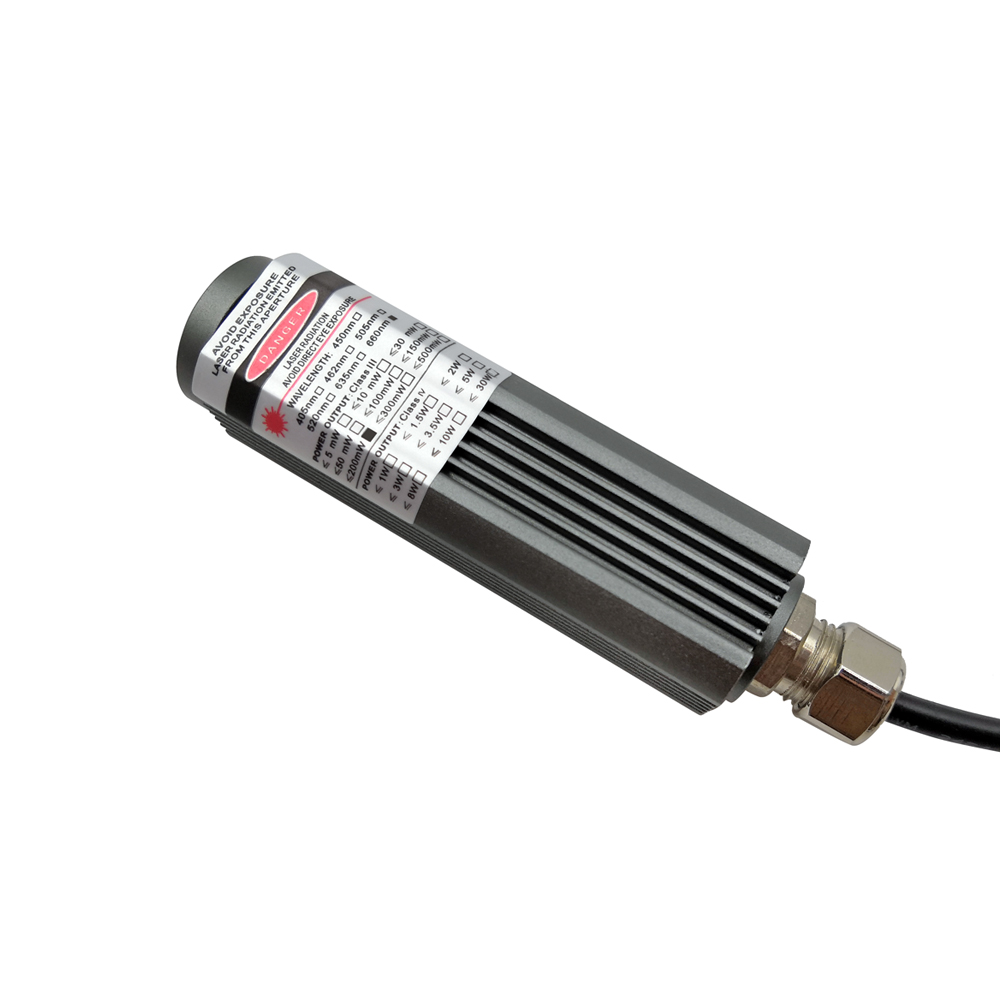

1.Unique waterproof structure design, no longer cause irreversible loss of laser optical system due to wet weather, so

   that your work is not affected by the environment, outdoor rain and snow weather will work as usual;

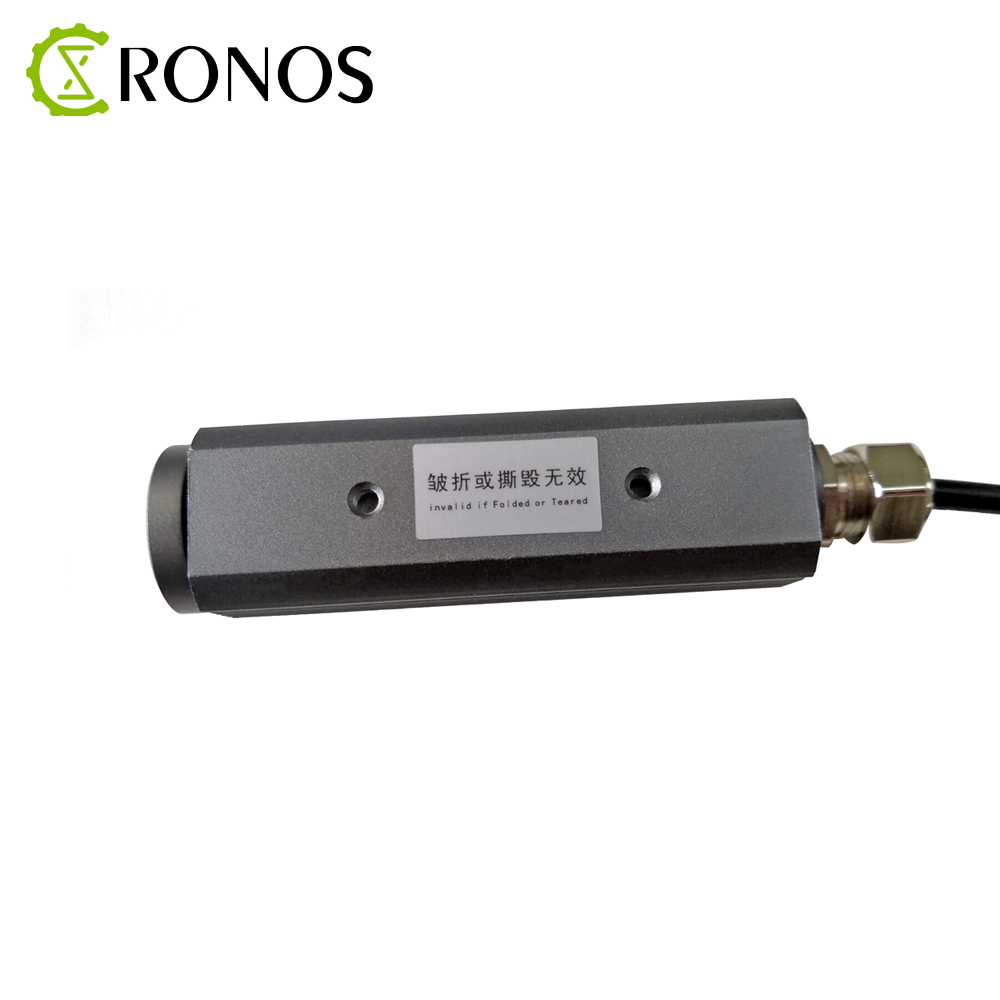

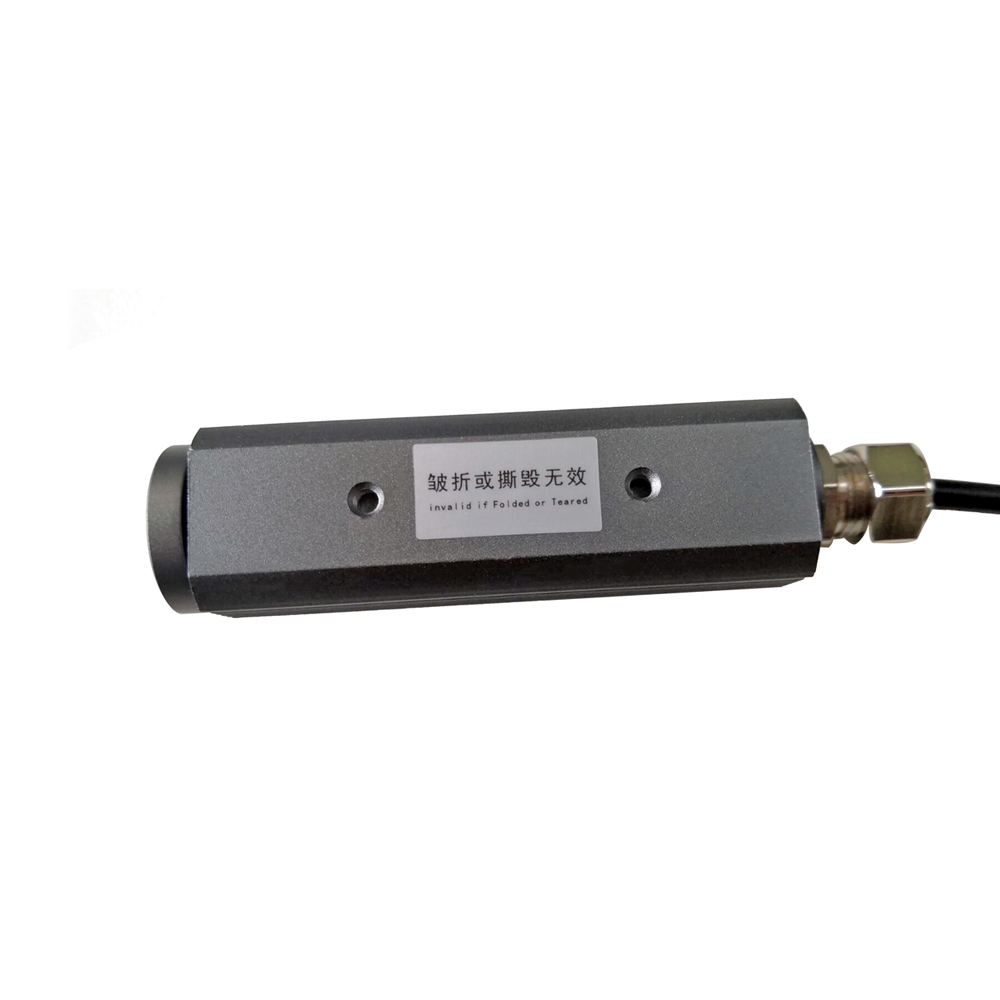

2.The design of the shape is different. Considering that the square product is more suitable for precise fixing on any

   plane, it is designed as a rectangular section, and of course retains the characteristics of concentric circles, so that the

   module can be assembled separately or assembled to other The equipment is simple and precise.

3.Adopt Mitsubishi imported red laser diode, the light output form is a word line light source.

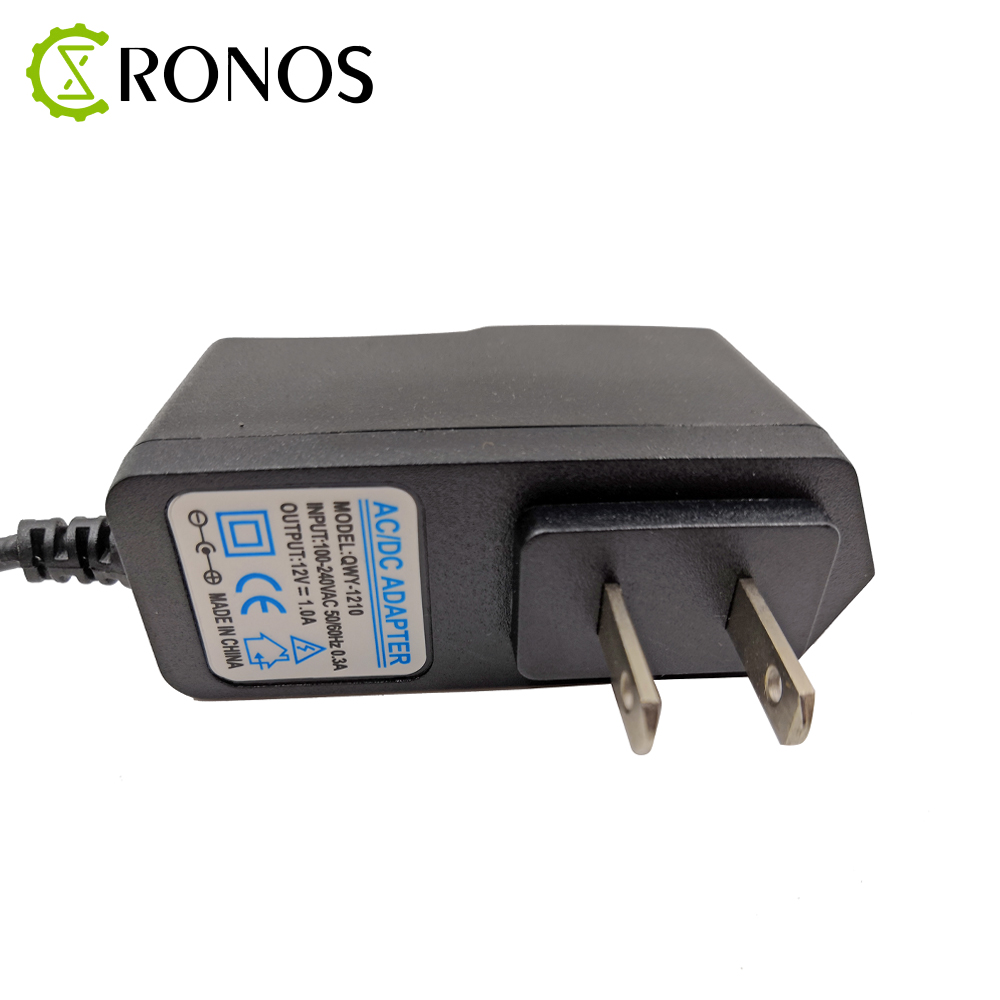

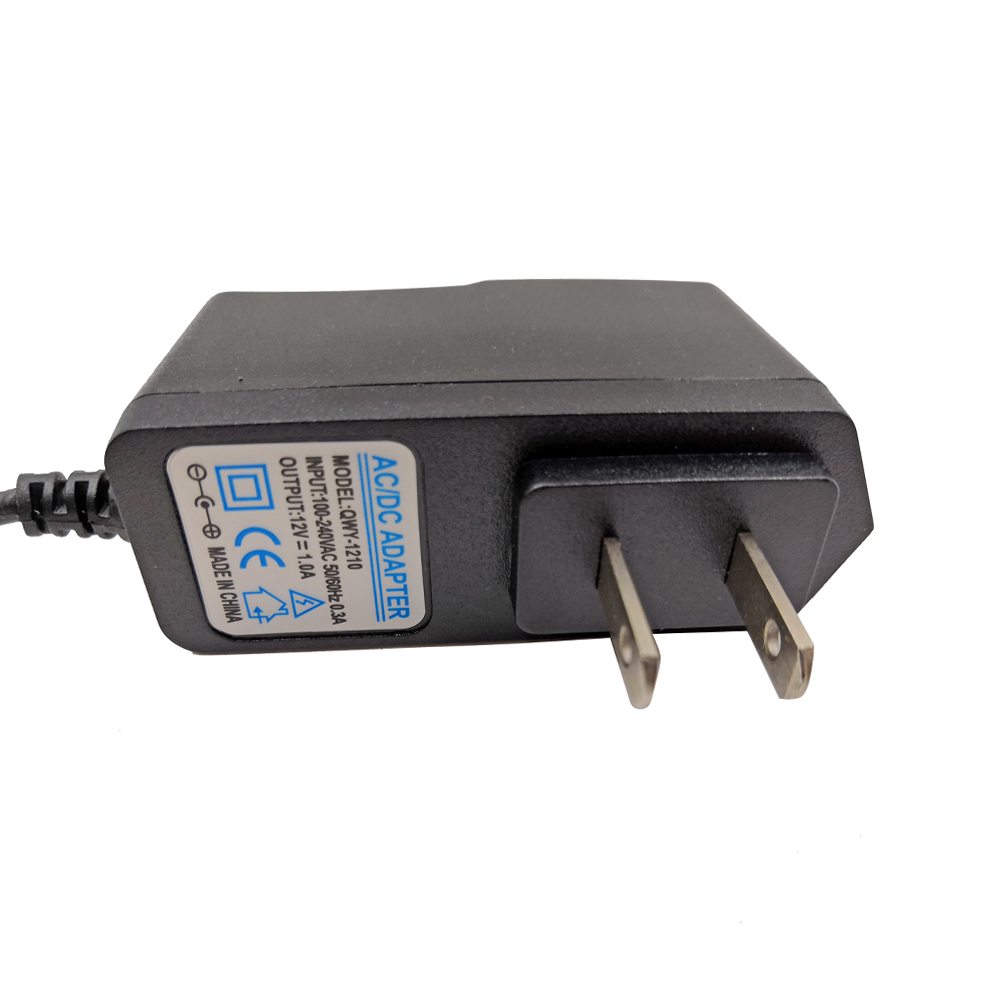

4.With 12V input power, it can match the voltage on the motor vehicle. Of course, various voltage input versions can

   be customized according to customer requirements.

03

  • Dimensions: sectional rectangle size is 21mm
  • Output wavelength: 660 nm ± 10 nm
  • Output power: 190-210mW
  • Light shape: projection as a word line
  • Lightness: The default is 110 degrees.
  • Surface treatment: anode gray / blue
  • Shell material: aviation aluminum
  • Circuit Control: ACC Line
  • Reverse protection: Yes
  • Working voltage: DC=6-30V
  • Working current: I<320mA
  • Warm-up time: no
  • Working temperature: -10 ° C ~ +40 ° C
  • Storage temperature: +10 ° C ~ +40 ° C
  • Structural features: laser tube + lens + heat sink
  • Remark: Wire red is positive and black is negative
