Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Chongqing, China
- Brand Name: KJ
- Model Number: DRM72000
- Size: 110x75x45mm
- Warranty: 1year
- Measure: Distance/speed/Angle

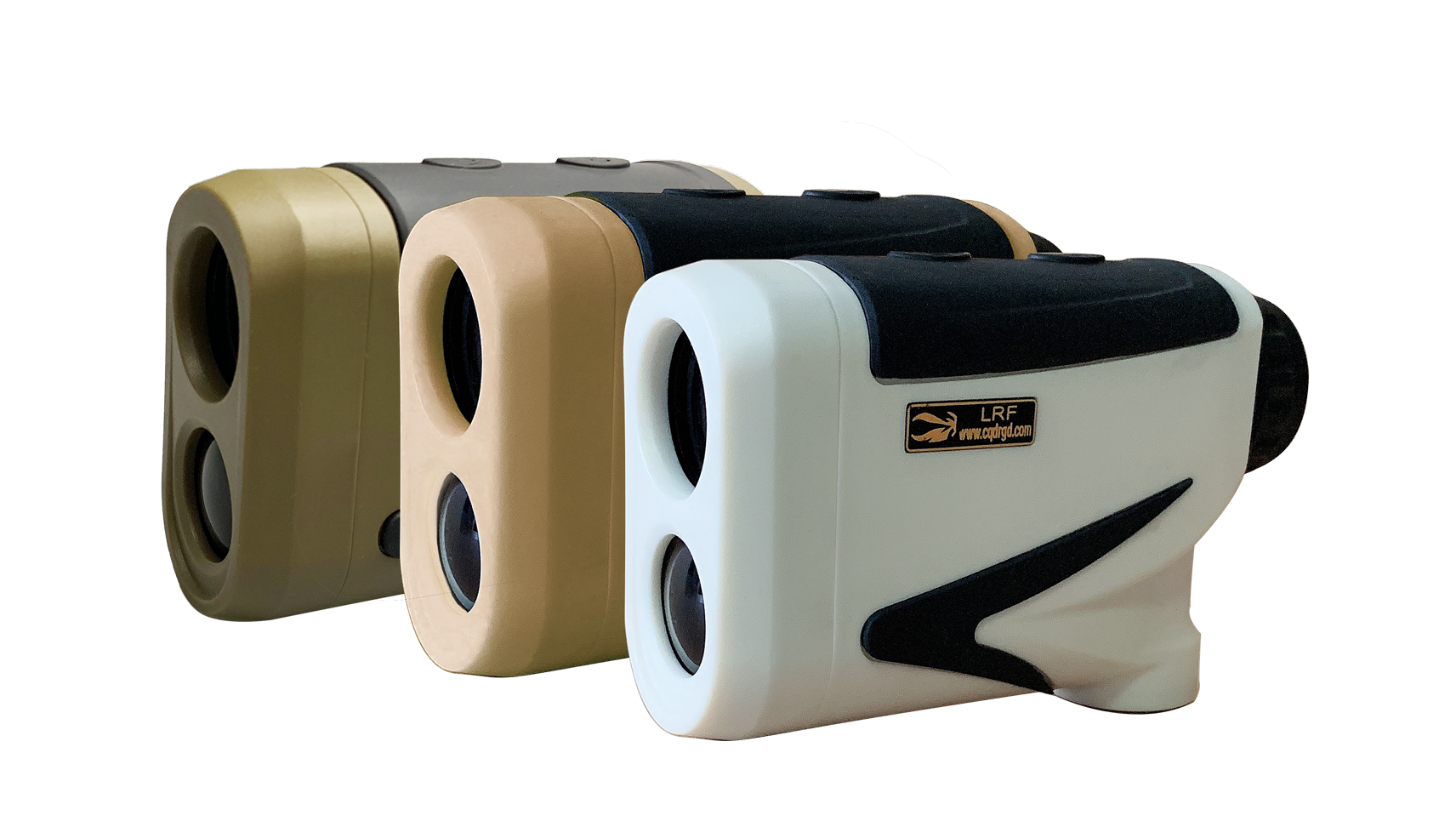

Products Description

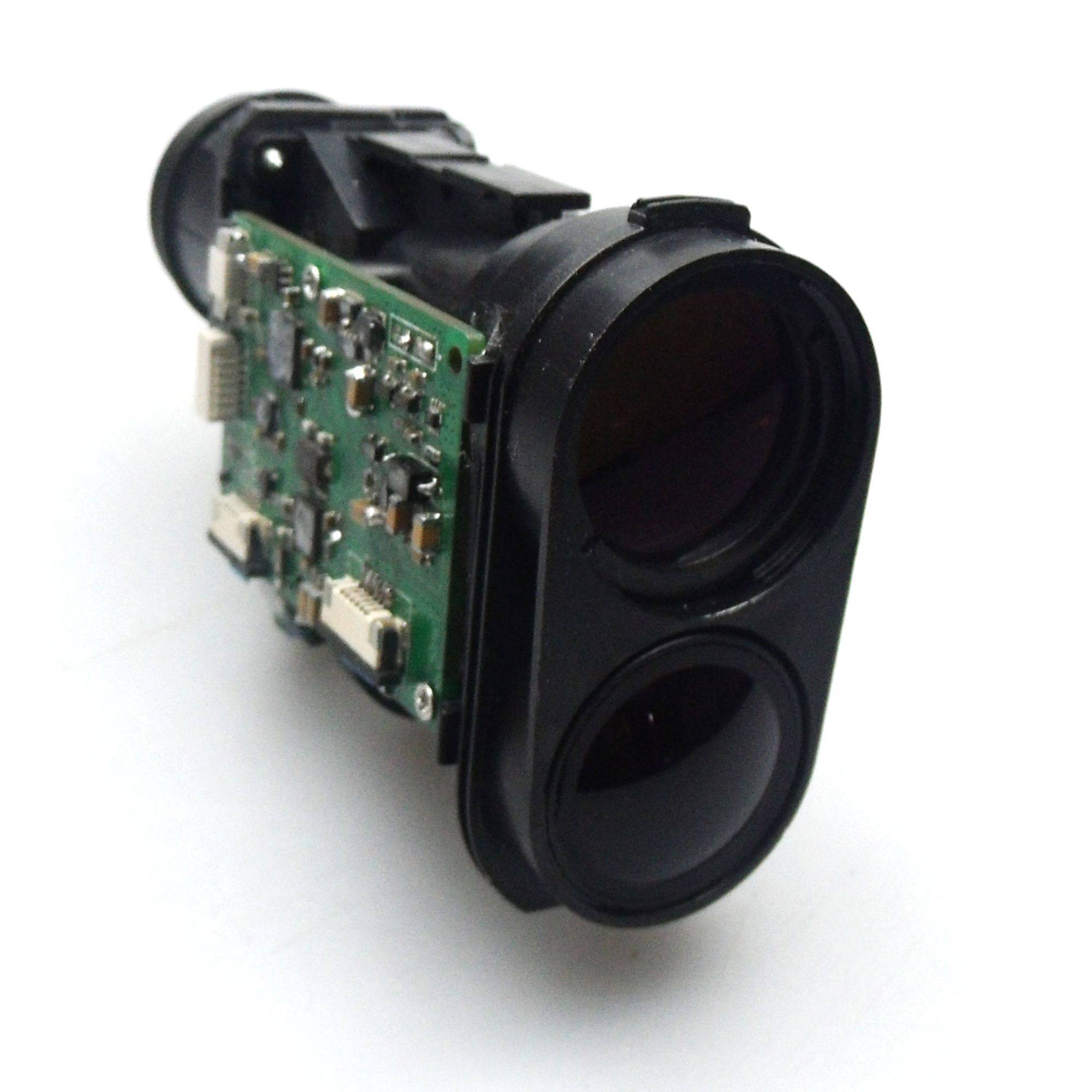

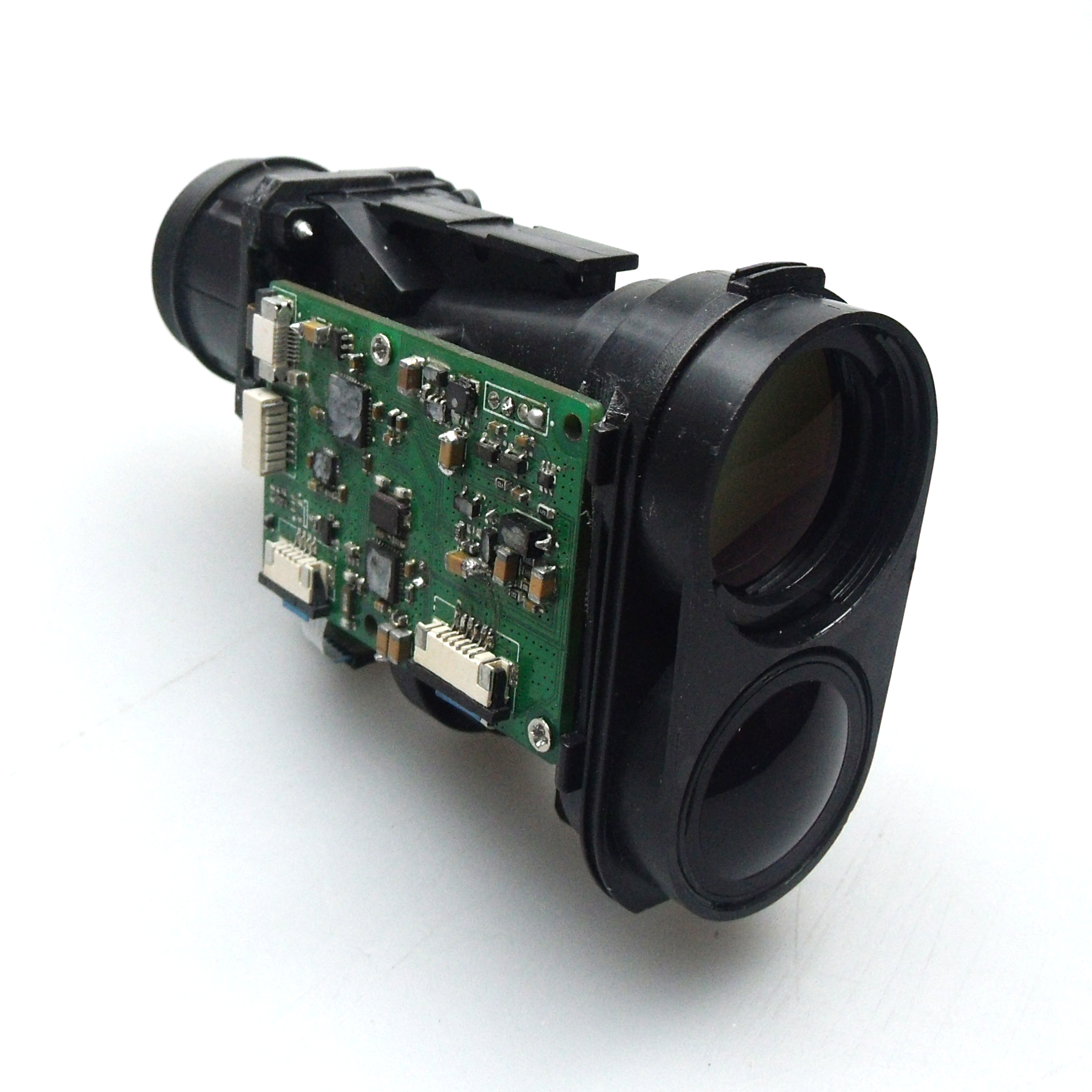

| Front | Back |
 |
 |

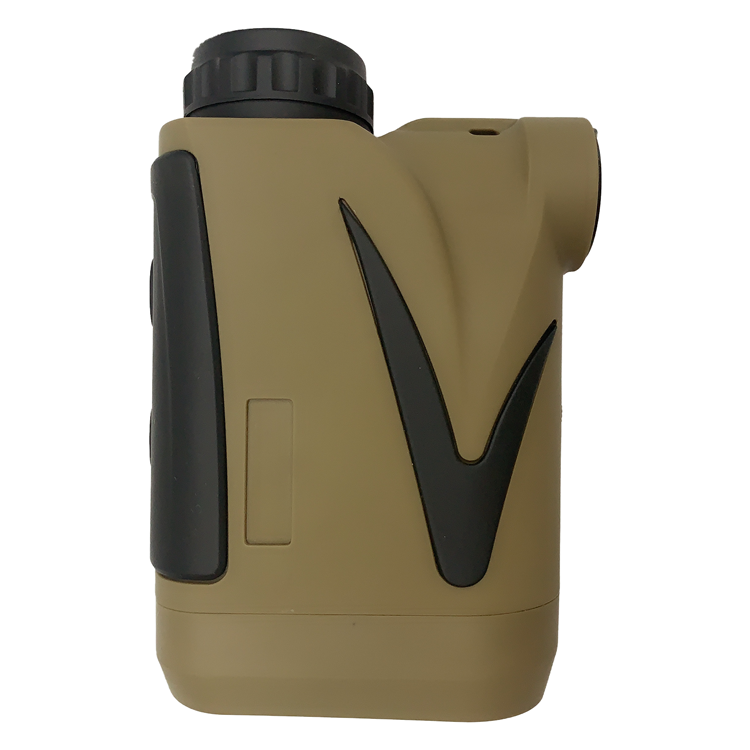

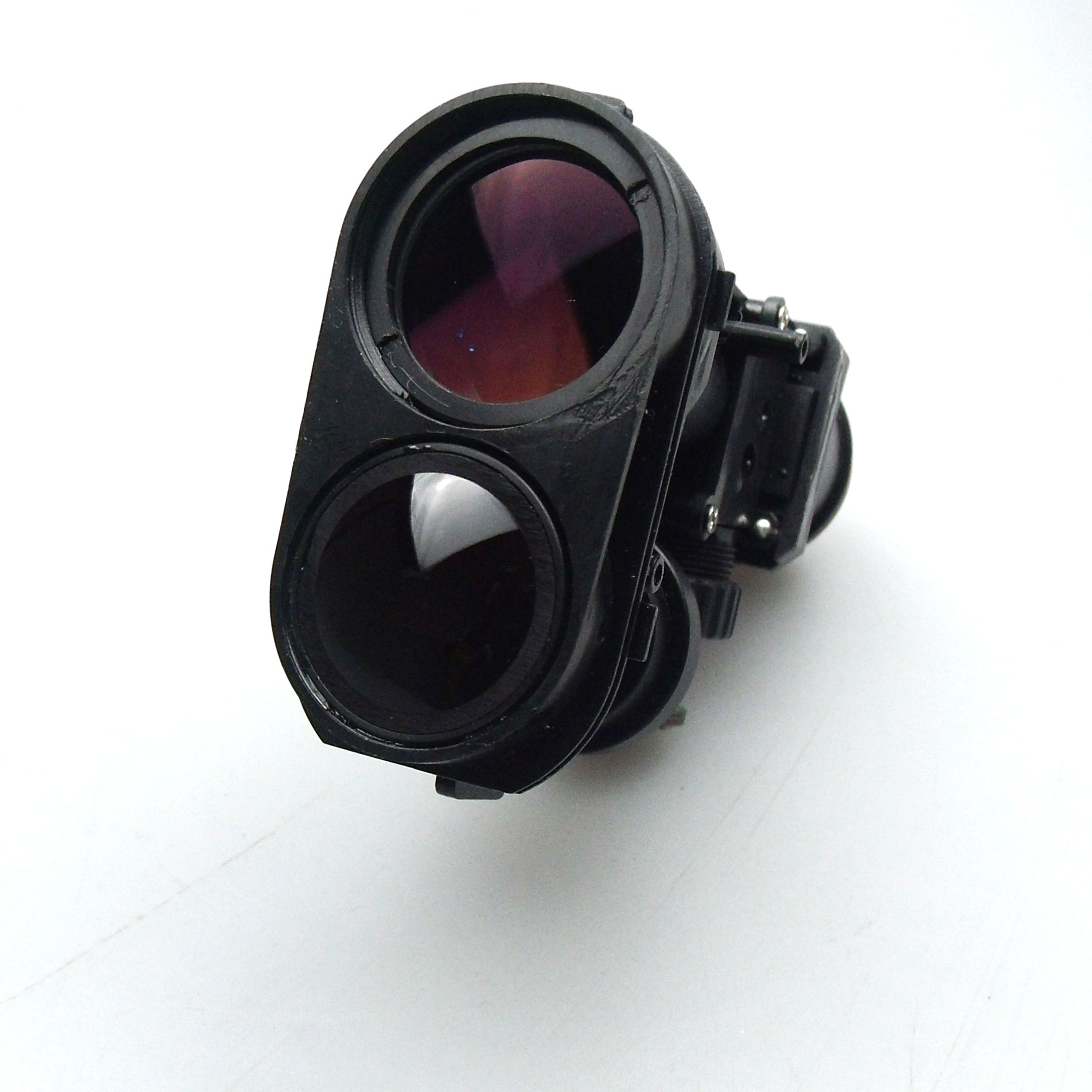

| Objective lens | Side View |
 |
 |
| The main technical index: | Details: |
| Wavelength: | 905nm |
| Max Ranging Distance: | 800m/1000m/1500m/2000m/3000m/4000m(customized) |
| Magnification: | 7X |
| Focus way: | eyepiece focus in manually |
| Measuring height and Angle: | ±90 ° |
| Objective diameter: | 25mm |
| Ranging of vision: | 122m/1000m |
| Lens coating: | multi-layer coating |
| Min Ranging Distance: | 5m |
| Distance-measuring Error: | ±0.3m |
| Weight: | 72/56g (with/without eyepiece) |
| Distance Resolution: | 1m |
| Power supply: | 3V |
| Working Temperature: | -20℃~+50℃ |
| Dimensions: | 45x75x110mm |
Products Integrated

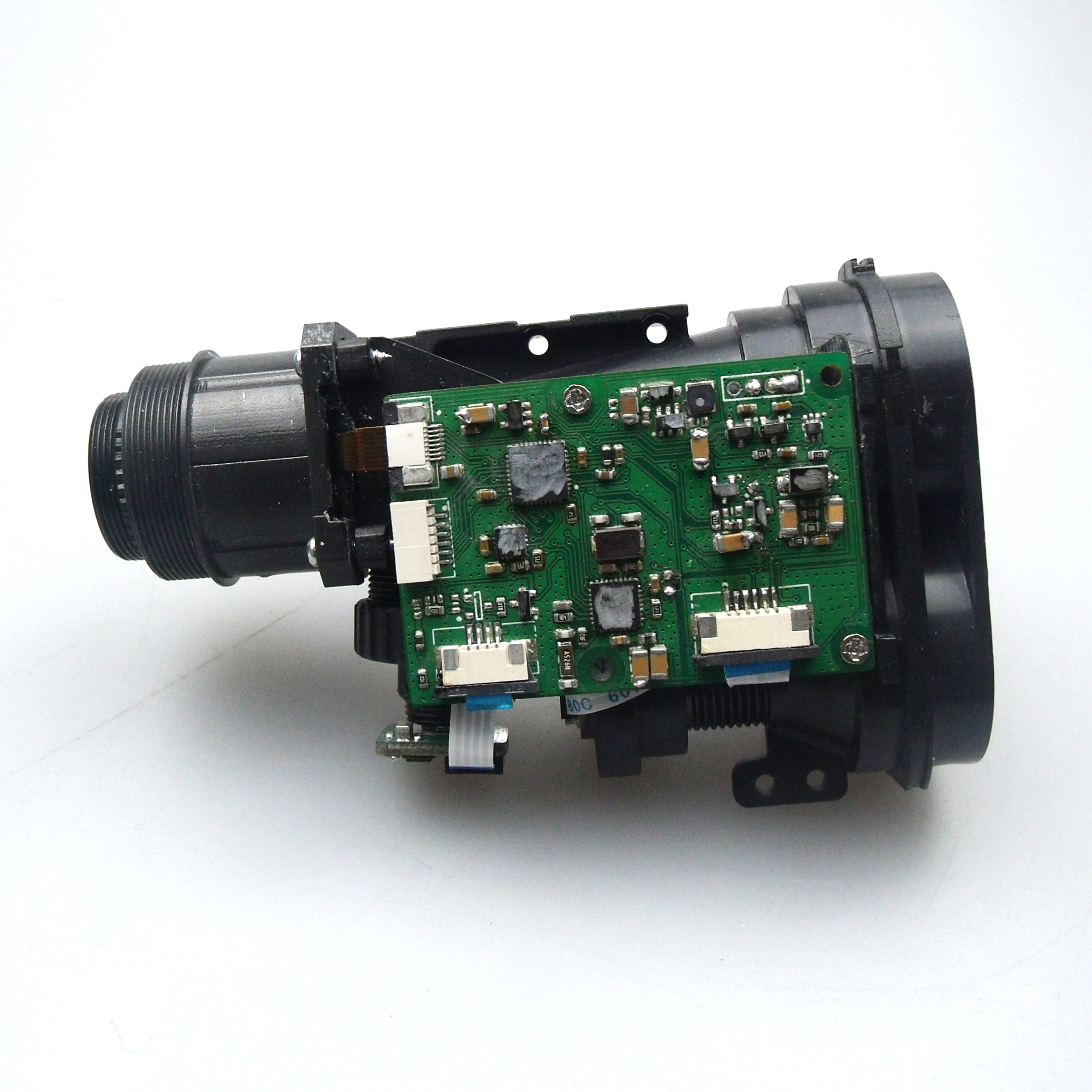

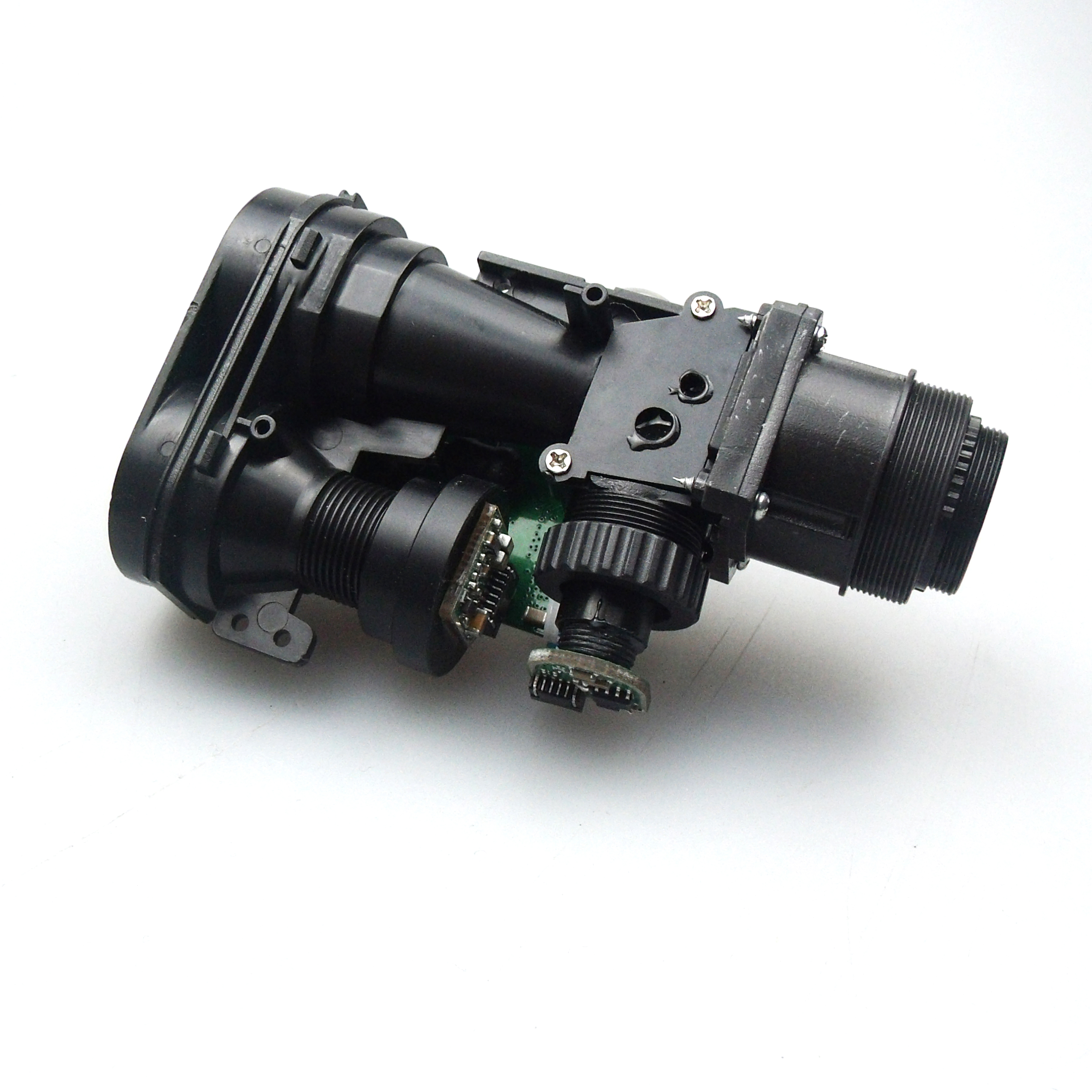

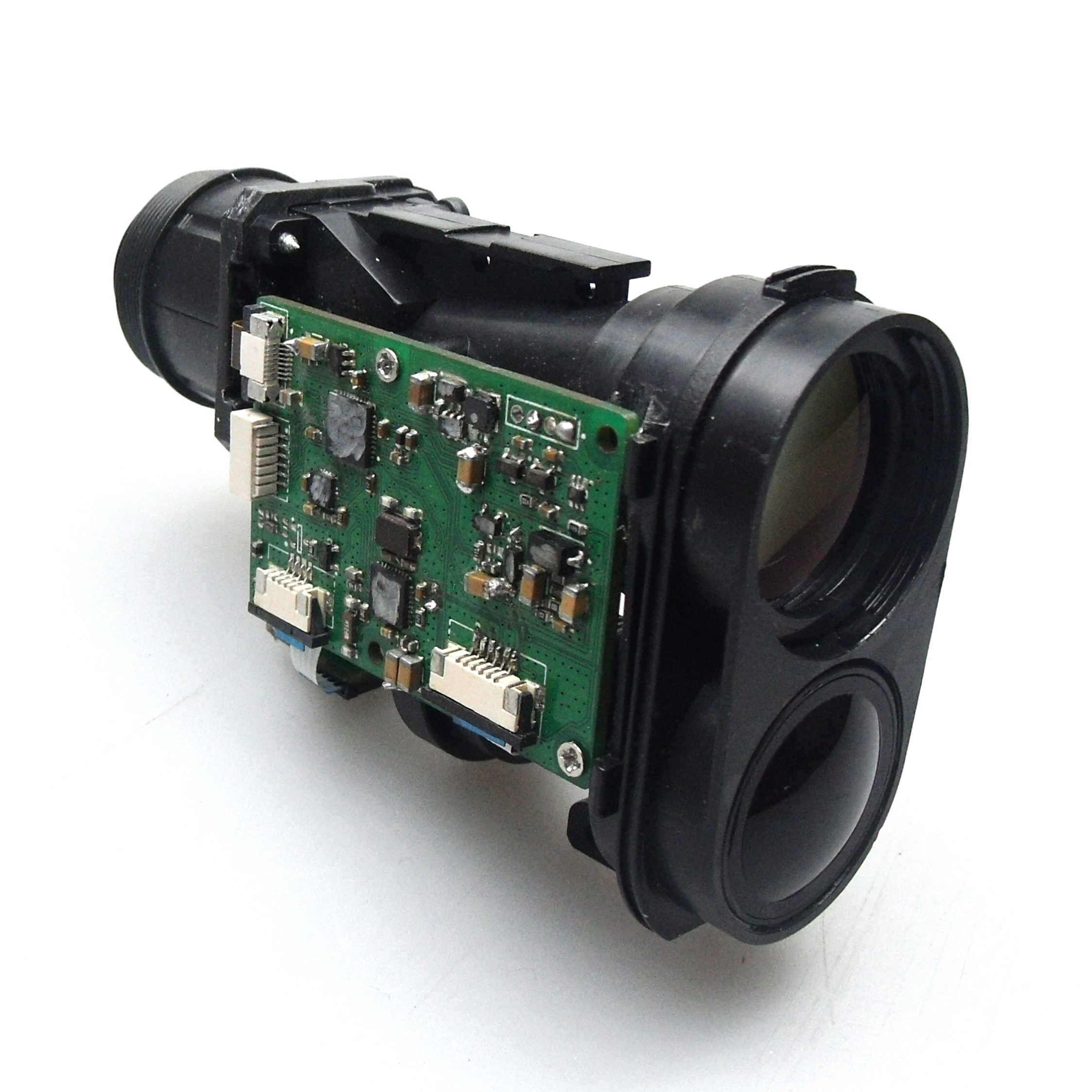

From Module to Laser Rangefinder
 |
 |

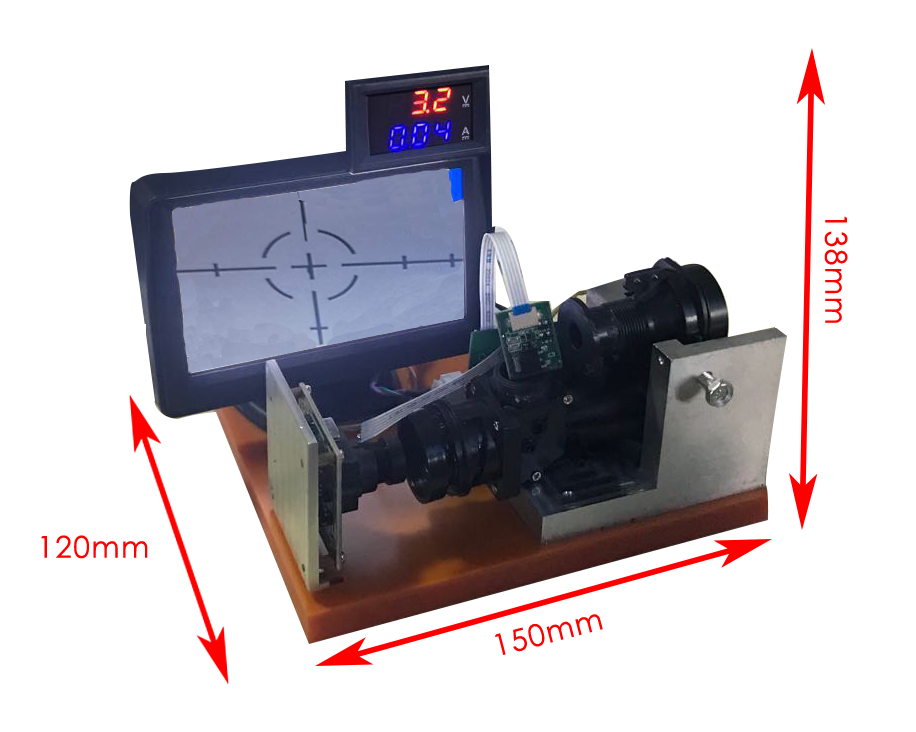

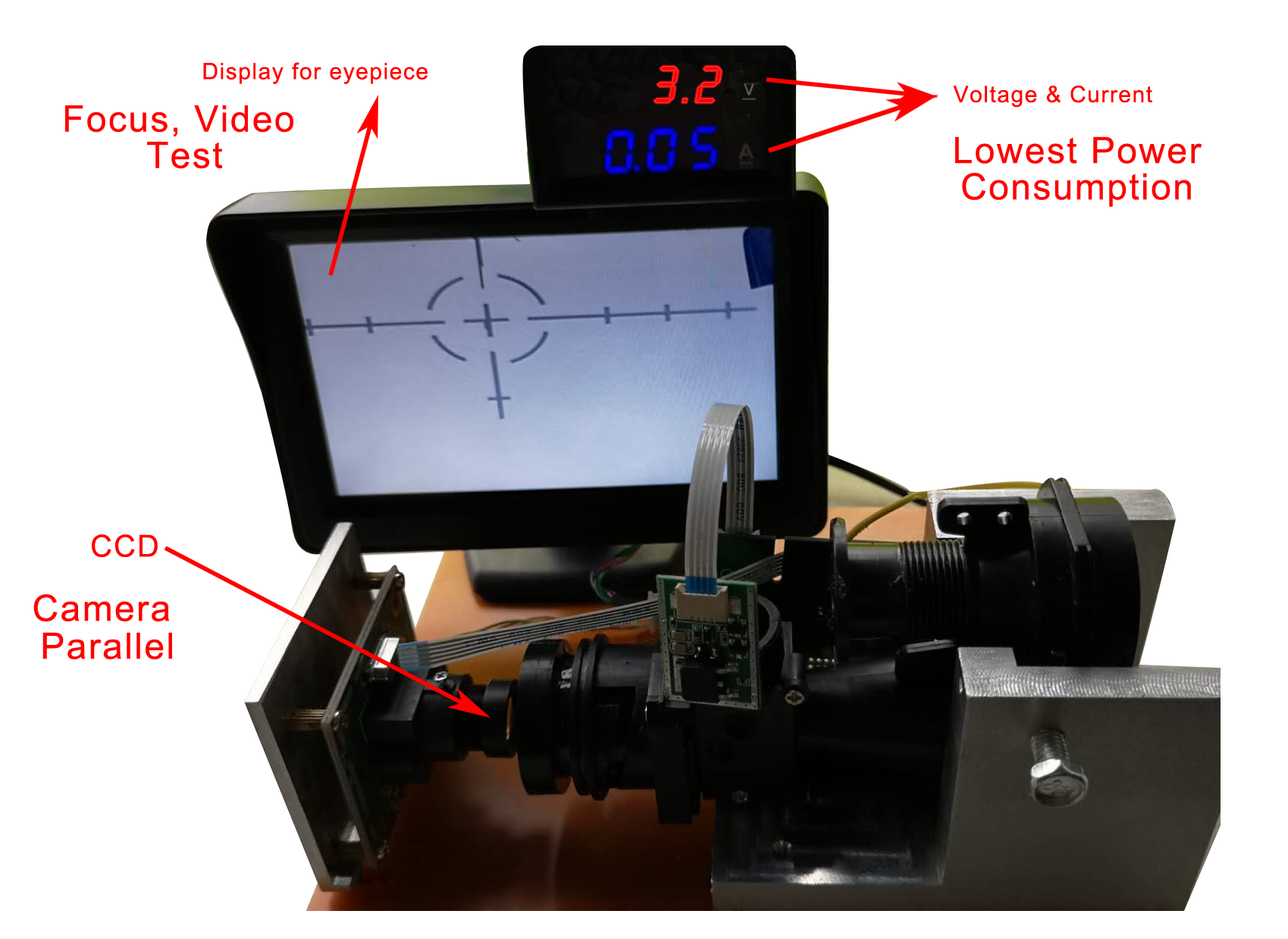

Products Adjust & Tests

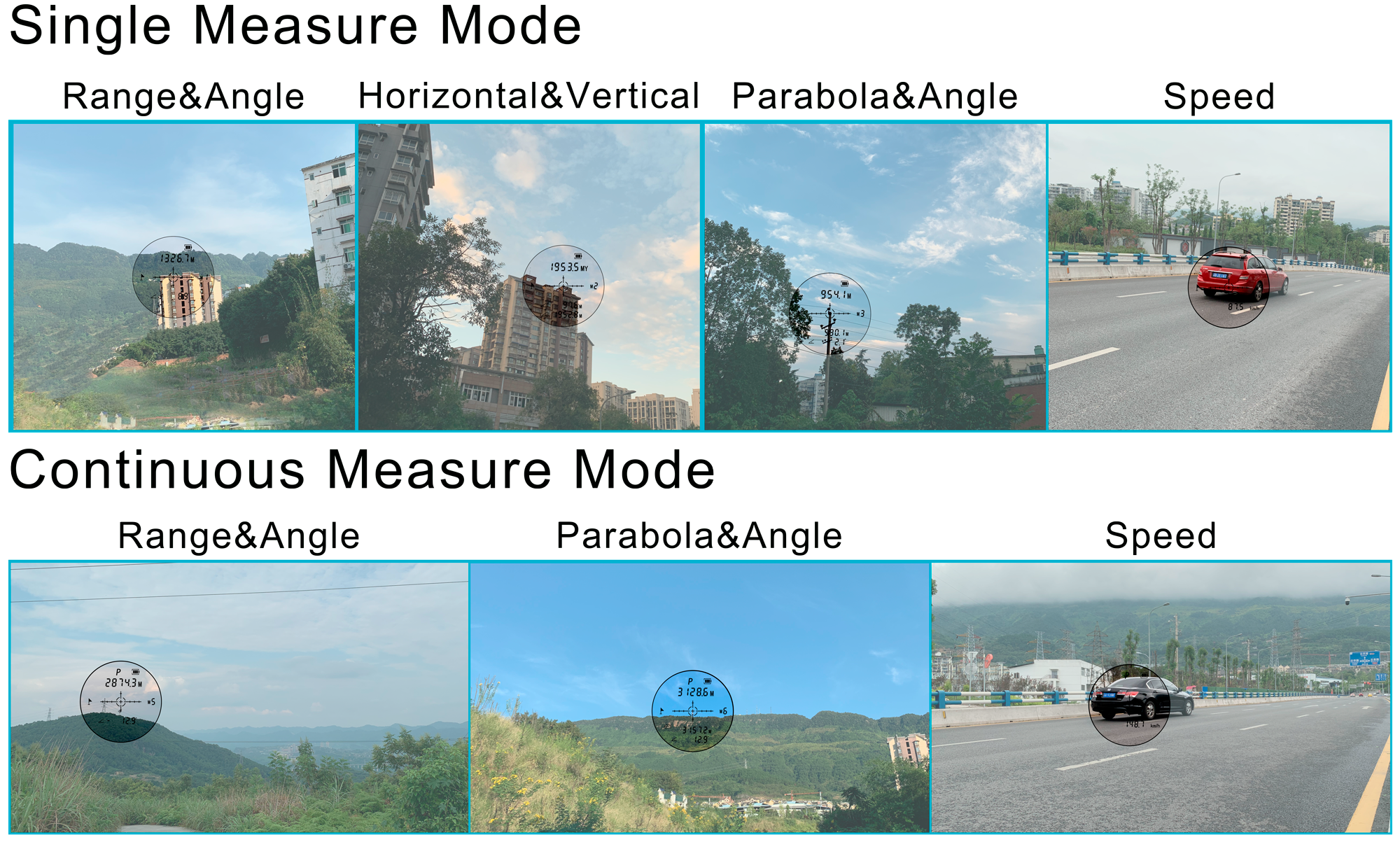

Products Application
Applications

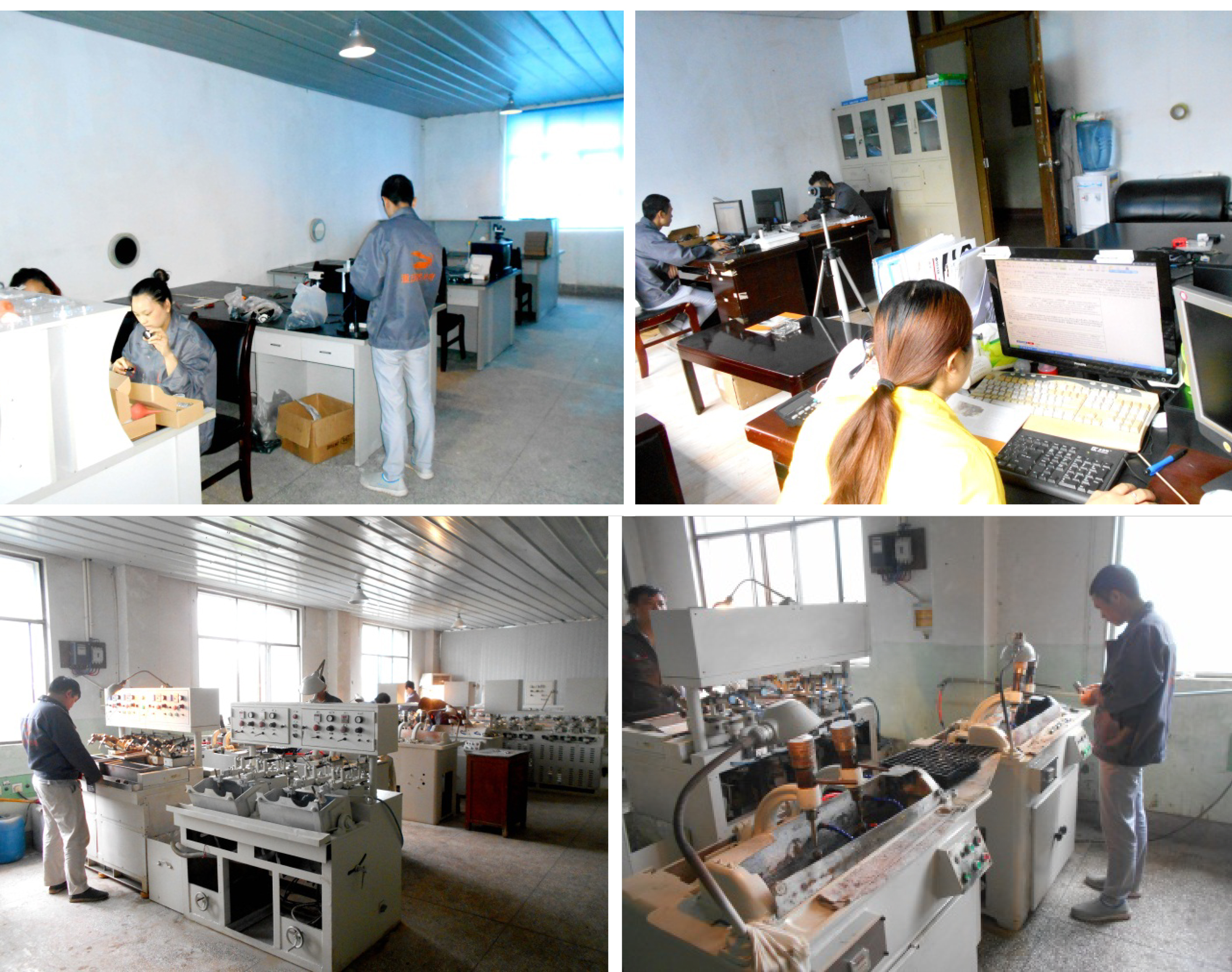

Company Introduce
Established in 2008, Chongqing Diaoran Photoelectric S & T Co., Ltd.is a company specializing in professional optical design and production of various lasers and laser range finder (instrument) development. Our company and domestic large and medium-sized military enterprise, military research institutes, military colleges, local colleges and universities, Europe and the United States have good cooperation relationship.
Our Company adheres to the “integrity, efficiency excellence and innovation” to win the trust of customers. Currently, we are continuing to provide customers with high-quality products and services to “integrate channel resources and to promote the development of the industry “as the guiding ideology”, with customers and industry colleagues to have long-lasting good cooperation at business.
