Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Place of Origin: Jiangsu, China
- Brand Name: KYA
- Model Number: 2000-1020
- Type: Air Pump, Clinching Tool
- Average Air Consumption: 0, 7.06
- Maximum Torque: 0, 13500
- No-Load Speed: 0, 250r/min
- Weight: 4.4 Lbs (2.0 Kg)
- Mattress Clips: 80-90 Psi (5.5-6.2 Bar)
- Operating Pressure: 80-90 Psi (5.5-6.2 Bar)
- Tool Diamensions: 7 X 4 X 16.5″ (178 X 102 X 419mm)
- Body (Housing) Material: Composite Plastic, Green Color
- Clip Magazine Material: Composite Plastic, Green Color
BODY (HOUSING) MATERIAL: Composite plastic, Green color
CLIP MAGAZINE MATERIAL: Composite plastic, Green color
MAGAZINE FORMAT: Curved magazine
MAGAZINE CAPACITY: 31 – 47 clips, depending on clip size
CLIP FEEDING METHOD: Constant force spring
PRIMARY POWER UNIT: Main Cylinder – Bore 3.06″ (78mm) spring return
AIR SUPPLY: 80-90 PSI (5.5-6.2 BAR)
DIMENSIONS (HxWxL): 7 x 4 x 16.5″ (178 x 102 x 419mm)
WEIGHT: 4.4 lbs (2.0 kg)

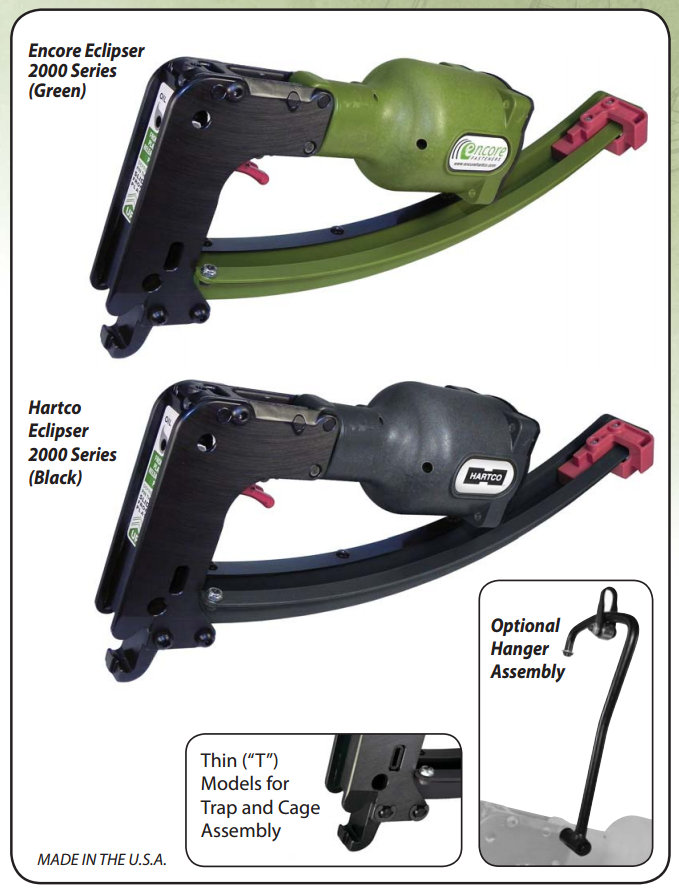

OPTIONAL: Hanger, sold separately

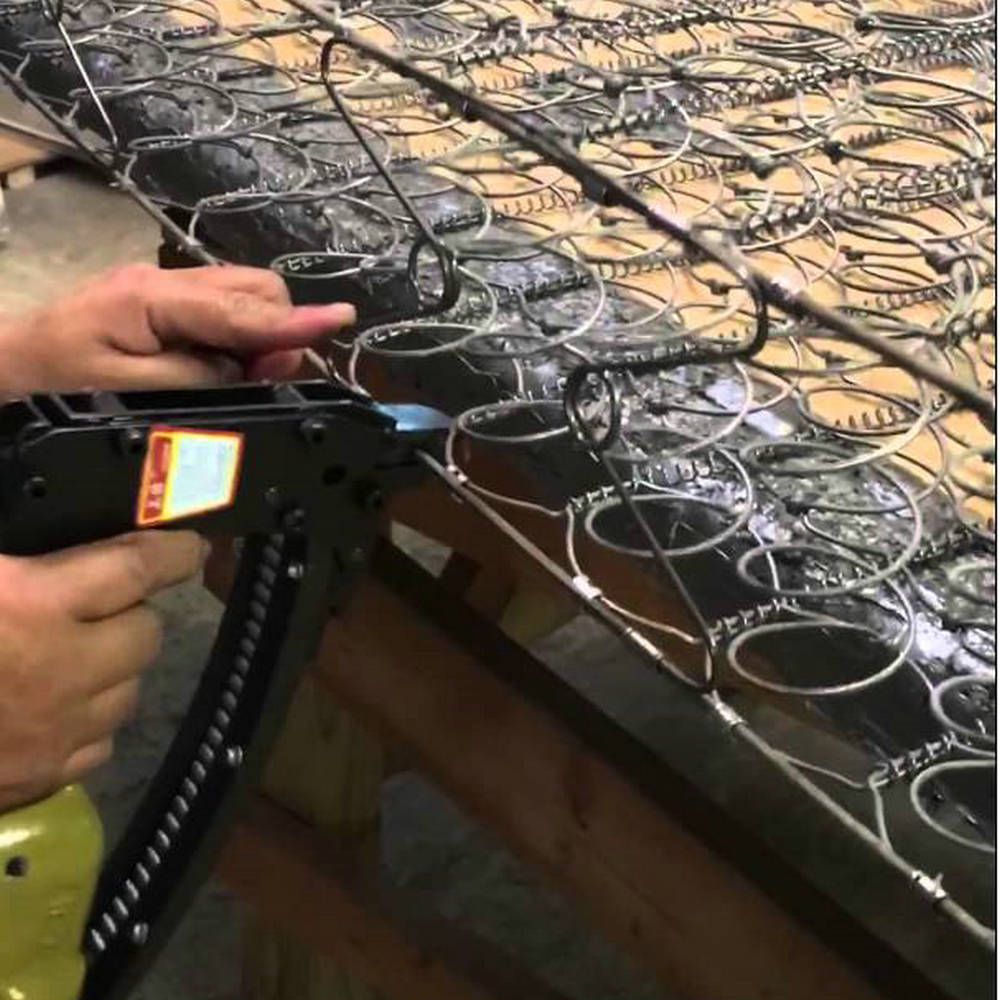

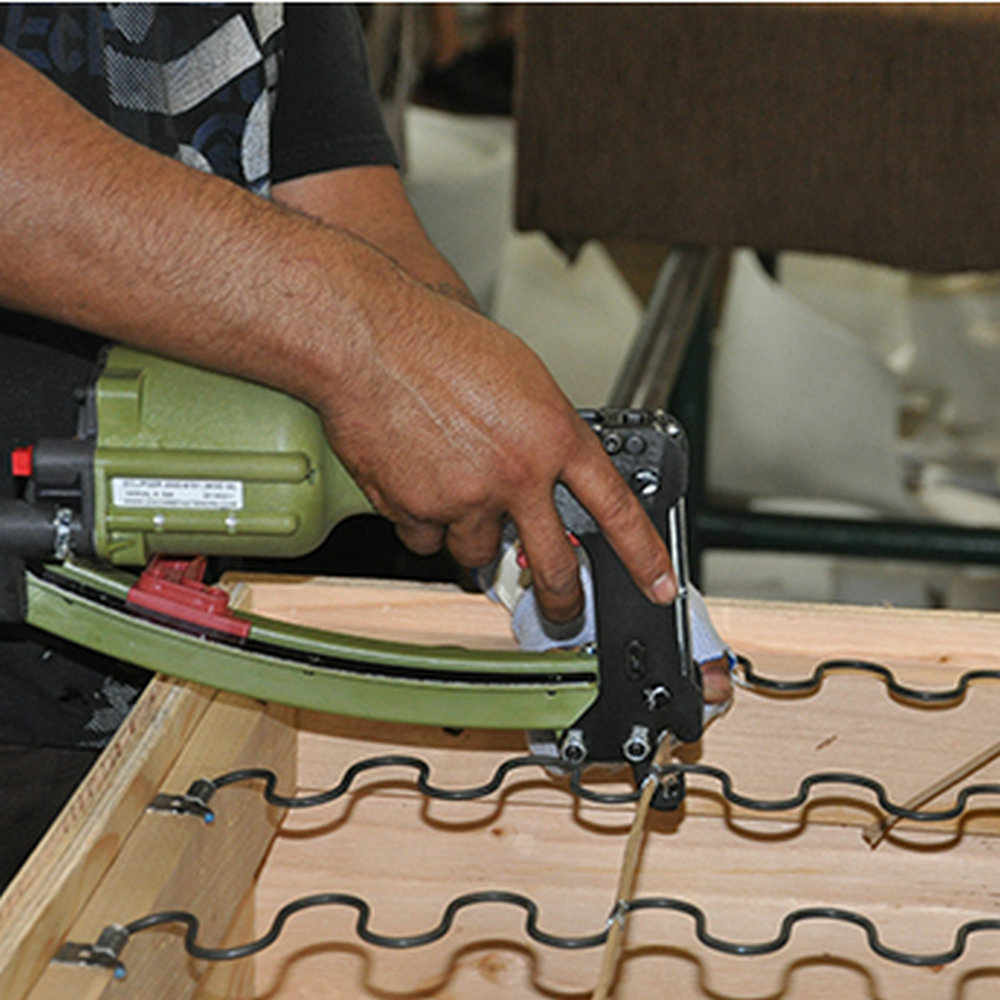

APPLICATIONS: Bedding
USE WITH ENCORE CLIP #s: 64A18SG, 71A18S, 71A18SG
EQUAL TO HARTCO #s: CLP-15G, CLP-13, CLP-13G
PRODUCT ID: EA2000-1020S
Special Features:

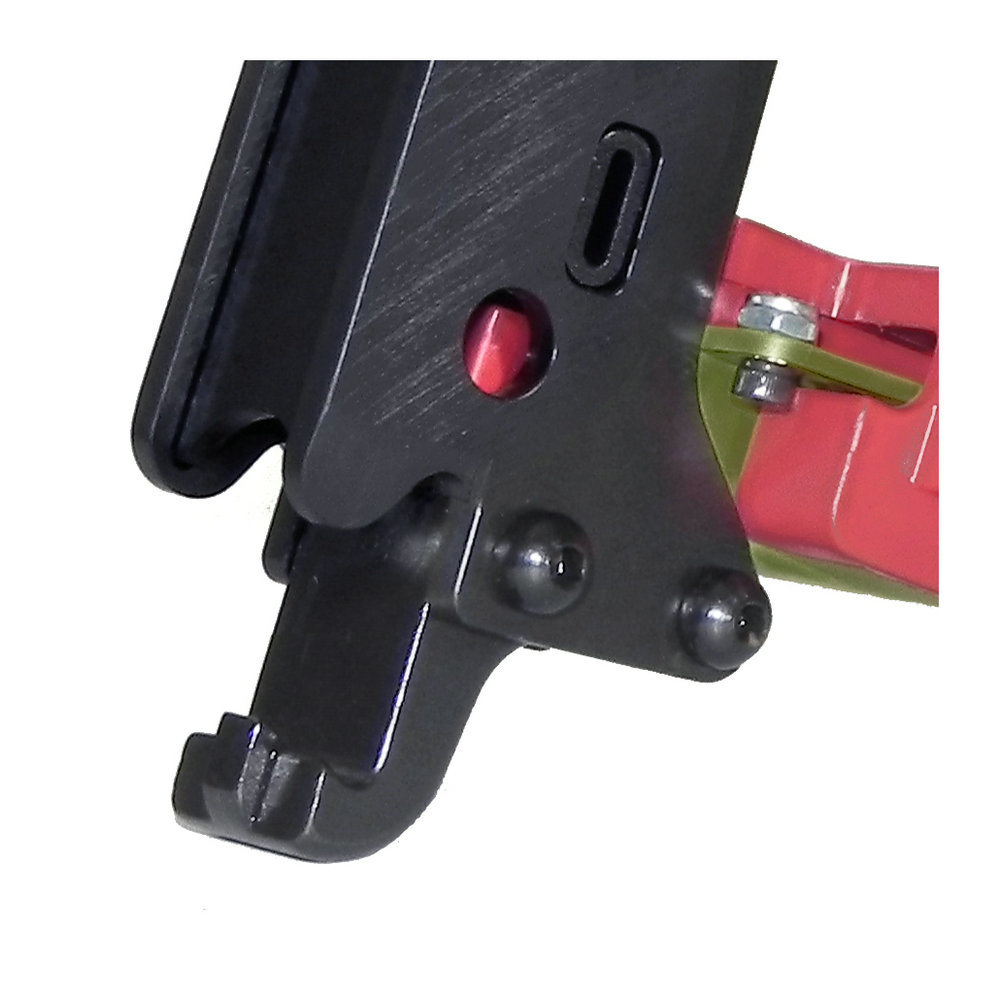

EXCLUSIVE Quick Release Front Plate-replace driver blades without tools
Light, well balanced, durable design ensures effortless handling
Fastest, simplest and most trouble-free main valve in the industry
Small contoured handle reduces fatigue, improves comfort and productivity
Optional hanger easily switches from right to left handed operation
Service and Repars:
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don’t work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don’t work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can’t return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
