Description

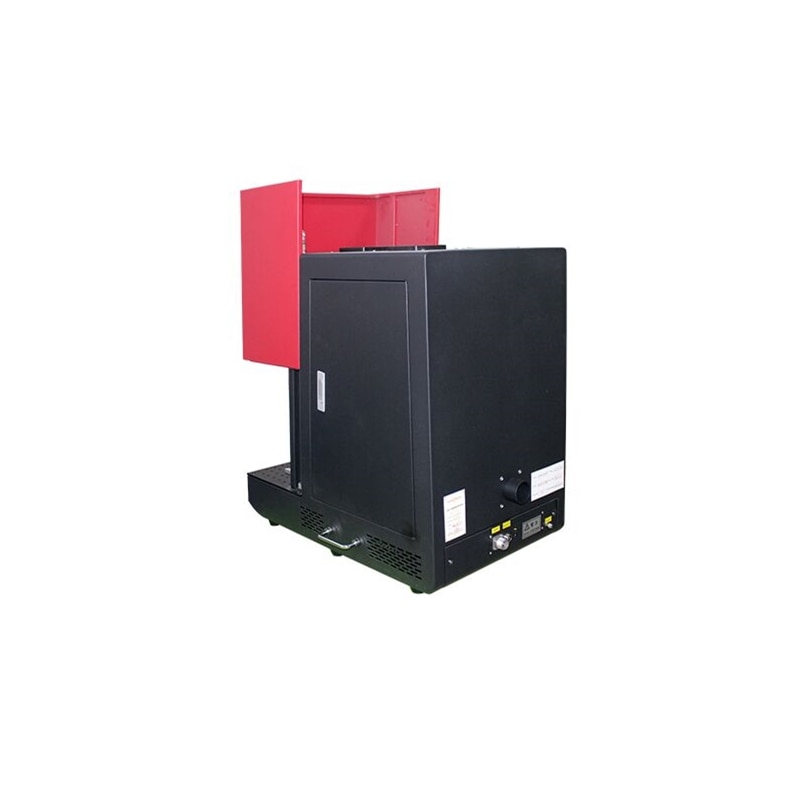

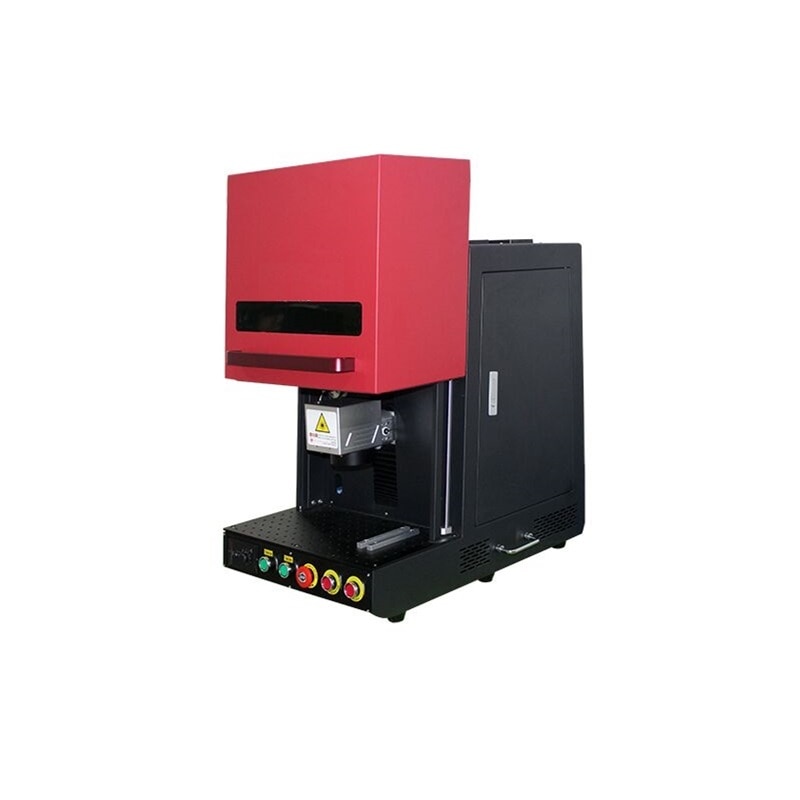

LY Closed Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable For Non-Glare Metal Iron Stainless Steel Gold Silver Copper With Electrical Lift Function

Technical Parameter

Model
Fiber Laser power	20W/30W/50W
Fiber Laser Brand	Super-Laser/MAX/RAYCUS
WorkingArea/Length	150*150mm (Optional 110MM. RE: Due to machine is Mini model, so if use bigger field lens, cannot get full work dimension, recommend Max 150mm )
Galvanometer	SG7110 (Double Red light Align Version)
Field Mirror	F200(150MM)/Optional:F160(110MM)
Power supply	MeanWell (Original)
Cooling Mode	Air Cooling
Laser Wavelength	10.64 um
Frequency of pulse	20-100 KHz
Marking Depth	≤0.3 mm
Marking Speed	≤8000 mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm

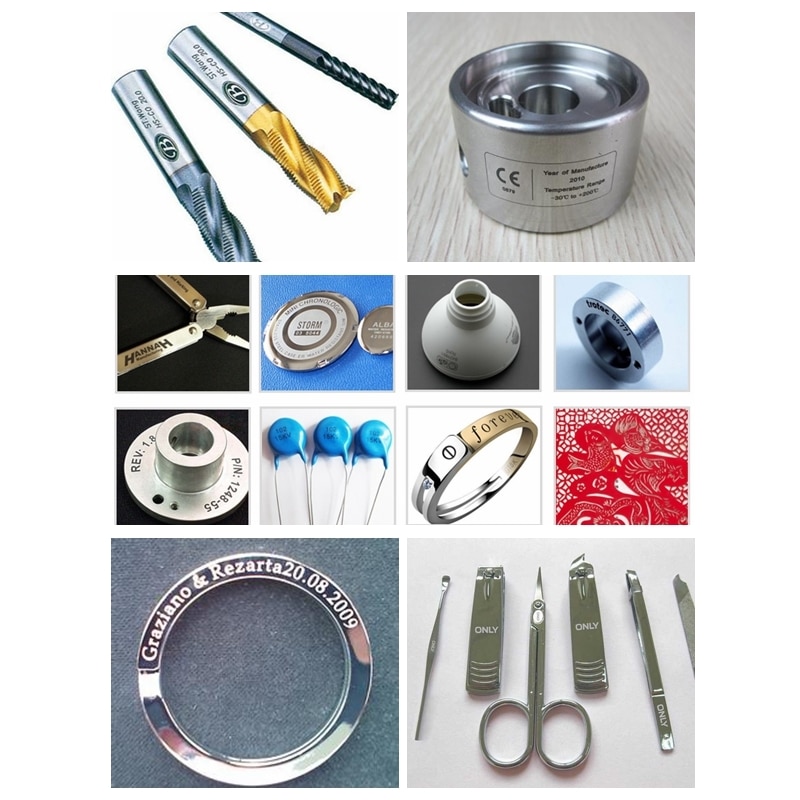

Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software	EZCAD ENGLISH Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤90%, no fog

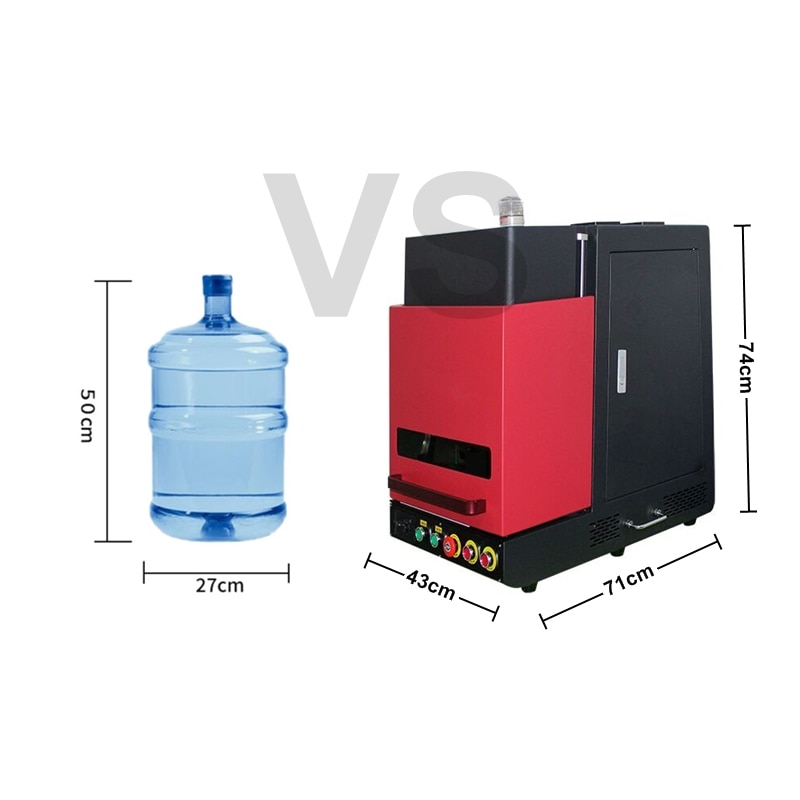

Dimensions(L*W*H)	58 x 86 x 90 cm
Power supply requirements	220 V or 110V
Net Weight	65KG
Gross Weight	90KG
Warranty	1 year
Rotary Axis	Support (Optional)
Move	Electric up & down

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional
fiber laser marking machine shop, please customers to patronize, do not just
look at the price. To look at the quality of the machine, use high-quality
machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

2:
Machine configuration:

A;FiberLaser brand:Lianpin/Raycus/Max

B;
SINO-GALVO field mirror & galvanometer,

C;
Taiwan Mingwell (MW) power supply,

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

E:
Double red lights assisted focusing

F:Rotary axis (Optoinal)

3:
In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs
stably and has a low failure rate. Machine accessories are related to the long
life of the machine. In the short term, it is impossible to compare the
stability and failure rate of the machine!

4:
Never let price become the only guiding factor for the company’s business
marketing. Expand your own marketing ideas and position high-quality markets.

5:
Leopard and cat are similar, but different in quality. If you want a leopard or
a cat, you have the final say, I can provide it. Just the price is different!
