Description
- Brand Name: WAYSEAR
- Origin: CN(Origin)
- Certification: NONE
- type1: PLD 905 16W 3610 TO
- type2: PLD 905 25W 5010 TO
- type3: PLD 905 50W 15010 TO
- type4: PLD 905 75W 20010 TO
- range of working temperature: -40 to 85℃
- Application field: measuring instrument
- Size: AS Shown

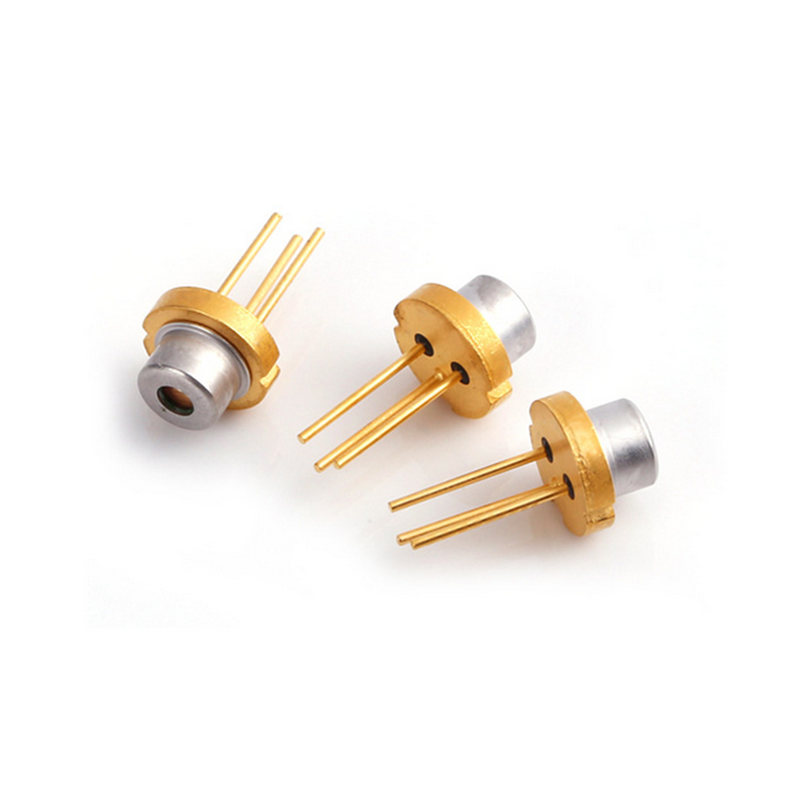

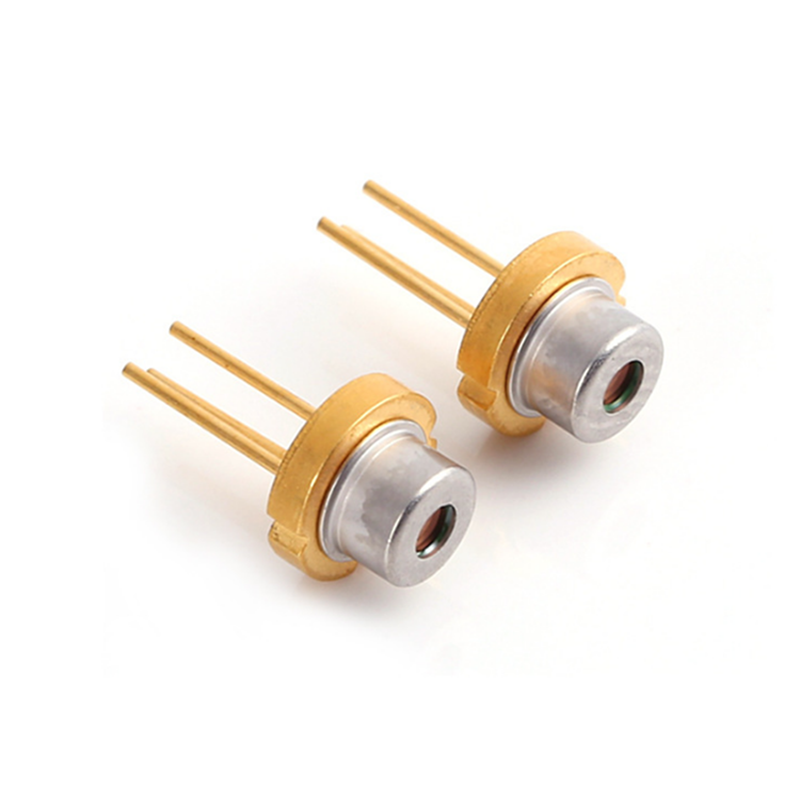

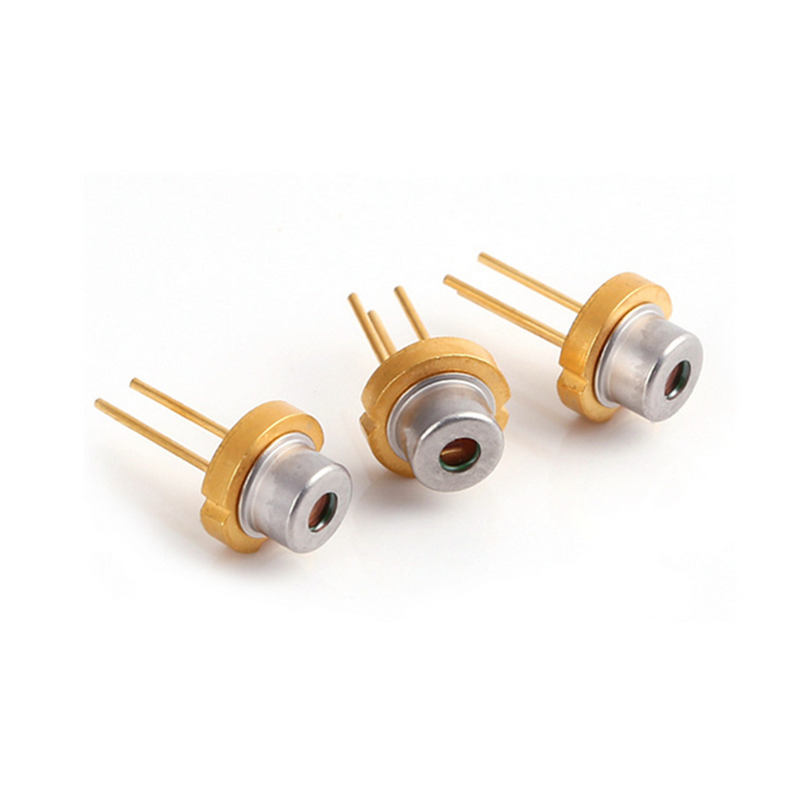

2 PCS Pulsed Semiconductor Laser Diode Laser Wavelength 905nm Infrared Laser Transmitter Suitable for Measuring Instruments
Product attributes:
Product Type: Laser Tube
Model: 905nm-25W 50W 75W
Package: Pulsed Semiconductor
Operating temperature range: -40~85 (℃)

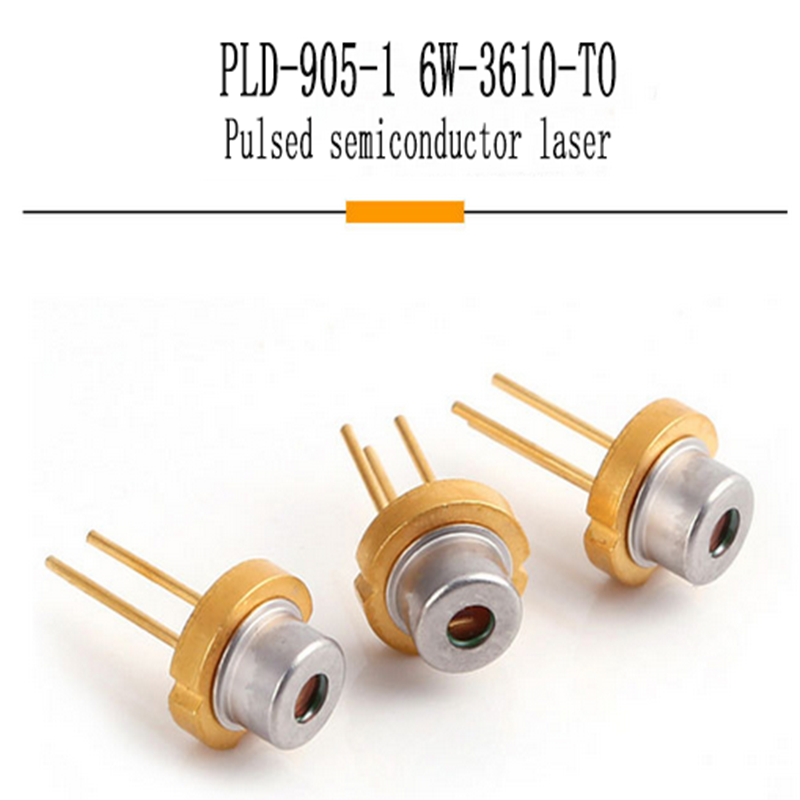

Lot number: PLD-905-1 6W-3610-TO, PLD-905- 25W- 5010-TO, PLD-905- 50W-1 5010-TO, PLD-905-75W-20010-TO
Application area: measuring instrument
Power: 16W 25W 50W 75W
Light-emitting area size: 36μmx 10μm 50μmx10μm 150μmx10μ 200μmx10μ
Working current: 6A 10A 20A 30A
application:
This infrared laser diode is an industrial electronic component used in the automation industryLaser ranging, security monitors, lidar.
package contains：
2 * PLD-905-1 6W-3610-TO
Or
2 * PLD-905- 25W-5010-T0
Or
2 * PLD-905- 50W-15010-T0
Or
2 * PL D-905-75W-20010-T0
