Description
- Brand Name: MESTEK
- Origin: CN(Origin)
- Type: Vertical & Horizontal Lasers
- is_customized: Yes
- Model Number: T01/T02
- Certification: CE
- Certification: RoHS
- Is Smart Device: No
- Measurement Model: 2 lines
- Size: 65.4x75x76mm
- Wavelength: 635 -5nm /510-530nm
- Precision: -3mm/10m
- Laser Class: Class 2 (IEC/EN60825-1/2014)
- Working Distance (Line): 15m/30m
- Leveling Accuracy: -3mm/10m
- Power Supply: 4×1.5V AA (not included)
- 2 Lines Laser Level: Horizontal & Vertical
- Red Green Beam: 2 Cross Lines
- High precision Nivel: Laser Instrument
- Laser Measuring Tool: Line Laser
- laser line: nivel laser
- laser line green: green laser level

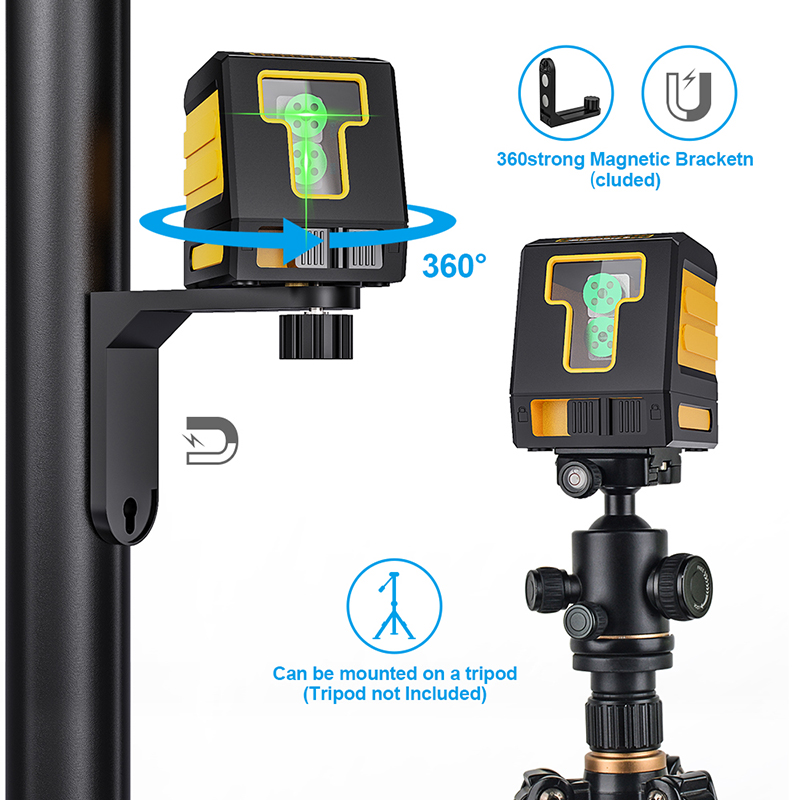

- Magnet bracket: Send as your choice
Working Distance (Laser Line)
30m for green beam(T02)
15m for red beam(T01)
Specification
-Model:T01(red line),T02(green)
-Laser Wavelength: 630~670nm (red)/ 505~550nm(green)
-Laser Class:Class 2 (IEC/EN60825-1/2014)
-Leveling Accuracy:±3mm/10m
-Horizontal/Vertical Accuracy: ±3mm/10m
-Leveling/Compensation Range: 4°±1°
-Operating Time:20 hours for red/8 hours for green

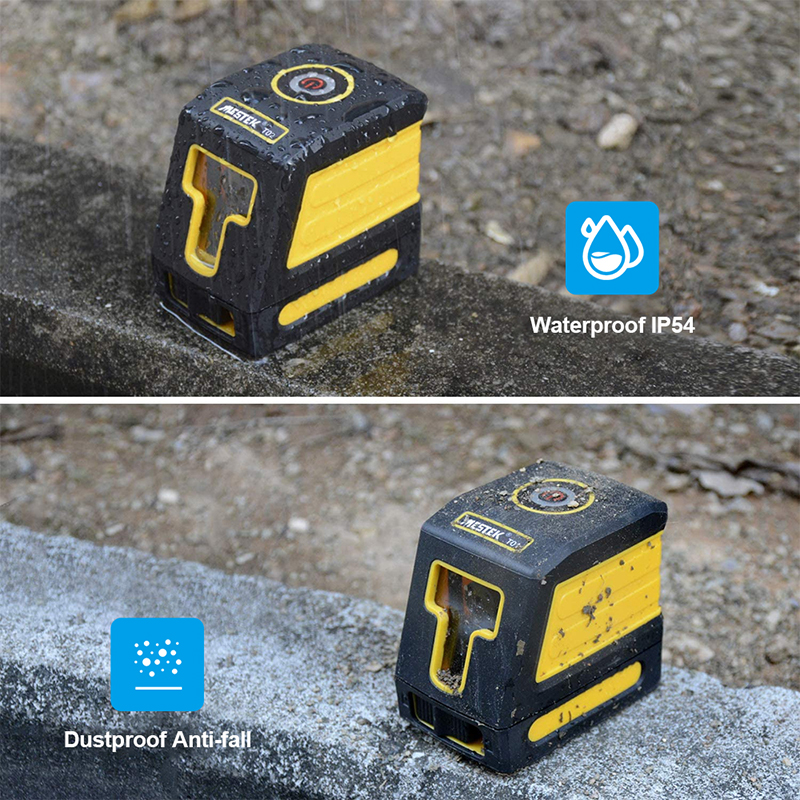

-IP Rating: IP54
-Power source:4*1.5V AA(not include)
characteristic
-Dust proof
-Water proof
-Clear light

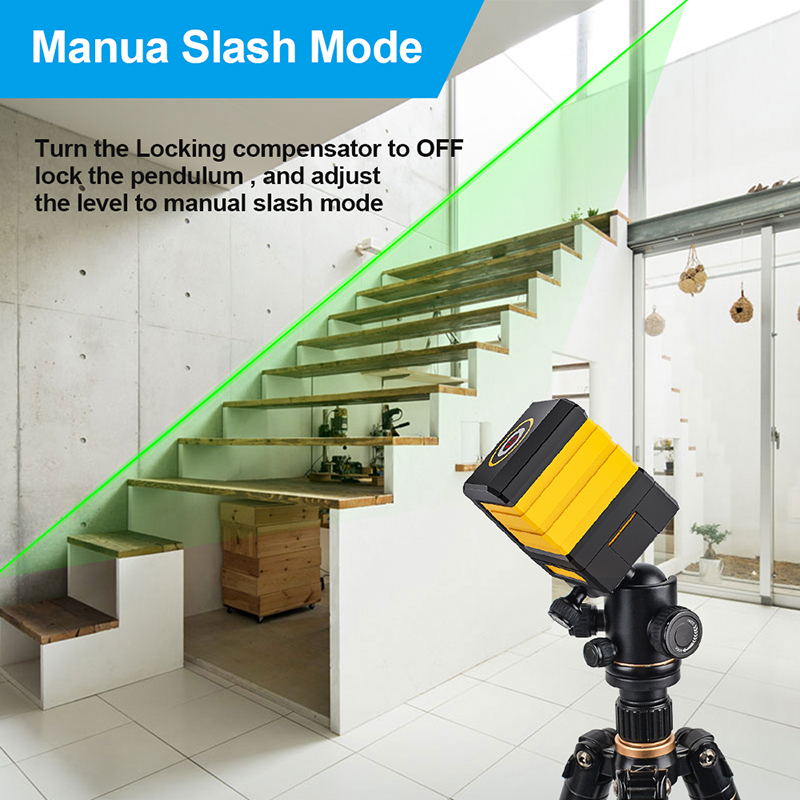

-Lockable pendulum

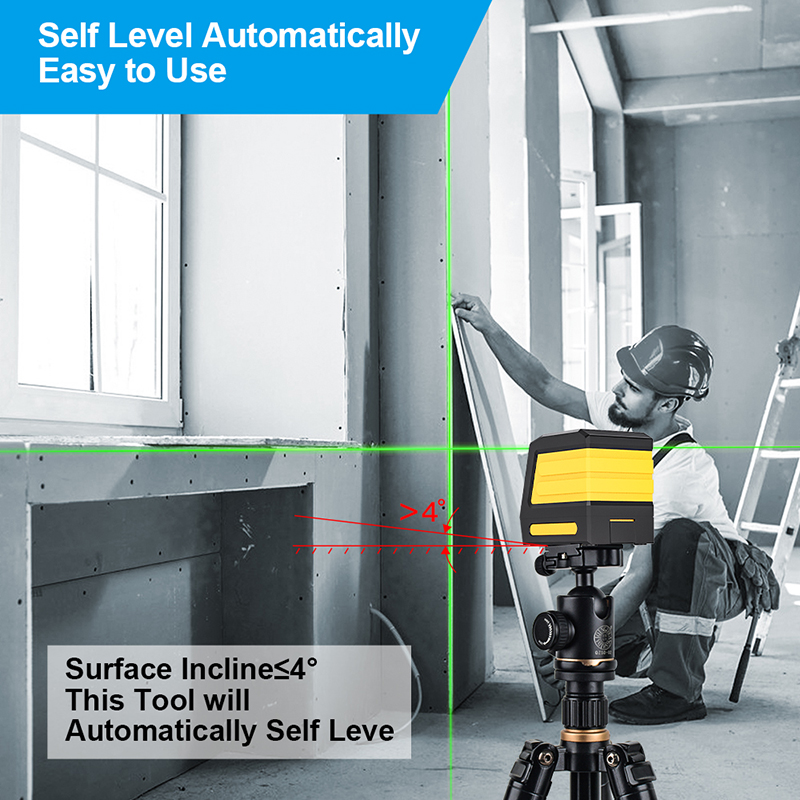

-Self-leveling
