Brief introduction:

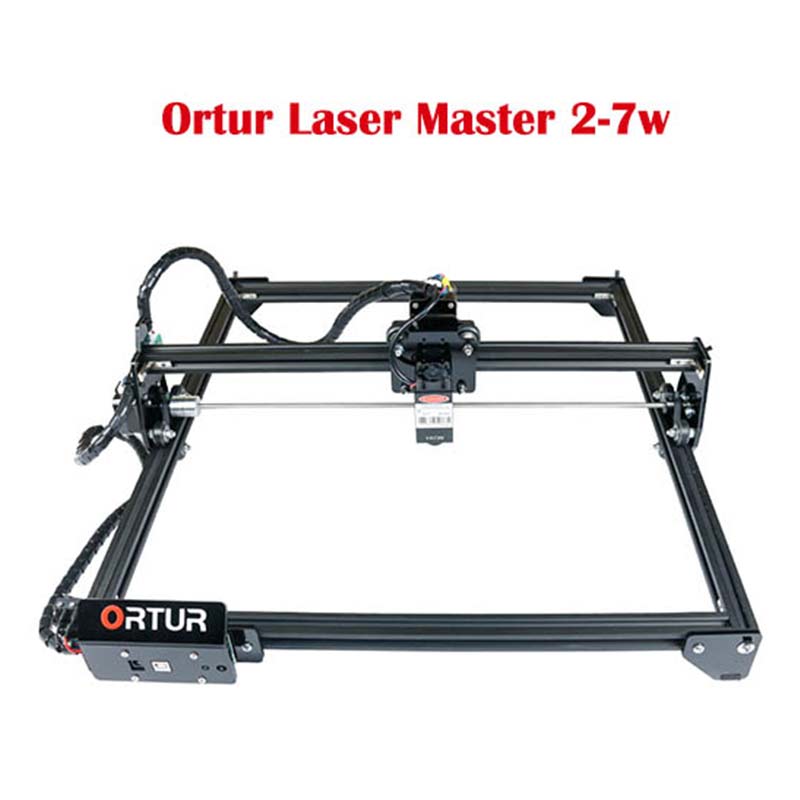

● The Laser Master 2 – 7W is good at image engraving.

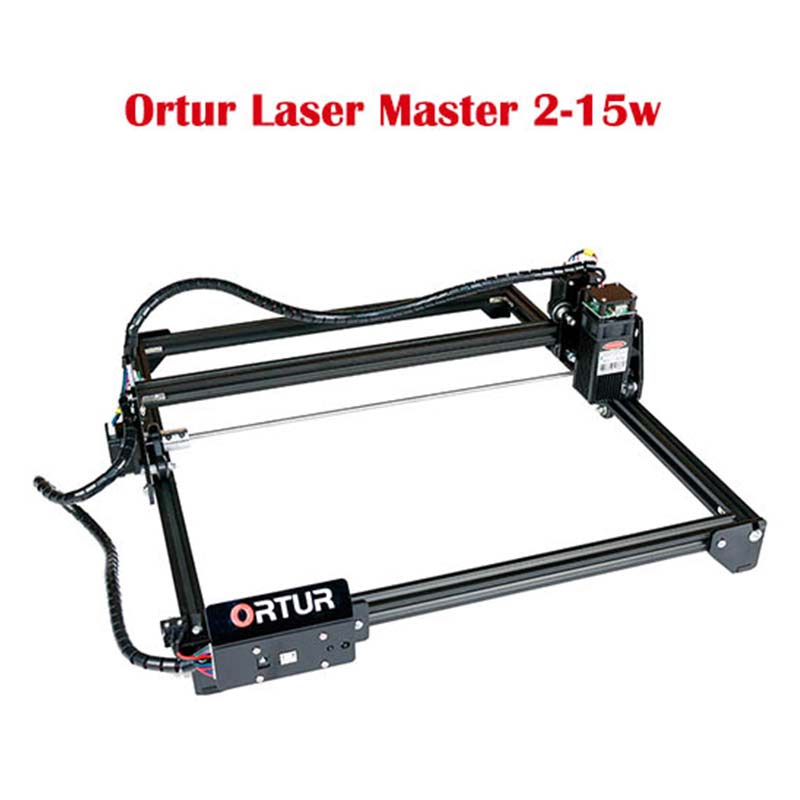

● The Laser Master 2 – 15W is the most cost effective, available for engraving and cutting.

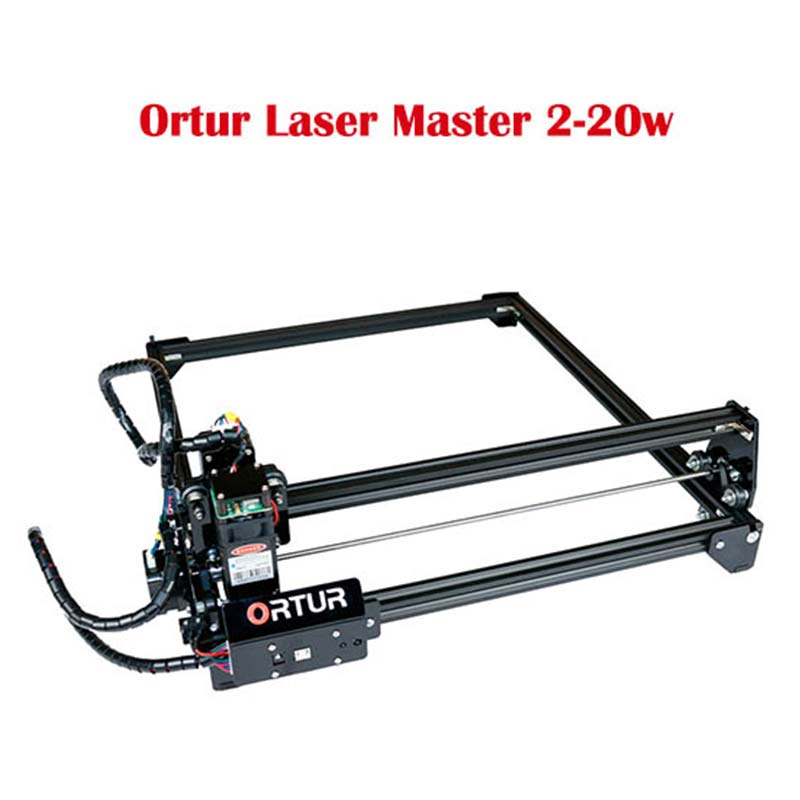

● The Laser Master 2 – 20W is of higher power and supports faster engraving and cutting.

Main features:

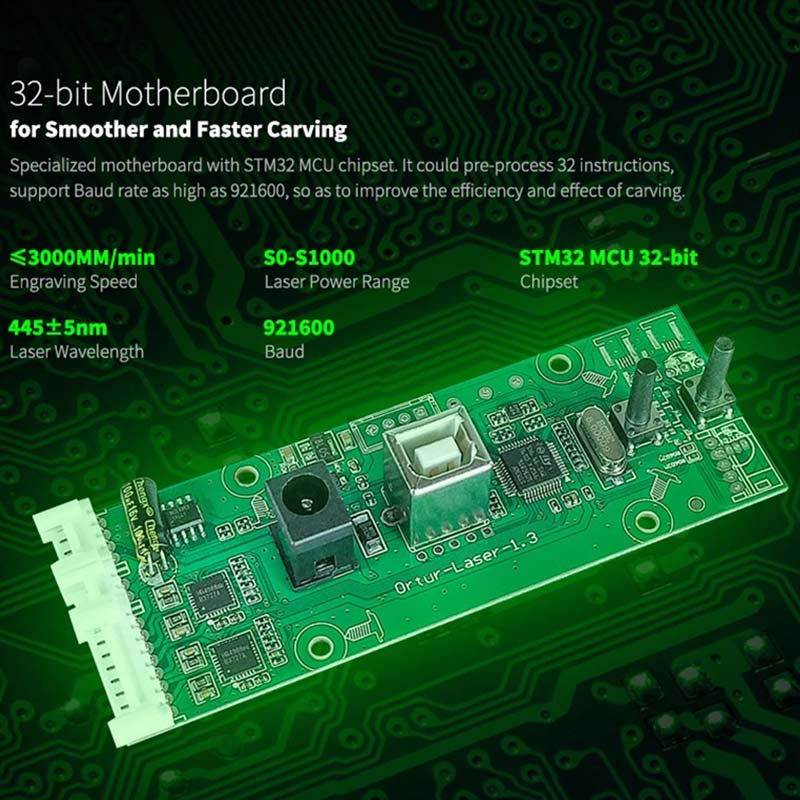

● Specialized motherboard with STM32 MCU

It could preprocess 32 instructions, support baud rate up to 921600, more powerful!

● The most advanced 32Bits laser engraver firmware

Ortur laser master firmware, smarter, faster, higher precision and easier to use.

● The laser power range could be S0 – S1000, compared to 8bit desktop laser engravers, which only has S0 – S255, Ortur Laser Master could control the laser beam more precisely, it could even use the laser unit of high power to “draw” an image on paper, which 8bit high power laser engravers could not do.

● The engraving speed could be up to 3000MM / Min. (If you don’t consider the laser carving result, the moving speed could be up to 1000MM / S)

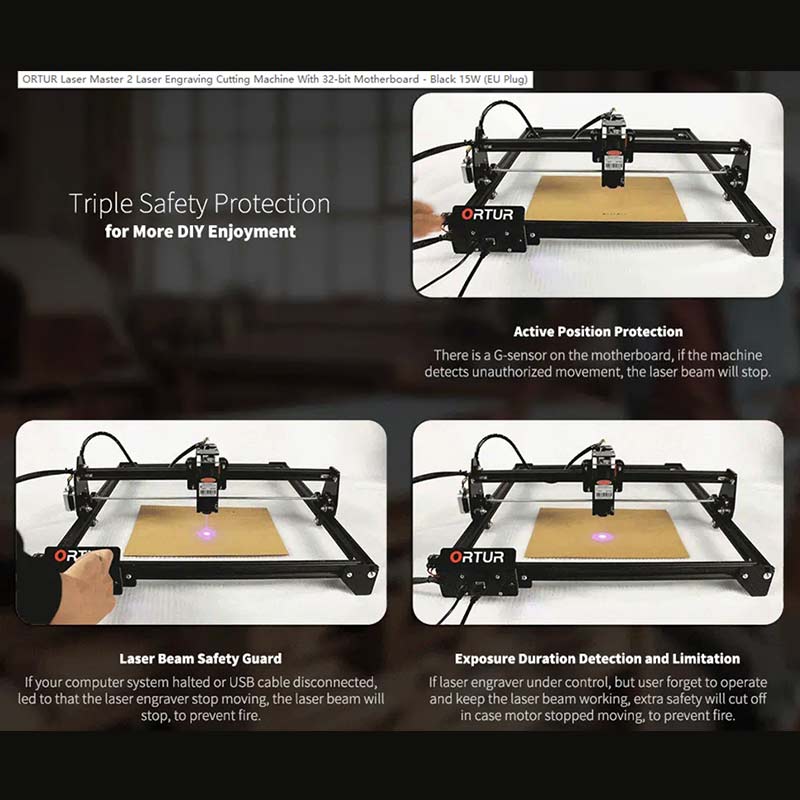

● The active position of protection

There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.

● Safety laser beam

If your computer system stops or the USB cable is disconnected, causing the laser engraver to stop moving, the laser beam will stop, to avoid fire.

● Detection and limitation of exposure duration

If the laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will be cut off in case the motor stops moving, to avoid fire.

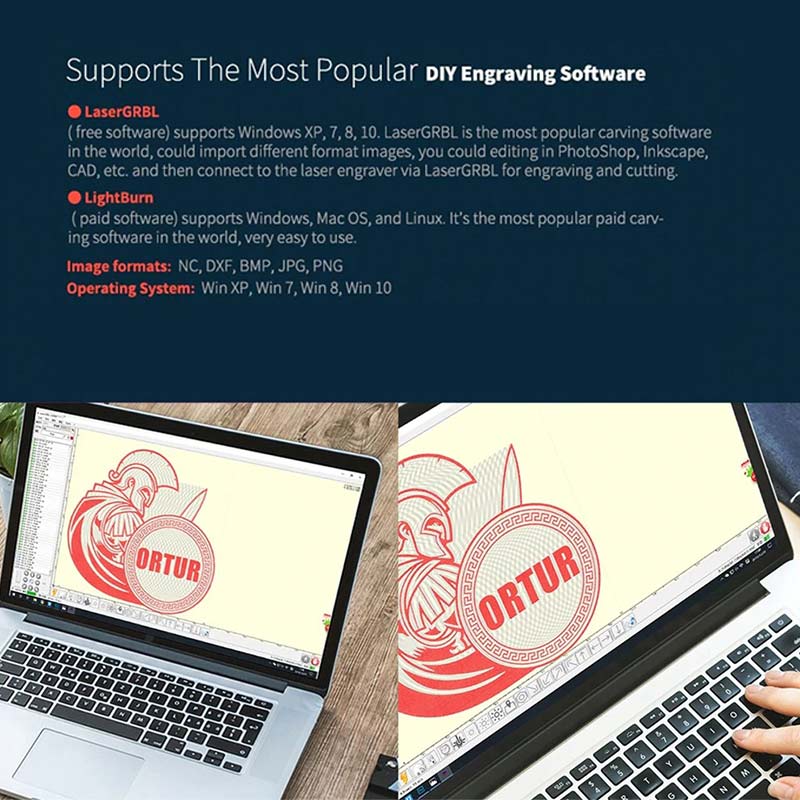

● LaserGRBL (Free software) is compatible with Windows XP 7 8 10 laserGRBL is the most popular carving software in the world, it could import different format images, it can edit in PhotoShop, Inkscape, CAD, etc. and then connect it to the engraver via the LaserGRBL laser to engrave and cut.

● LightBurn (paid software lightburnsoftware.com) supports Windows Mac OS and Linux. It is the world’s most popular paid carving software, very easy to use.

● This laser engraver supports PWM mode.

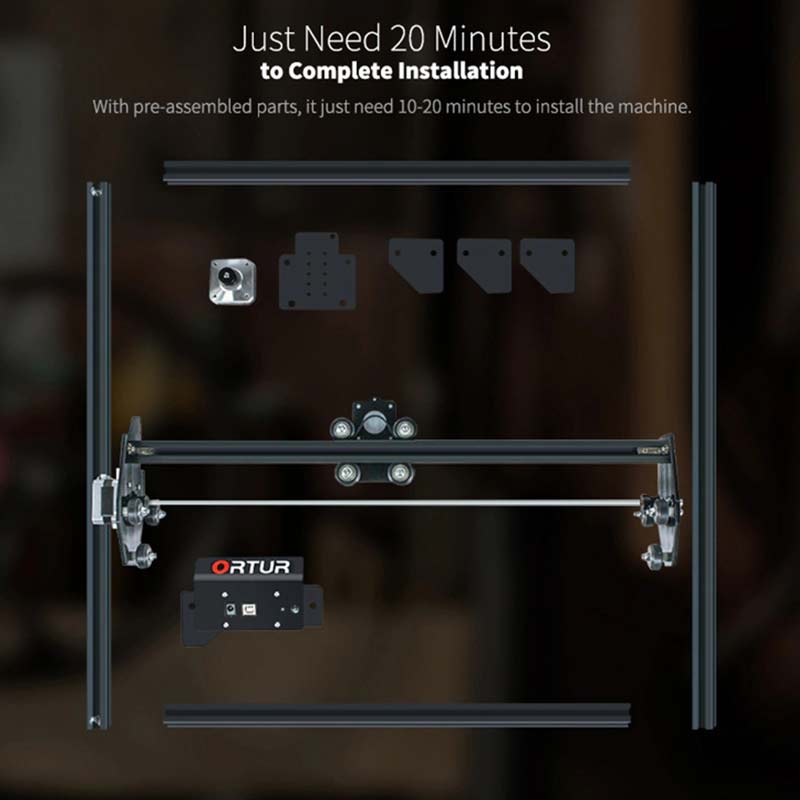

● Pre-assembled parts, it only takes 10 – 20 minutes to install the machine.

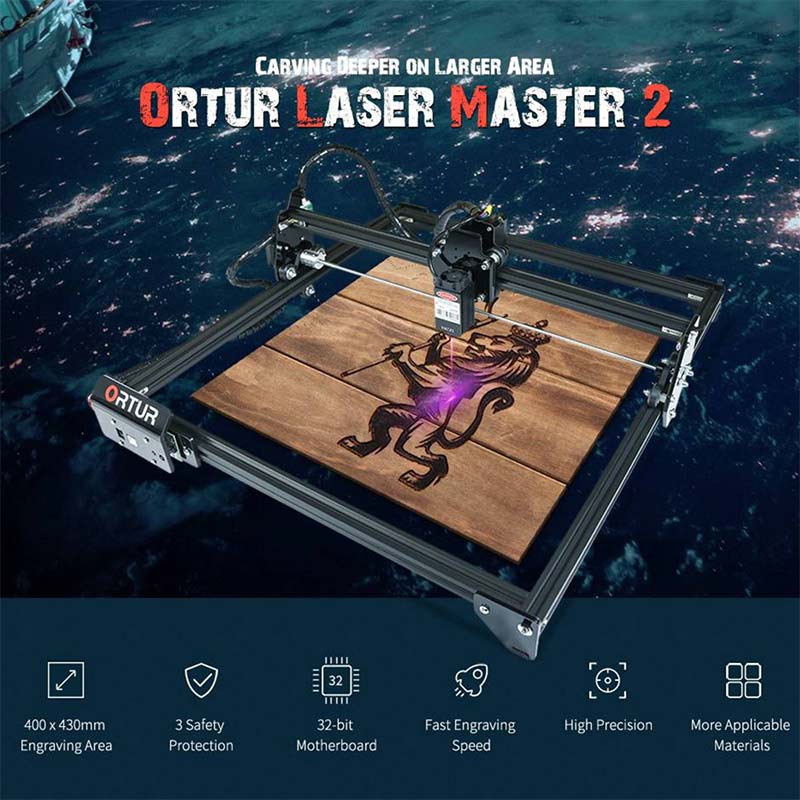

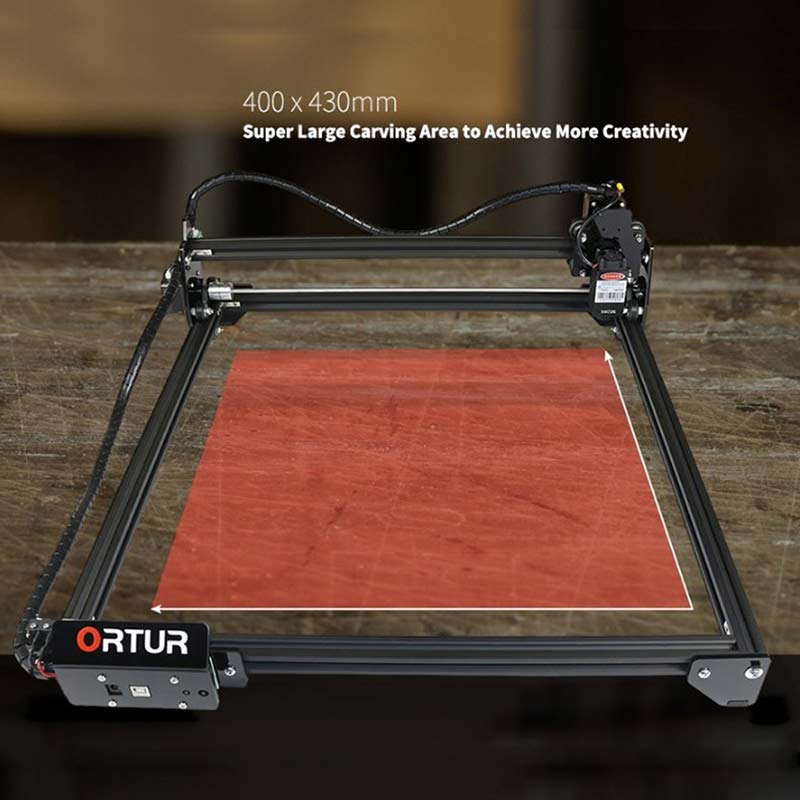

● Large 400x430mm engraving area.

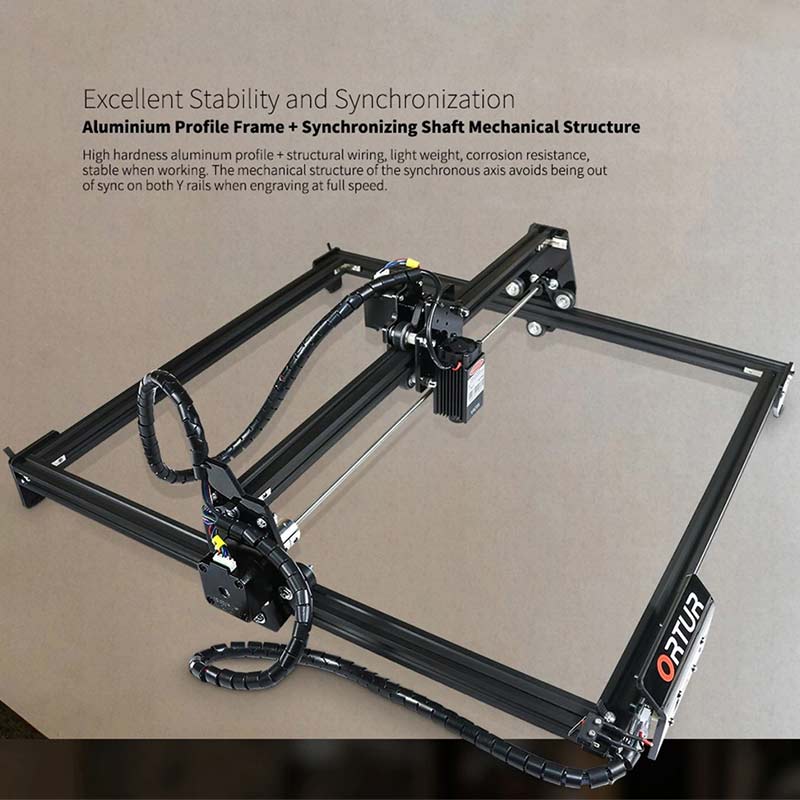

● Aluminum profile frame   structured wiring, solid structure, smooth operation, attractive appearance

● Mechanical structure of sync axis, avoid desynchronization in two Y rails, during full speed engraving.

Specification:

● Motherboard: 32-bit motherboard with STM32 MCU

● Firmware: Ortur laser master Firmware

● Higher computer operating system: Windows (works with LaserGRBL), MAC OS and Linux (works with LightBurn)

● Laser engraver power: 36W, 12V 3A

● Electric power of laser module: 7W, 15W, 20W

● Wavelength: 445 ± 5nm

● Variable Focus: Yes

● Default Focal Length: 55MM for 15W and 20W laser module; 58MM for 7W laser module

● Input format: NC BMP JPG PNG DXF, etc

● Size: X: x Y 400MM X: 430MM

● Carving speed: 3000MM / Min and less

● Image size: No limit (pixel precision could be freely adjusted, and the default value is 300 pixels per inch, it is about 0.81 um pixel precision)

Note:

● Please wear glasses when operating the laser engraver. Wear safety glasses to avoid blindness.

● Do not touch the laser emitter with your hand, or you may burn your hand.

● Avoid strong impact on the machine.

● The use of this product is not allowed for children under 14 years old and children over 14 years old need adult supervision.

● The light engraving machine cannot be directly applied to any mirror reflective object, which may cause injury to the operator or burn the laser.

● This product is not recommended for industrial cutting due to its high engraving speed.

Tip: Because the software is constantly updated and optimized, please Click here to view the updates.

general

Model Number: Laser Master 2

Type: laser engraving machine

Material: Aluminum   Acrylic

Laser power: 7w (electric power: 7W, light power: 1200-1600mw), 15w (electric power: 15W, light power: 4000-4500mw), 20w (electric power: 20W, light power: 5000-5500mw)

Laser range: 445 ± 5nm

Power by: 12v 3a power adapter

Dimensions and weight

Product weight: 4 kg

Package weight: 4.5kg

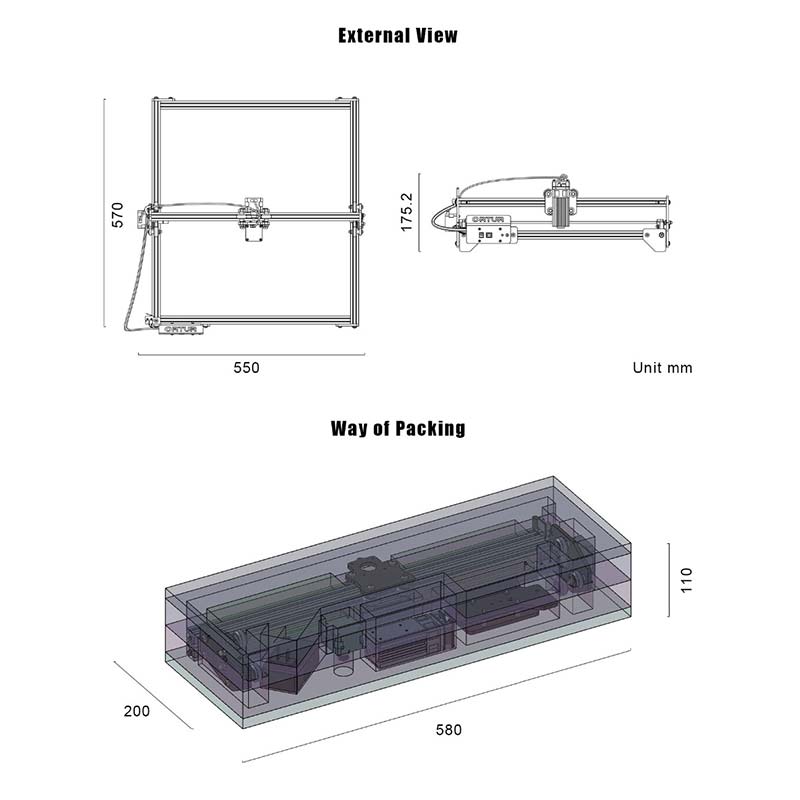

Product size (L x W x H): 57.00 x 55.00 x 17.52 cm / 22.44 x 21.65 x 6.9 inches

Package size (L x W x H): 58.00 x 20.00 x 11.00 cm / 22.83 x 7.87 x 4.33 inches

Package content：

1 x engraving machine

1x EU plug
