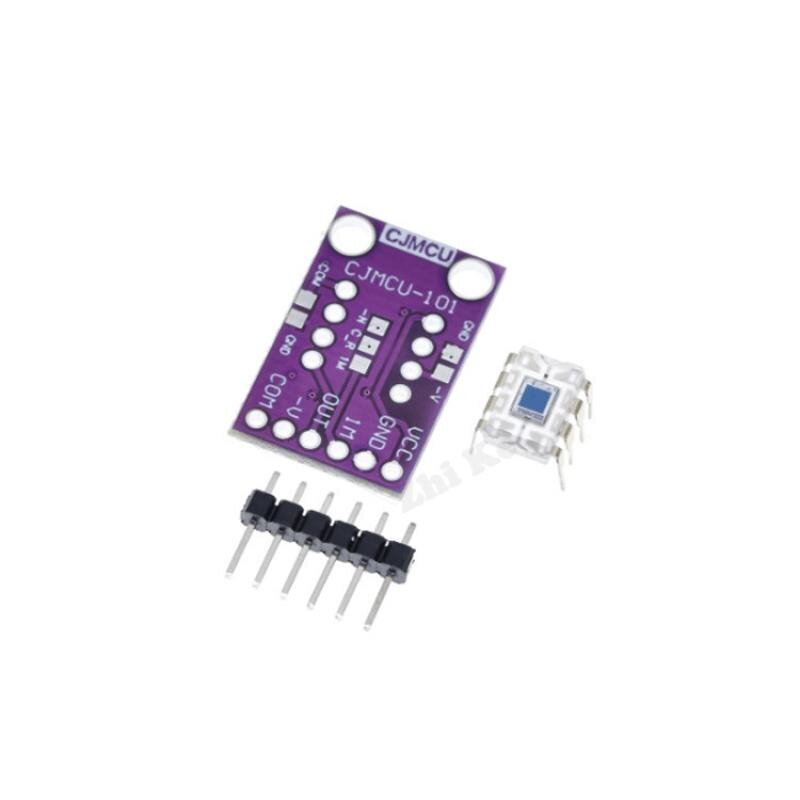

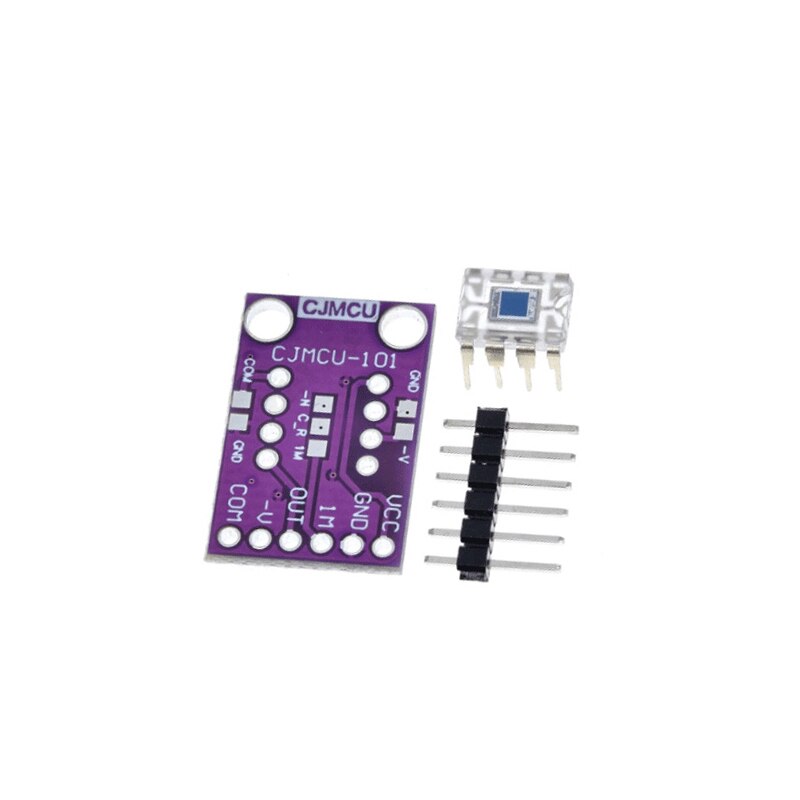

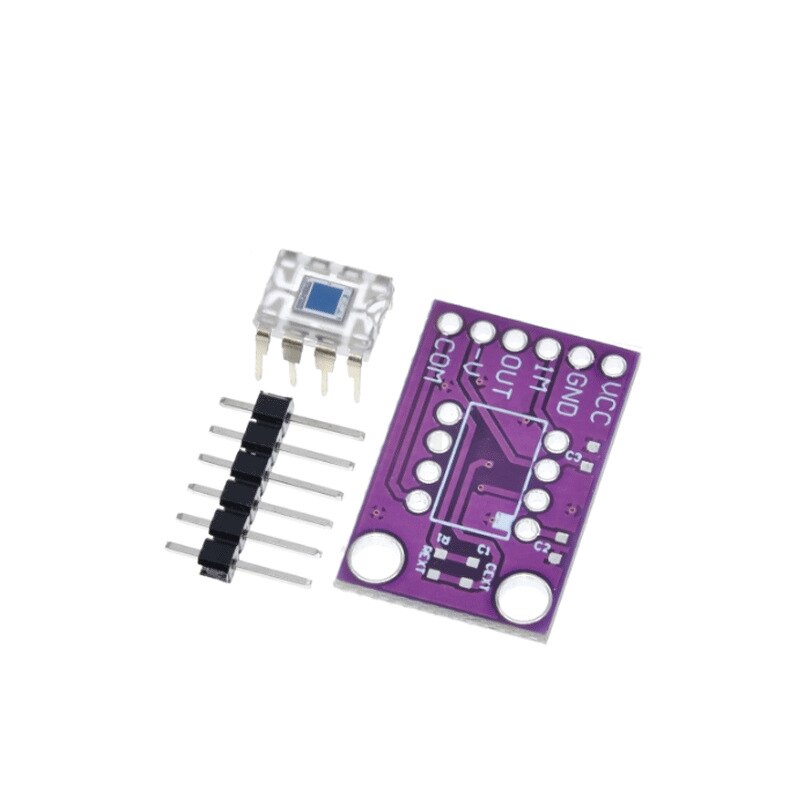

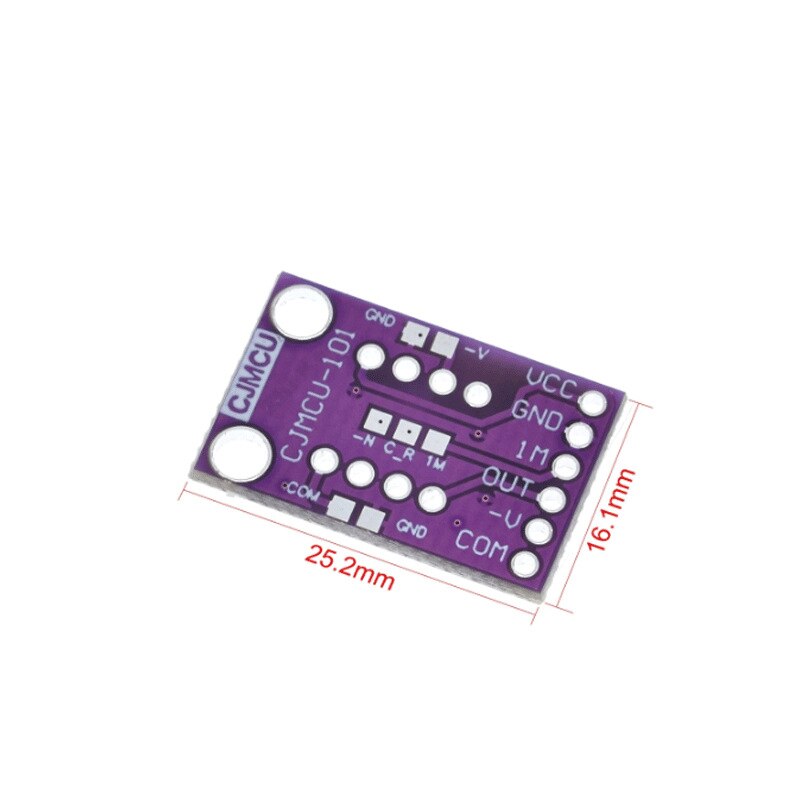

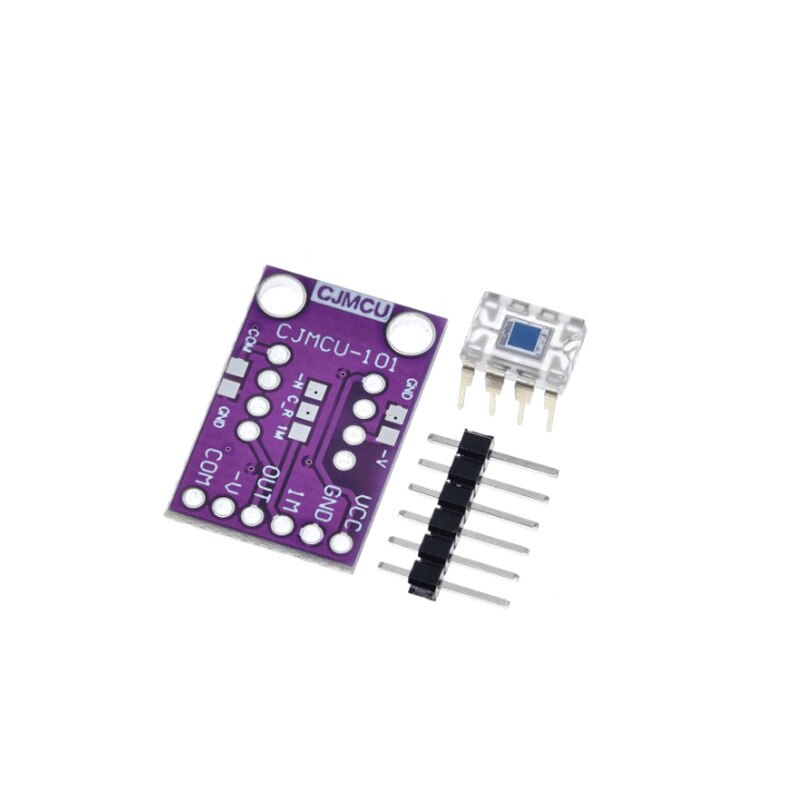

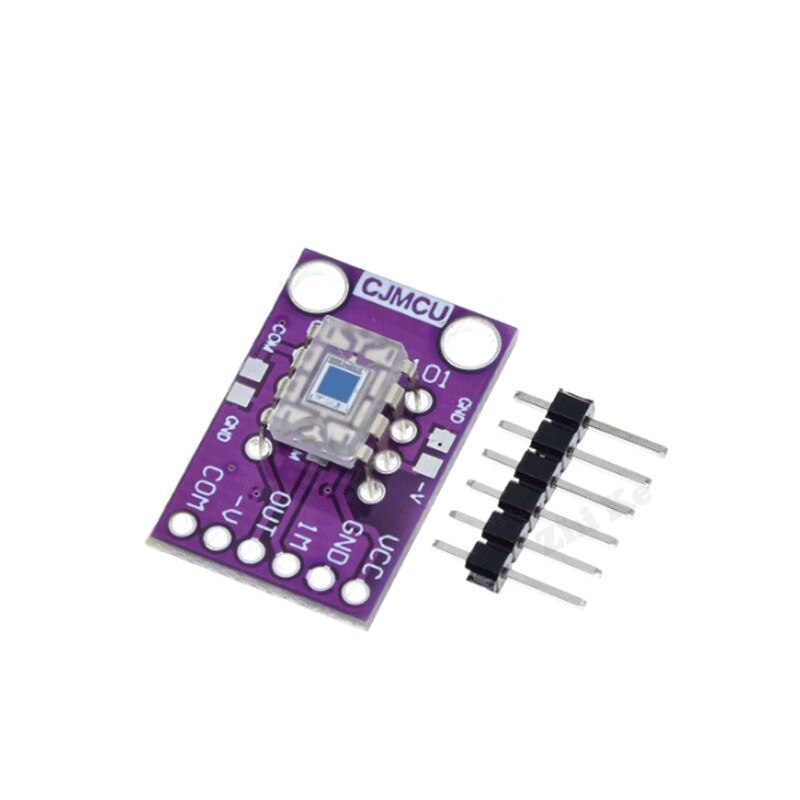

2.7V-36V CJMCU-101 OPT101 analog light intensity module light sensor chip photodiode

$1.42

10000 in stock

SKU: 1005003428652426 Category:

Description

  • Brand Name: ZUIDID
  • Origin: CN(Origin)
  • Condition: New
  • Type: Voltage Regulator

CJMCU-101 is an integrated chip built-in photodiode and transimpedance amplifier , the output voltage increases linearly with the light intensity . Amplifier is a single supply or dual power supply design , so can be used for battery-operated devices. Integrated photodiode and transimpedance amplifier on a single chip , discrete design, can reduce common problems, such as leakage current error , and since the gain peak noise caused by stray capacitance . And photodiode 0.09 * 0.09inch work in the photoconductive mode , to have a very good linearity and low dark current OPT101 working voltage of 2.7 to 36V, quiescent current of only 120uA .. do not need infrared .
