Description

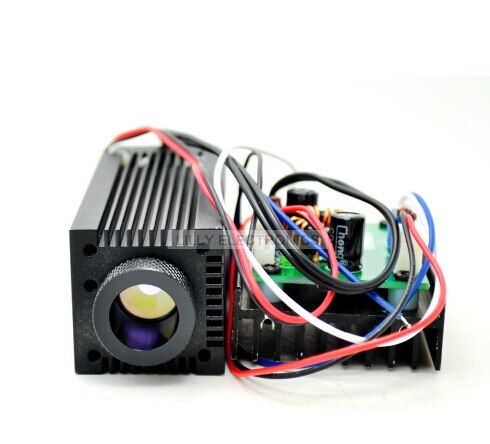

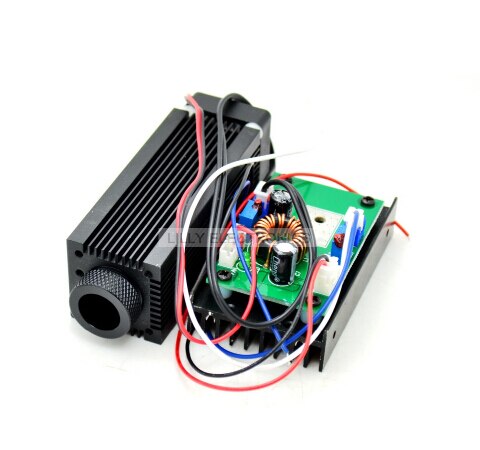

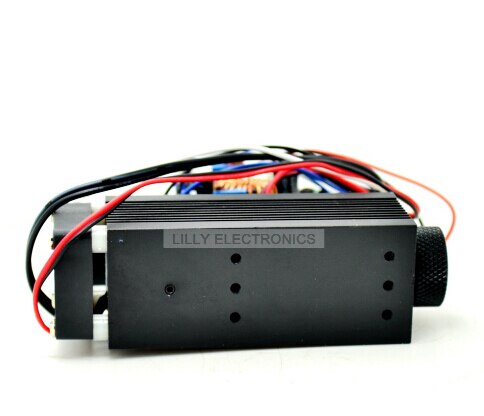

            2.4W 2400mW 808nm Infrared Focusable Laser Diode Module

Wavelength 808nm
Working Voltage 5VDC
Working Current 1.35A +-15%
Working Temperature -10degrees- 30degrees
TTL >20KHz
Divergence 5mrad
Focusable YES
LD 808nm 3W

Laser Shape DOT(The spot can be adjusted from rectangle to oval)
Lens Glass
Dimensions 33*33*80mm
Working Life >5000 Hours

The Laser Shape is Rectangular Dot

Detail:

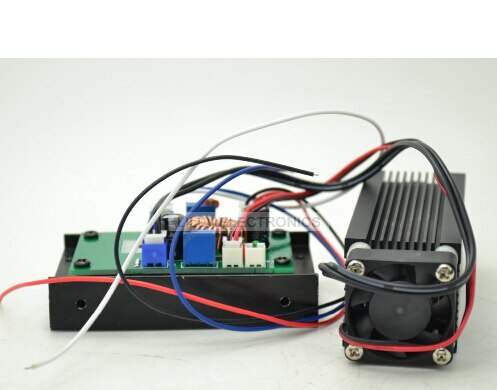

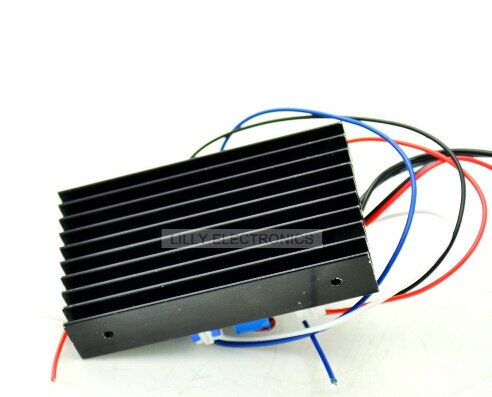

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30degrees.
2. Please add a 5VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don't use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

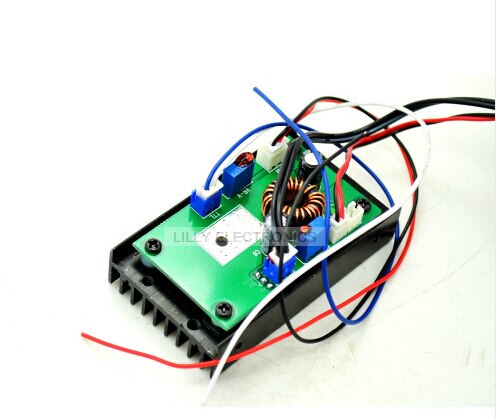

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.
