Description

200mW, 600mw, 1W optional
Feature:
This laser adopts an imported 520nm green laser diode, that a green laser diode directly emits light. The non-808nm laser diode is converted into a 532nm green laser by a crystal. It can start and work at low temperature. The laser has a pure color and a long continuous working time, suitable for industrial and stage lighting scenes.



Wavelength:530nm

Power:200mW /600mw /1W optional

Voltage:12V

Current:<400ma

Dimension:12-14mm

Modulation:ttl

TTL Frequency:15khz



Q & A:

Q1:What is the maximum continuous working time of this product?

Under the temperature of 25 degrees Celsius, it is recommended that the longest continuous working time is 24 hours. In other words, it needs to be shut down once a day. When working, it is necessary to keep the working temperature of the laser not too high or too low. Room temperature is the best working temperature.

Q 2. How long is the working life of this product?

Semiconductor lasers are similar to lighting bulbs which are consumable products. Generally, the life of a semiconductor laser is related to the life of the laser diode.Under ideal conditions, the working life is 5000-10000 hours. After a long period of use, power may attenuate.

Q 3. What is the typical working scenario of this product?

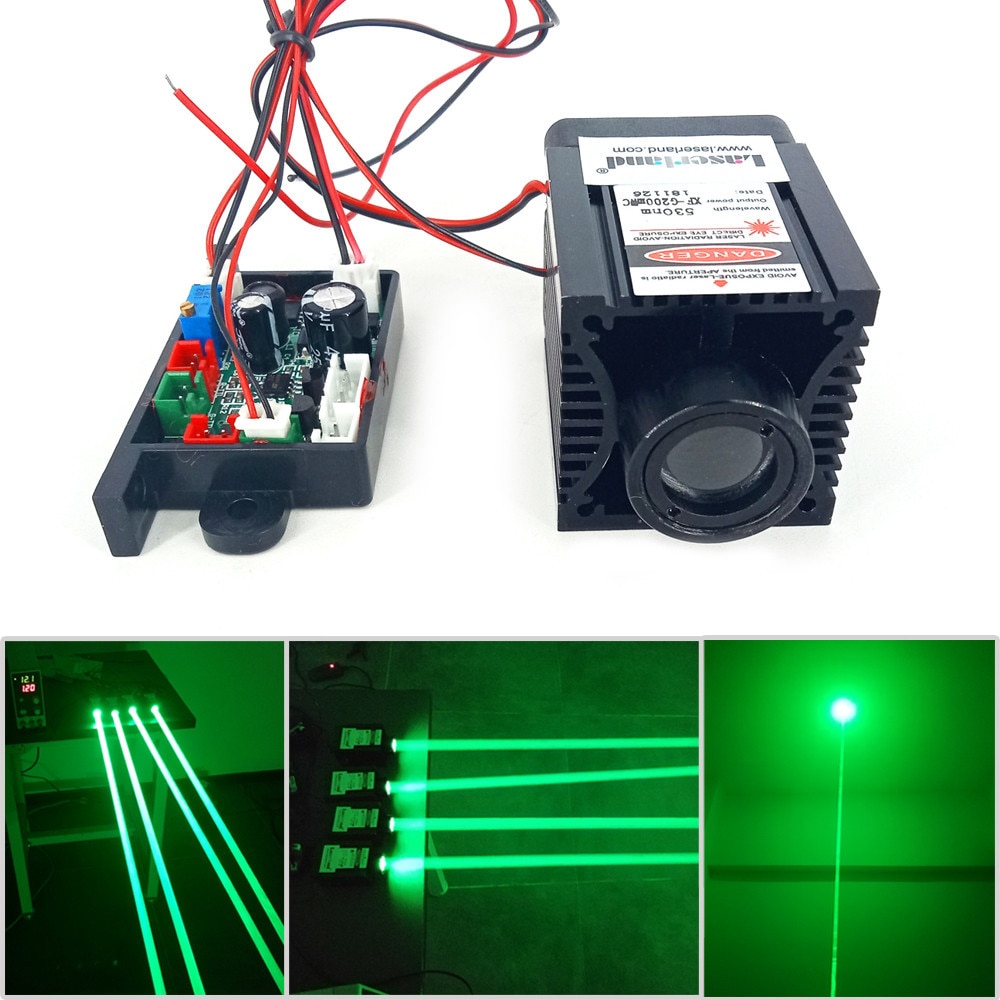

This product is used in stage effects and so on.
