Description
- Brand Name: ZRHF
- Certification: RoHS
- Origin: JP(Origin)
- Item Type: Stage Lighting Effect
- Light Output: 3mW
- Operating Voltage: 1.9V
- Operating Current: 52mA
- Monitor Current: 0.15mA
Features
1. Low power consumption
2. Low noise
3. Φ5.6mm package

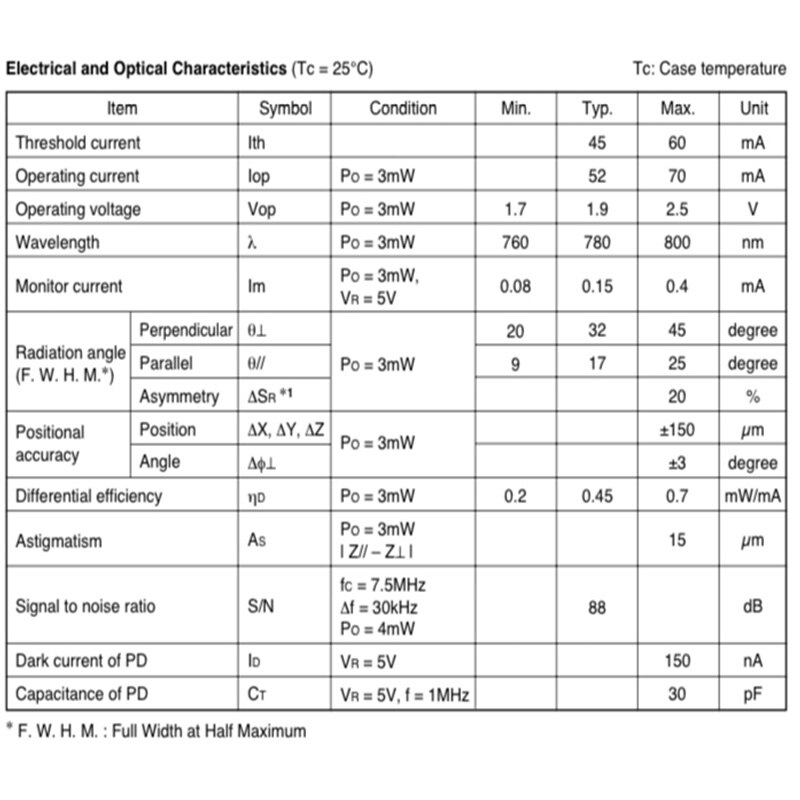

Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:780nm Typ.
Optical Output:3mW
Threshold Current:45mA
Operating Current:52mA
Operating Voltage:1.9V
Monitor Current:0.15mA
Beam Divergence(FWHM)
Parallel:17deg
Perpendicular:32deg

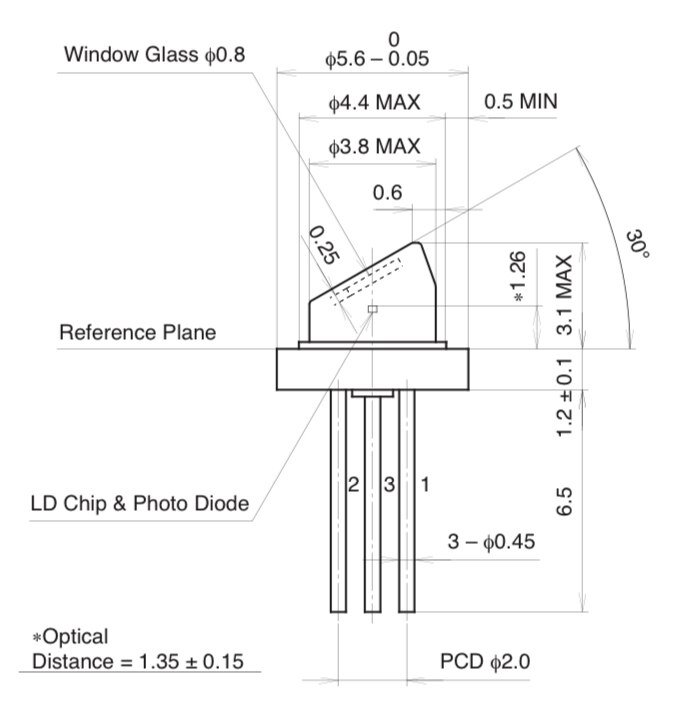

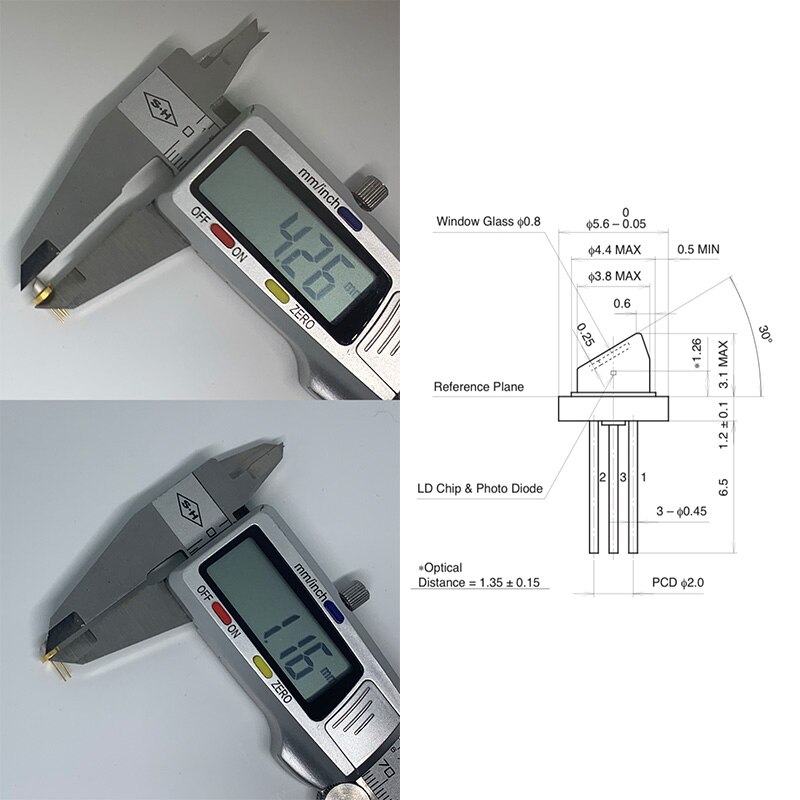

External dimensions(Unit : mm)
Pin Description
