Description
- Brand Name: NoEnName_Null
- Model Number: TM-130
- With Backlight Or Not: YES
1mm-100mm Digital Ultrasonic Wall Tube Thickness Thick Gauge Tester Meter Probe For Metal Steel Iron Alloy Copper Glass TM130
1.Introduction:

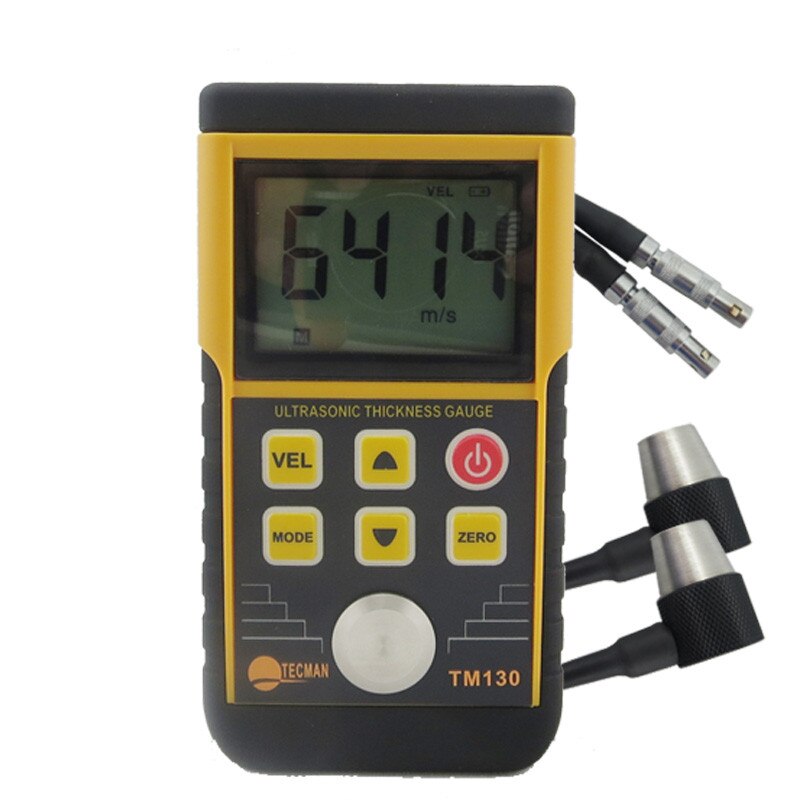

The TM130 Ultrasonic Thickness Gauge is used to measure the thickness of a material that can only touch one side of the test piece. It is suitable for many different materials including steel, cast iron, aluminum, copper, brass, zinc, quartz glass, polyethylene PVC, grey cast iron, ductile iron and other materials. Dual probes expand your measurement range to meet every possible need for your area
2.Feature:
Large LCD for easy reading
Suitable for all metallic and non-metallic materials
Easy to operate
Wide measuring range from 1.2mm to 100.0mm(Steel)
Sound Velocity Range up to 9999m/s
Display resolution: 0.1mm
Hand held and robust
Applicable to measure the thickness of any hard materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
Automatic Zero Adjustment
Data Store Function for up to 10 test result, will not lost data even without data, suitable for field measurement.
Auto Power Shut Off
Linear compensation circuit for high accuracy ( 1%H+0.1)mm.
Speed of sound testing (m/s) with 12 storage memory
Press the up or down arrow to switch between the mm or m/s reading
2.5MHz for rough surface measurment
3.Specification:
Measuring Range : 1.2-100mm(Steel)
Accuracy : +/-(1%+/-0.1)mm
Pipe Measuring Lower Limit : Dia 12*3mm(Steel)
Sound Velocity Range : 1000-9999m/s
Working Temperature Range : 0-45C
Automatic Zero Adjustment : √
Data Store Function : √
Auto Power Shut Off : √
Low Battery Indication
Power by: 3 * AA batteries (not included package)
Item Size: 133mm * 70mm * 36mm
Net weight: 242g

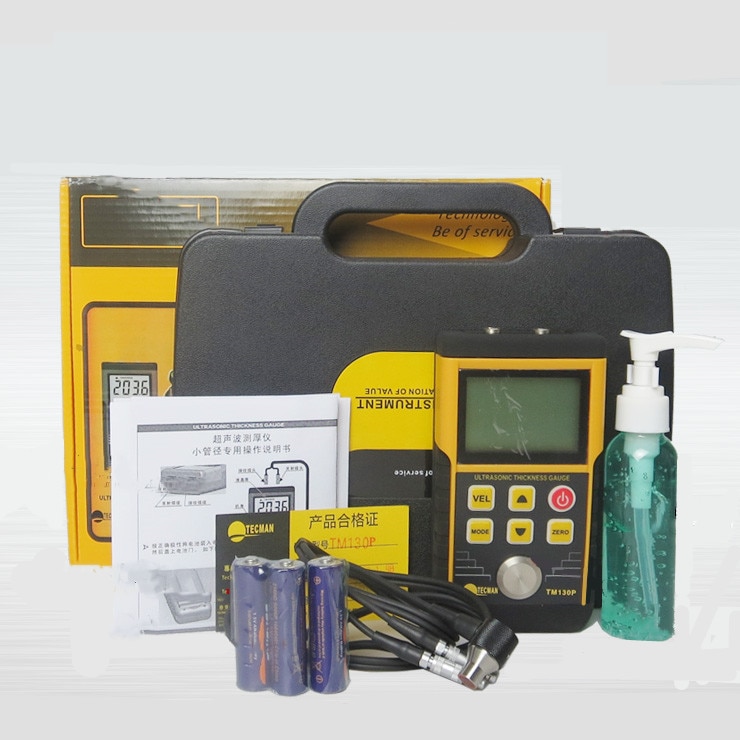

4.Package incluede:
1 x Ultrasonic Thickness Gauge
1 x Dia 6mm Transducer Probe
1 x User Manual
1 x Aluminium alloy carrying case
Z.L.T
2019.7.19
