Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 1m*1m laser machine
- CNC or Not: CNC
- Is Smart Device: YES
- Laser power: 2500mw,5500mw 15w
- Working Voltage: DC 12

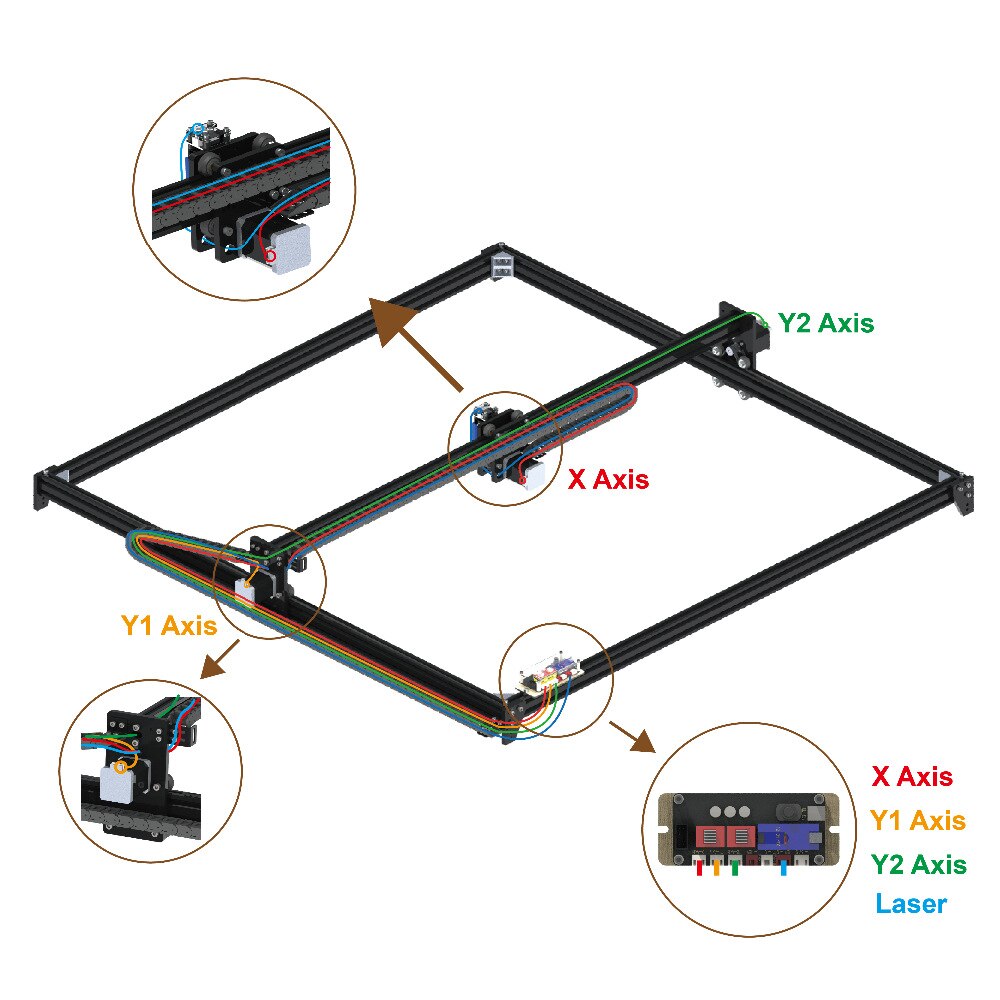

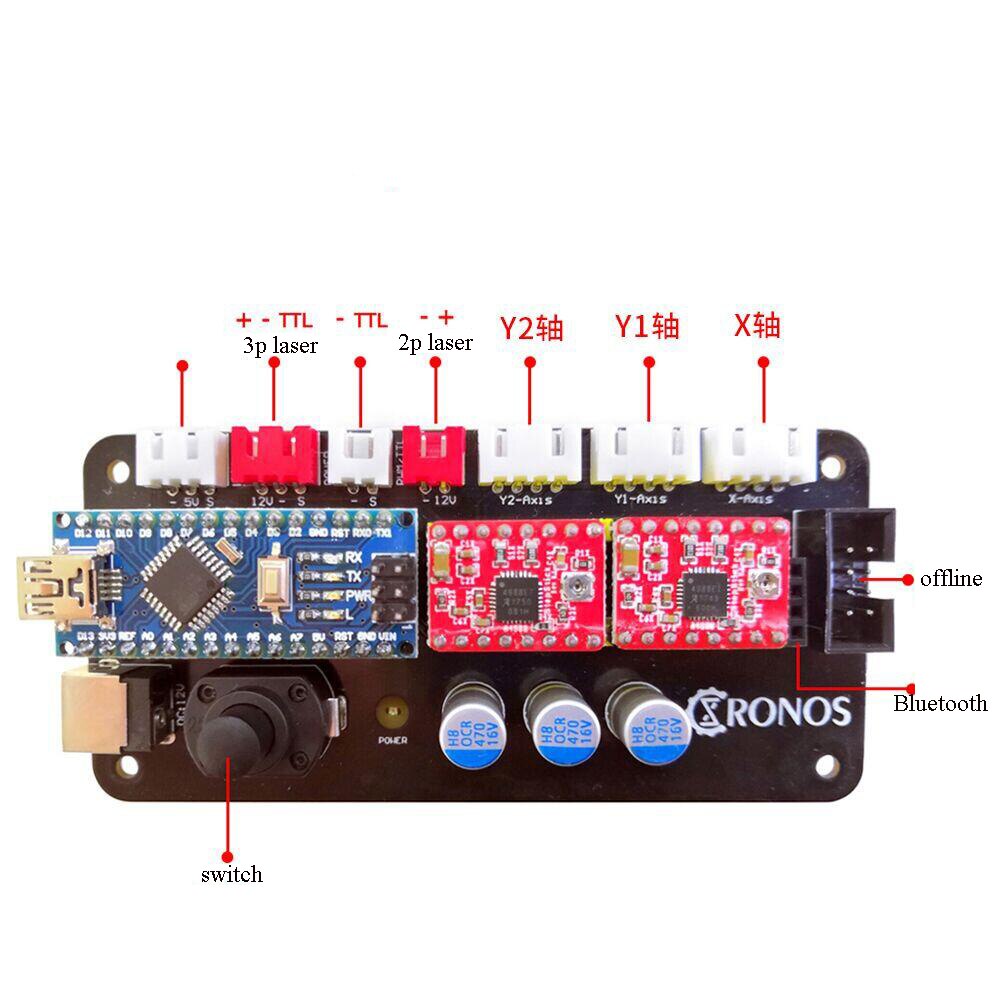

- control board: 2Axis control board
- Laser wave legth: 405nm/450nm

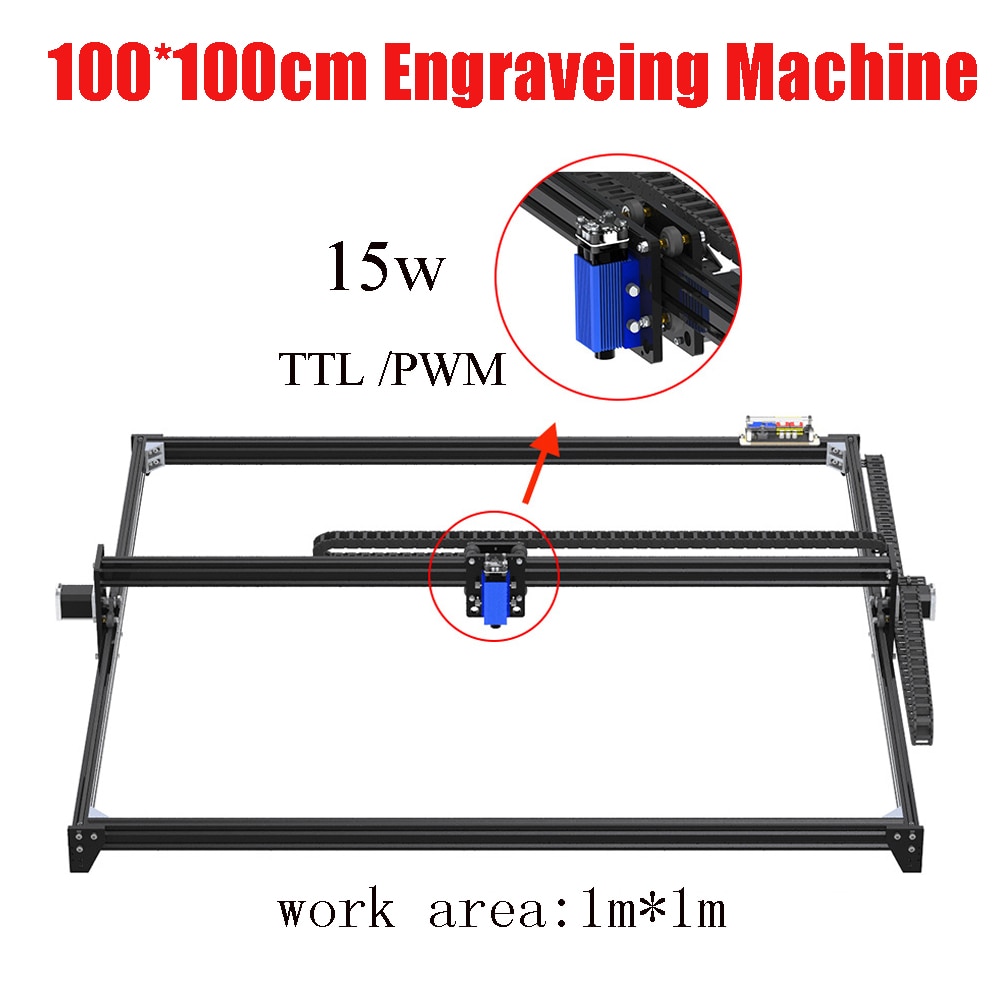

- working area: 100cm*100cm
- function: Desktop CNC Router/Cutter
Parameter Description:
Engraving area:100cm*100cm
Input voltage:AC 100V-240V,50 / 60Hz
Output:DC 12V 5A
LaserWave length:405nm/450nm

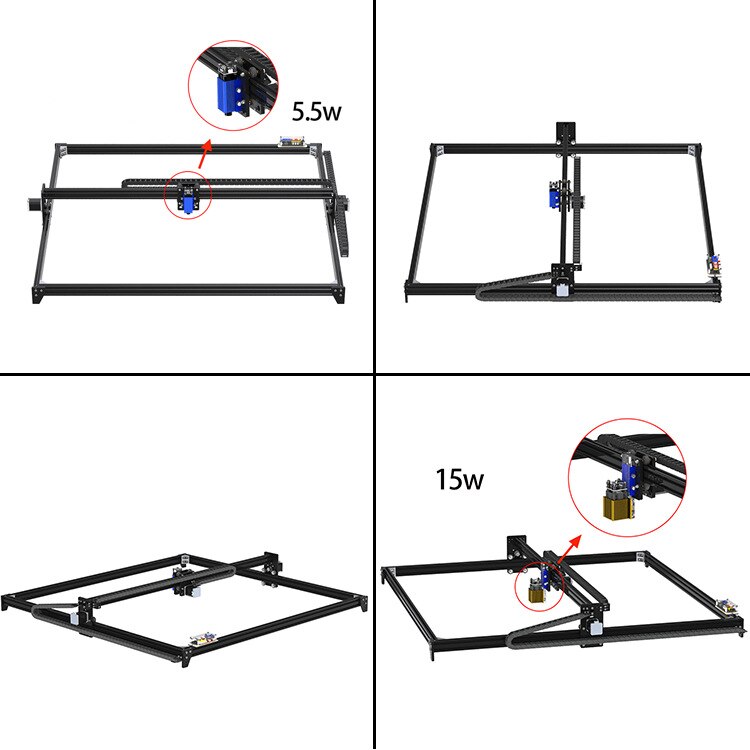

Power: 2.5w/5.5w /15w(2.5w/5.5w is adjustable laser ,15W is fixed foucs laser)
Support software include: Laser Engraver GRBL. etc.
Support PWM TTL modulate laser power

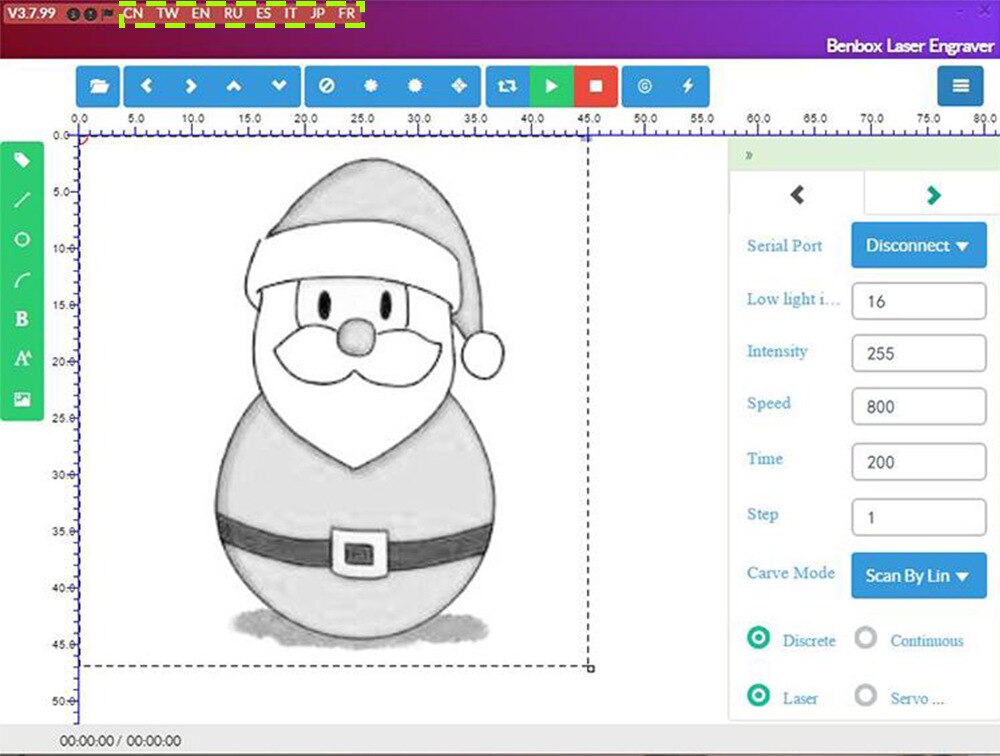

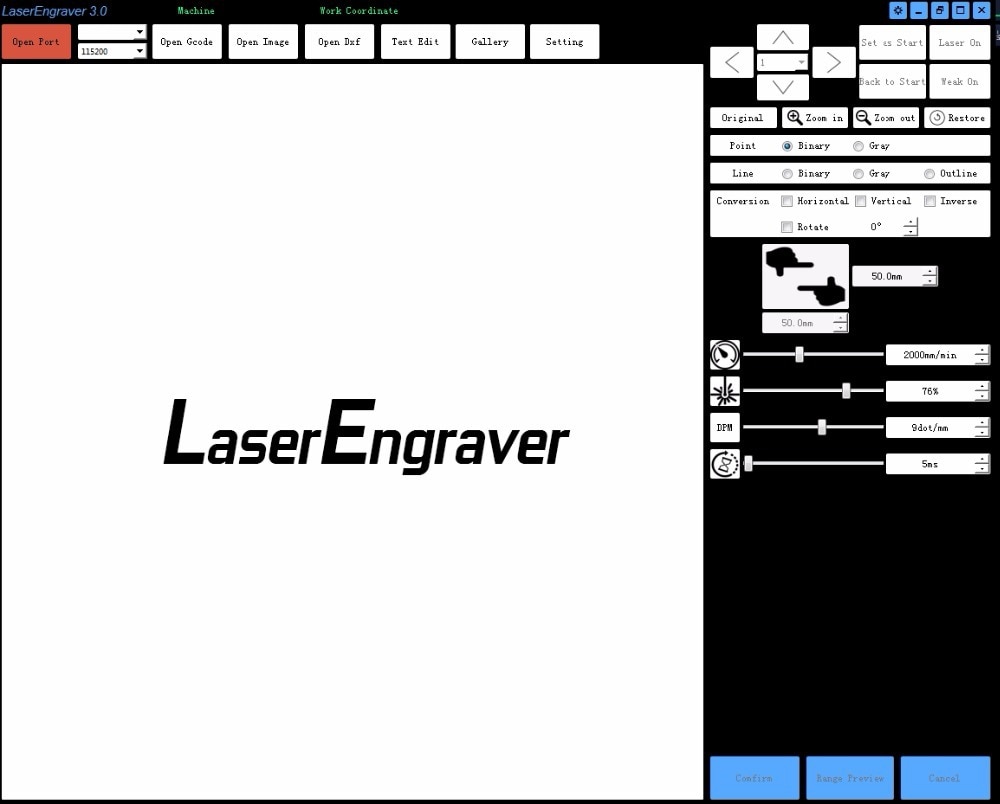

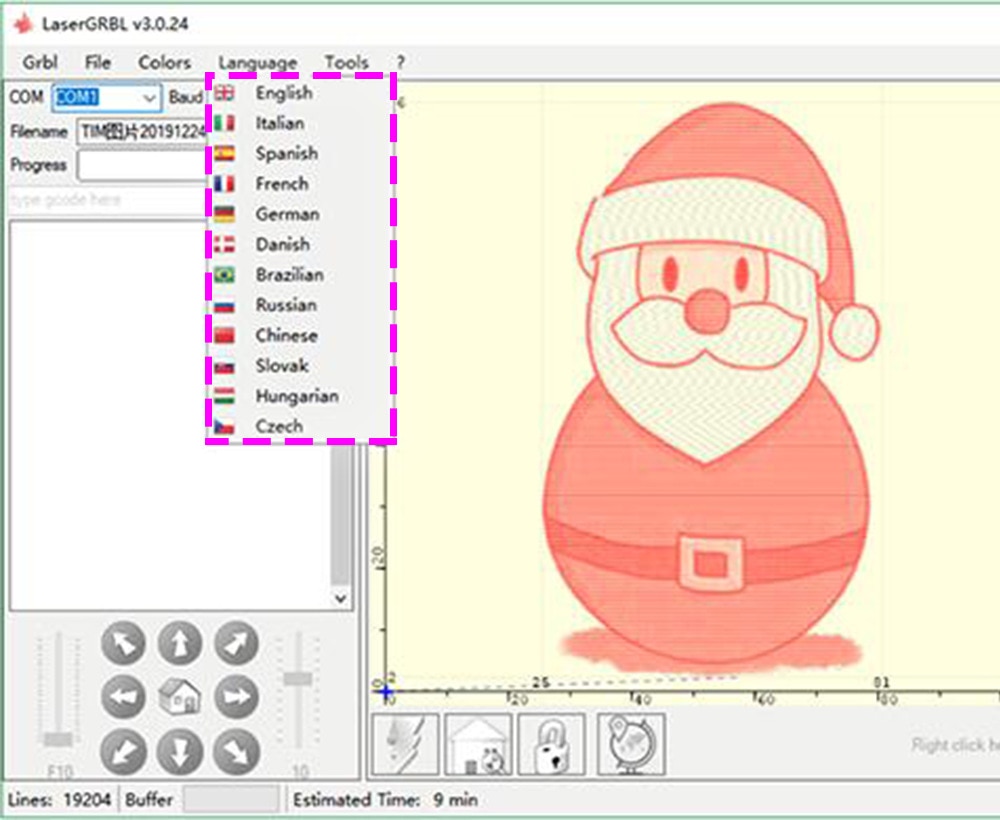

Software:Laser Engraver/Laser GRBL/Benbox . (Laser GRBL and Benbox can switch language ) If you have any question,feel free to contact me!
Notice:
1. Please look for the official store, other similar products are imitations.
2.Please wear the protective glass when you use the laser module.
3.Do not touching the laser light directly in case that hurt the body and skin.
4.Keep children and pets away from the laser module when it working.

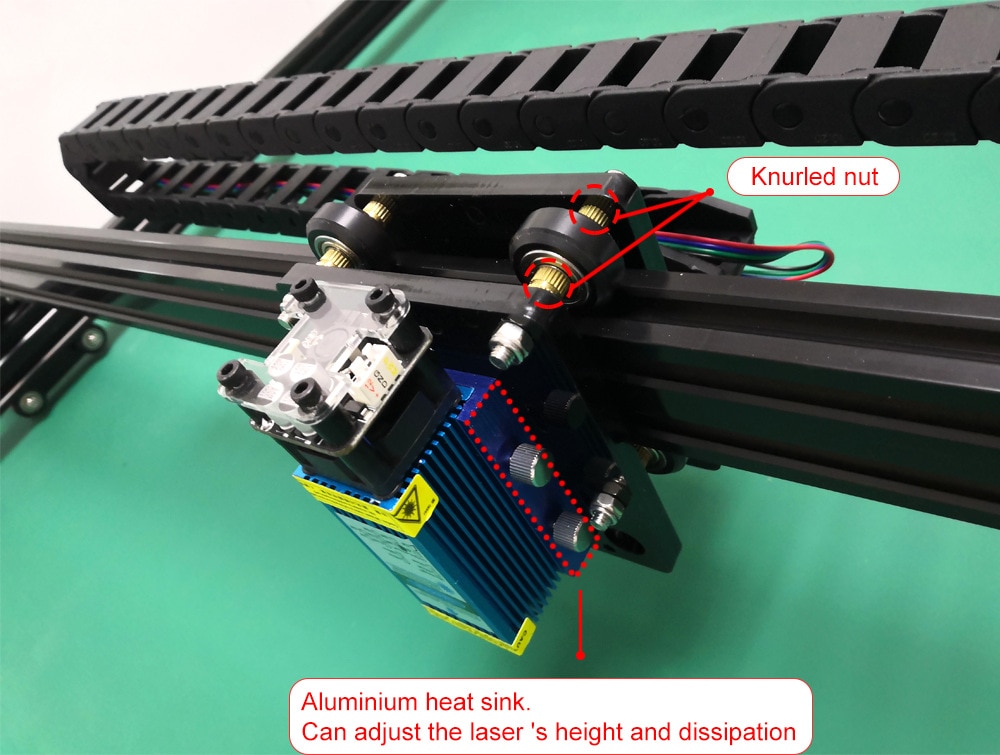

5.The Laser dot could not be adjusted, please make sure the distance between bottom of the laser module and engraving material is 16mm(Use the plastic column to do it). Or it will influence the result.
6.Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,the yellow cord is
Signal(S). Please make sure you know how to connect it,Otherwise it might damage the laser module!
Engraving Material Note:
1.can engraving materials: wood,bamboo,plastic,paper,leather,bank card,rubber ,
7W , 10 W , 15 W laser can engrave the metal ( Stainless steel surface and anodized aluminum )
2.can not engraving material:metal,stone,ceramic,shell,light-reflecting material,
transparent material
The product has a lifespan of 8,000 hours, it can last for 1 hour, and then it takes 10 minutes to rest.
It can cut the maximum thickness of the product is about 1mm cutting board, 2mm plywood, 1mm mdf, 2mm PVC board, 4mm foam, 3mm paper.
Cutting Material:
It can only cut foam,paper,thin leather material.If you have any questions , pls feel free to contact me ~
![13799629670_57860075](https://www.laserse.com/wp-content/uploads/2021/07/Hf350b3a8af304c3fa3531e6e972177e68.jpg)
![11610966318_57860075](https://www.laserse.com/wp-content/uploads/2021/07/H7fb1d03d37c943e9ae5987c7b9990fd2q.jpg)
![11678675035_57860075](https://www.laserse.com/wp-content/uploads/2021/07/H3f5ae8066eae4f4e9a19f36ea79883efg.jpg)
![11647498915_57860075](https://www.laserse.com/wp-content/uploads/2021/07/Hb3850dabc1cc401193222647121a8b1eF.jpg)
![11610981118_57860075](https://www.laserse.com/wp-content/uploads/2021/07/Hbcf759a059554204bb4d5a4da76118ac4.jpg)
