Description
- Brand Name: Hantek
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: DSO1062S
- Digital Channels: 2
- Display Size: 5.0 – 6.9 Inches
- Real Time Sampling Rate: 1GSa/S
- IS Battery Demountable: Yes
- Band Width: 60-99MHz
- Record Length: 1M
- Display Resolution: 640*480 Pixels
- Max Waveform Capture Rate: 30,000wfm/s
1GSa/s 60MHz 2 Channels 5.6″ LCD Digital Multimeter 2M Memory Hantek 640*480 DSO1062S Handheld Isolated Oscilloscope
Product Features
• Fully isolated Handheld oscilloscope, oscilloscope complete isolation between channels, isolation channel oscilloscope and multimeter, oscilloscope, multimeter and USB communication interfaces, etc. are completely isolated,
•isolation level: 1000V CATII, 600V CATIII.
• High Bandwidth 60MHz Oscilloscope,1GS/s sample rate, and 6000 Counts DMM with analog bargraph , and data recorder.
• 2M Memory Depth.
• High Refresh Rate (2500 frames)
• Large 5.6 inch TFT Color LCD Display,High Resolution(640*480), Dual-Window Design –More clear, More Detailed
• One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform

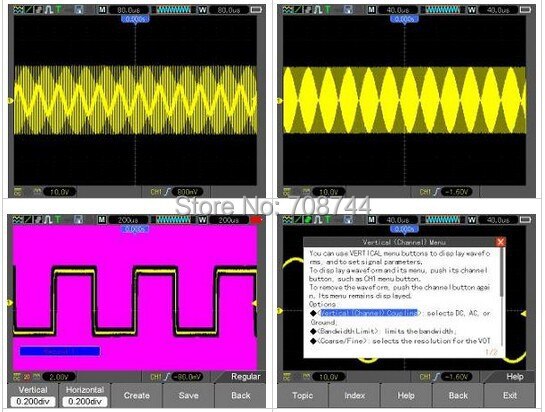

• Easy-to-use pop-up menu with built-in multi-language help system
• 32 Automatic Measurements
• Waveform Math: Add, Subtract, Multiply, and Divide
• Store and recall over
• Automatic cursor tracking measurements

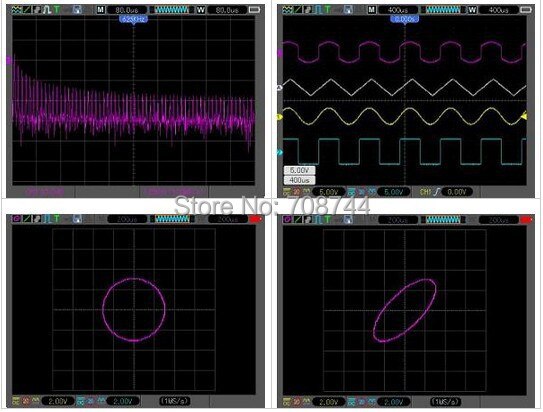

• XY Mode
• Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
• Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
• Pass-Fail function compares a stored waveform to an unknown input
• Average Mode for smoothing waveforms
• Square Wave Output (2V, 1kHz) for probe adjustment

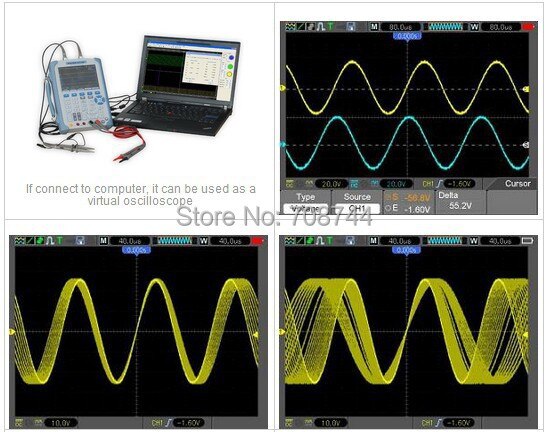

• USB Host/Device 2.0 full-speed interface ,support removeable disk, LAN Optional ,Easy to control by PC or long-distance.
• Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
Speciafications:
Software
Operating system: Windows 7 ,Windows NT, Windows 2000, Windows XP ,VISTA

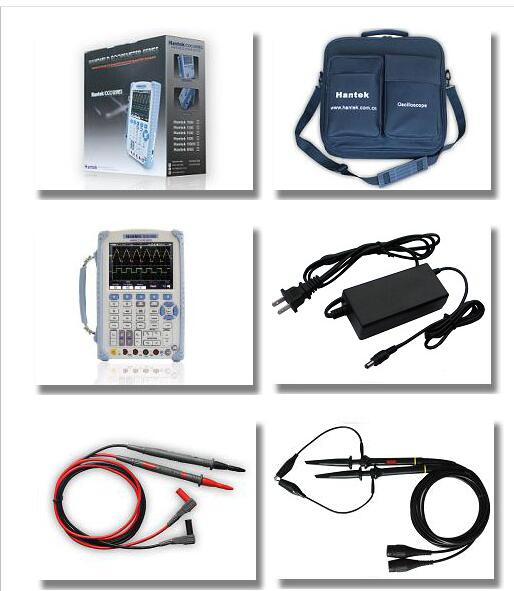

Package: Main body and Accessories

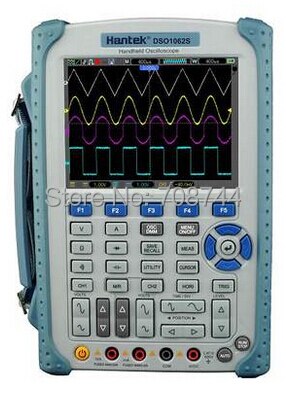

1PC HANTEK DSO1062S Handheld Isolated Oscilloscope
1pc Oscilloscope Bag

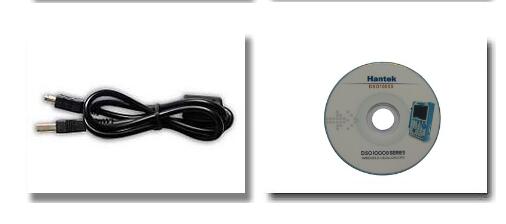

1pc USB cord
2pc Oscilloscope Probes
2pc oscilloscope Test leads
1pc CD
1pc Power Cord
