Description
- Brand Name: laserland
- Certification: NONE
- Origin: CN(Origin)

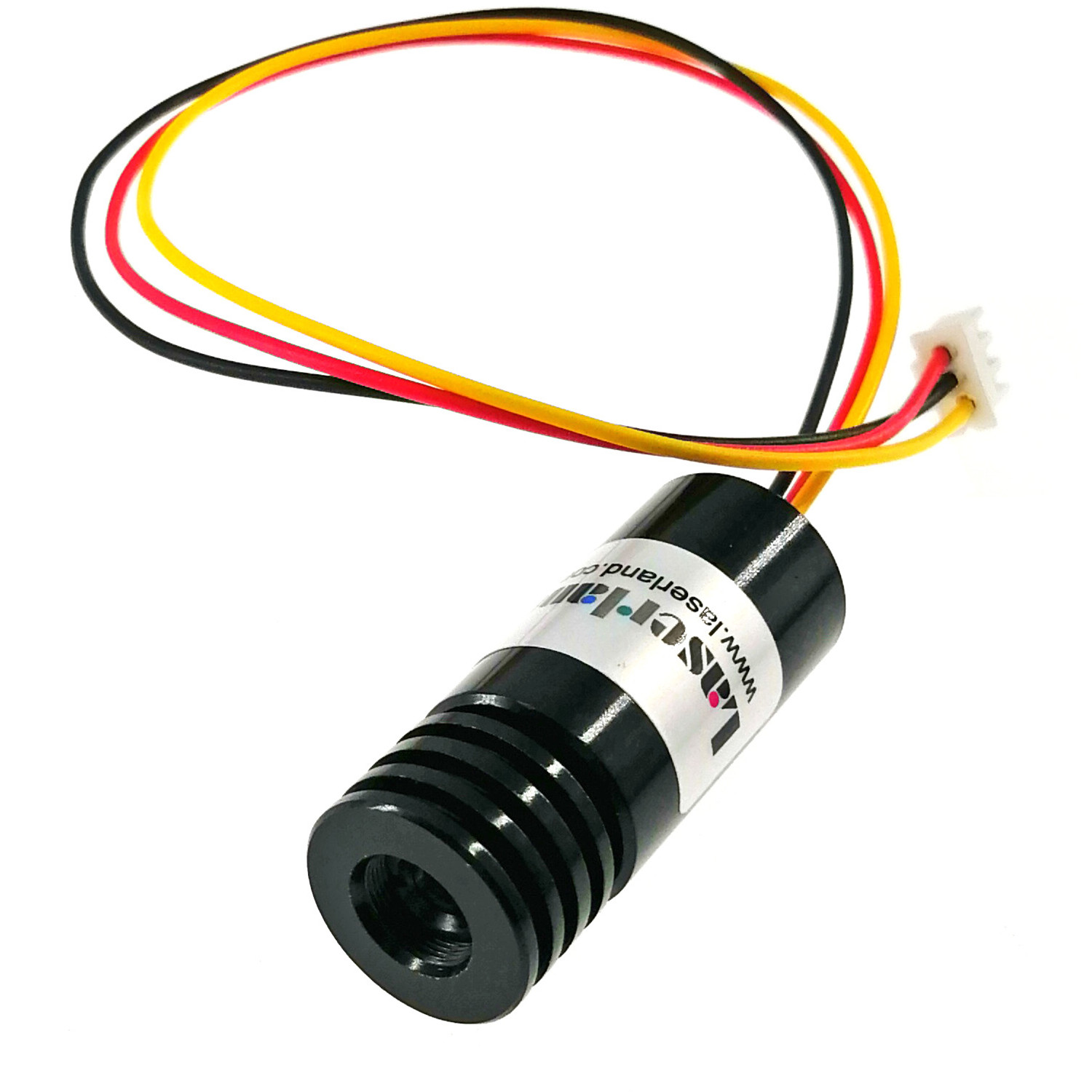

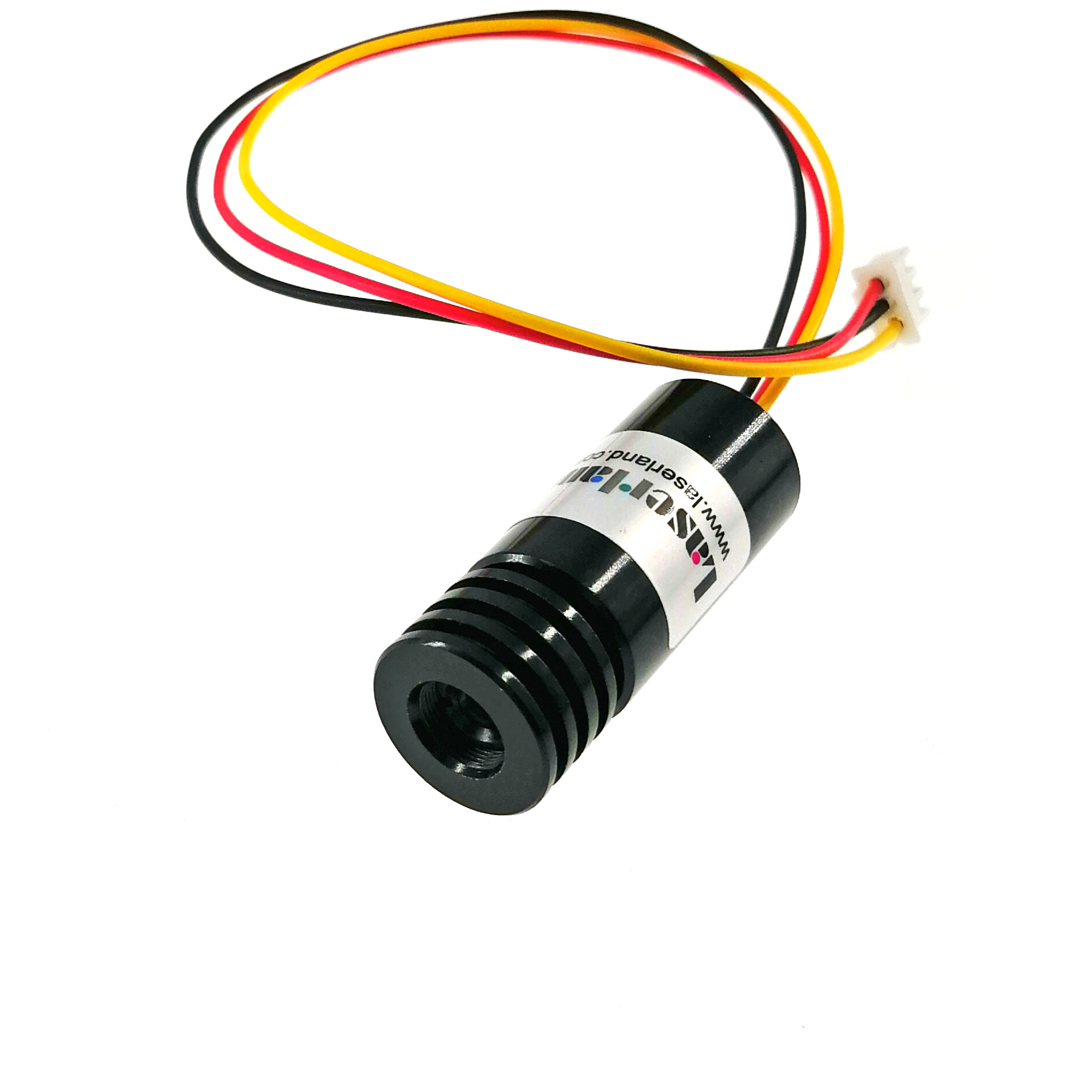

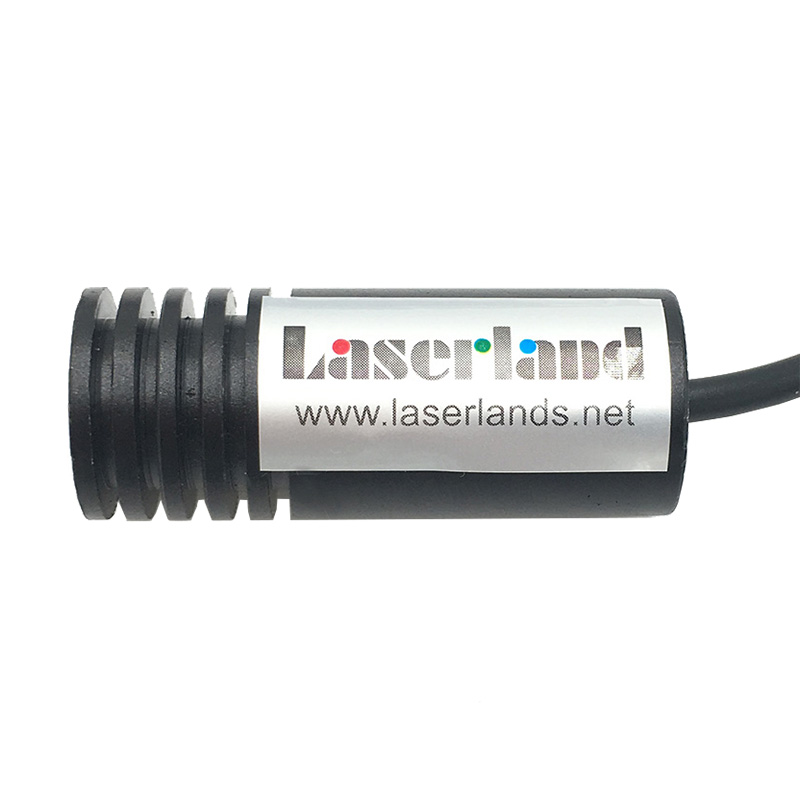

INDUSTRIAL 1845 Focusable 980nm 200mW Infrared IR Laser DOT Diode Module TTL 100khz
Specification
Output Power 180mw
Wavelength 980nm
Working Voltage 5.0VDC
Working Temperature -10 ~40 centi-degree
Dimensions ø18mm*45mm
Working current <300mA
TTL : 0-5V
Frequency: 0-100KHz
Red wire for + pole, black wire for – pole, yellow wire for TTL + pole. if you do not need ttl, please ignore it

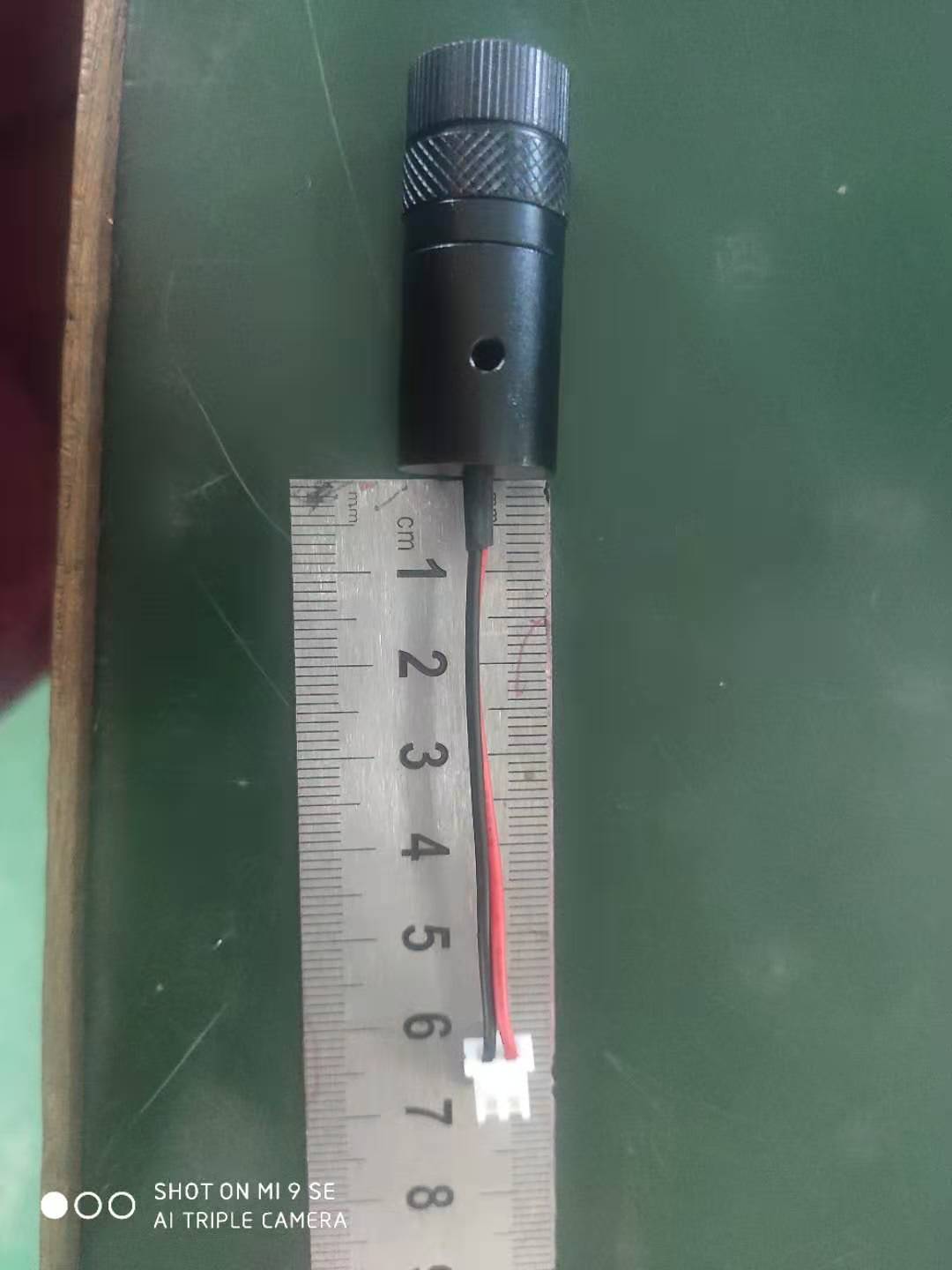

Specification
Output Power 300mw
Wavelength 980nm
Working Voltage 5.0VDC
Working Temperature -10 ~40 centi-degree

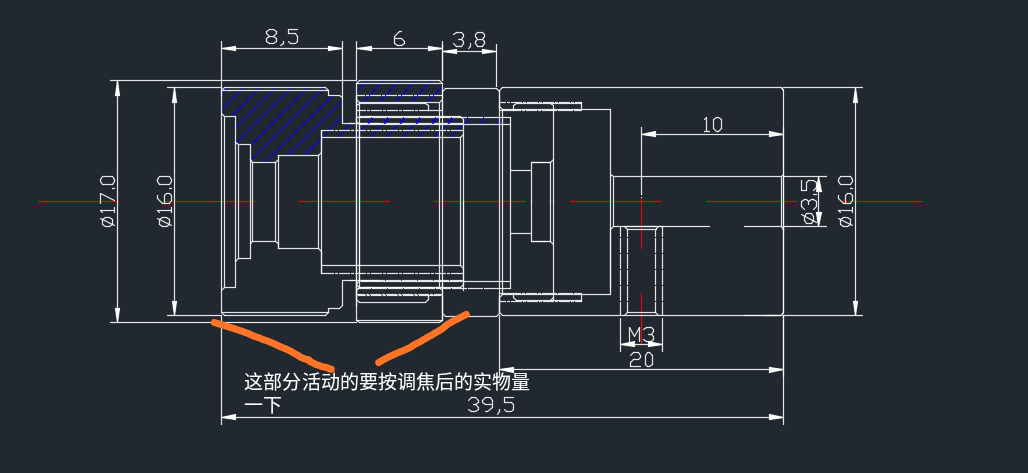

Dimensions ø16mm*40mm
Working current <300mA
no Driver
it is designed and produced for rifle sight.
it is designed and produced for rifle sight.
Specification
Output Power 180mw
Wavelength 980nm
Working Voltage 5.0VDC
Working Temperature -10 ~40 centi-degree
Dimensions ø18mm*45mm
Working current <300mA
TTL : 0-5V
Frequency: 0-100KHz
Red wire for + pole, black wire for – pole, yellow wire for TTL + pole. if you do not need ttl, please ignore it
NOTE:
1. 100KHZ high frequency–quite different with the 35khz low frequency.
2. red wire for voltage + pole, black wire for voltage – pole. black wire also for TTL – pole
3. you have to add at least 1000khz signal on the yellow wire for TTL effect. if not, you cannot get the TTL effect
ONLY FOR PROFESSIONALS
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
