1845 Focusable 980nm 120mW Infrared IR DOT Laser Diode Module TTL 100khz

$33.88

767 in stock

SKU: 32664461095 Category:

Description

  • Brand Name: laserland
  • Certification: NONE
  • Origin: CN(Origin)

INDUSTRIAL Focusable 980nm 120mW Infrared IR Laser DOT Diode Module TTL 100khz

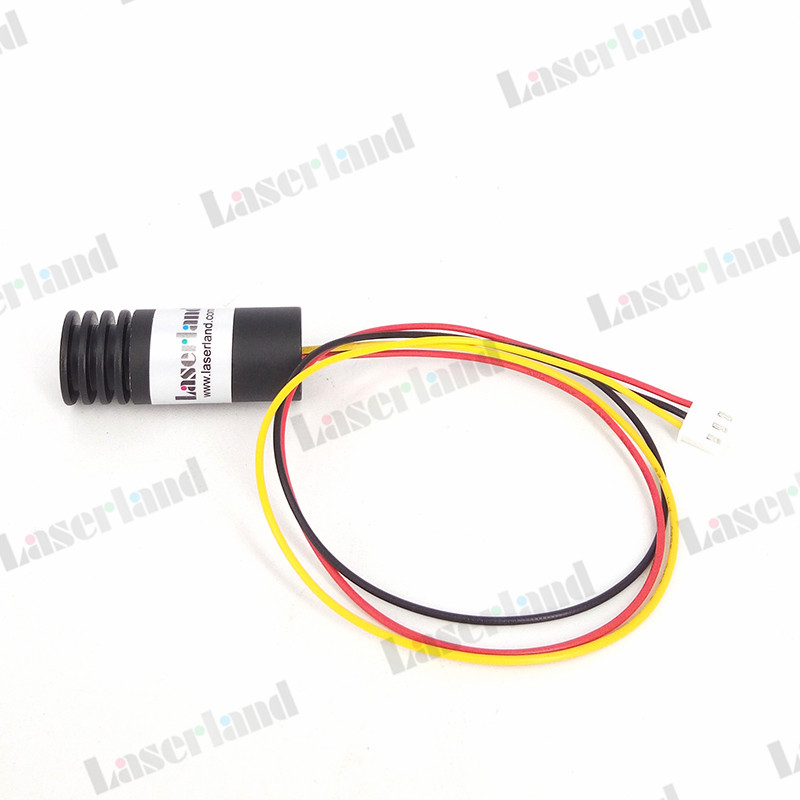

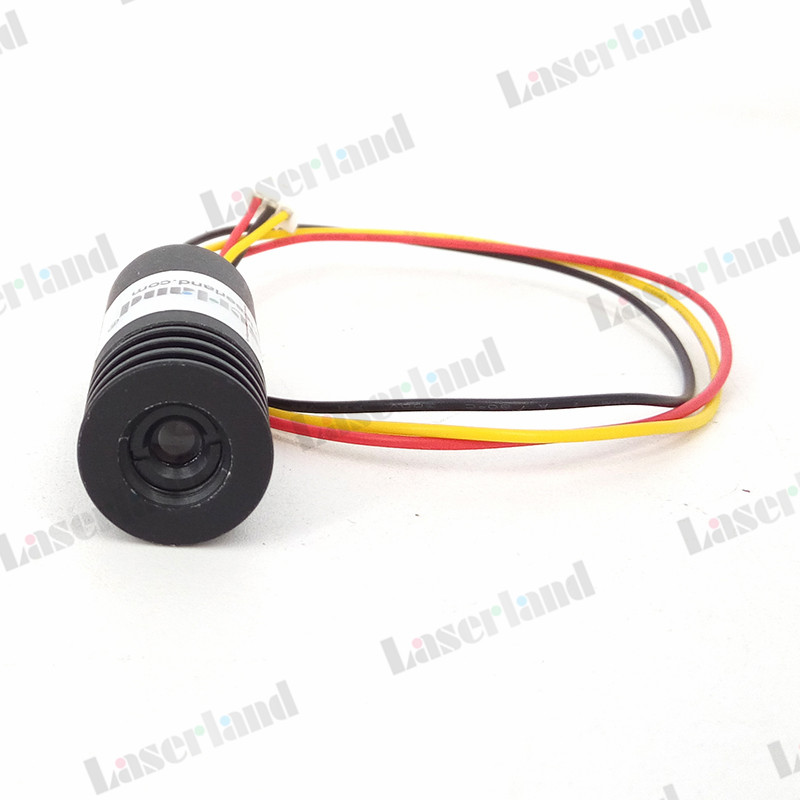

980nm 120mW IR Laser Focusable Dot Diode Module

This 980nm laser dot module with a driver built-in is an industrial electronic component and used for industrial test, Lab. Not a handheld laser

The IR laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or test. It is invisible by bare human eyes and can only be seen by CCD or night version devices.

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()





Specification
Output Power 120mw
Wavelength 980nm
Working Voltage 5.0VDC

Working Temperature -10 ~40 centi-degree

Dimensions ø18mm*45mm

Working current <300mA

TTL : 0-5V

Frequency: 0-100KHz

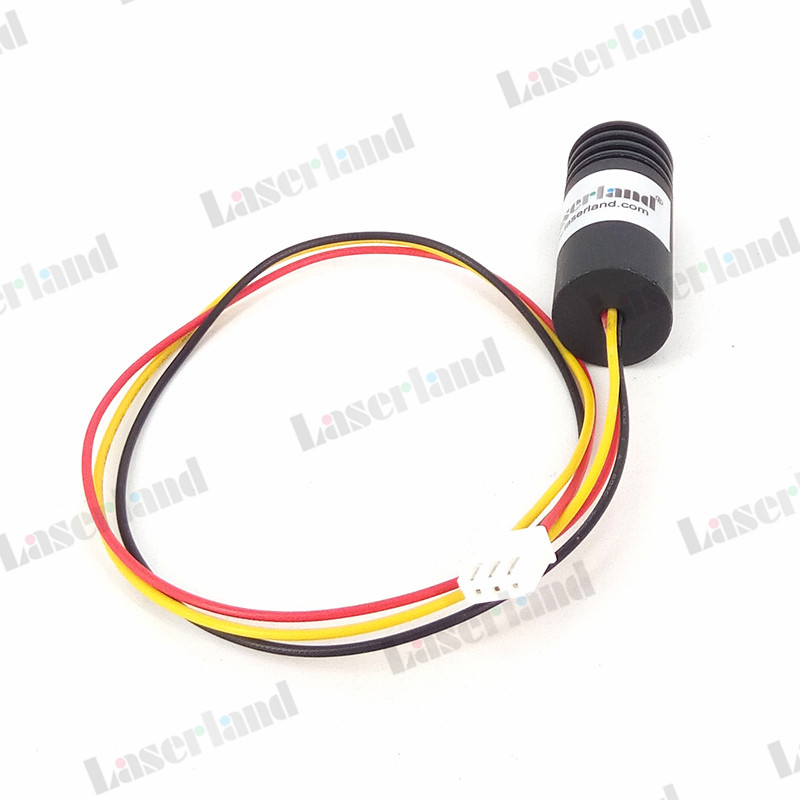

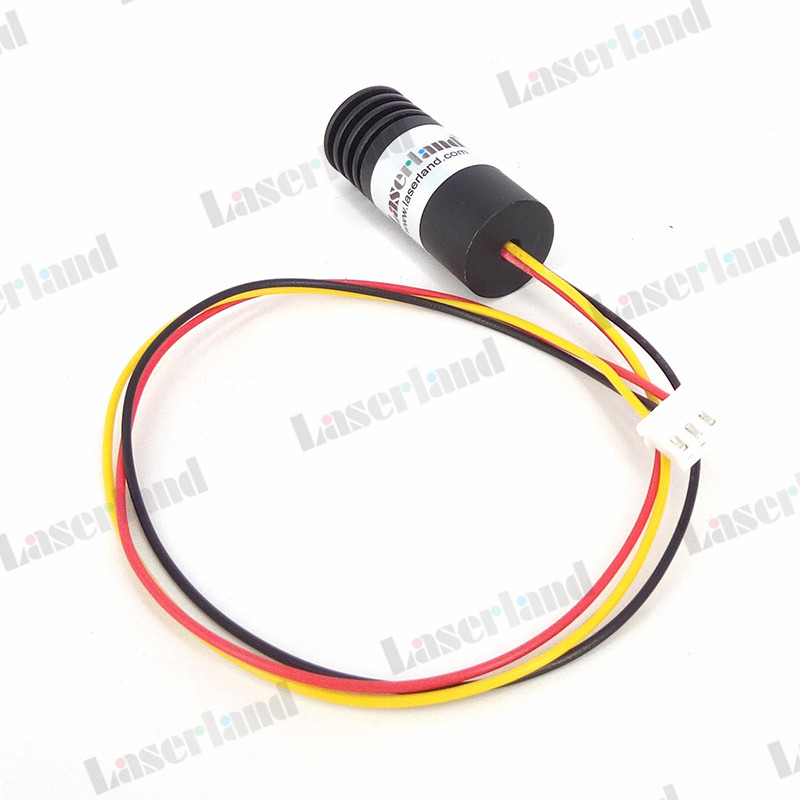

Red wire for + pole, black wire for – pole, yellow wire for TTL + pole.

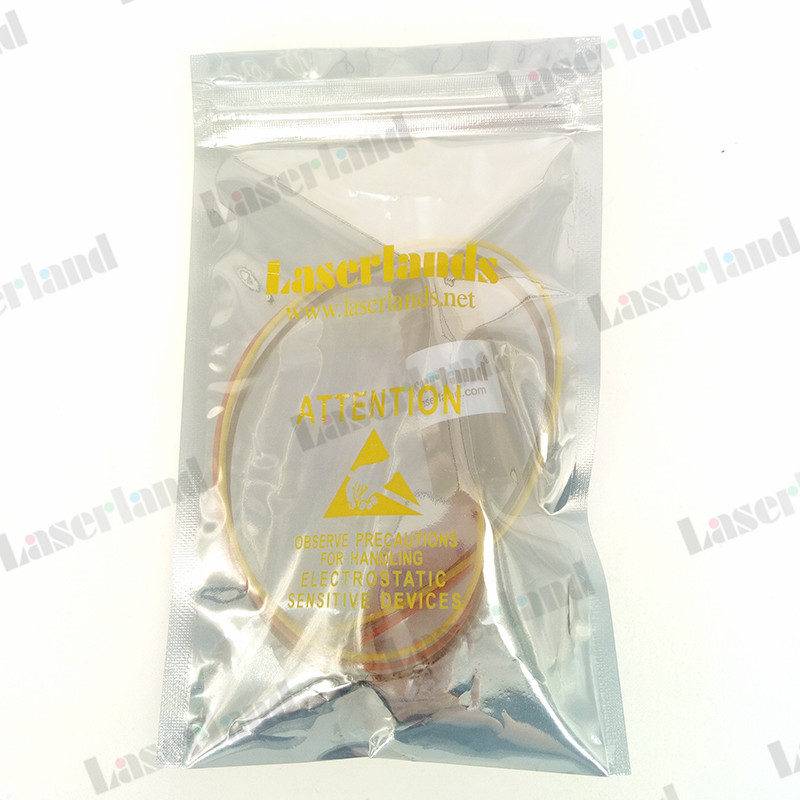

Package one 980nm 120mw Laser Dot Diode Module



NOTE:

1. 100KHZ high frequency–quite different with the 35khz low frequency.

2. red wire for voltage + pole, black wire for voltage – pole. black wire also for TTL – pole

3. you have to add at least 1000khz signal on the yellow wire for TTL effect. if not, you cannot get the TTL effect

ONLY FOR PROFESSIONALS

Note:

The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
