16mm Cree XML T6 XM-L2 LED Emitter Chip Diode 17mm 3 – 12V 1 Mode 3.7 – 4.2V 5 Modes Driver Circuit Board Flashlight DIY Parts

$3.42$6.88

SKU: 3256803804899982 Category:

Description

  • Origin: CN(Origin)
  • Certification:
  • Usage: Flashlight DIY or repair
  • Voltage: 3.7-4.2v/3-12V

Specifications for LED:

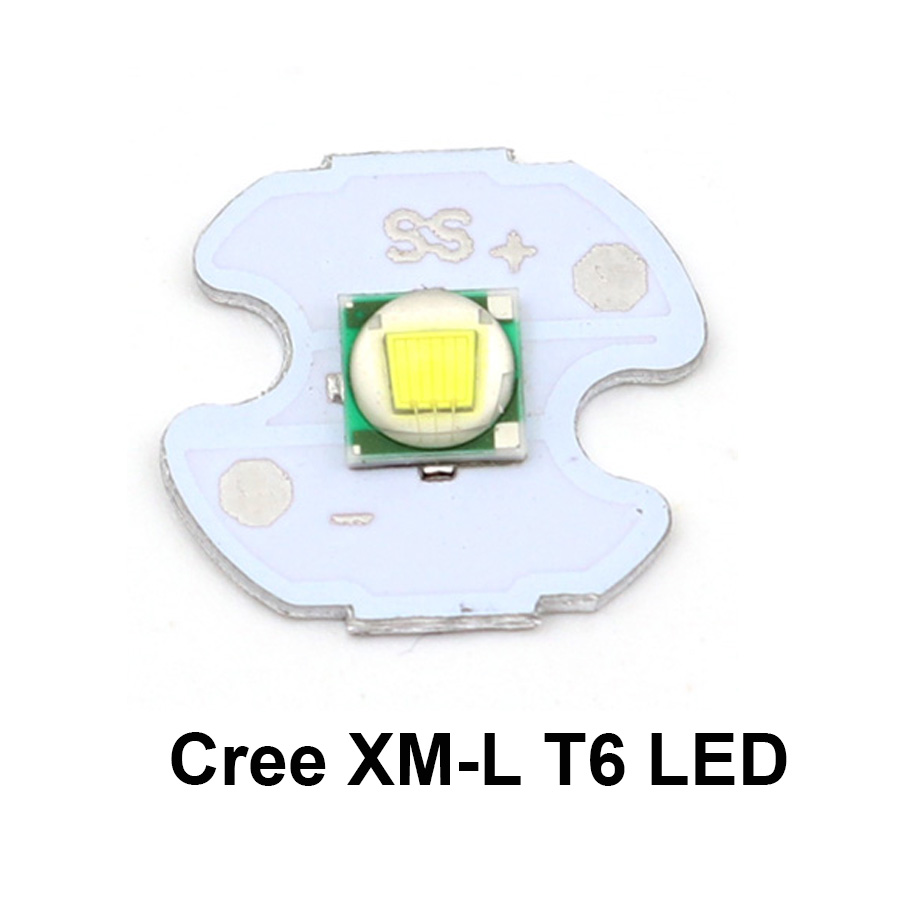

Cree XML-T6 LED:
Emitted Color :White
Color Temperature: 6500-7000K
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 8W

Brightness: 900 lumens
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

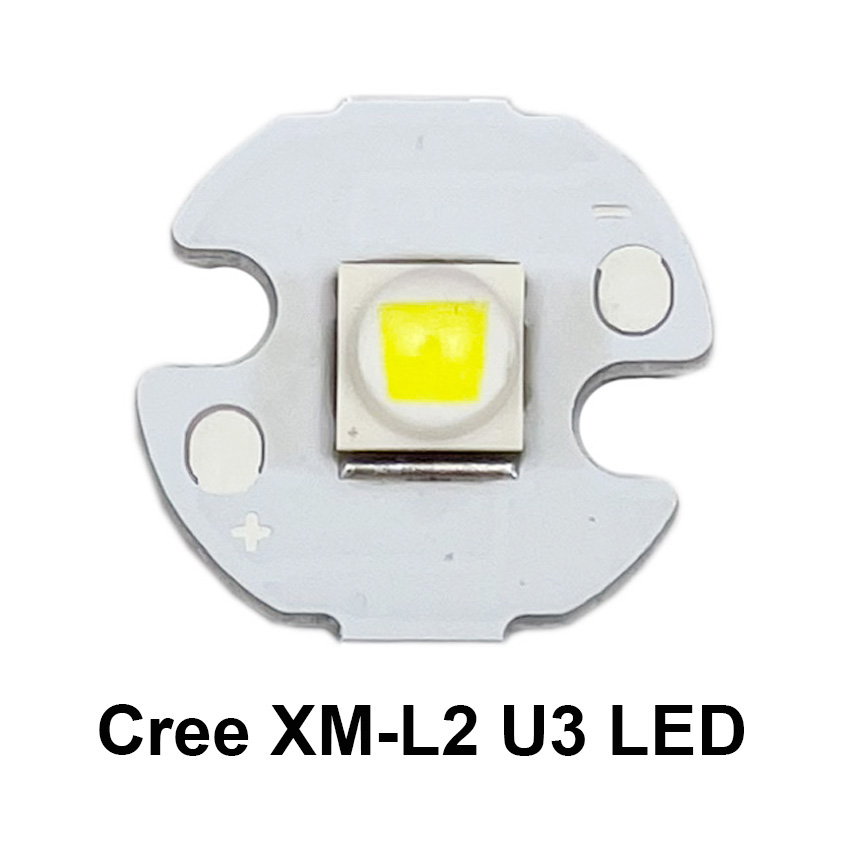

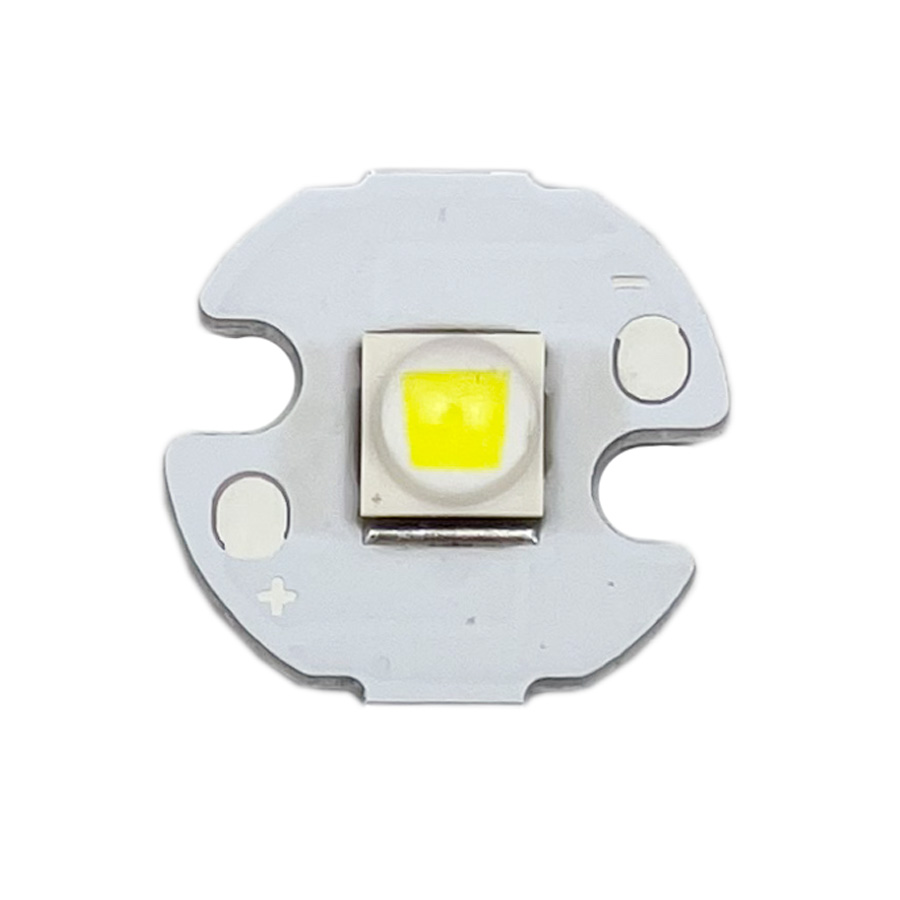

Cree XML2 U3 LED:

Emitted Color :White

Color temperature: 6500K
DC Forward Voltage (VF): 2.9V-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W

Brightness: 1100 Lumens
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

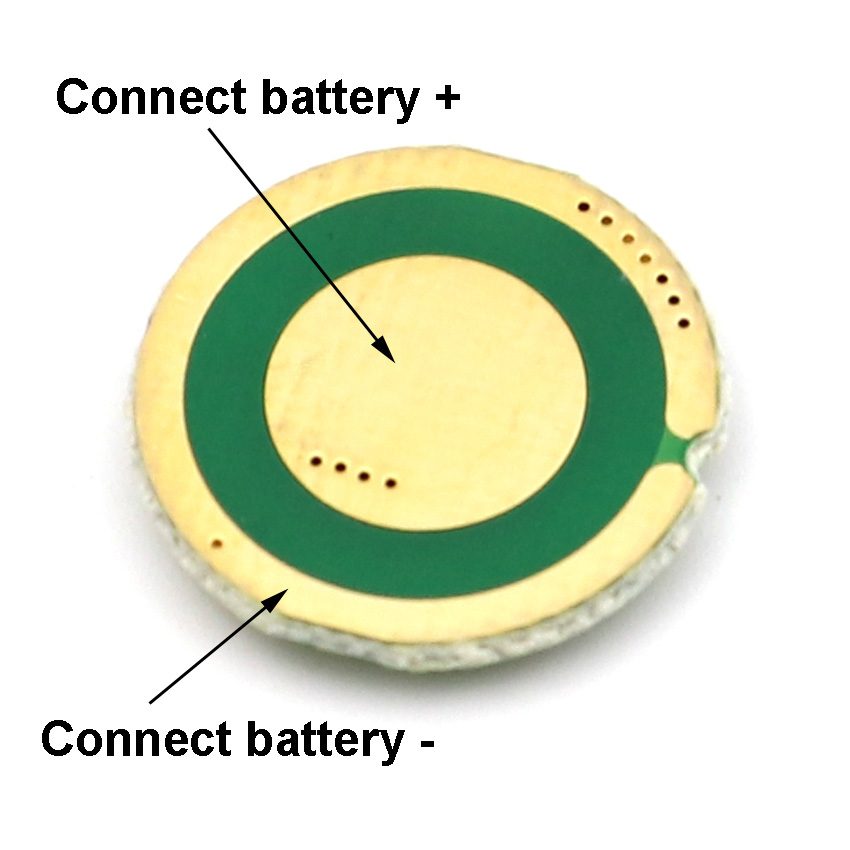

Specifications for Driver:

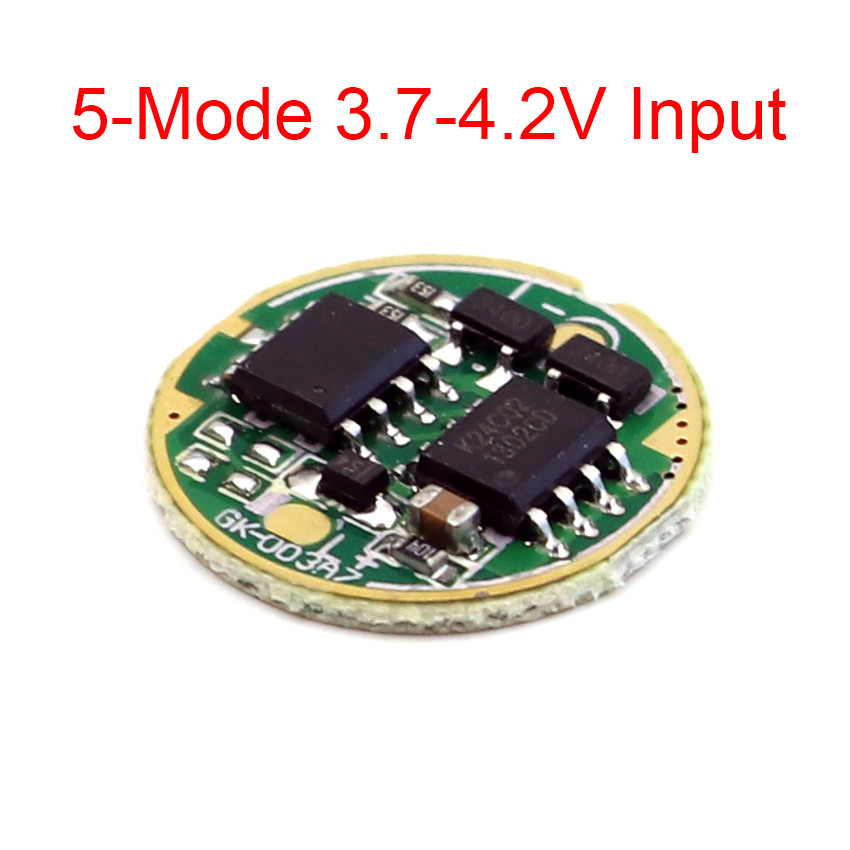

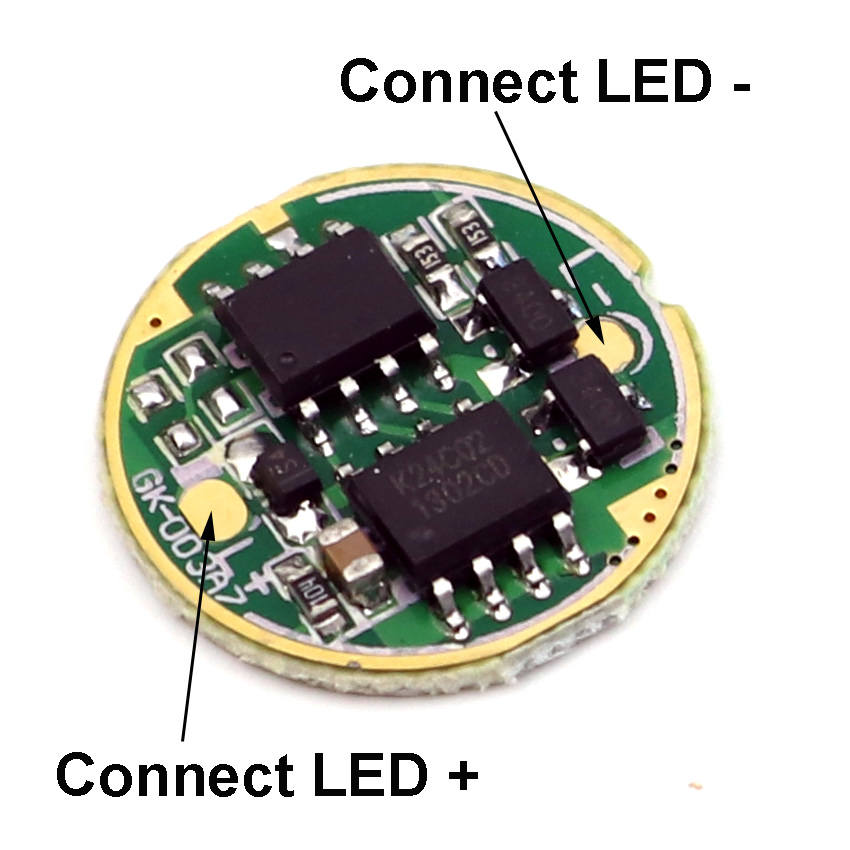

5-Mode Driver borad:

Input Voltage: 3.7V-4.2V (Can only use 1 piece 3.7V Li-ion Battery)

Output Current: Max. 2A

Diameter: 17mm

Mode: High-Medium-Low-Strobe-SOS

Only Suitable for 1 x Cree XM-L/XM-L2 T6 U2 U3 XP-L V5 LED Flashlight, NOT FIT CREE Q5 or other 3W LED!!!

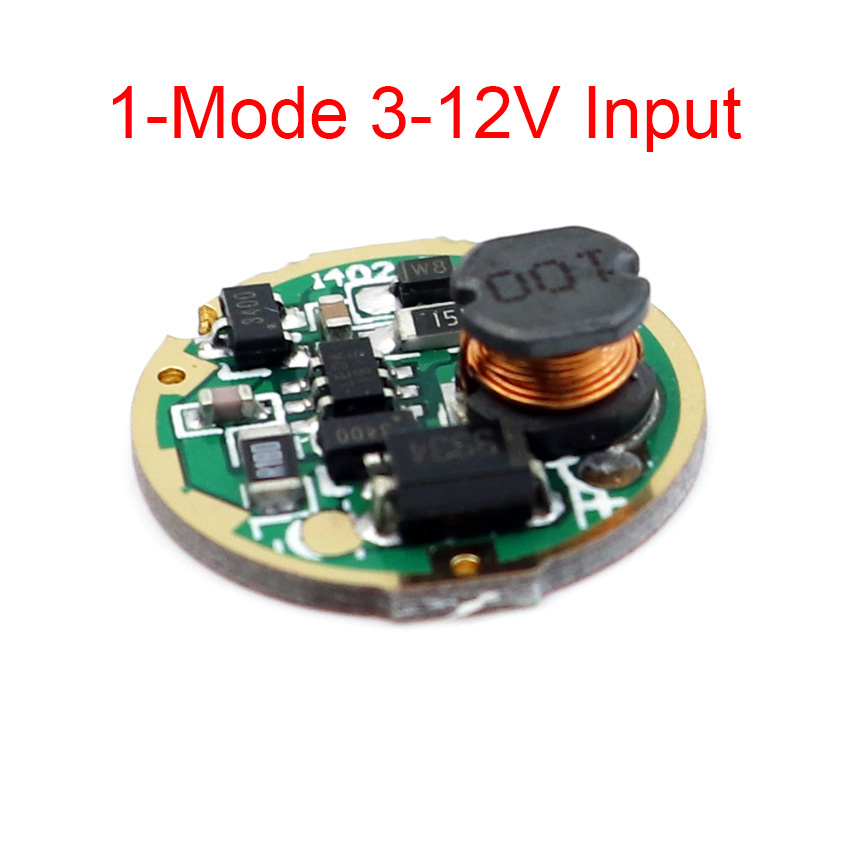

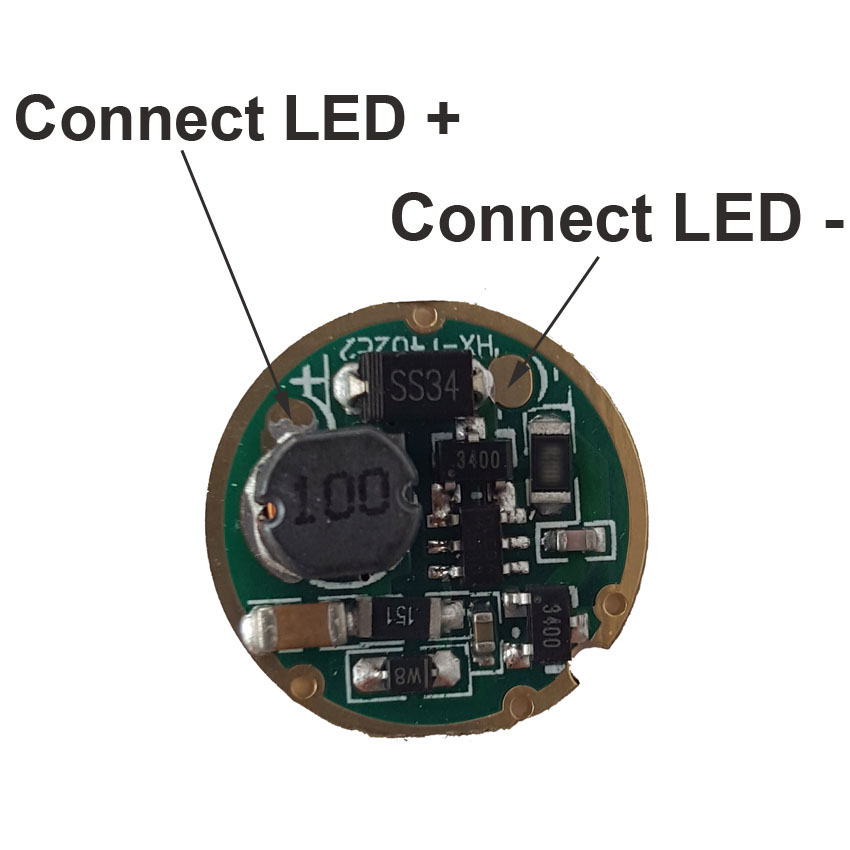

1-Mode Driver borad:

Input Voltage: 3.0V-12V (Can use 1~3 pcs 3.7V Li-ion 18650/26650 batteries)

Output Current:  around 1A

Diameter:17mm

Mode: 1 Mode (on/off)

Only Suitable for 1 x Cree XM-L/XM-L2 T6 U2 U3 XP-L LED Flashlight, NOT FIT CREE Q5 or 3W LED!!!
