Description
- Brand Name: laserlands
- Certification: NONE
- Origin: Mainland China
- Style: Mini
- Power: Other
- Model Number: 1668-780-100
- Voltage: 5V
- Occasion: Home Entertainment

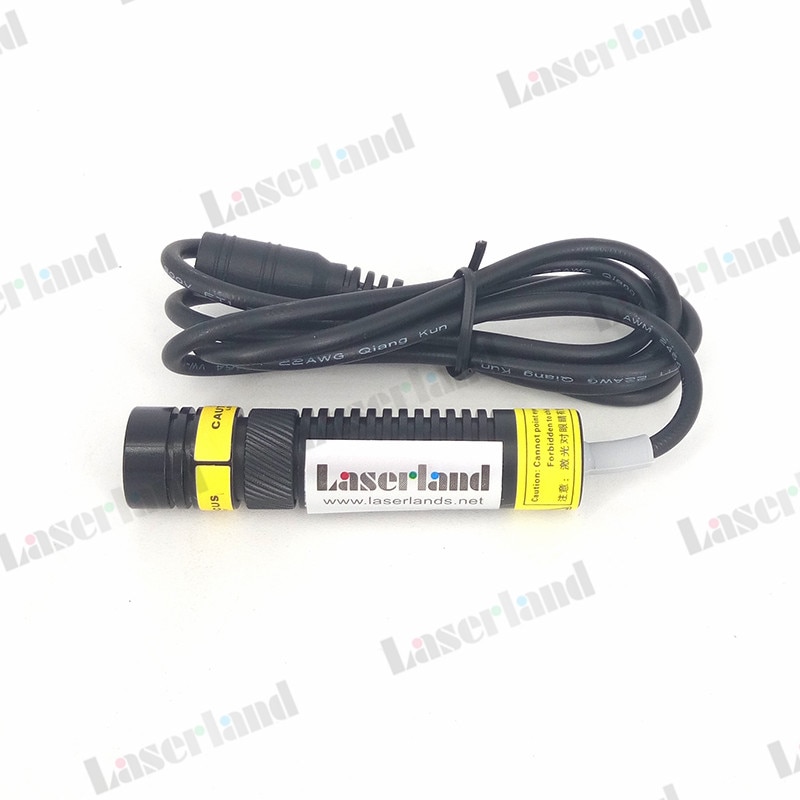

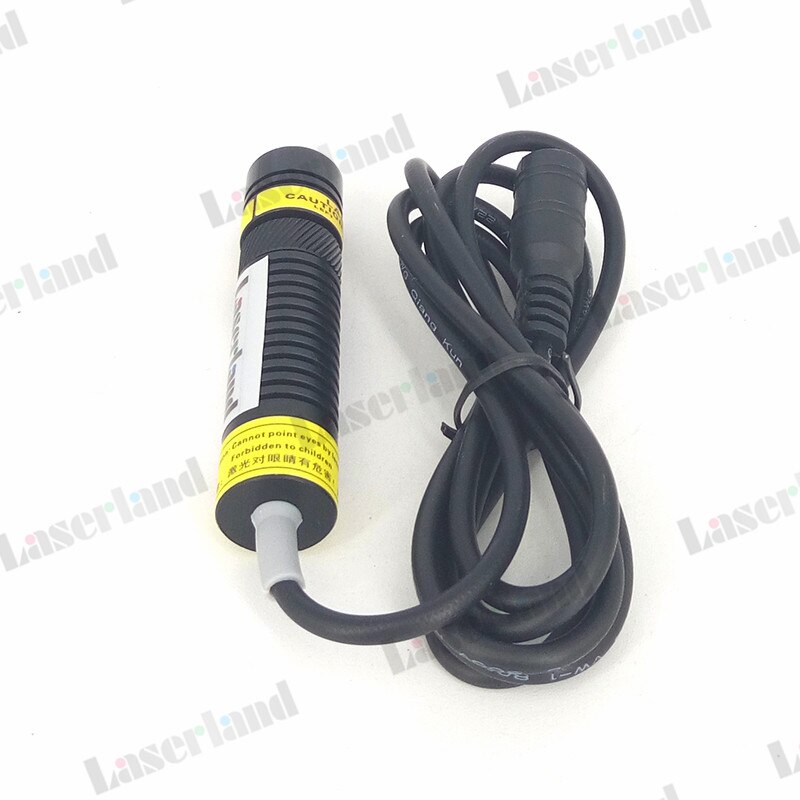

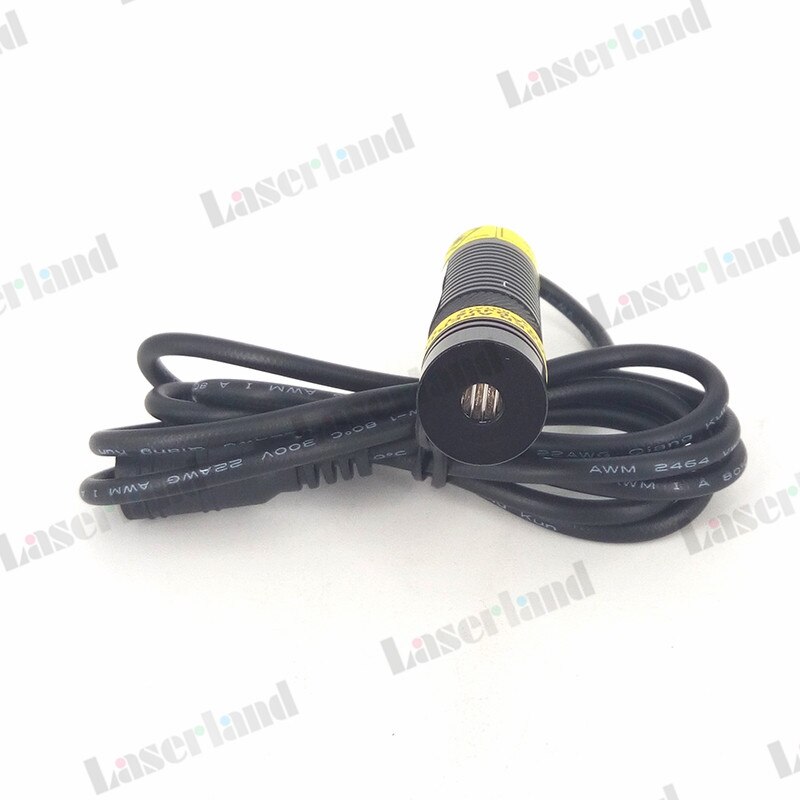

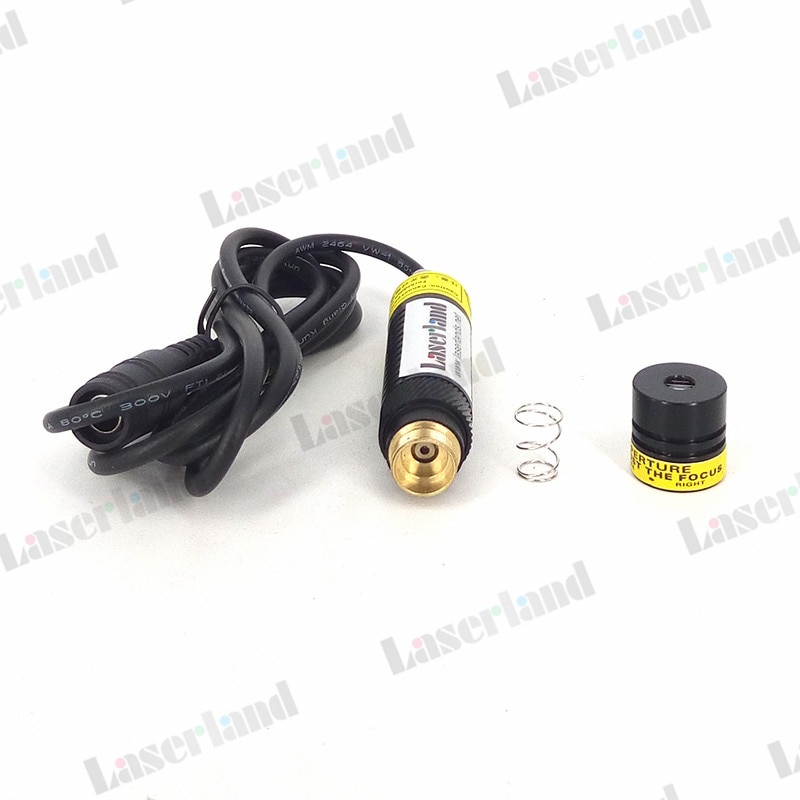

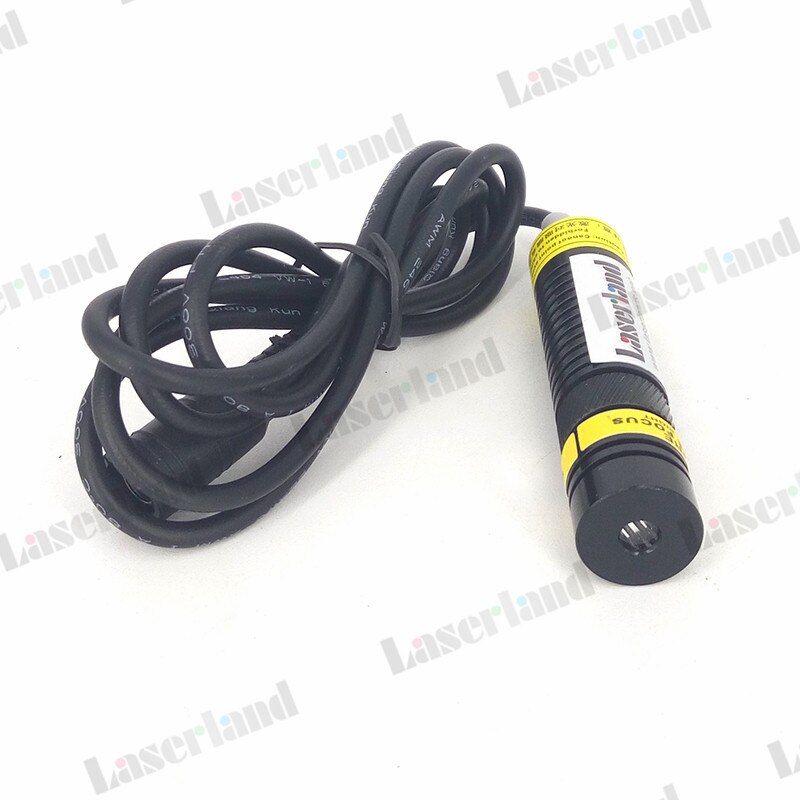

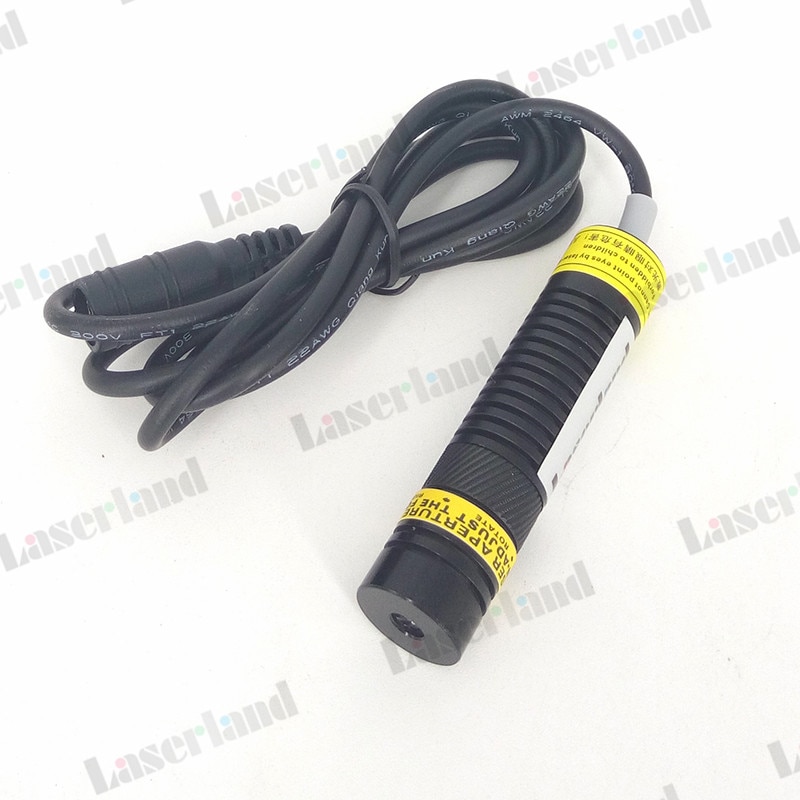

16*68mm 780nm 100mW IR Infrared DOT LINE CROSS Focusable Laser Module Glass Lens + Adapter +mount
Description
Red 780nm 100mW IR Laser CROSS Module w/ AC Adapter
This 780nm laser module with driver is an industrial electronic component and used for industrial testament, Lab etc.
Specification
Size 16*68mm
Output Power 100 mW
Operating Voltage/Current DC=3-5V; I<320mA
Wavelength 780nm
duty cycle 5 seconds on, 15 seconds off
lens k9 glass
Package

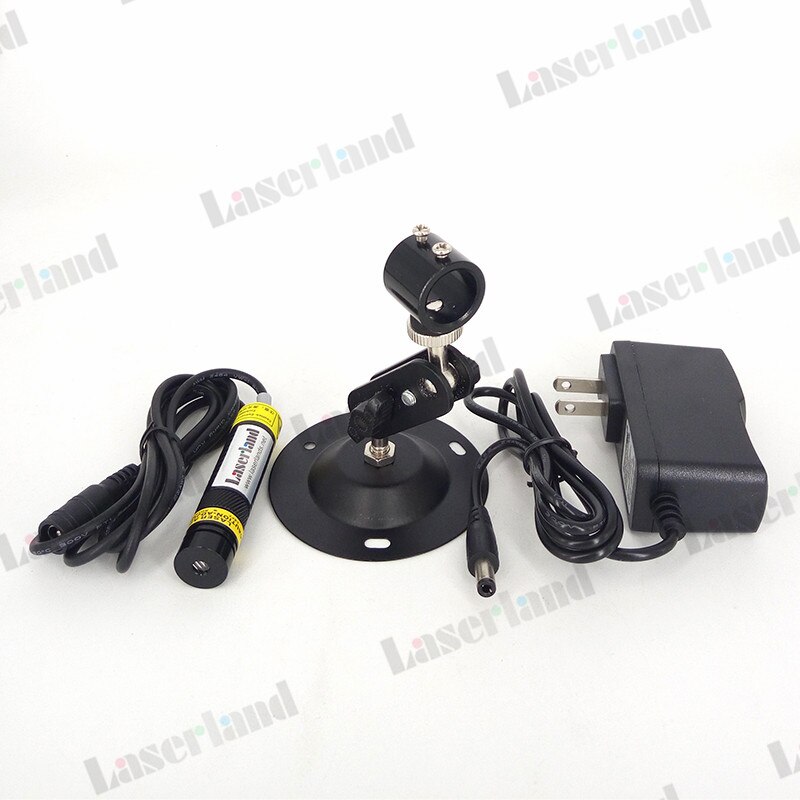

1 x 780nm 100mW laser cross module w/ mount and adpter(as bonus as the picture shows)
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it !!!
The dot is CROSS !
please find the adapter on the picture, the adapter is a bonus for free. we cannot gurantee it can work for all countries. if you are in EU, we may put an EU convertor in the package. if the adapter we mailed out for free as bonus is not suitable for you, we are so sorry about that and please find a more suitable one in your local supermarket.
