Description
- Brand Name: Q-BAIHE
- Certification: CE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 160mW
- Model Number: 638nm-160-2270-AC
- Voltage: 5V
- Wavelength:: 638nm
- Output Power:: 160mW
- Dimensions:: 22x70mm
- Operating Voltage:: 5V
- Operating Current:: <500mA
- Service Life:: >8000H
- Fan Angle :: 110 degrees
- Divergence Angle:: <0.8mard
- Wavelength Drift(nm/℃):: 0.25nm

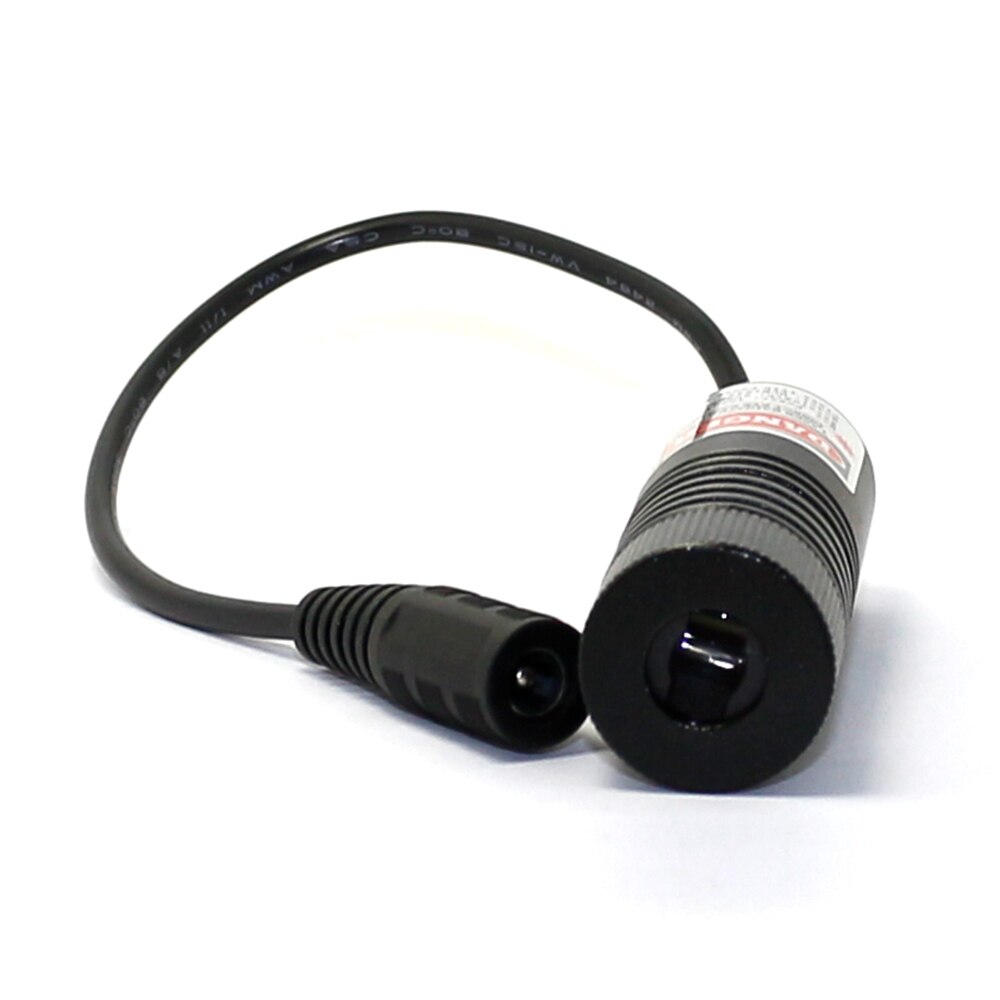

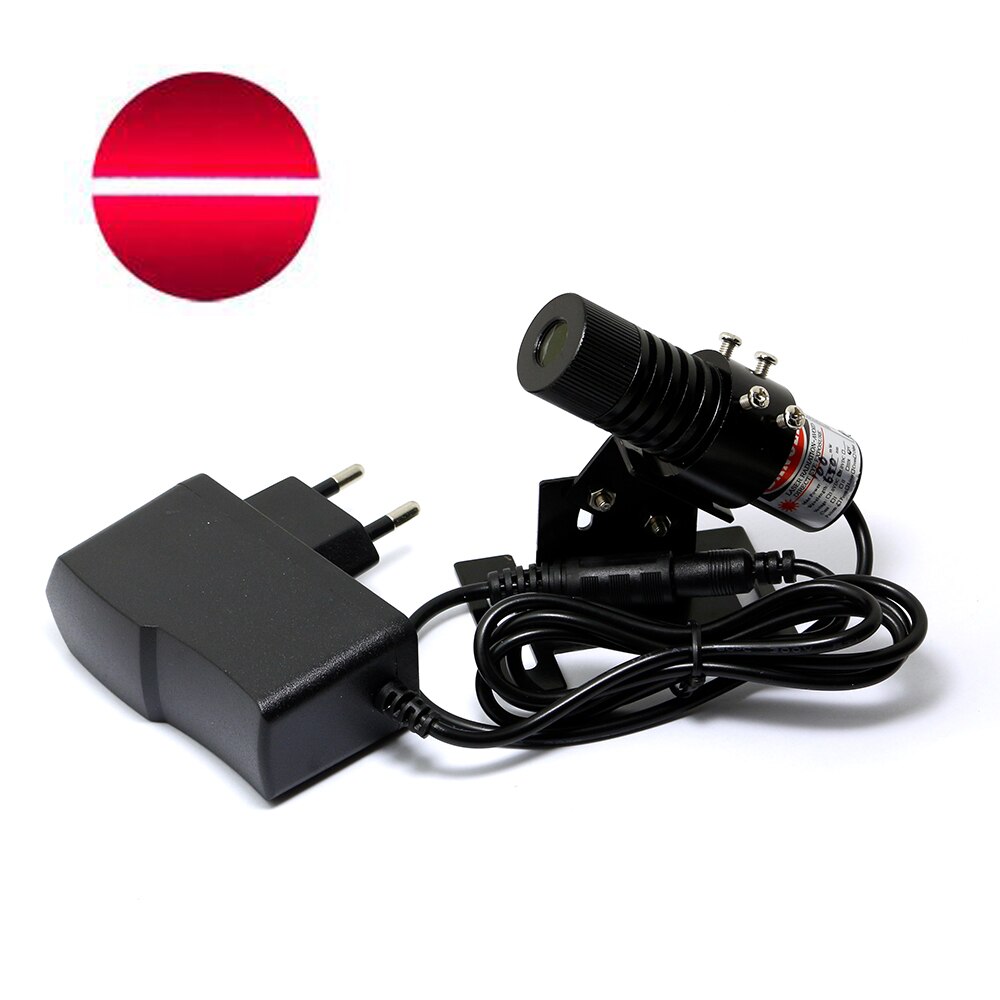

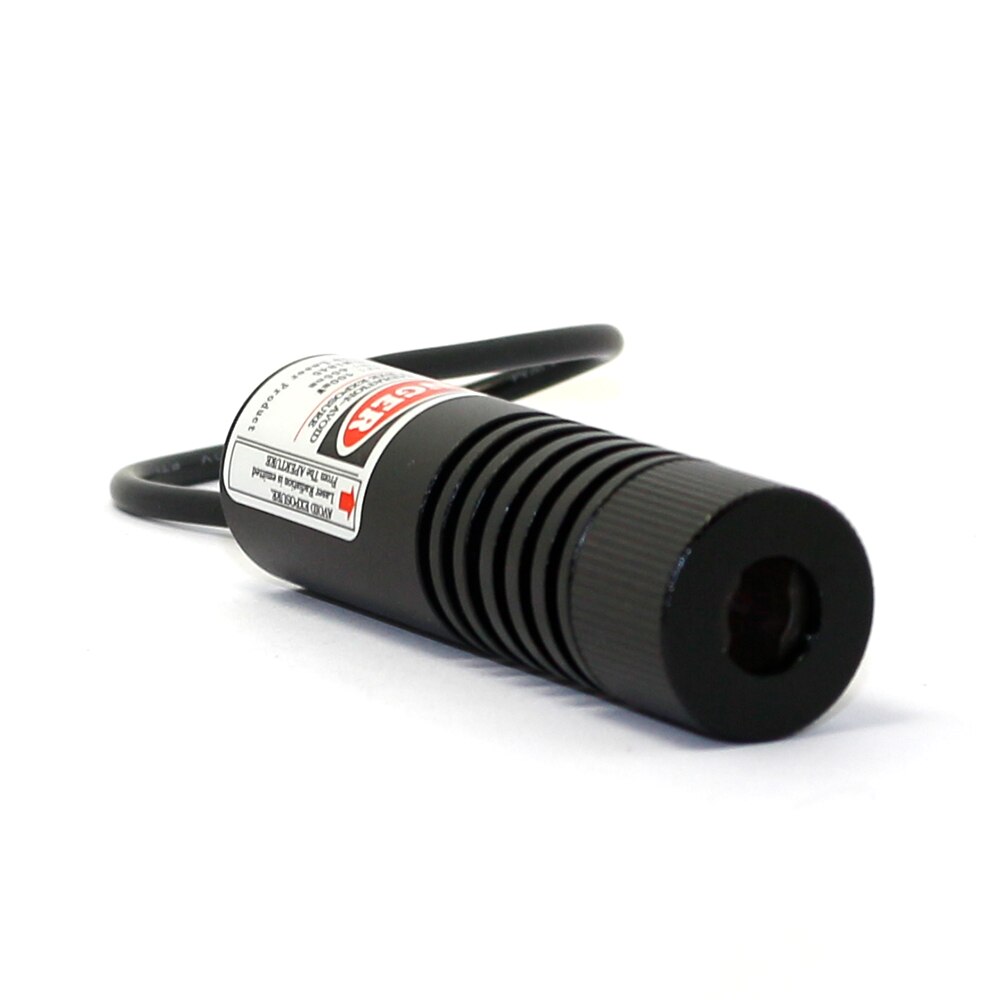

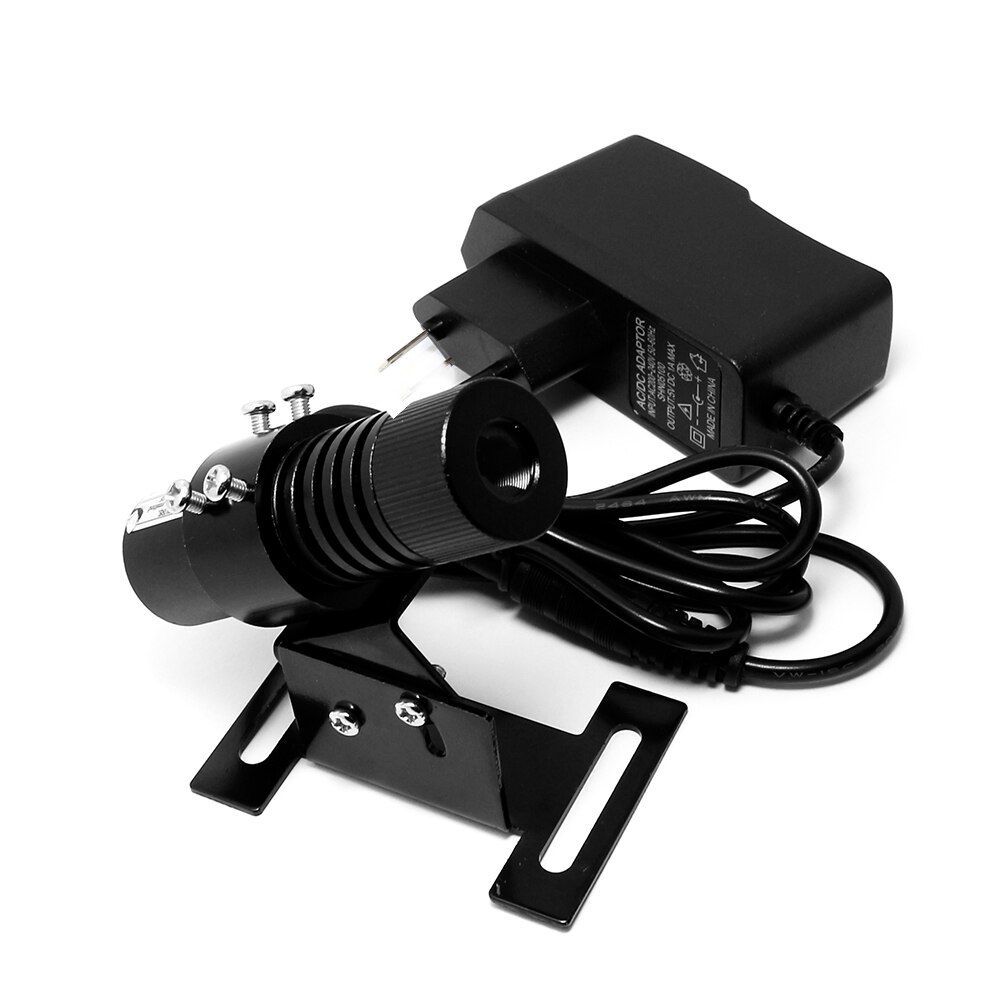

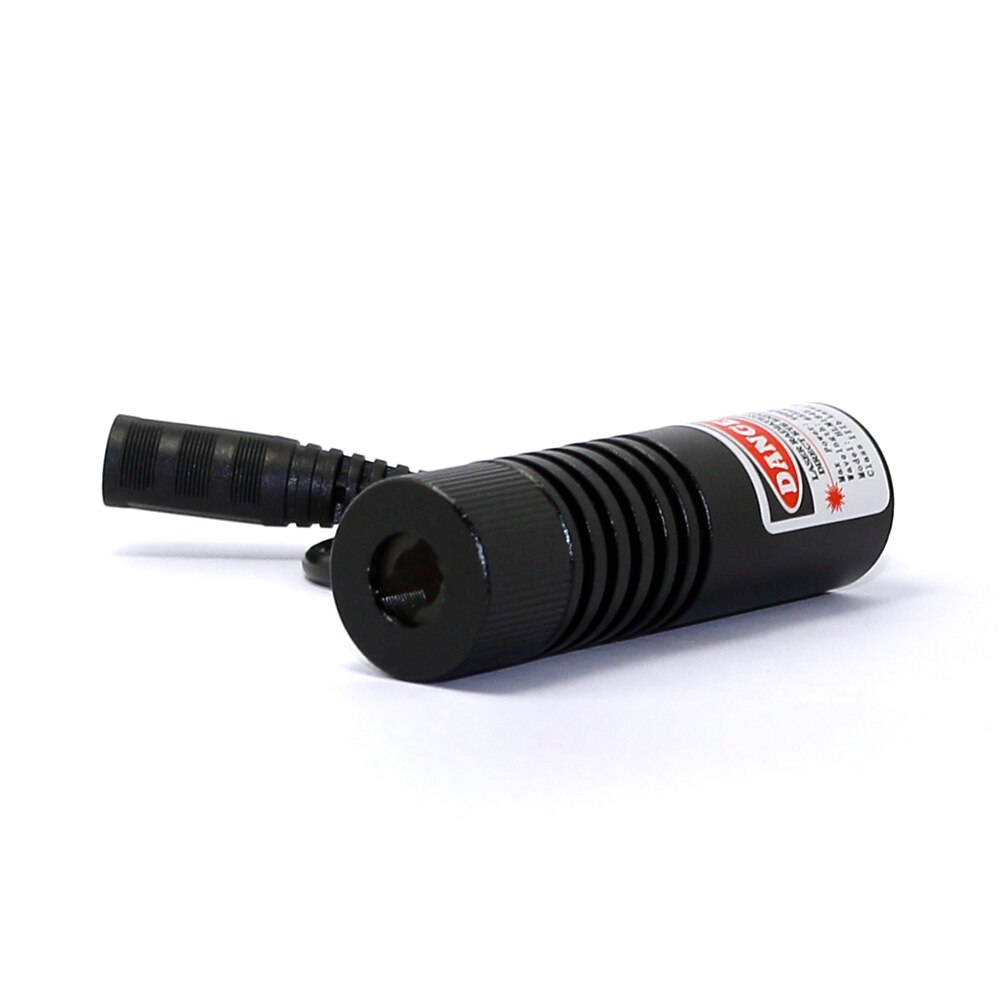

160mW 638nm Red Laser Diode Line Module Locator With Bracket + Power Supply
Specification:
Wavelength:638nm
Output Power:160mW
Dimensions:22x70mm
Operating Voltage:5V
Operating Current:<500mA
Service Life:>8000H
Operating Temperature: +10 ℃~＋60 ℃
Storage Temperature: +40 ℃~＋80 ℃
Laser Shape:Line
Fan Angle : 110 degrees
Line Width:<1m at 3m
Divergence Angle:<0.8mard
Laser Safety:Class IIIb
Power Stability:<8%
Wavelength Drift(nm/℃):0.25nm
Lead Lenght:1 Meter DC
Circuit model:CW
Drive Type:ACC
Focusable:Yes
Lens material:Glass lens
Start-up time: ≤0.01s
Notes:
1.This laser module is widely used in clothes cutting, wood cutting, mechanical positioning.
2.Please keep the lens clean to make the laser beam clear and bright.
3.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.Be sure the operator has experience in optics DIY or testing.
4.Please protect your eyes when you work with this red module.
5. The package comes with one 5V 1A Adapter for easy operation
Package:
1 x160mw 638nm Laser Line Module
1 x 5V 1A Adapter

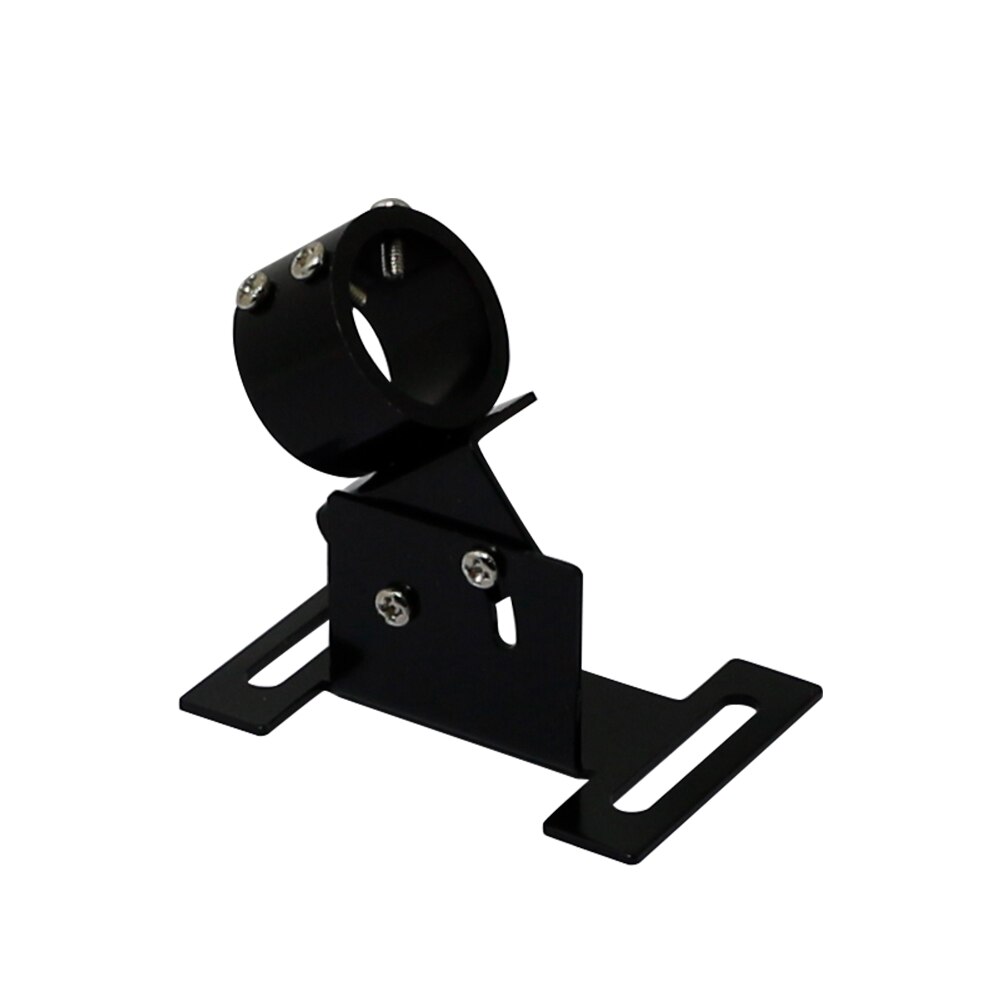

1 x Holder
