15W RGB Laser Module High Power Laser Diode Full Color LD Optics For Disco Stage Laser Light Show TTL Analog Optical Maser DIY

  • Home
  • 15W RGB Laser Module High Power Laser Diode Full Color LD Optics For Disco Stage Laser Light Show TTL Analog Optical Maser DIY

15W RGB Laser Module High Power Laser Diode Full Color LD Optics For Disco Stage Laser Light Show TTL Analog Optical Maser DIY

$14,250.00

100 in stock

SKU: 33003529609 Category:

Description

  • Item Type: Stage Lighting Effect
  • Style: DMX Stage Light
  • Occasion: Professional Stage & DJ
  • Model Number: 15W RGB LASER MODULE
  • Voltage: 12V
  • Brand Name: DYUE
  • Power: 15W
  • Item Name: 15W RGB Laser Module
  • Laser Wavelength: 638nm 520nm 445nm
  • Output Power: 15W
  • Red Laser Power: 4W
  • Green Laser Power: 4W
  • Blue Laser Power: 7W
  • Color: Full Color Laser Diode
  • Beam Mode: Round Spot
  • Beam Divergence: less than 2mrad
  • Modulation Mode: TTL Analog

15W RGB Laser Module High Power Laser Diode Full Color Laser Optics For Disco Stage Laser Light Show TTL Analog Laser Head DIY

High Quality 15W Laser Module
High Power Red Green Blue Laser Light
High Brightness RGB Full Color Laser Diode
Support TTL and Analogue Two Modulation Modes
High Performance Laser Head For Stage Laser Light Projector

Product Specifications

Wavelength: Red 638nm Green 520nm Blue 445nm

Outpower: Red 4W Green 4W Blue 7W

Beam Mode:round spot

Beam Divergence:less tthan 2.5 mrad

Laser Class:Class 5

Modulation Mode: TTL (Analogue is optional)

Input Stability:plusmn5%

Power Supply:DC12V

Power Consumption:180W

Woking Temperature: -10~40℃

Lifetime: 10,000 hours

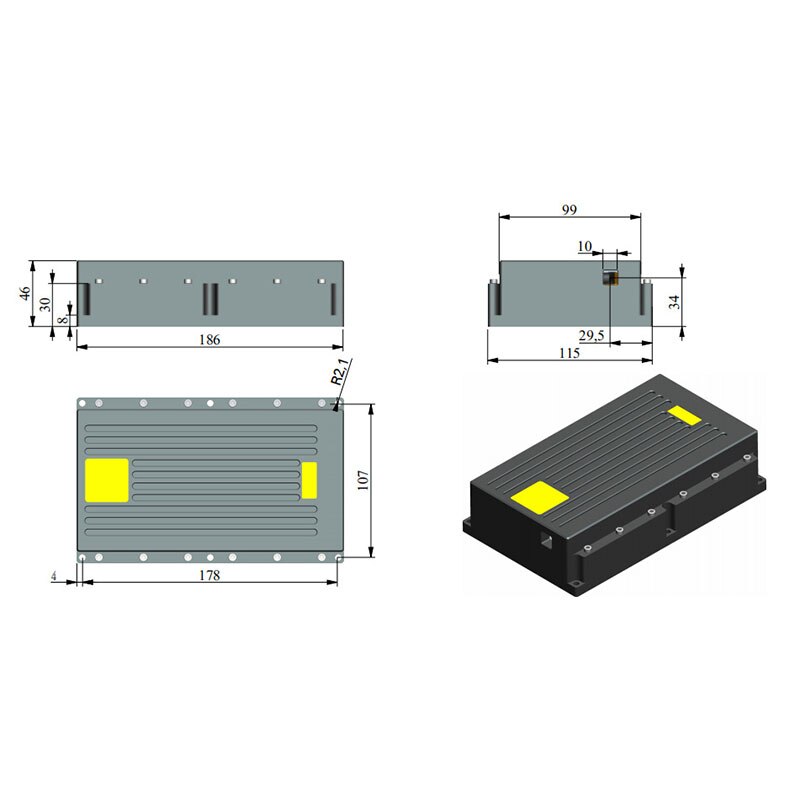

Szie: 186X115x45mm

Weight:4kg

(The above datas are just for your reference, specificplease in kind prevail, before place your order, please contact us,tell us your specific requirements, we will try our best to meet your requirements )

Feature:

1. Fine and clear light spot, small divergence angle, good collimation, small size
2. temperature control, drive and laser fully integrated, compact structure, external only DC power supply
3. after high and low temperature storage and vibration shock test, with a reliable stability, the temperature in the range of -10 ~ 40 degrees, can work for 24 hours in a row.
4. Precise scientific heat dissipation design, two-way temperature control and perfect temperature protection function can extend the life of the laser as much as possible

Laser modules are widely used in various fields, such as stage lighting, industrial production, information and communications, medical and cosmetic, decorative lighting, and military. Among them, laser projection, 3D laser printing, laser measuring instrument, laser scale, laser beauty and other products are increasingly welcomed by the market.
