Description
- Brand Name: TwoWin
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: 15w laser module
- CNC or Not: CNC
- Laser power: 1000mw/2500mw/3000mw/5500mw/7w/10w/15w
- Wave length: 450NM
- Input voltage: DC 12V
- Focus distance: 1.8cm
- Electric current: 1- 3A input
- Frenquency: 0-30khz
- Application: for CNC
- Application 1: Laser Module
15W Laser Module 450nm Adjusted Focus Blue-Violet Lase Head For Laser engraver DIY engraving machine Woodworking Machinery Parts
Parameter:
Laser Power: 1000mw/2500mw laser/3000mw laser/5500mw laser/7w /10w /15w
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 450nm

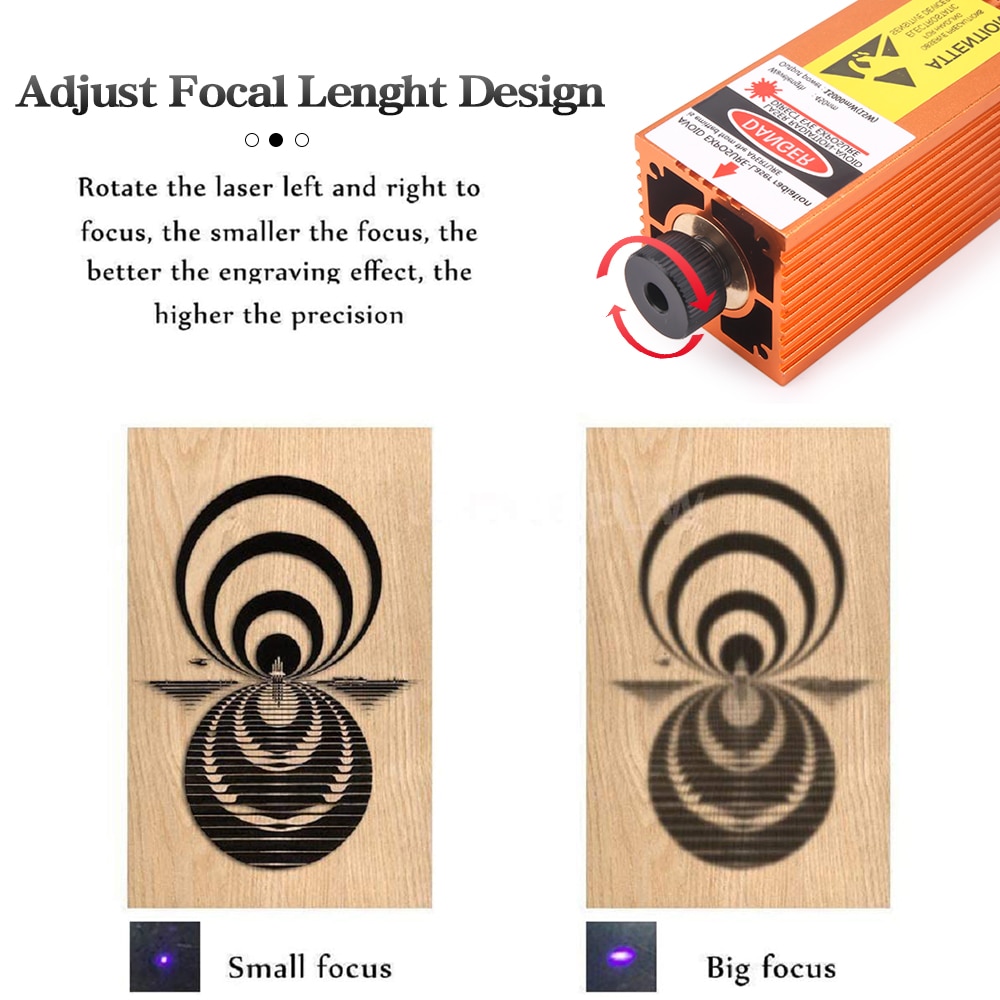

Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 2A
Drive Mode: Extraposition ACC Constant Current
Cooling Mode: Active / Forced Air Cooling

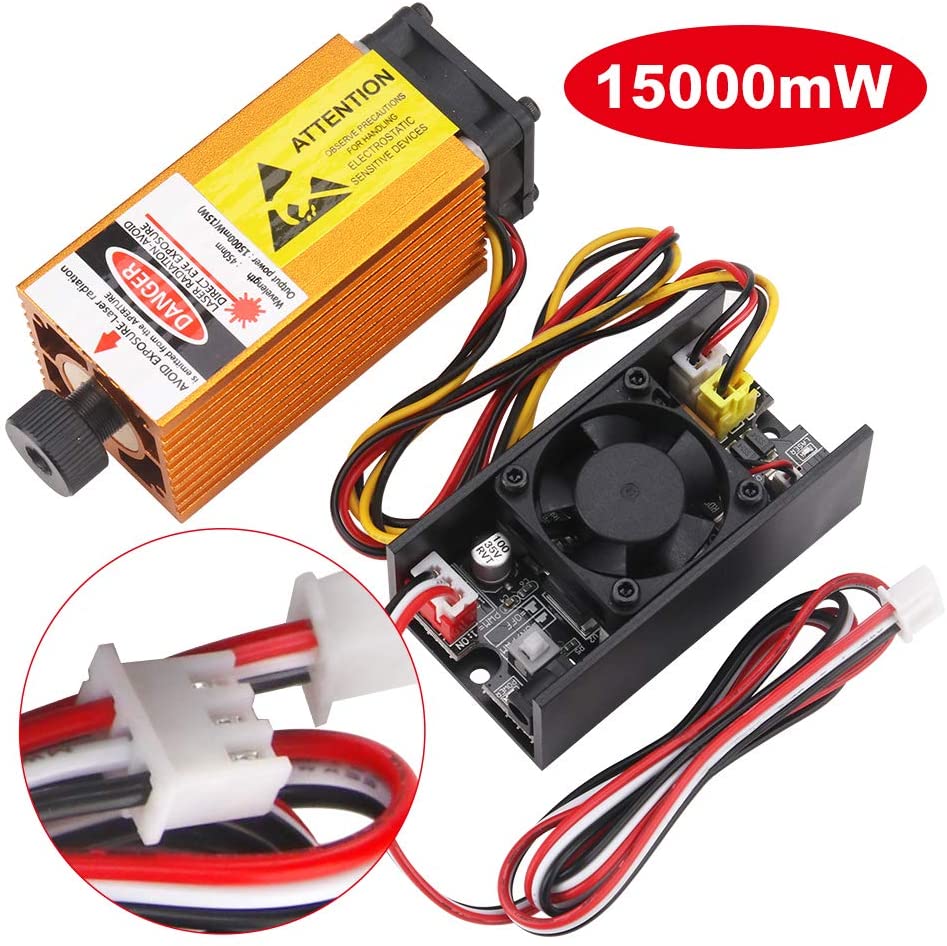

Interface Parameter: XH-2.54-3Pin / Support PWM

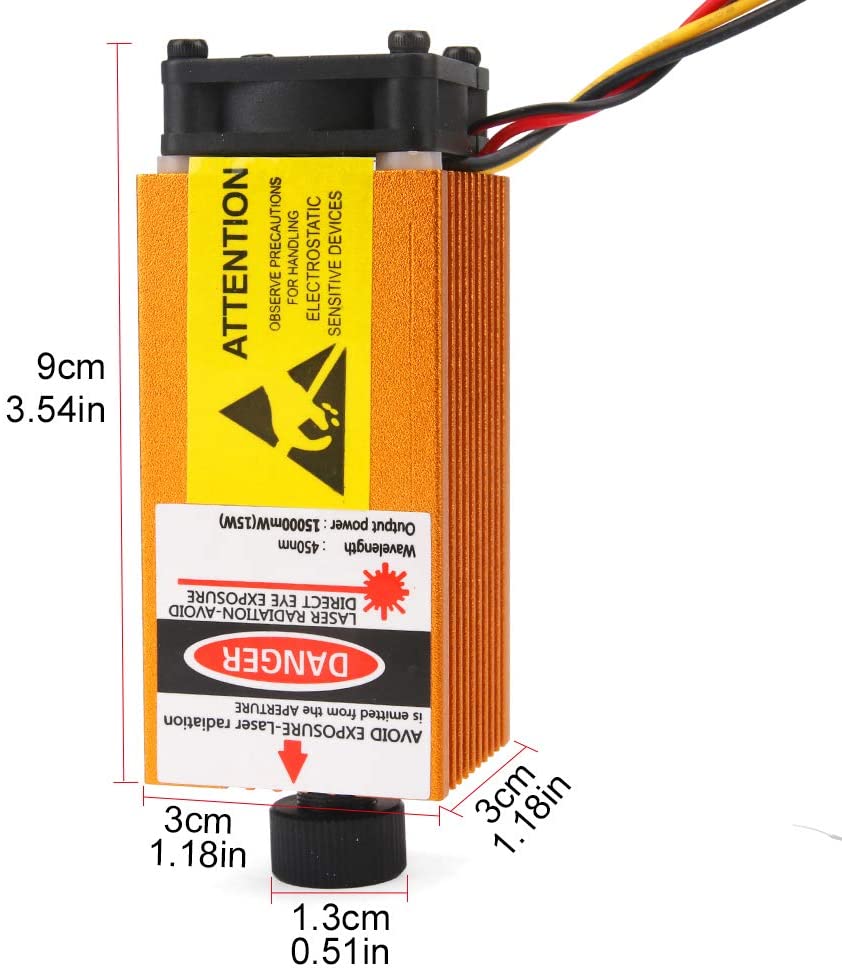

Item Size: 9.5*3.3*3.3cm / 3.74*1.29*1.29in
Package Size: 15*15*5cm / 5.9*5.9*1.96in
Item Weight: 253g / 8.92oz
Package Weight: 600g / 21.16oz
Materials that can be carved:
wood material, paper, plastic, leather, bamboo, bone tooth, PU, rubber, cowhide, horn, crab shell, lobster shell, resin, spectacle lens, metal, spray paint, etc.
Materials that can not be carved:
metal, ceramic, glass, stone, silver, aluminum, copper and other metal materials.
Special material attention:
transparent and some white materials in the range of engraved materials need to be done with auxiliary tools (such as black engraving with black whiteboard pen)

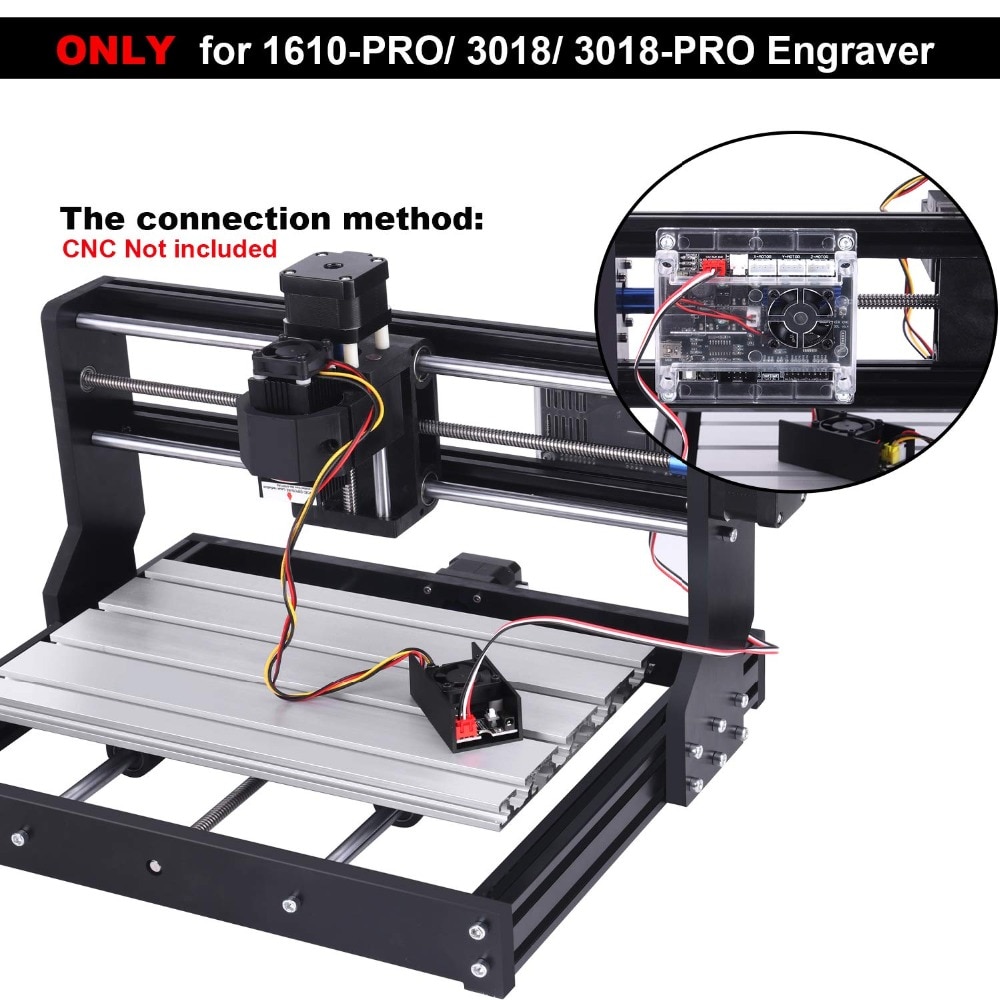

If you want to use our laser to connect to other control boards, you need to make sure whether the control board control board is connected to the laser head jack is a 3P line interface, and the 12V/PMW/GND sequence is the same
The 15W fixed-focus laser can engrave on the surface of stone.
Only 201,304 stainless steel and some mental which is partially treated with metal surface (eg. Surface paint, anodizing, plating, etc.) can be engraved.
The focal length should be controlled at 1.8cm, and the speed needs to be controlled between 100-150.
Package Includes:
1pcs laser （incl Laser Glasses)
