15W laser metal surface engraving machine desktop marking machine DIY Mini

$1,168.95

100 in stock

SKU: 1005002067484346 Category:

Description

  • Origin: CN(Origin)
  • Certification: CE

Package Includes:

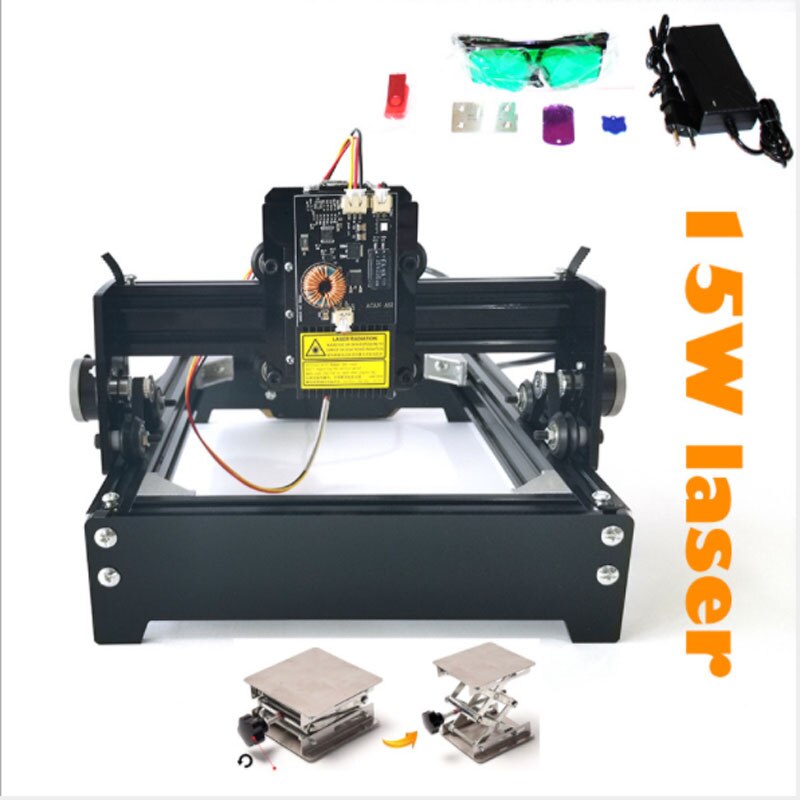

20*14cm 10w/15w Laser Machine*1

Power cord *1

10*10cm Metal lift platform 10*10cm *1

Glasses * 1 pair

USB line *1

(Software can download via our link)

Laser Parameter:

Interface: USB

Power: 12v/5A

the laser power: 10W/15W

can be carved material: stainless steel, iron, anodised aluminium, ceramics, stone, wood, bamboo, leather, plastic, etc.

Note:nanosecond timing of serial data transmission substantially without delay, power adjustable, high power pulsed laser, lifts fast focusing, targeting low light gray print!

Laser engraving machine Specification:

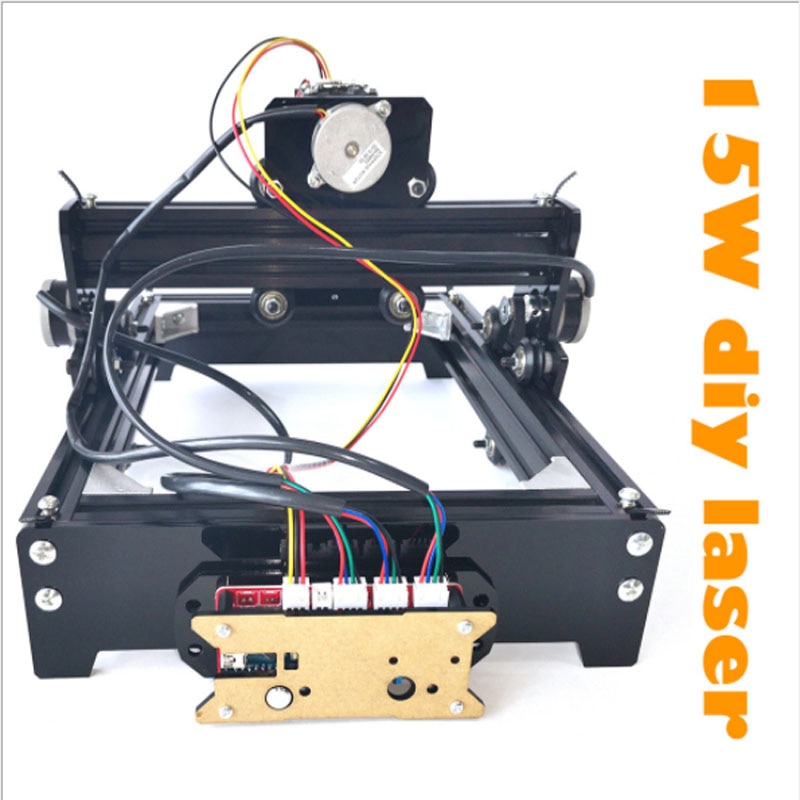

Construction: mobile gantry, body Aluminum + Acrylic

Drive system: stepper motor, stepper precision: 0.00625mm

Engraving area:20*14cm

Engraving speed: 0.02 to 0.2 sec / pixel

Laser power: pulse 10w/15w (100ns Duty 50%)

Carving materials: stainless steel, iron, anodised aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.

Height restrictions: no

Interface: USB

Features: Software 255 adjustable laser power, low-light positioning, positioning freedom, gray, shortest path algorithm

Power supply: external adapter, DC 12V 4A, input AC 100V-240V, 47Hz-66Hz

Software: machine developed specifically for use ac master software, support Chinese, English, Russian, 4 languages

Support win7, win8, win10

Super-reduced instruction, 1 byte of instruction accounted for more than 40%

Explain arduino + grbl faster than the speed more than 30 times, and instantly be able to complete the task of interpretation active instruction; shortest path algorithm can shorten the time.

FAQ:

1. Q: Can it engrave/mark on gold or silver? Can it engrave/mark on all metal materials?

A: No, this machine can only mark on some stainless steel, iron and colorized anodised aluminum. It can not engrave/mark on gold or silver.

2. Q: Can it engrave any depth on metal?

A: No visible depth, it can only leave a marking.

3. Q: Can it cut wood?

A: It can cut normal wood of 3-4mm, but not plywood. Other wood material has not been tested yet.?6?7

4. Q: Can it engrave on carved surfaces(cylinder or alike)?

A: No, it works only on flat surface.
