15W Laser AS-5,10000mw/15000mw CNC DIY Laser Engraving Machine/Metal Engrave Marking Machine Working Area 14 x 20cm CNC Router

  • Home
  • 15W Laser AS-5,10000mw/15000mw CNC DIY Laser Engraving Machine/Metal Engrave Marking Machine Working Area 14 x 20cm CNC Router

15W Laser AS-5,10000mw/15000mw CNC DIY Laser Engraving Machine/Metal Engrave Marking Machine Working Area 14 x 20cm CNC Router

$1,209.48$1,270.38

SKU: 33058125534 Category:

Description

  • Brand Name: yofuly
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: Mini Metal Laser Engraving Machine
  • CNC or Not: CNC
  • Laser: 10w/15w
  • Engraving Area: 20*14cm
  • Interface: USB
  • Model Number: Laser_AS-5
  • Power: 12V/4A
  • Carving materials: stainless steel/iron/anodised aluminum/wood/bamboo/leather/plastics

15W Laser AS-5,10000mw/15000mw CNC DIY Laser Engraving Machine/Metal Engrave Marking Machine  Engraving Area 14 x 20cm

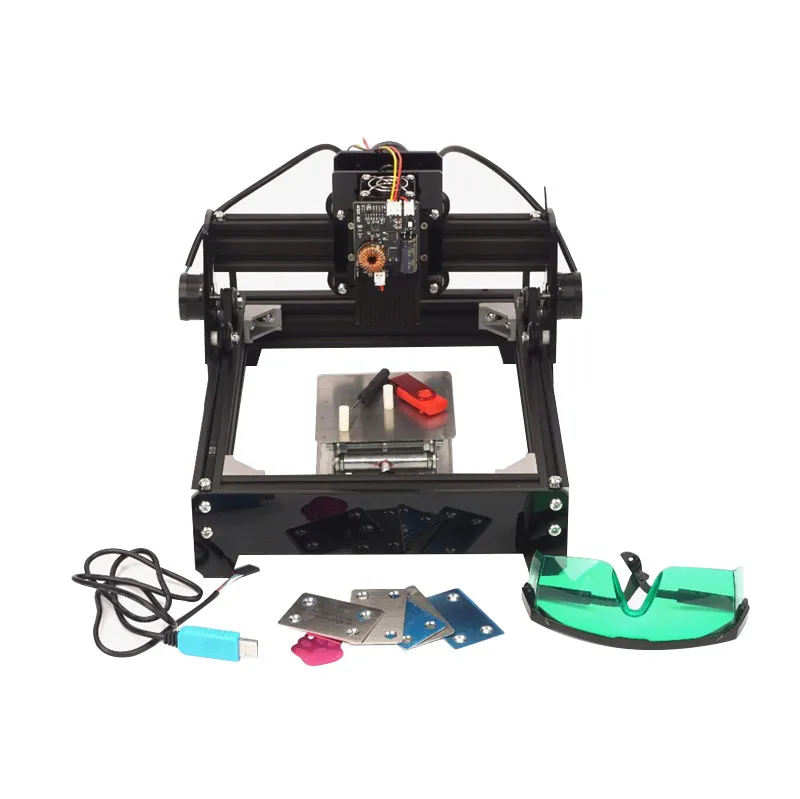

Package Included:

  • 20*14cm 10w/15w Laser Machine*1
  • Power cord *1
  • 10*10cm  Metal lift platform 10*10cm *1
  • Glasses * 1 pair
  • USB line *1
(Software can download via our link)
Laser Parameter:
Interface: USB
Power: 12v/4A
the laser power: 10W/15W
can be carved material: stainless steel, iron, anodised aluminium, ceramics, stone, wood, bamboo, leather, plastic, etc.
Note: nanosecond timing of serial data transmission substantially without delay, power adjustable, high power pulsed laser, lifts fast focusing, targeting low light gray print!
Specification:

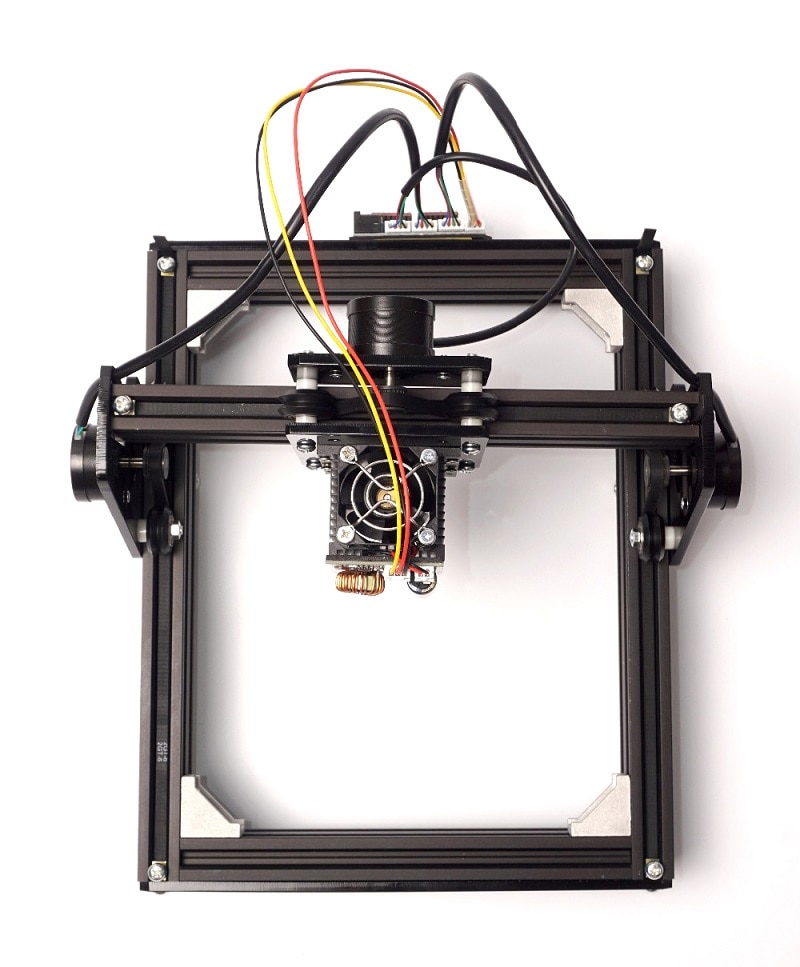

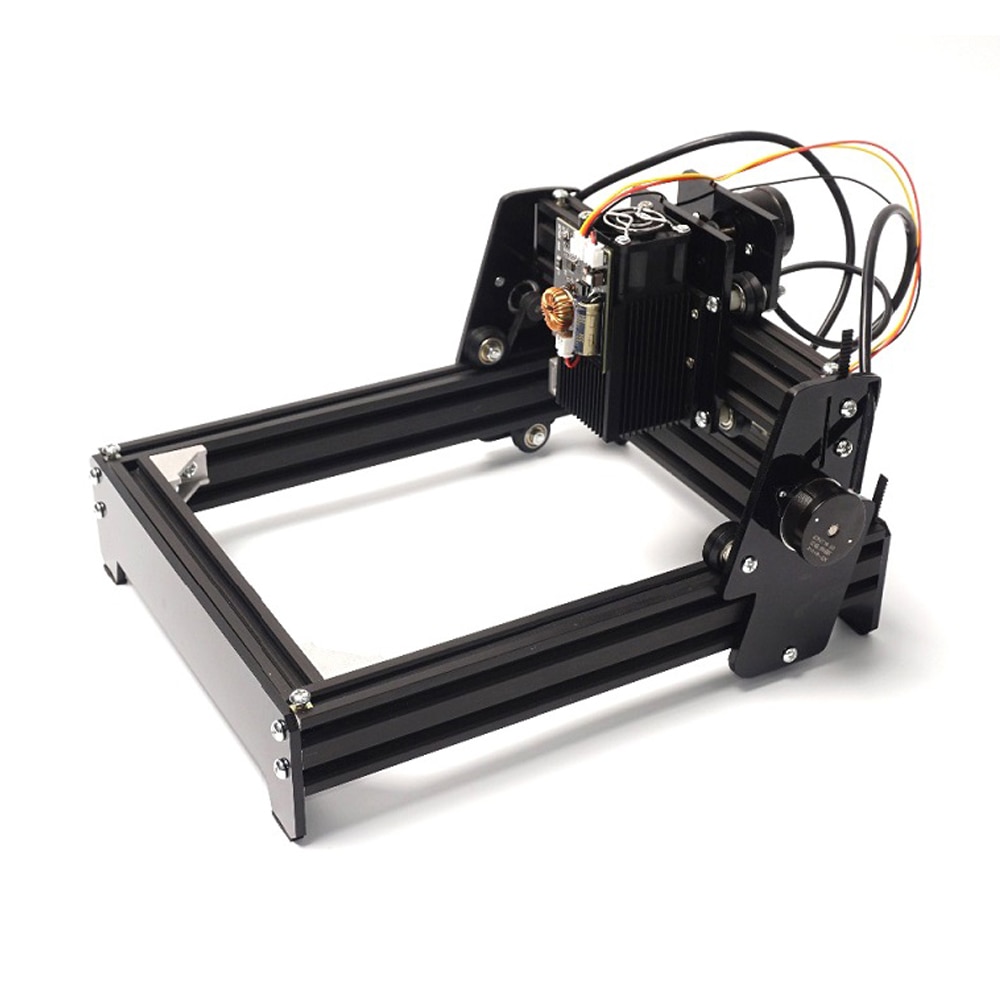

Construction: mobile gantry, body Aluminum + Acrylic
Drive system: stepper motor, stepper precision: 0.00625mm

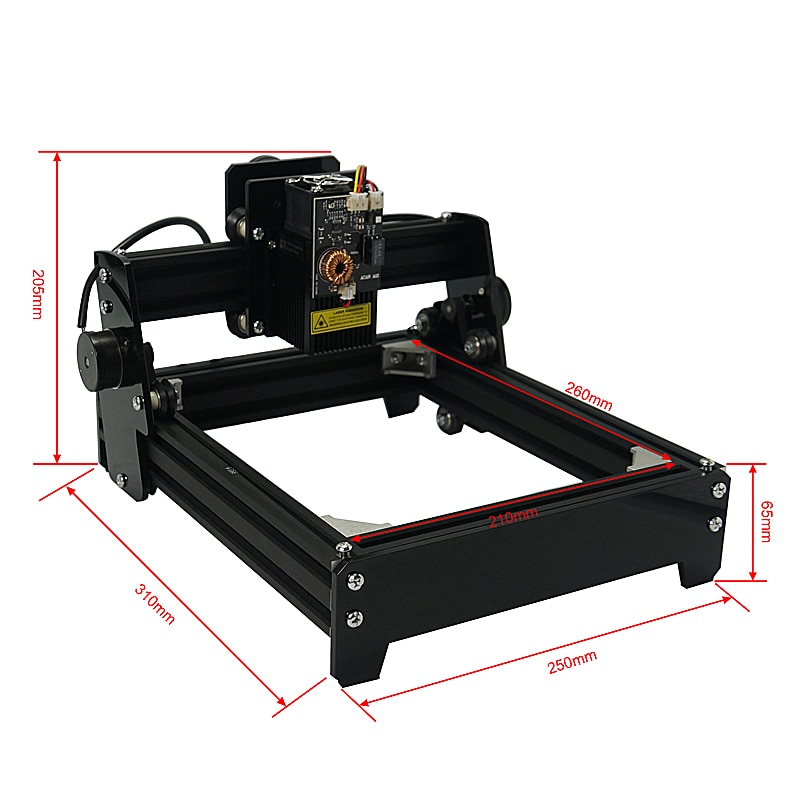

Engraving area:20*14cm
Engraving speed: 0.02 to 0.2 sec / pixel
Laser power: pulse 10w/15w (100ns Duty 50%)
Carving materials: stainless steel, iron, anodised aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.
Height restrictions: no
Interface: USB
Features: Software 255 adjustable laser power, low-light positioning, positioning freedom, gray, shortest path algorithm
Power supply: external adapter, DC 12V 4A, input AC 100V-240V, 47Hz-66Hz
Software: machine developed specifically for use ac master software, support Chinese, English, Russian, 4 languages
Support win7, win8, win10
Super-reduced instruction, 1 byte of instruction accounted for more than 40%.
Explain arduino + grbl faster than the speed more than 30 times, and instantly be able to complete the task of interpretation active instruction; shortest path algorithm can shorten the time.

FAQ:

1. Q: Can it engrave/mark on gold or silver? Can it engrave/mark on all metal materials?

A: No, this machine can only mark on some stainless steel, iron and colorized anodised aluminum. It can not engrave/mark on gold or silver.

2. Q: Can it engrave any depth on metal?

A: No visible depth, it can only leave a marking.

3. Q: Can it cut wood?

A: It can cut normal wood of 3-4mm, but not plywood. Other wood material has not been tested yet.

4. Q: Can it engrave on carved surfaces(cylinder or alike)?

A: No, it works only on flat surface.
