15W DIY Kit 2Axis Laser Engraving Machine 4050 CNC Laser Machine 5500mW Laser
- Condition: New
- Model Number: 4050
- CNC or Not: CNC
- Working area: 40*50cm
- Working Voltage: DC 12V,5A
- Laser Module: 1W 2.5W 5.5W 7W 10W 15W
- Accuracy: 0.1MM
15W DIY Kit 2Axis Laser Engraving Machine 4050 CNC Laser Machine 5500mW Laser
- Working area: 40 * 50cm/15.75 x 19.69inch (maximum)
- Laser power: 1000mw/2500mw/5500m/7w/10w/15w
- Supports PWM TTL modulated laser power
- Input voltage: AC 100V-240V, 50 / 60Hz
- Working Voltage:DC 12V,5A
- Laser power: 12V 5A
- Number of axes: 2 Axis (X axis double Y axis)
- Accuracy: 0.1MM
- Main features: weak light positioning test, dot matrix engraving, gray engraving, engraving contour, solid engraving
Product advantages
- Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
- Supported Formats:jpg, bmp, svg, G-code
- Fast laser head design + adjustable focal length design
- Software System : Laser Engraver/ Laser GRBL/Benbox
(Laser GRBL support many kinds language. We will send GRBL1.1 for controller, if you need Benbox, please contact us!
- System Support;Win XP/7/8/10
- all aluminum + thick acrylic materials
- The software is easy to use and free to upgrade for life
- Height of object is unlimited, you can directly work on it (such as carving on the table directly on the table)
- Function:Ideal for amateur laser engraving usage, low-light positioning and freedom positioning.
- Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
- Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc
- Non-engravable materials :all metals, stones, ceramics, glass, reflective materials, transparent materials

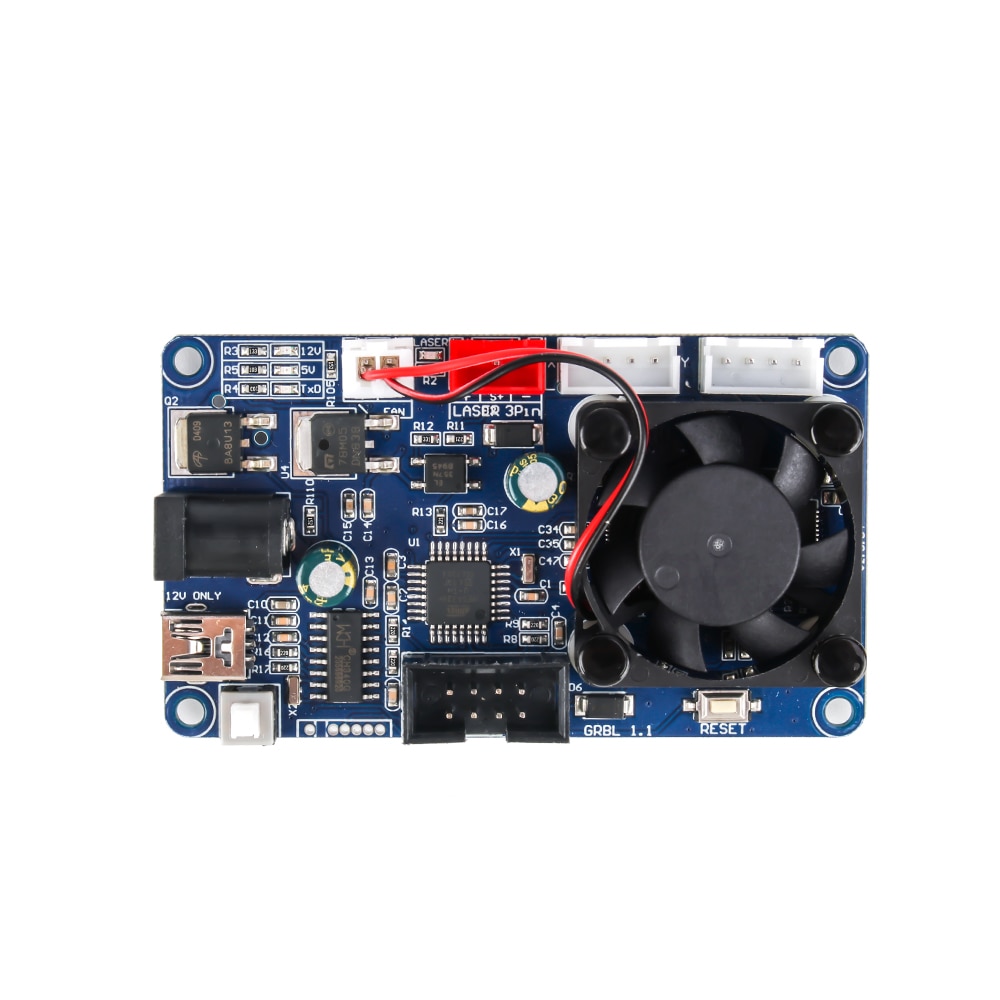

1. Upgraded A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.
2. Improved power interface: the original plastic interface changed to all metal shielded interface.
3. USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)
4. Improved spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.
5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.
6. Optimize the layout, the control area is separated from the drive area, and the operation is more stable.

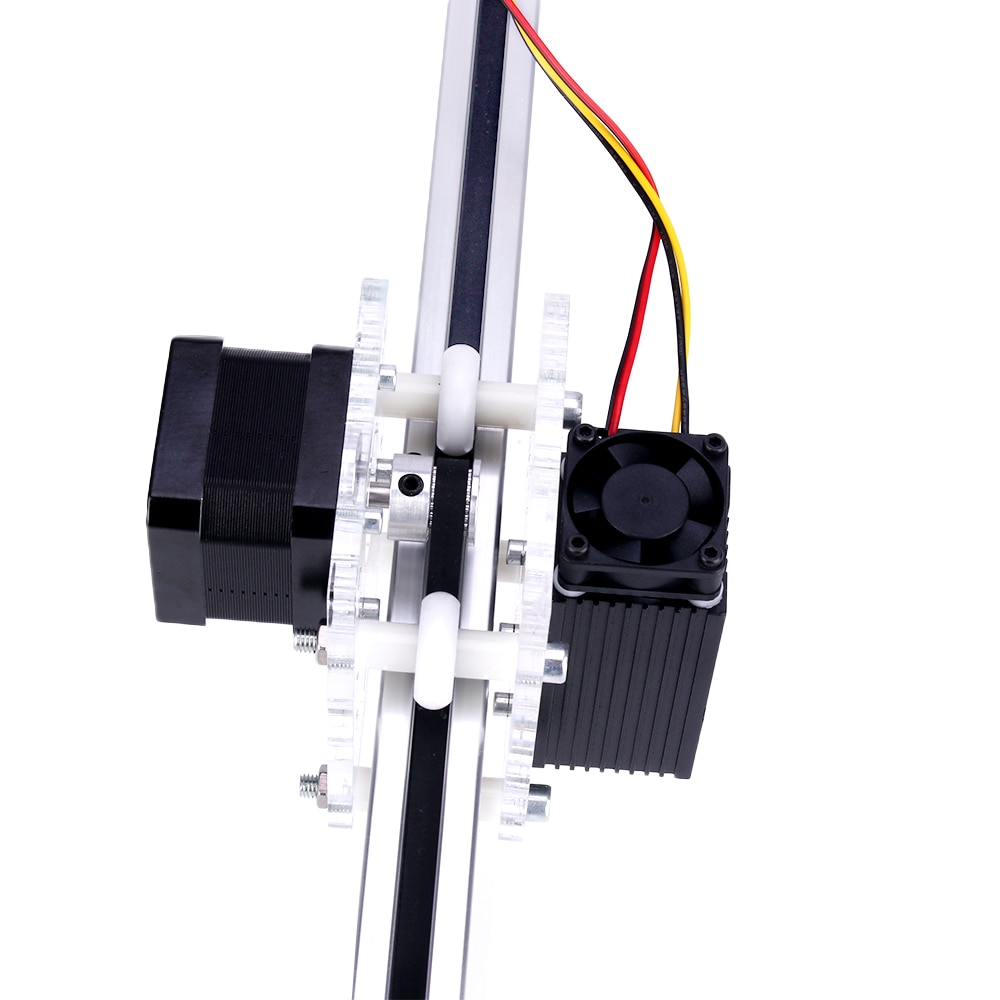

- Upgraded 1000mW/ 2500mW/ 5500mW / 7000mW/ 10W/ 15W Laser
- Upgraded Blue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.
- Laser wavelength: 445nm-450nm blue laser
- Drive mode: external ACC constant current drive
- Cooling method: forced air cooling
- Operating voltage: 12V DC
- Control interface: 2 * 2.54 (TTL control switch, PWM control power)
- Shell material: aluminum, surface anodized
Software and instructions
-
Please download software and installation instructions from our Web Cloud Disk(We'll send you after shipment). -
Or tell me your email address, we'll send you the software and installation instruction
Brief introduction
A. What area it can used for?
- Laser Engraving machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Adverstising Signs,Artwork,Crafts,Aircraft Models etc.
B. What materials it can used for?
- Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
- Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc
C. Samples
