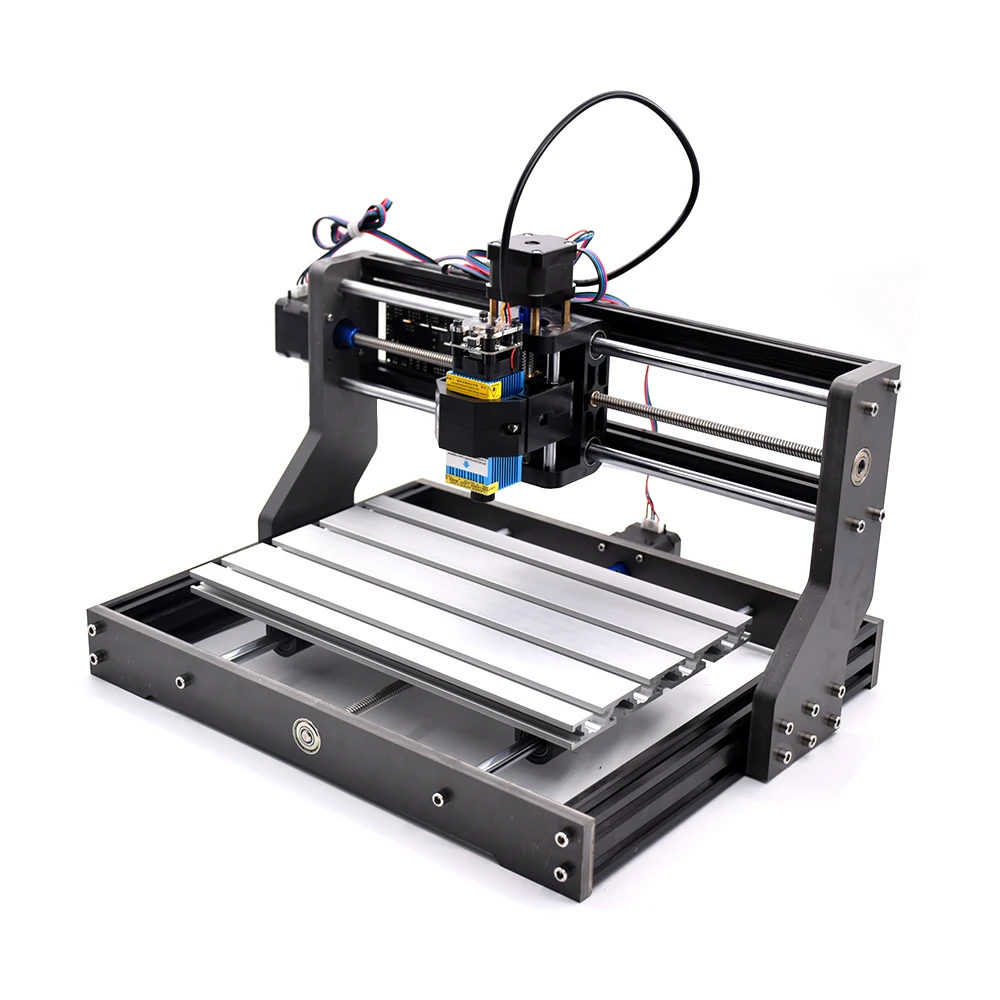

15W CNC Engraving Machine 3018 Pro Laser Head Wood Router 500mw 2500mw 5500mw PCB Milling DIY Carving Marking Machine Drill Bit

$521.97$929.97

SKU: 4000082943503 Category:

Description

  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: CNC3018
  • CNC or Not: CNC
  • Function 1: Engraving Machine
  • Function 2: CNC 3018 Pro Engraving Machine
  • Function 3: Wood Router
  • Control software: GRBL control

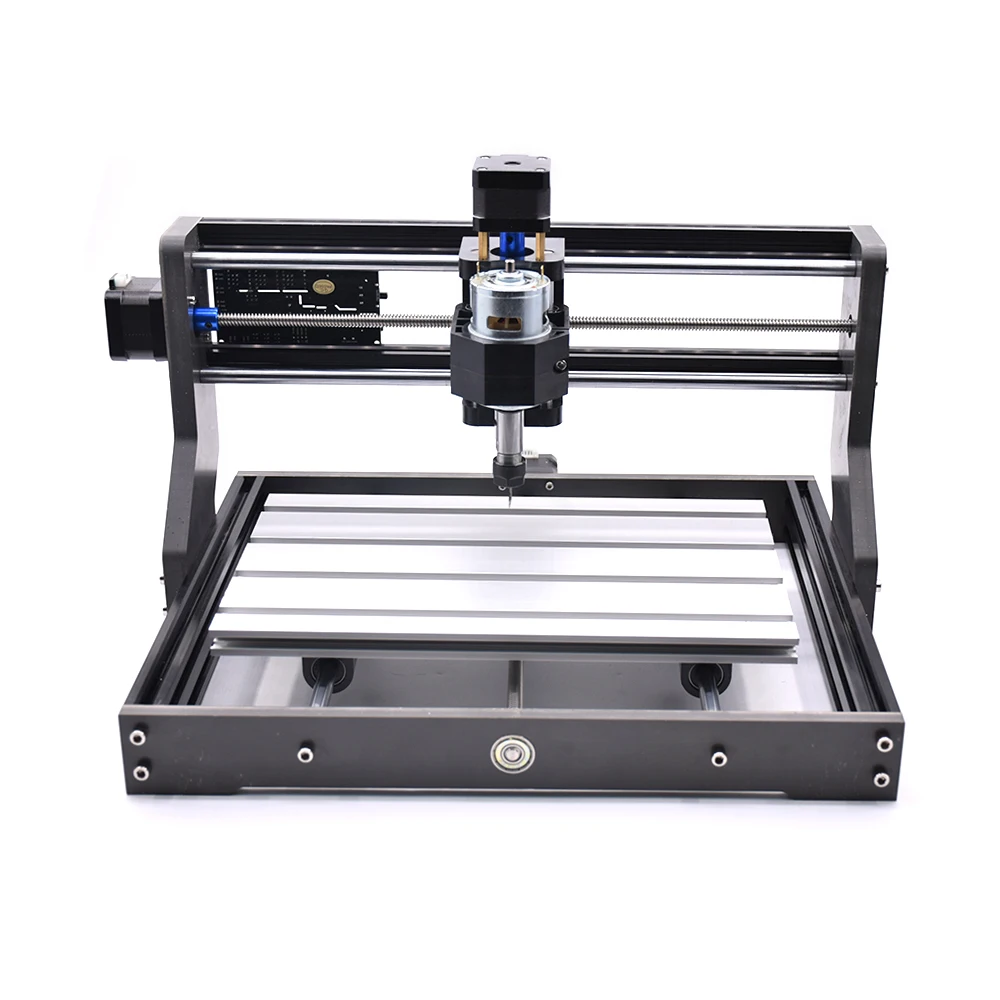

  • Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
  • Support System: Windows(Do not support Mac)
  • Engraving materials: Plastic, wood, acrylic, PVC, PCB and other soft materials
  • Working area: 30x18x4.5cm
  • Frame size: 33x40x24cm
  • Laser Head: 500mw/2500mw/5500mw/15000mw

15W CNC3018 Pro Engraving Machine ER11 with 500mw 2500mw 5500mw Head Wood Router PCB Milling Machine Wood Carving Machine DIY

Advantage:if you buy from our EU warehouse or AU warehouse,you will not pay customs tax or other extra fee.we will pay it.please don’t worry.

working area

30×18×4.5cm

Frame size

33×40×24cm

Mesa

30×18cm

Spindle

775 spindle motor(12-36V)24V:10000r/min

Step motor

Fuselage 1ength 34M,Current 1.33A,12v.Torque 0.25N/M

Power supply

24V 5.6A

Software

GRBL controller (Firmware GRBL v1.1)

supported system

Windows(Do not support Mac)

Drill bits

Free 10pc drill bit

clamps

Free 4pcs

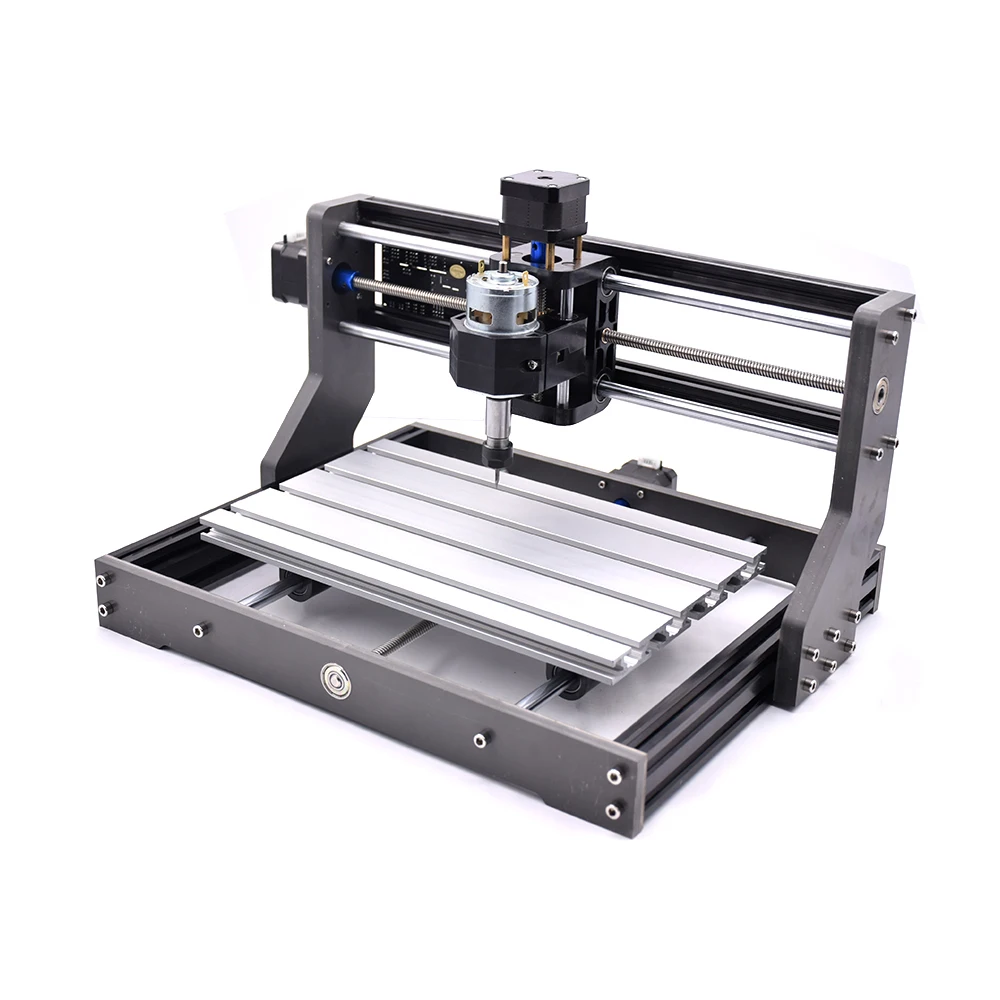

CNC 3018 Pro Firmware GRBL v1.1 control Diy mini cnc machine,3 Axis pcb Milling machine,Wood Router laser engraving,with offline controller

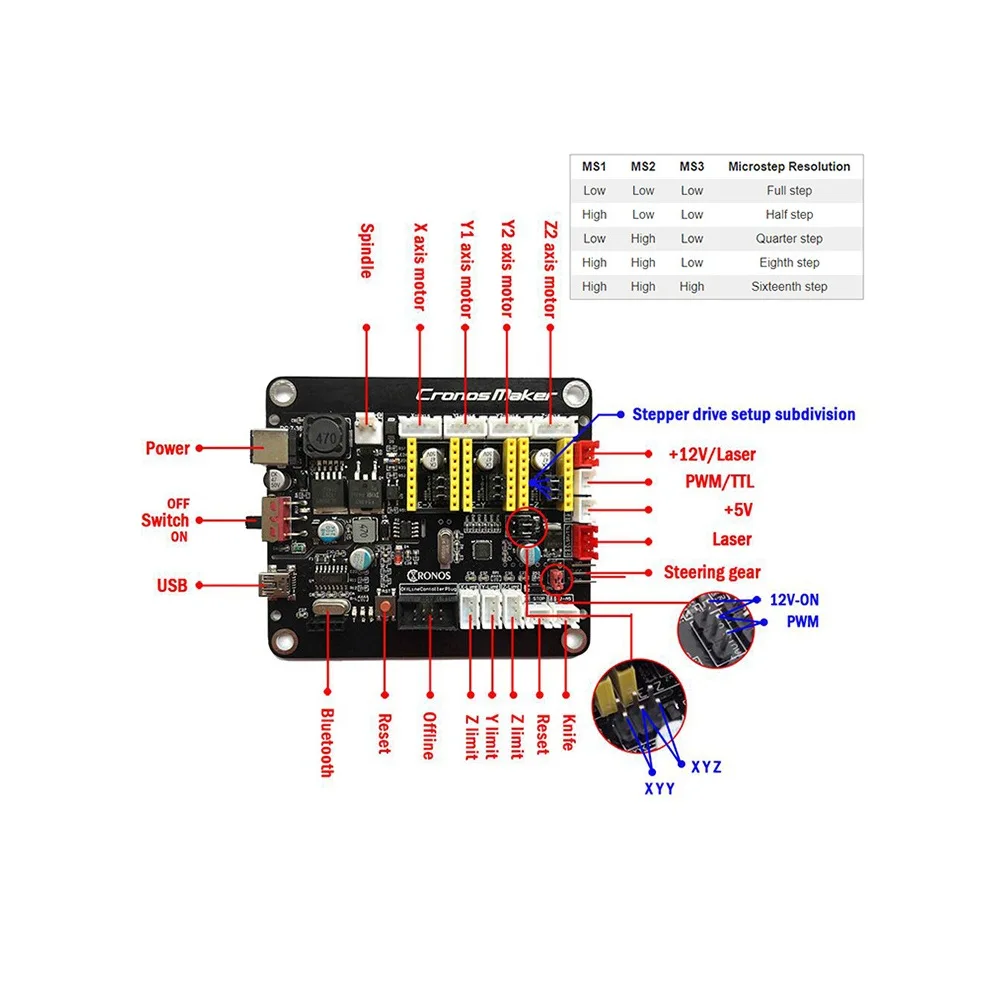

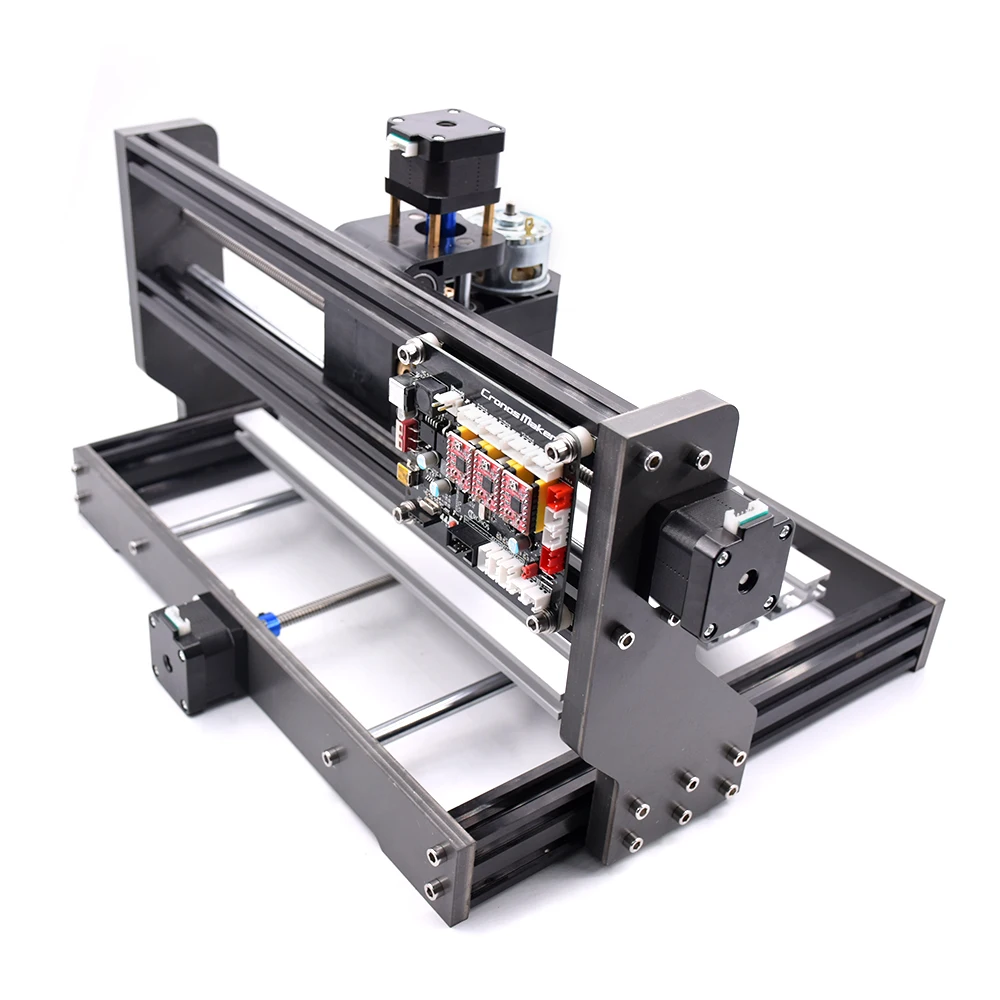

The 3018PRO is easy to operate and supports offline. The control panel is also equipped with a versatile 3018 board. It supports 2P or 3P lasers. Equipped with a laser with a 33mm acrylic blue size.Customers who purchase the standard can install 33mm 2P 3P lasers.

CNC 3018-PRO is an upgraded version of 3018. Control software: GRBL; Supported System: Windows XP / Win 7 / Win 8 / Win 10.

CNC3018pro parameters

  • working area :30×18×4.5cm
  • Frame size:33×40×24cm
  • Mesa:30×18cm
  • Spindle:775 spindle motor(12-36V)24V:10000r/min
  • Step motor:Fuselage 1ength 34M,Current 1.33A,12v.Torque 0.25N/M
  • Power supply:24V 5.6A
  • Software:GRBL controller (Firmware GRBL v1.1)
  • supported system:Windows(Do not support Mac)
  • Drill bits:Free 10pc drill bit
  • clamps:Free 4pcs

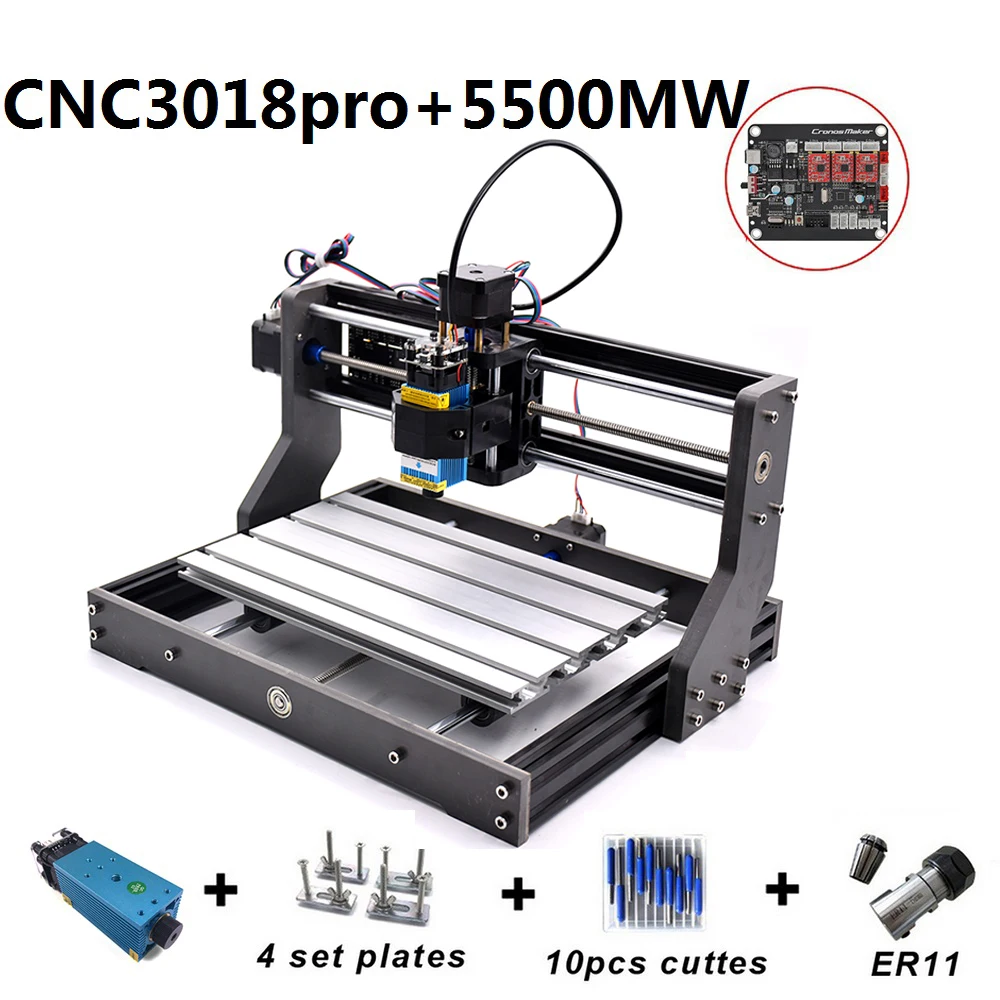

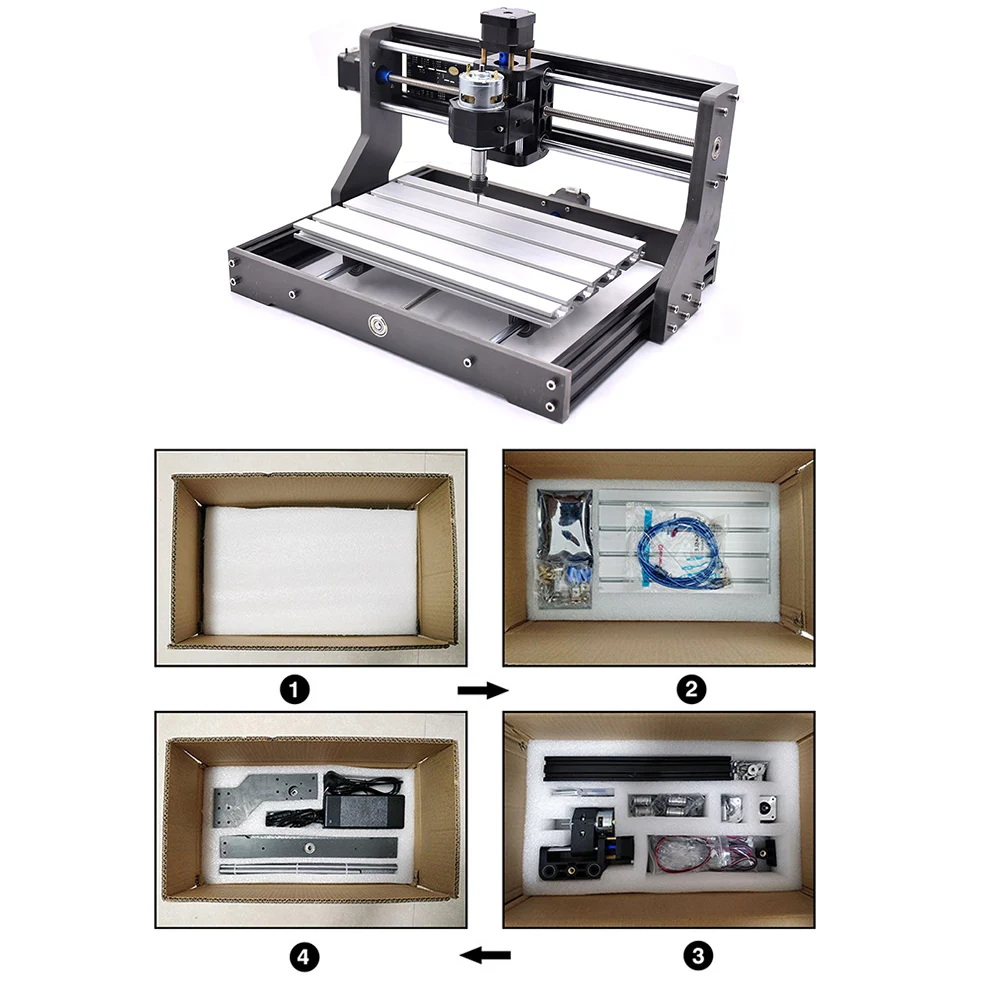

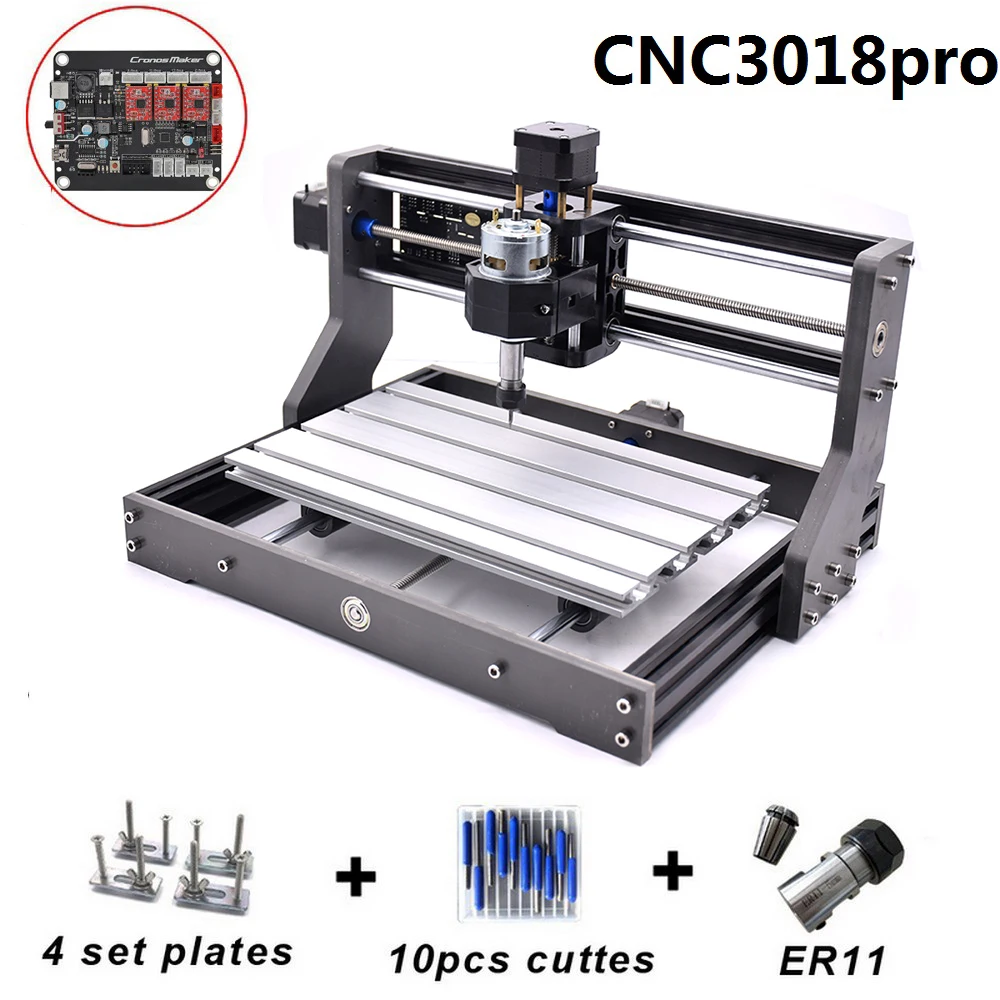

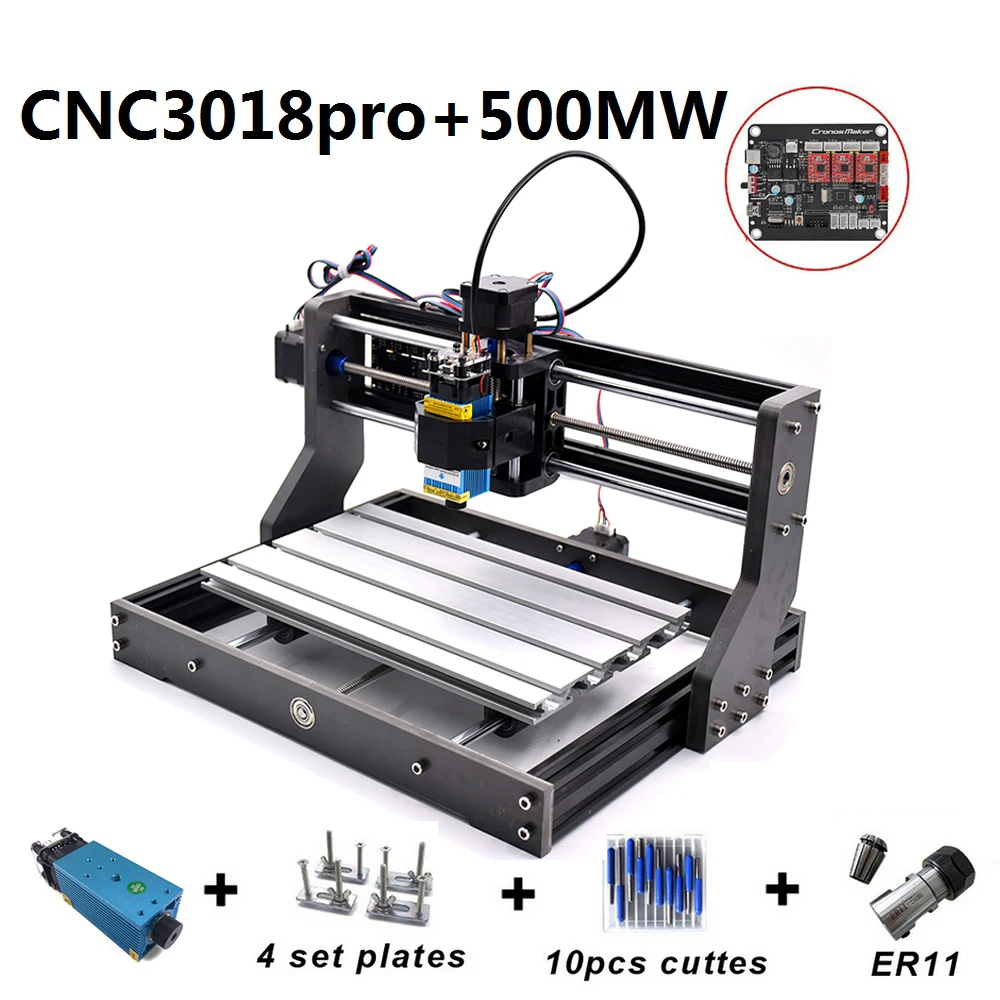

Package inclued:

1pcs Full set engraving machine

4pcs clamp

10pcs bits

1pcs extension rod with ER11 collet

Frequently Asked Questions:

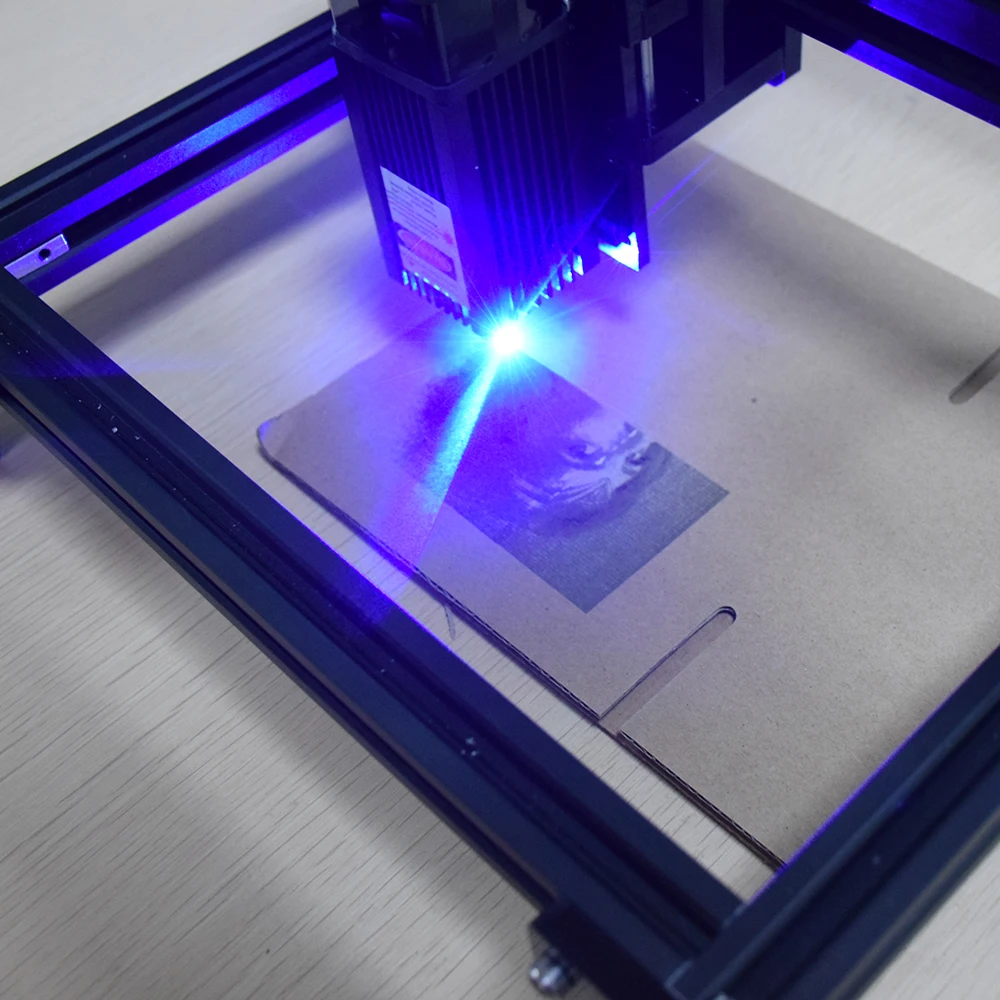

Q: Whats the different between 500mw laser, 2500mw laser, 5500mw laser

A: All these lasers can not engrave/mark on any metal, they are mainly used on engraving wood.

2500mw laser can cut about 1mm normal wood.

5500mw laser can cut about 2mm normal wood, engrave on leather and soft plastic.

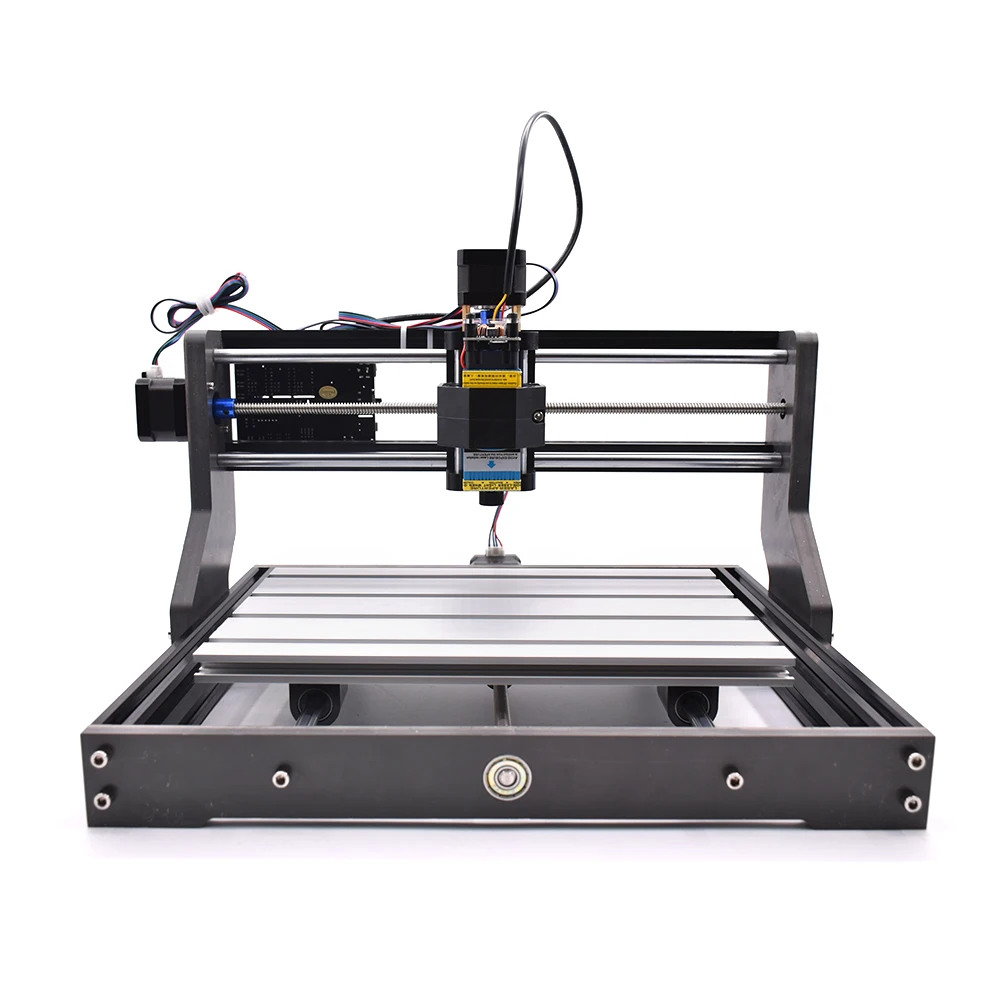

Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v

clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm

Attention

This machine does not work on metal.  Mainly used to engrave wood. Please contact us for further information.

Please note MDF is not equal to normal wood, as it doesn’t have a worldwide standard, so you need to test how deep the laser can cut by yourself.

Product Display:

PVC JP120515PVC JP120514PVC JP120513PVC JP120512DSC_0063PVC JP120511DSC_0071DSC_0072

DSC_0040DSC_0042DSC_0043DSC_0047DSC_0051DSC_0053DSC_0055DSC_0057

10559337283_5786007510559364641_5786007510559373344_57860075DSC_0015DSC_0020DSC_0021DSC_0022DSC_0023
