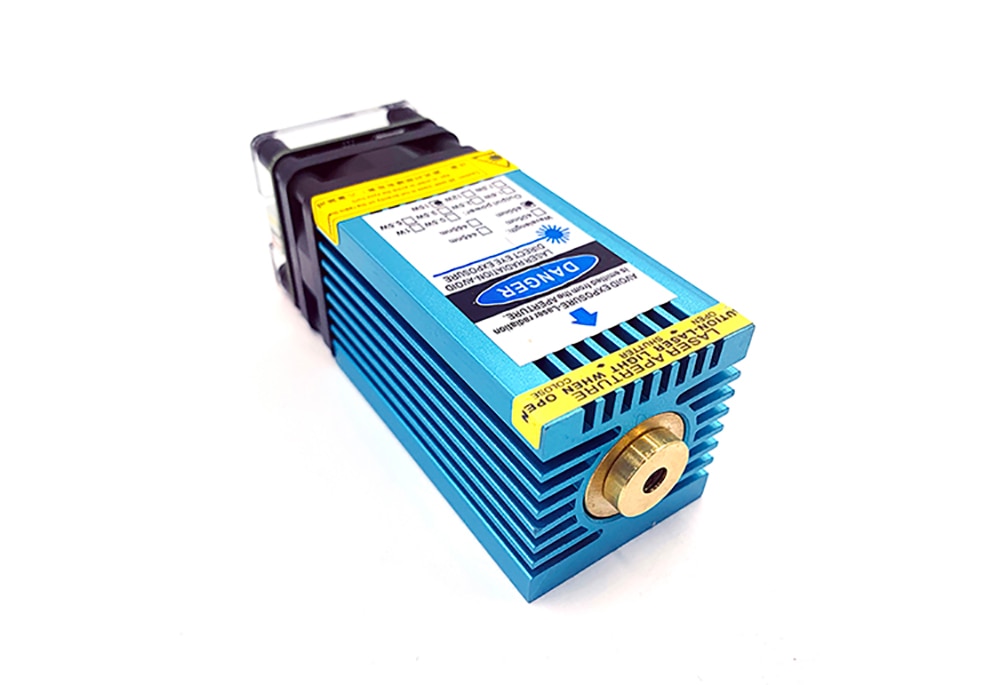

15W blue violet fixed focus laser module, can engrave on stainless steel, 15000mw, craft engraving accessory with PWM

Product Features:

You can carve stainless steel! It can cut 3mm cork wood!

Reminder: Our laser is suitable for our rope control, if you choose our laser, but use your own control board, in
So that you can choose according to your product, please confirm with customer service before placing an order, looking forward to
A happy shopping!

– The laser module power is relatively large, for industrial use only, to avoid eye exposure, otherwise
Cause permanent blindness, sequelae at your own risk.
– Do not use in flammable and gas environments to avoid fire and explosion
– Avoid exposing children to this laser product.
– Do not open the module to avoid damage.

Product Specification:

– Laser wavelength: 450nm (blue viole)
– Point type: dotted (adjustable)
– Power of light: 15 watts (The average power is 8W).
– Drive mode: external ACC DC drive
– Cooling method: forced air cooling
– Operating voltage: 12V DC
– Housing material: aluminum, anodized surface
– Module material: copper
– Life time: 8,000 hours
– Operating temperature: -40-75Celsius

PS: Usually materials that can be used or burned can be etched. If it is transparent, the latter is highly reflective and combustible. It needs to be blackened with a whiteboard pen and then engraved, otherwise it will easily damage the laser.

When you receive your products, please try it the first time! Test method, such as
Shown below.

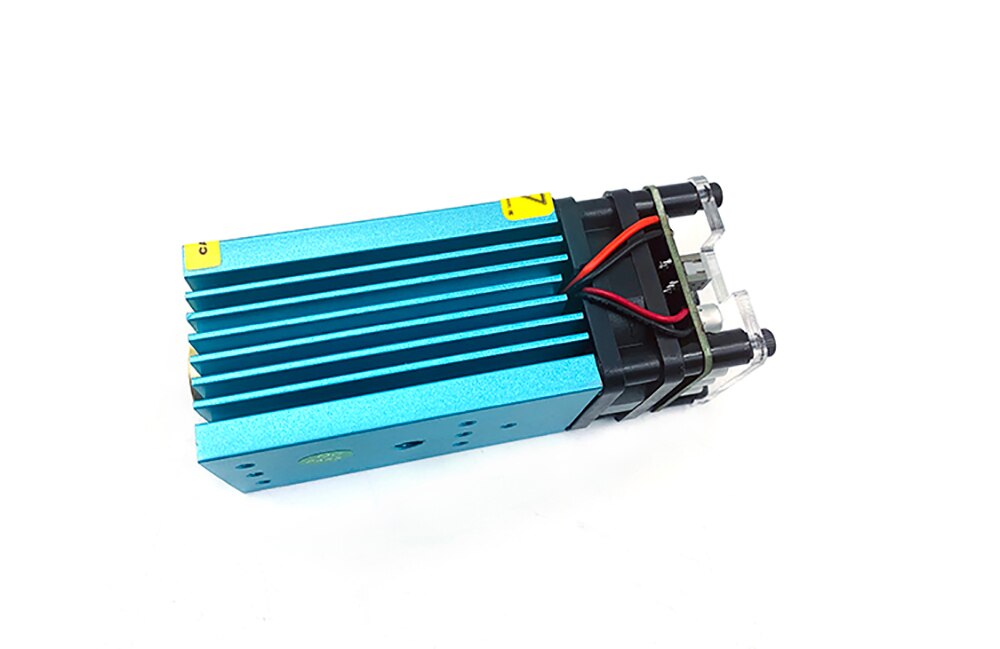

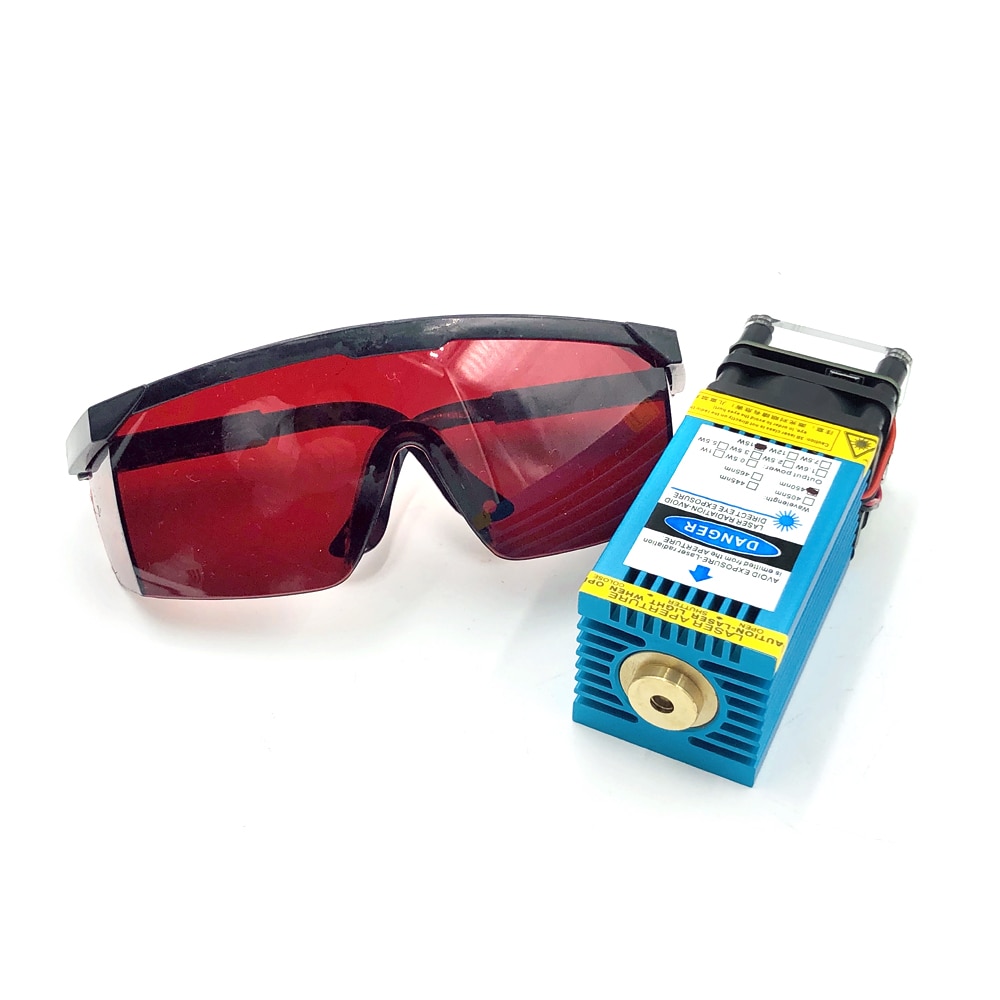

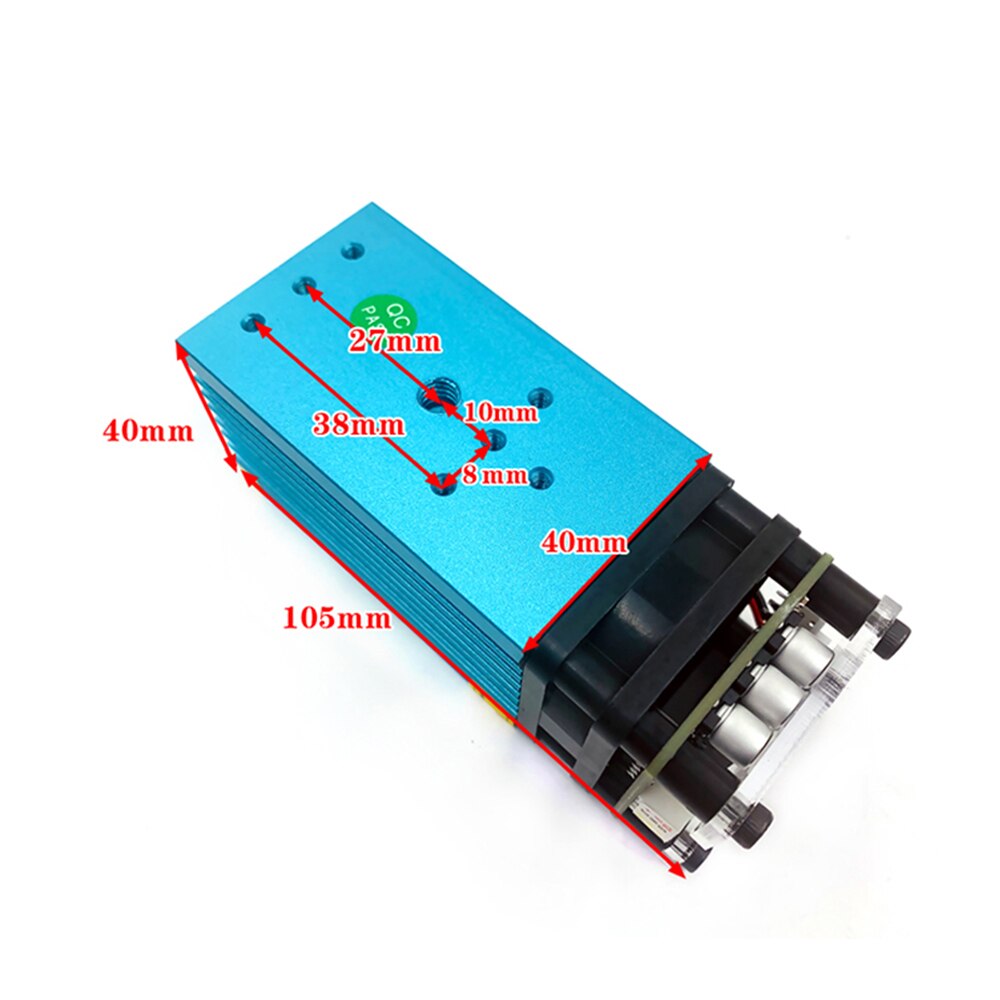

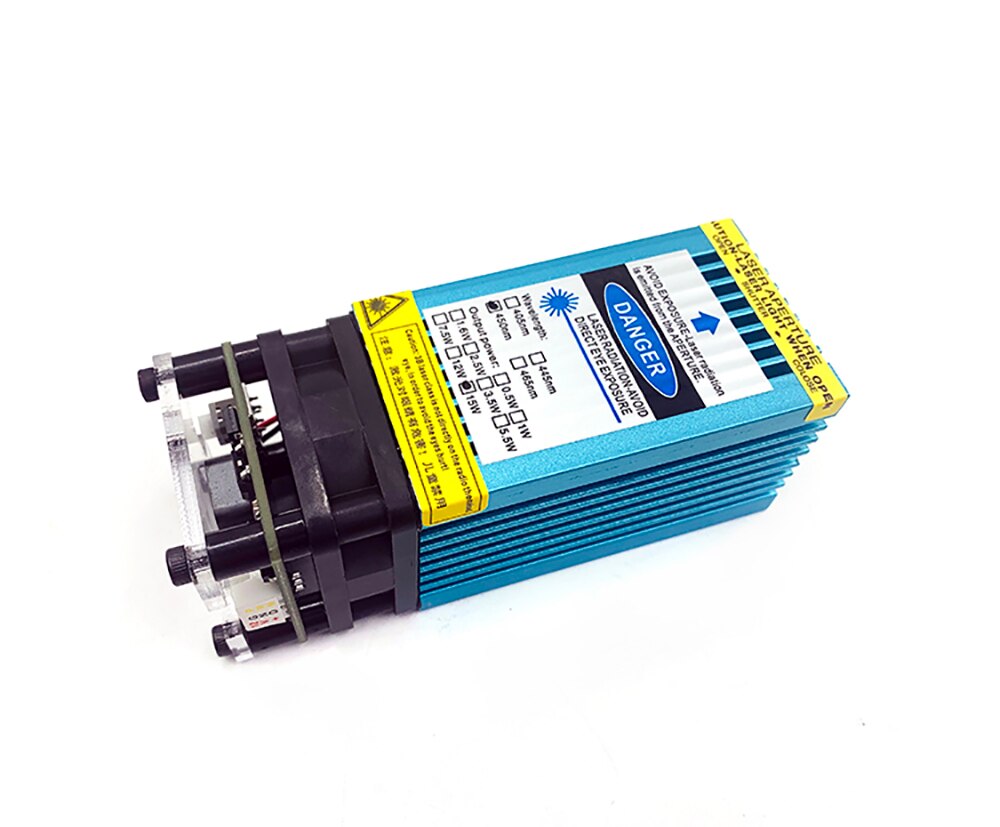

Produce Picture:

Laser upgrade and upgrade:

Laser test:

Frequently asked questions:

Q: Where is the TTL port? Can I only see the PWM?
A: TTL and PWM are supported and you can only choose one of them. It means you can connect the PWM port of this module
To the PWM (or TTL) port on your recorder’s control board. But make sure the voltage source of that port is DC 5V.
Q: How can I connect this module to my recorder?
A: If you don’t need the PWM function, you can directly connect the Power port to the Motor port (12V, GND) on your control
Board and leave the PWM port unconnected.
The user should read:
– The laser module power is relatively large, for industrial use only, to avoid the exposure of the
Be careful, otherwise it will cause permanent blindness, the consequences at your own risk.
– Do not use in flammable and gas environments to avoid fire and explosion.
– Avoid exposing children to this laser product.
– Do not open the module to avoid damage.

F.A.Q:

Q: Do I need to assemble this machine when I received it?
A: This machine comes as a kit. You have to assemble it yourself. All tools and parts are included
In the kit
Q: Is there software and instructions to receive it?
A: You can get the software, please contact us.
Q: What computer system can your software use?
A: The software is only compatible with Windows system.
Q: What is the life of the laser?
A: The laser module has more than 6,000 hours of service life.
Q: What material can you engrave?
A: wood, bamboo, plastic, paper, leather, rubber.
Q: What material can you cut?
A: cork wood, paper, fine leather.
Q: Can I use it to cut or engrave on metal?
A: It cannot engrave or cut on any metal.
Q: Can I regulate the laser power, or is the laser power adjustable?
A: The fixed power of the laser is not adjustable, but the engraving speed is adjustable.
Q: How long can the machine work continuously?
A: About 45 minutes can work continuously, after the laser mold cool down (about half a
Time), then start working again. Long time continuous work with shorten laser module
Liftetime!
Q: When you receive it, how to let it work?
A: Firstly, you need to connect the power cable of the stepper motor to the control board, then installl
The software and the driver, the power supply of the machine, that’s it.
