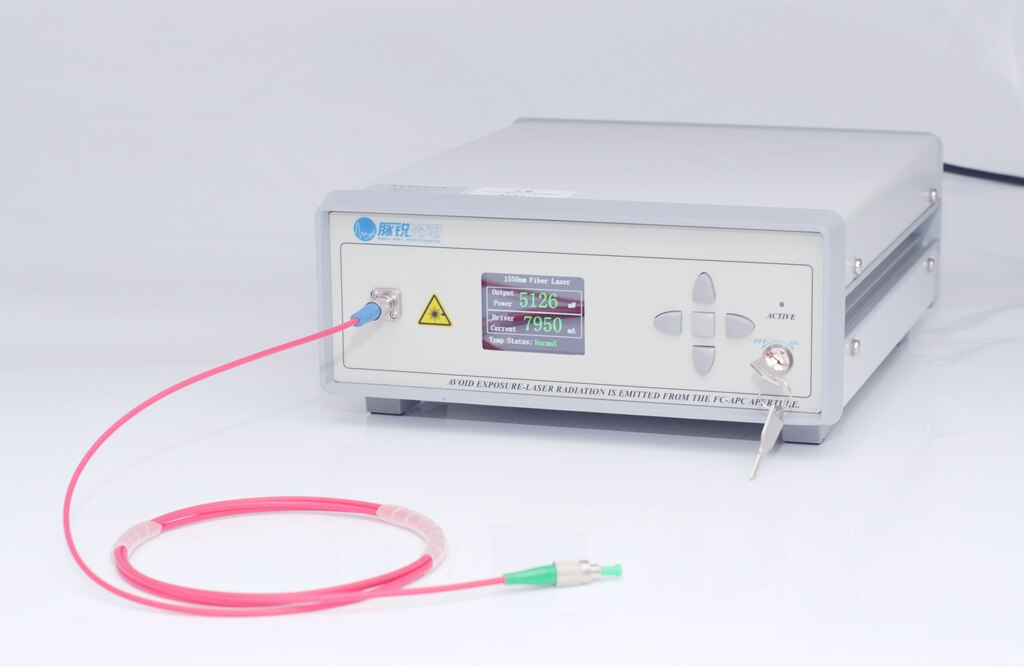

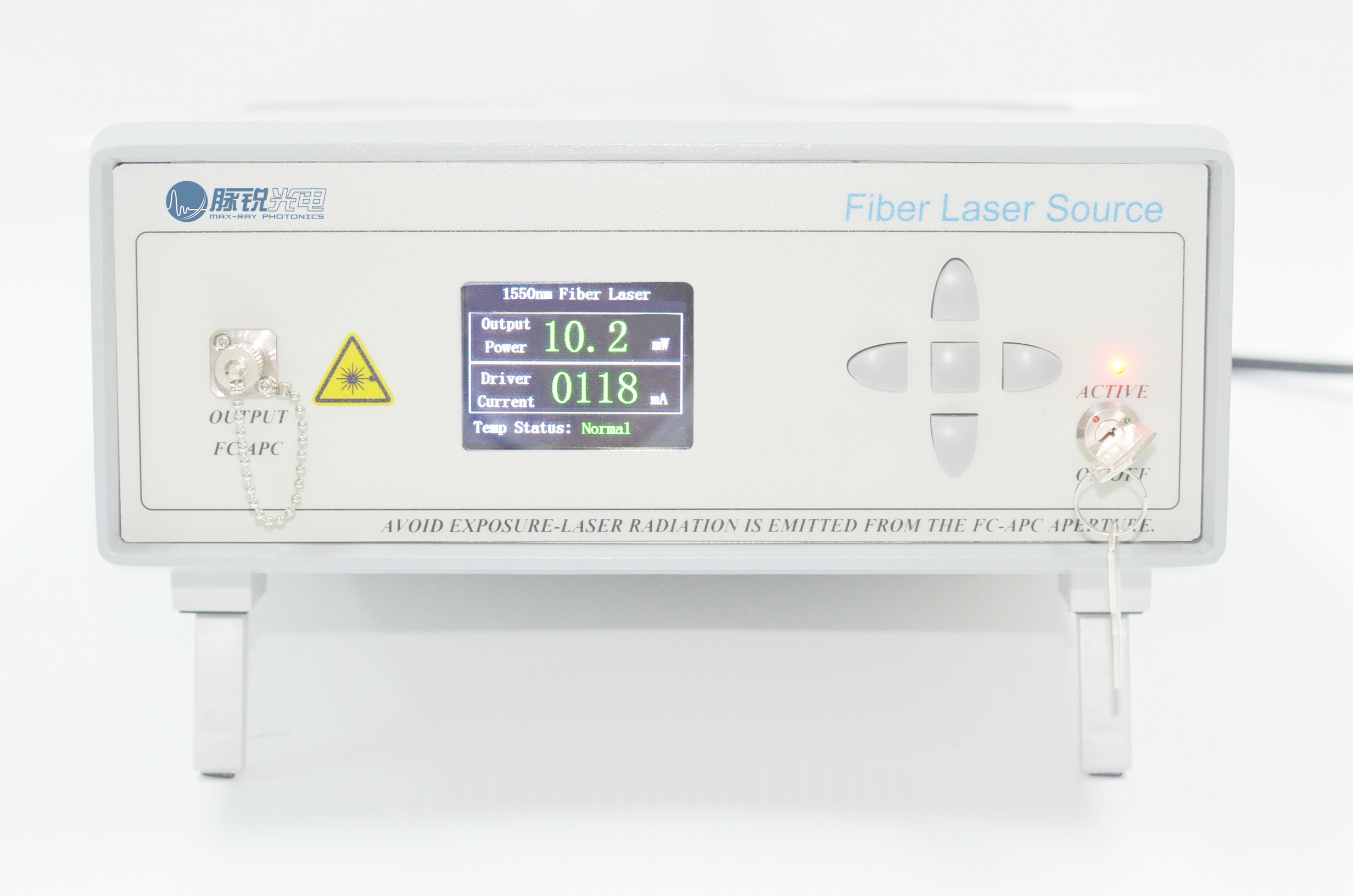

C Band 1550nm DFB Semiconductor Single wavelength Fiber Laser Source Benchtop Module
C-band Single Wavelength Fiber Laser
1550nm Narrow line width laser adopts butterfly shape DFB Semiconductor laser chip，
Wavelength 1550nm Band，Single mode fiber output，Use professionally designed drive circuits and TEC Control ensures safe and stable laser operation
Desktop or modular available upon request。
Characteristics
Narrow line width
Power and spectrum stability
Module or desktop package
Application
Optical fiber sensing
Fiber Laser
Research on non-linear optics
|
ParametersIndicator |
Unit |
Typical value |
Remarks |

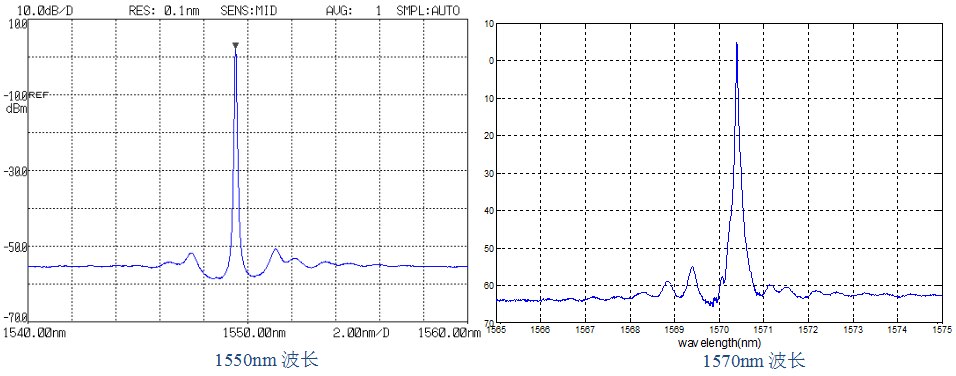

| Operating wavelength |
nm |
1550±0.5 |
Optional1565、1570Etc. ITUWavelength |
| Spectral line width |
MHz |
< 3 |
|
| Side Band inhibition ratio |
dB |
>50 |
|
| Output power |
mW |
10~1000 |
Customizable |
| Short-term stability(15Minutes) |
dB |
≤ ±0.02 |
|
| Long-term stability(8Hours) |
dB |
≤ ±0.05 |
|
| Fiber Type |
– |
Single mode fiber SMF-28e |
|
| Fiber output type |
– |
FC/APC OrFC/APC |
Customizable |
| Working temperature |
°C |
-20 ~ +65 |
|
| Storage Temperature |
°C |
-40 ~ +85 |
|
| Power supply mode |
– |
DC 5VOrAC 220V |
Optional power adapter |
| Size |
mm |
Desktop260(W)×320(D)×120(H) |
Low power moduleA: 90(W)×70(D)×15(H) High power moduleB:150(W)×125(D)×30(H) |
| Communication Interface |
– |
DB9 Female(RS232) |
Optional |
Remarks：
1. Output power、Wavelength can be customized according to customer needs
2. The stability test environment is 23±2°C Product preheating 10 Minutes later；
Order information
|
FL |
Wavelength | Power | Diameter of tail fiber sleeve | Tail length | Connector form | Package form |
|
|
1550=1550nm
|
10=10mW
100=100mW 1000=1000mW
|
9-0.9mm
2-2mm |
0=Flange
1 =1m 2 =2m |
0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/PC | B=Desktop
M=Modular
|
For example FL – 1550 – 10 – 9 –
