Description
- Type: Hand Tool Parts
- Origin: Mainland China
- Model Number: MIR-1550-30-MCL
- Type: Laser Diode
- Place of Origin: Hebei, China
- D/C: *
- Package Type: Through Hole

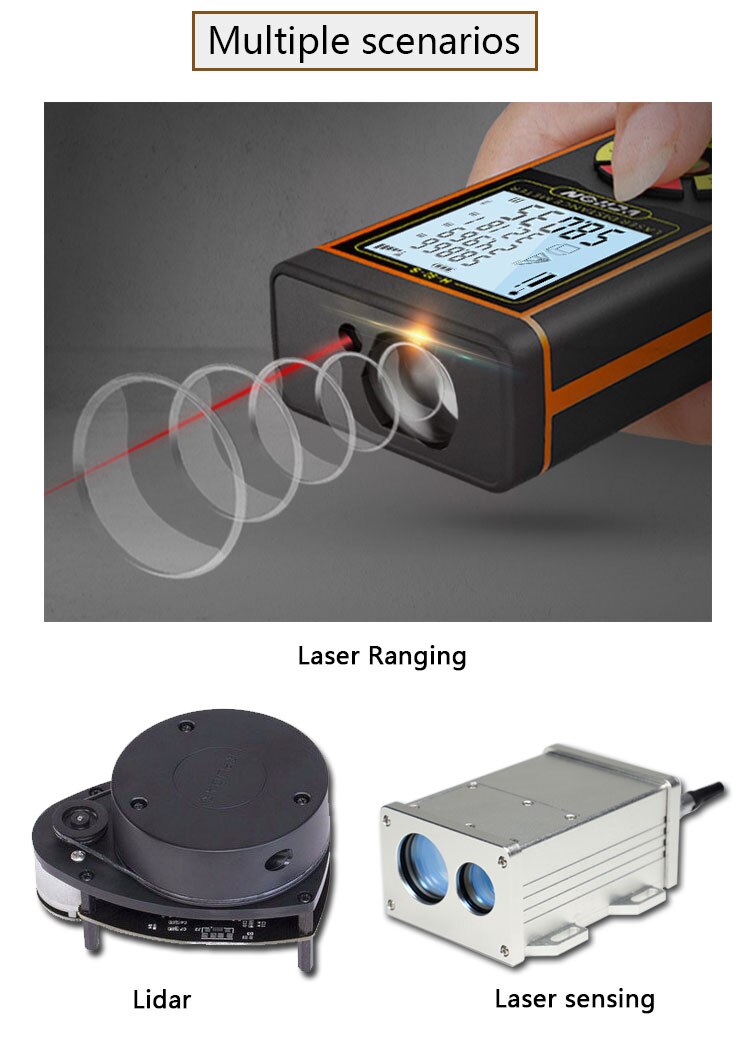

- Application: Laser rangefinder, laser radar, laser sensing
- Supplier Type: Original manufacturer
- Cross Reference: 1550nm LD
- Media Available: datasheet, Photo
- Max. Forward Voltage: *
- Max. Reverse Voltage: *
- Max. Forward Current: *
- Max. Reverse Current: *
- Brand: *
- Diode Type: laser diode
- Technology: China
- Voltage – Peak Reverse (Max): *
- Current – Average Rectified (Io): *
- Voltage – Forward (Vf) (Max) @ If: *
- Current – Reverse Leakage @ Vr: *
- Operating Temperature: *, -40~70
- Mounting Type: *

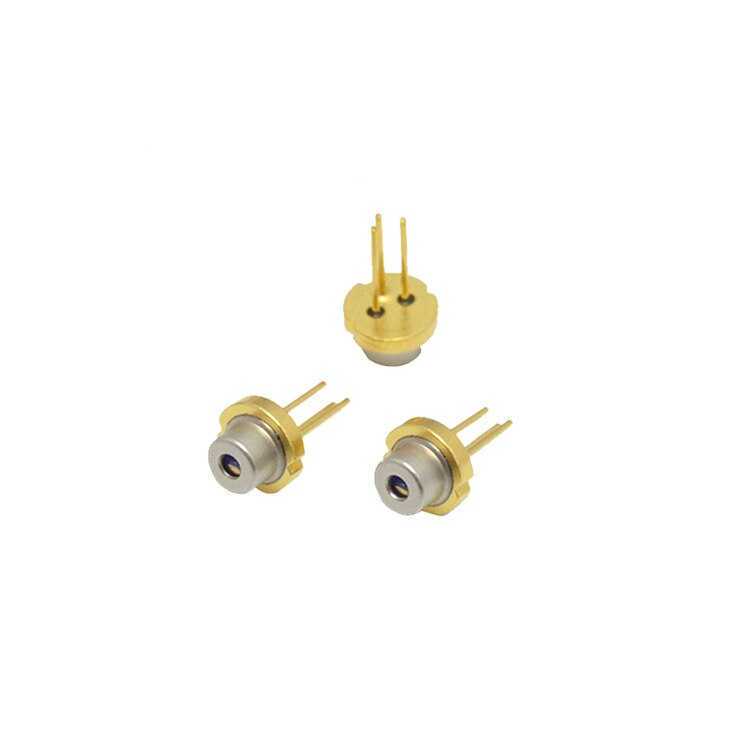

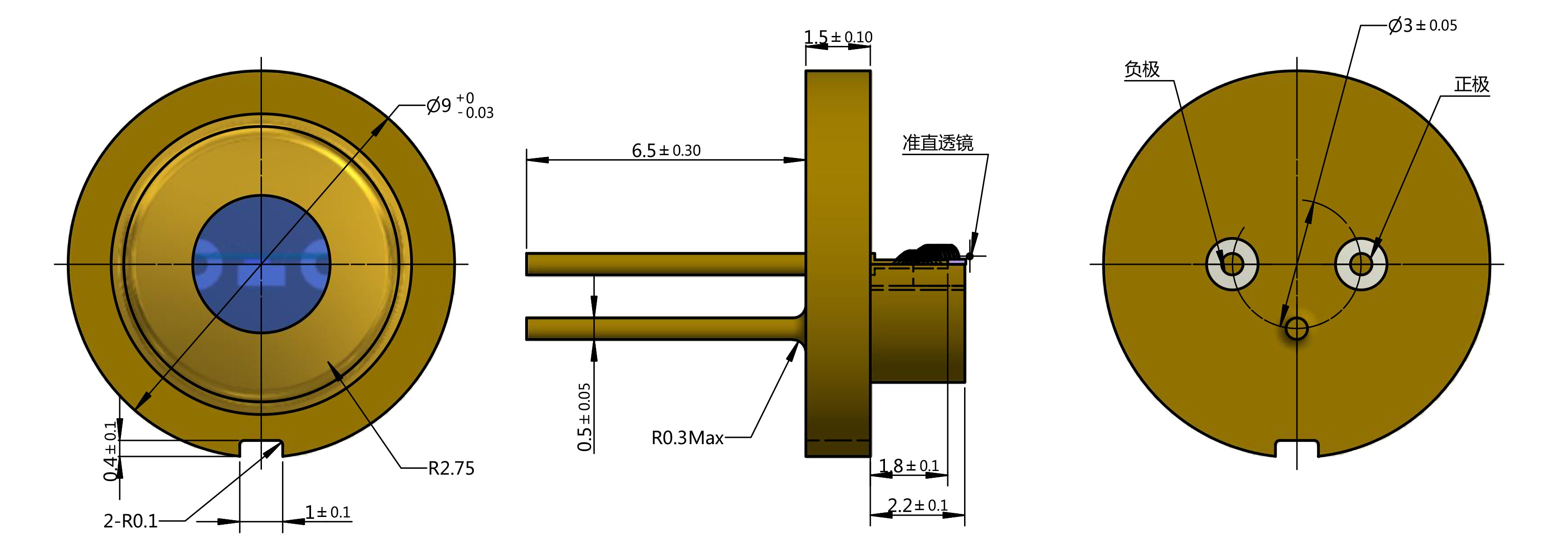

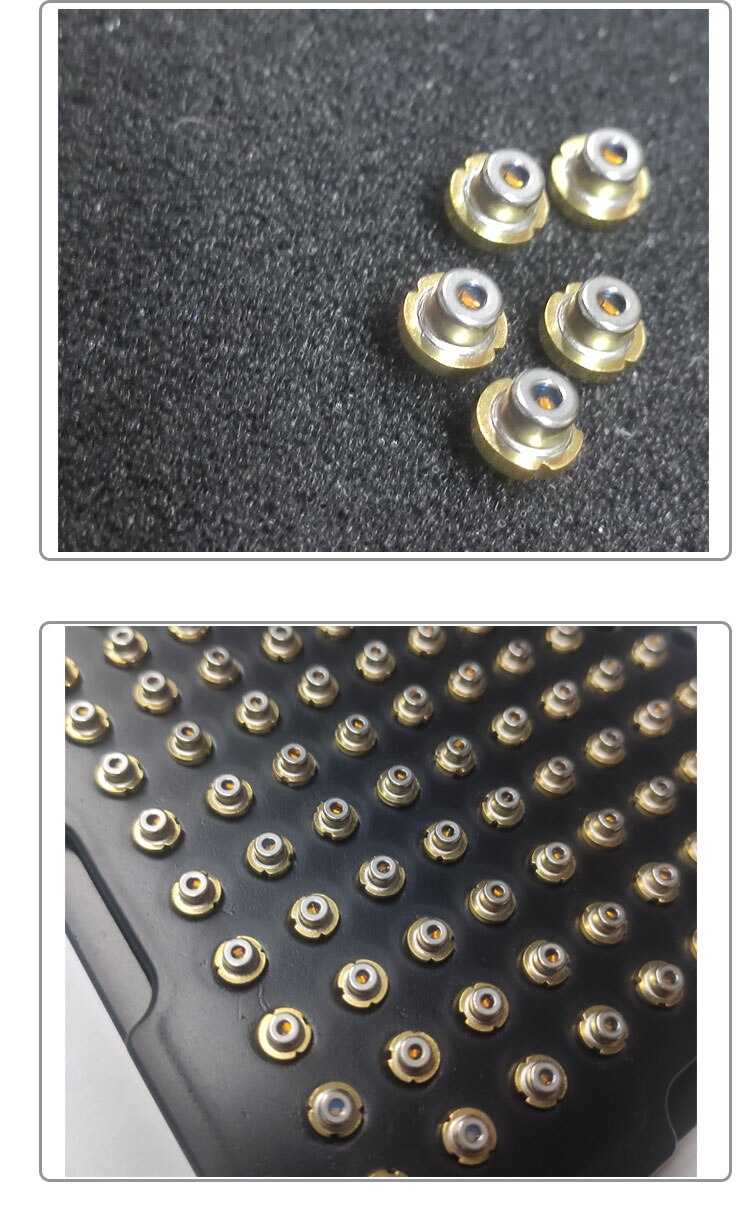

- Package / Case: TO56
- Diode Configuration: *
- Voltage – DC Reverse (Vr) (Max): *
- Reverse Recovery Time (trr): *
- Capacitance @ Vr, F: *
- Current – Max: *
- Resistance @ If, F: *
- Power Dissipation (Max): *
- Capacitance Ratio: *
- Capacitance Ratio Condition: *
- Configuration: *
- Voltage – Zener (Nom) (Vz): *
- Tolerance: *
- Impedance (Max) (Zzt): *

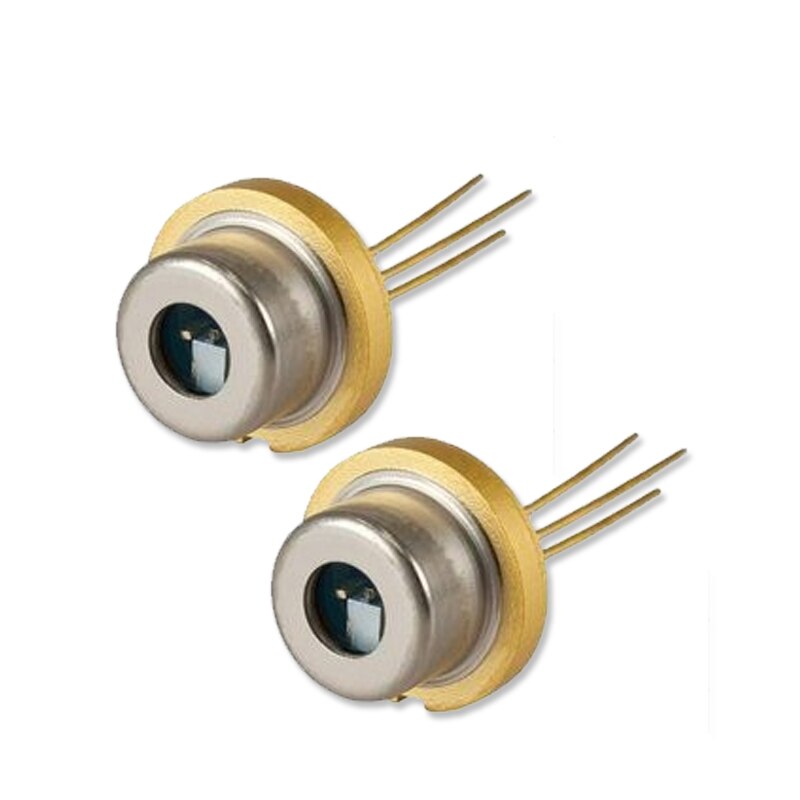

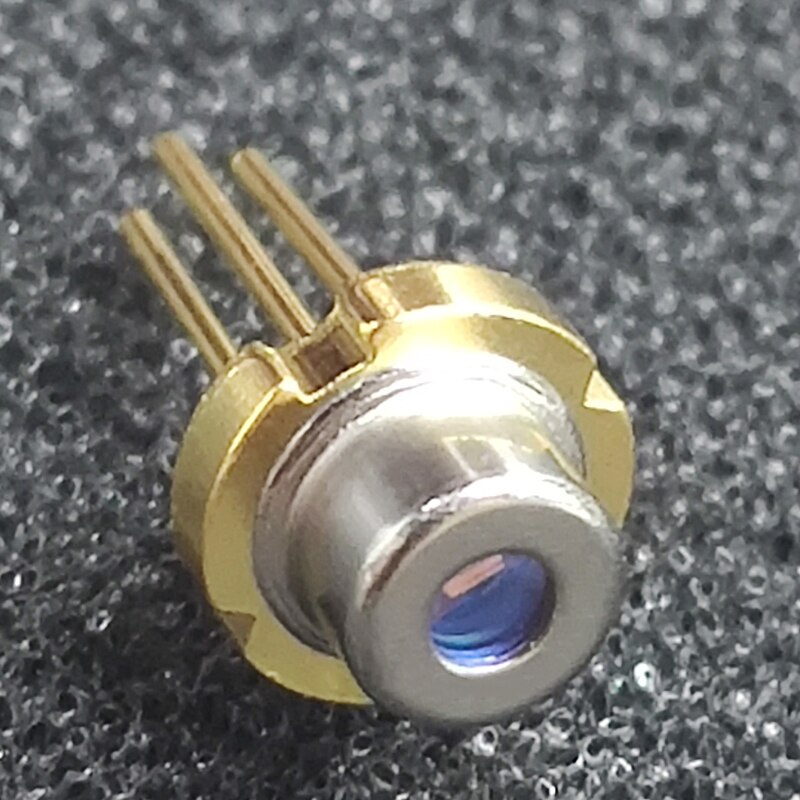

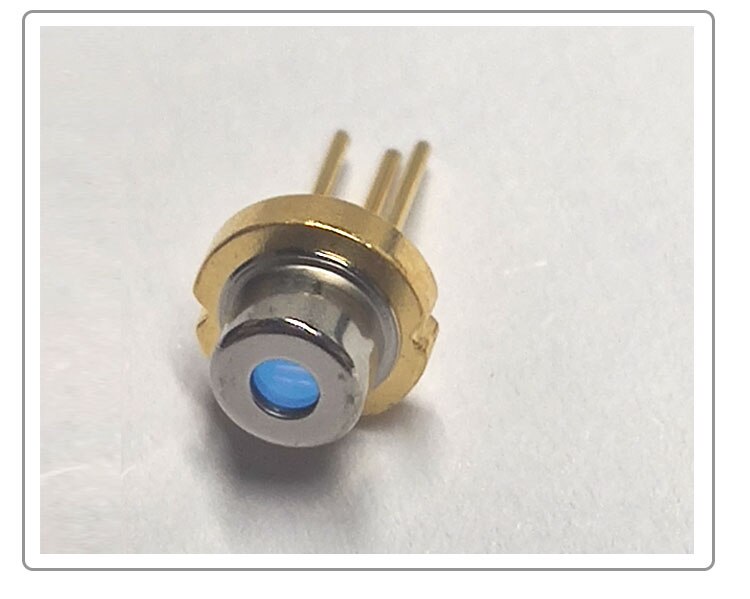

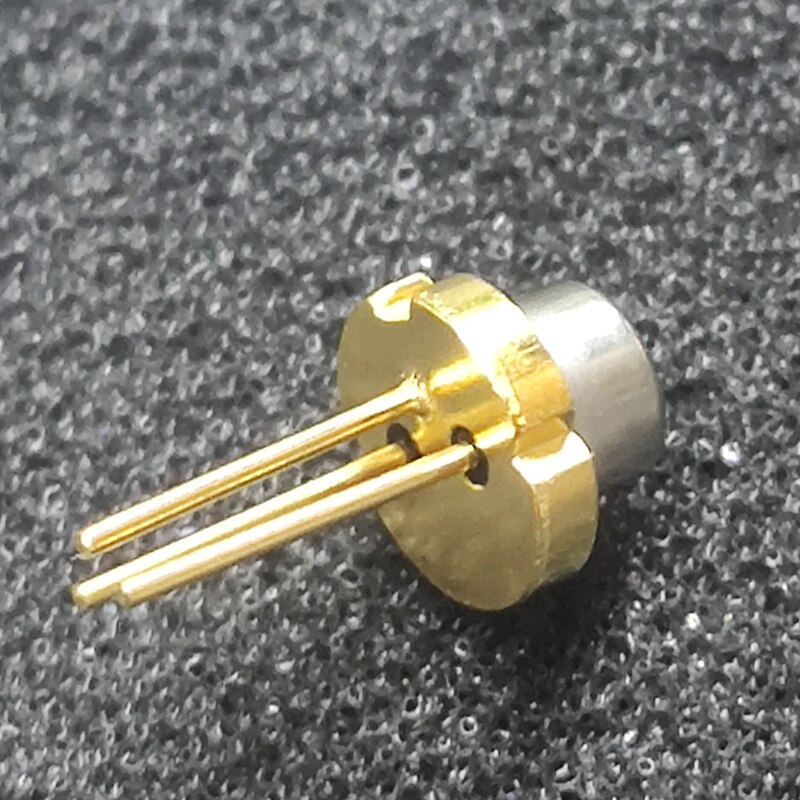

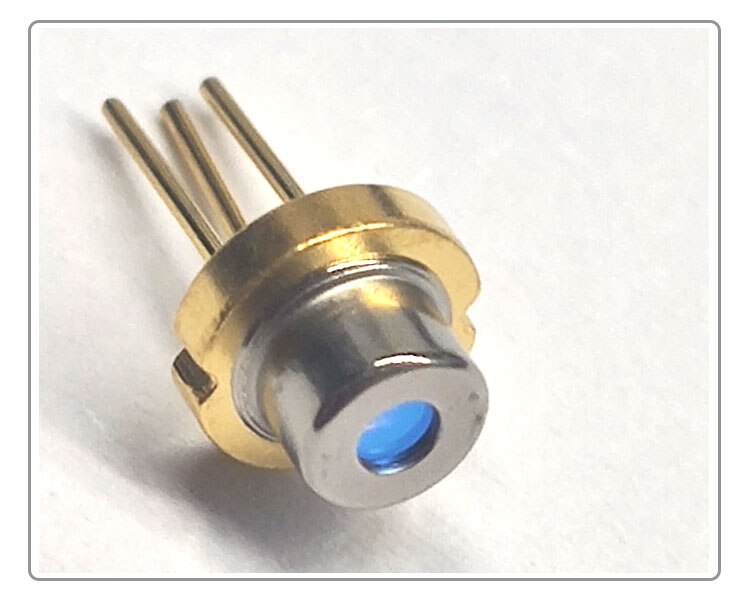

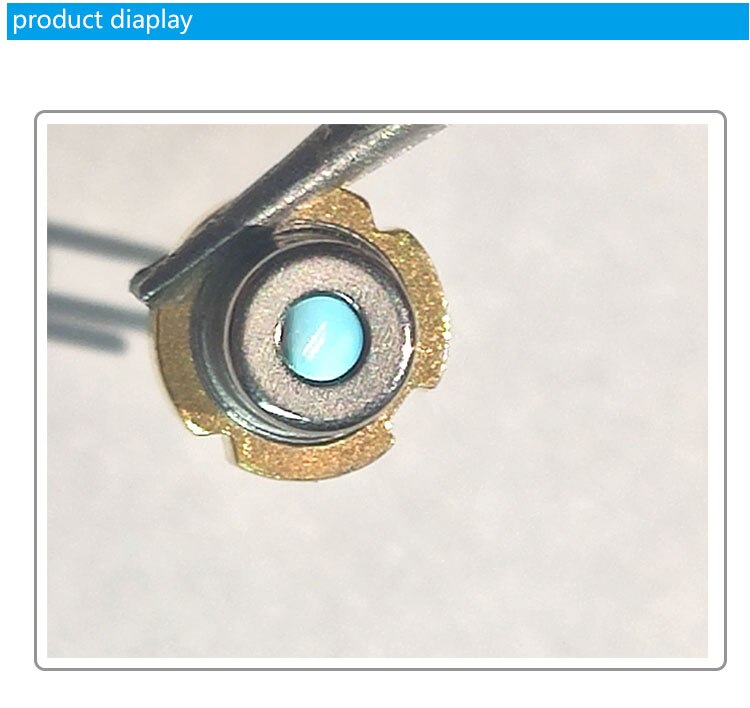

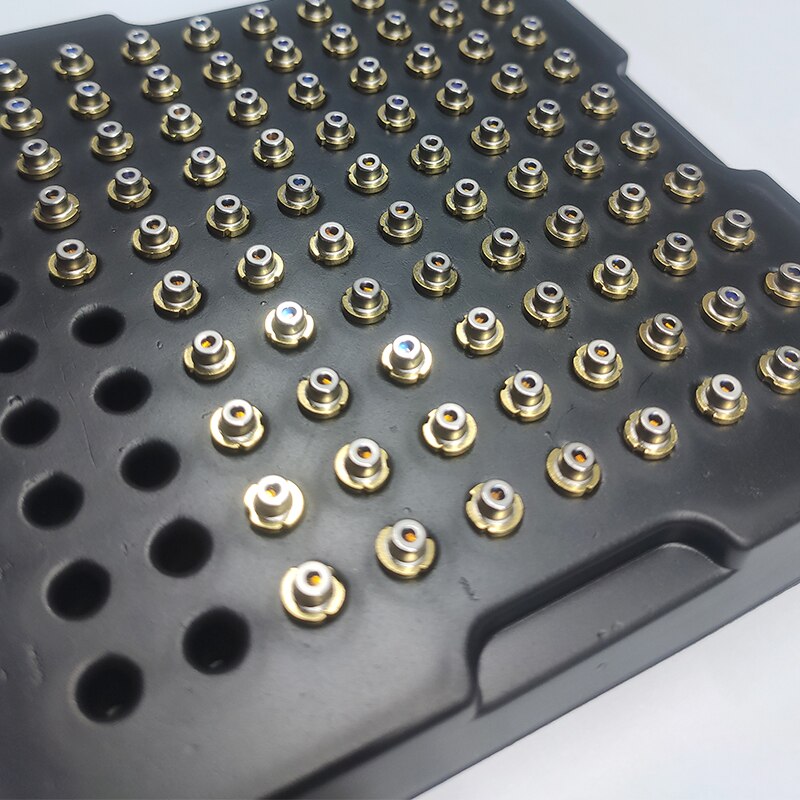

- Product name: Laser pulsed Diode
- Center Wavelength: 1550nm
- Operating mode: pulsed
- Power: 30w
- Threshold Current: 0.6
- Storage Temperature: -40~85
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{font-size:24px}#detail_decorate_root .magic-5{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-6{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-7{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-8{margin-bottom:0}#detail_decorate_root .magic-9{position:relative;width:100%}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:72px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:72px}#detail_decorate_root .magic-13{font-size:16px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:599px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:599px}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:264px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:123px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:115px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:162px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:727px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{display:none}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:163px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:442px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:57px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:57px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:263.8486078886311px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:263.8486078886311px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:708px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:708px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:1231px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:1231px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:1042px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:1042px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:993px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:993px}#detail_decorate_root .magic-37{text-align:justify}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:60px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:60px}
Products Description
|
parameter
|
symbol
|
unit
|
MIR-1550-15W90
|
|||
|
Optical parameter (@25°C)
|
|
|
|
|||
|
|
|
|
|
|||
|
Center Wavelength
|
λ
|
nm
|
1550
|
|||
|
|
|
|
|
|||
|
Wavelength Tolerance
|
λ0
|
nm
|
±15
|
|||
|
|
|
|
|
|||
|
Spectral width
|
△λ
|
nm
|
≤25
|
|||
|
|
|
|
|
|||
|
Operating mode
|
pulsed
|
|
|
|||
|
|
|
|
|
|||
|
Power
|
Po
|
W
|
30
|
|||
|
|
|
|
|
|||
|
Luminous size
|
L
|
μm∙μm
|
190*10
|
|||
|
|
|
|
|
|||
|
Beam divergence angle
|
θ⊥
|
°
|
≤10
|
|||
|
|
|
|
|
|||
|
|
θ∥
|
°
|
≤12
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
Electrical parameters(@25°C)
|
|
|
|
|||
|
|
|
|
|
|||
|
Threshold Current
|
Ith
|
A
|
0.6
|
|||
|
|
|
|
|
|||
|
Operating Current
|
Iop
|
A
|
30
|
|||
|
|
|
|
|
|||
|
Operating Voltage
|
Vop
|
V
|
30
|
|||
|
|
|
|
|
|||
|
Working pulse width
|
t
|
ns
|
100
|
|||
|
|
|
|
|
|||
|
repeat frequency
|
f
|
kHz
|
3
|
|||
|
|
|
|
|
|||
|
Duty cycle
|
D
|
–
|
0.1%
|
|||
|
|
|
|
|
|||
|
Thermal performance
|
|
|
|
|||
|
|
|
|
|
|||
|
Operating Temperature
|
Tc
|
ºC
|
-40~70
|
|||
|
|
|
|
|
|||
|
Storage Temperature
|
Tstg
|
ºC
|
-40~85
|
|||
|
|
|
|
|
|||
|
Wavelength temperature coefficient
|
—
|
nm/ºC
|
0.6
|
|||
|
|
|
|
|
|||
|
Welding temperature
|
Ts
|
ºC
|
260
|
|||
|
|
|
|
|
|||
