1535nm military Laser Rangefinder Measurement OEM module GS-MLRF153513k

  • Home
  • 1535nm military Laser Rangefinder Measurement OEM module GS-MLRF153513k
Sale!

1535nm military Laser Rangefinder Measurement OEM module GS-MLRF153513k

$29,799.00

50 in stock

SKU: 1005003352495814 Category:

Description

  • Brand Name: LanYuXuan
  • Type: Other
  • Origin: CN(Origin)
  • Place of Origin: Shaanxi, China
  • Brand Name: Gatherstar
  • Model Number: GS-MLRF153513K
  • Size: 120mmx83mmx75mm
  • Measurement Accuracy: ±2m
  • Measurement Range: 13Km
  • Wavelength: 1535nm
  • Range measurement: 50m~13000m
  • Repetition Frequency: 1~5Hz
  • Accuracy rate: ≥98%
  • Transmitter beam divergence: 0.9mrad
Product Description

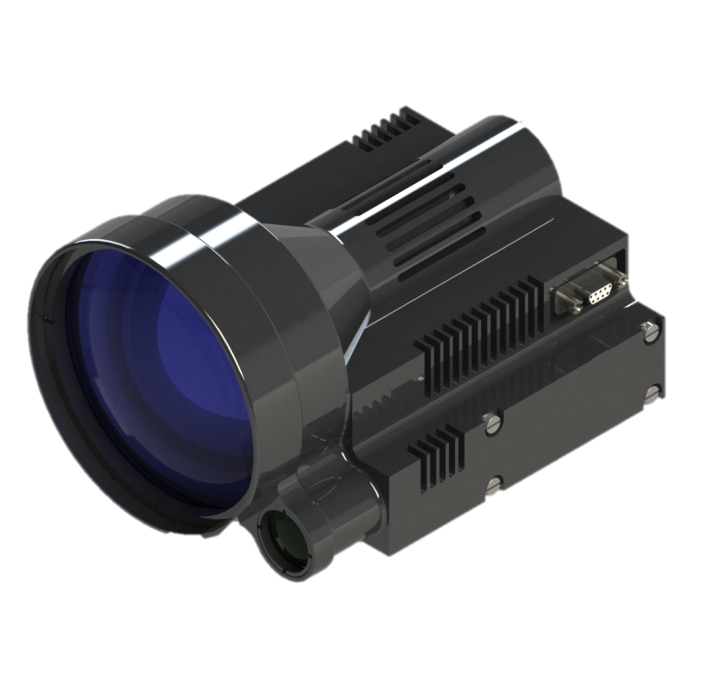

GS-MLRF153513K Micro Laser Range Finder allows system integrators to efficiently integrate a laser ranging capability into a thermal or electro-optical system, weapons scope, or consumer product.

GS-MLRF153513K use eye-safe solid-state laser and provide long lifetime and low consumption solution.

Specification for GS-BGLRF3
Wavelength
1535nm
Range measurement
50m~13000m
Range finding accuracy:
±2m
Repetition Frequency
1~5Hz
Accuracy rate
≥99%
Transmitter beam divergence:
0.9mrad
Aperture diameter
65mm
Communication interface
RS422
Input voltage
28V
Power consumption
≤4.2W
Stand-by Power consumption
≤4.2W
Size(mm)
120mmx83mmx75mm
Weight
≤450g
Operating temperature
-40°C ~55°C
heat-dissipating method
Natural

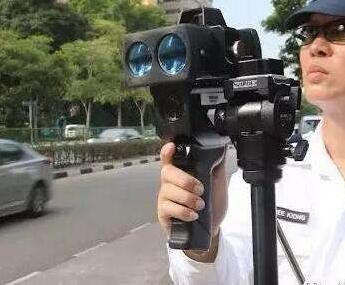

Application

 Thermal or scope system

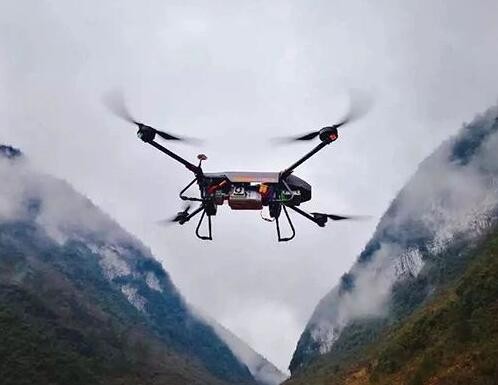

UAV-based ranging system

Industry ranging system

Various distance measurement cases(Aviation, police, railway, electric power, water conservancy, communication, environment, geology, construction, fire station, blasting, agriculture, forestry , outdoor sports, etc.)

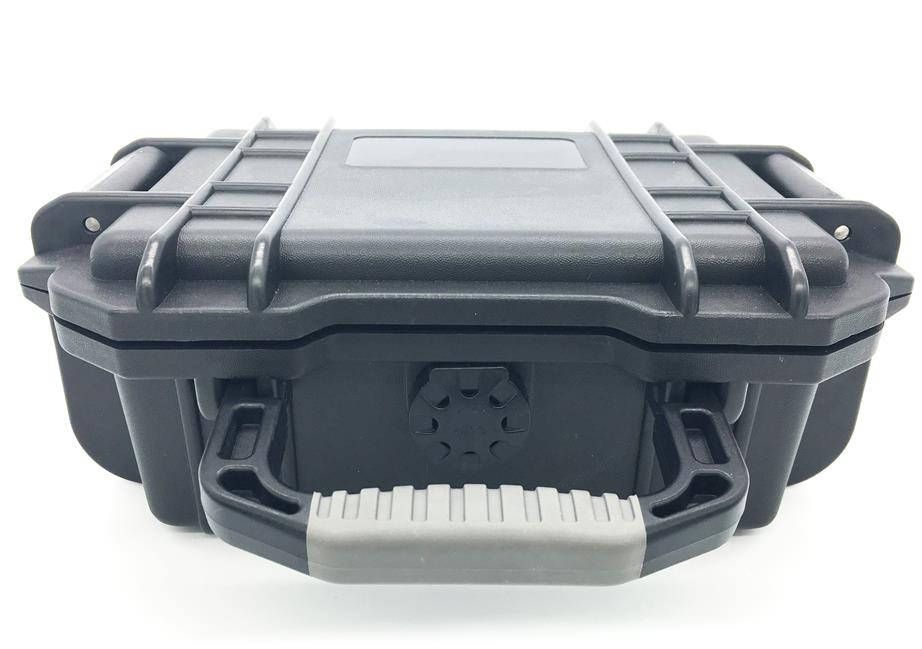

Packing & Delivery

»Shipping

We provide comprehensive shipping methods.
* For small quantity orders we ship by DHL, FEDEX, EMS/TNT Express service which is the fastest. Postal ways are also acceptable for small orders.
* For large quantity orders we ship by Air transportation or sea transportation, we can also ship order to buyer’s cargo agent in China.

Delivery:
In stock: in 7 days;
OEM: about 30-60 days after ordering

Company


COMPANY

Gatherstar Technology (HK) Ltd is specialized in infrared and laser photoelectric system products and module, components and elements, which is a high-tech enterprises that set “professional solution supplier, research and development production, system integration and sales promotion” in the integration. Company focuses on providing customers from the elements, components, optoelectronic module to the full range of system products solution.

Xi’an Leading Optoelectronic Technology Co.,Ltd

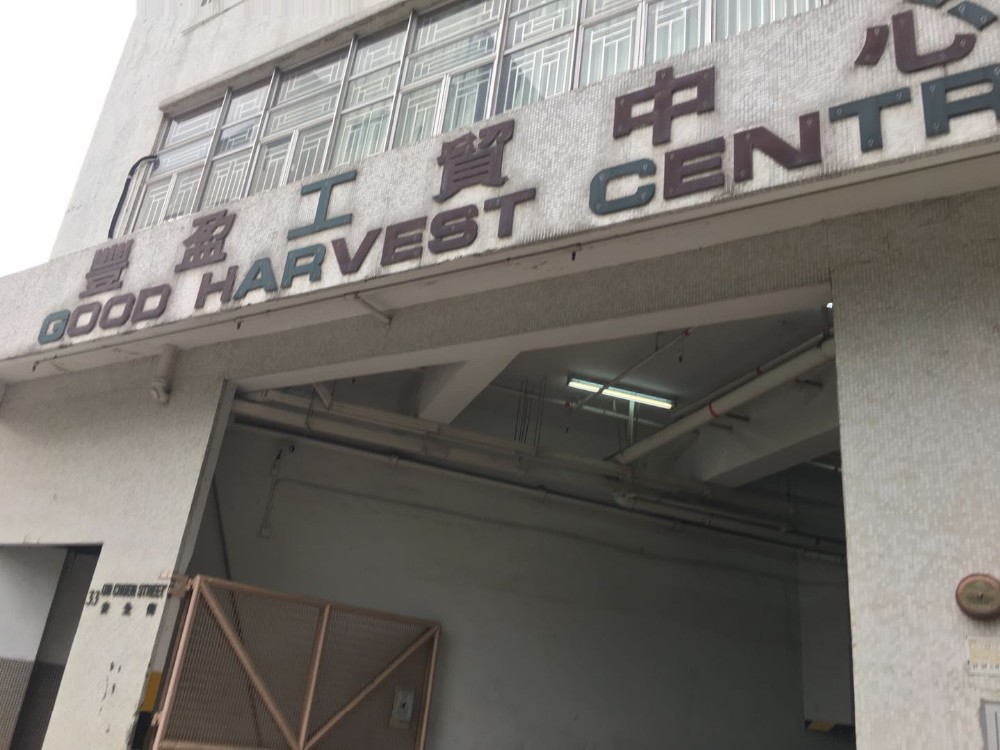

In order to supply efficient and convenient service to domestic and foreign customers, the company is centering on Hong Kong head office which is the logistic center. In China mainland there is International Marketing and R&D office–Xi’an Leading Optoelectronic Technology Co.,Ltd, which located in high-tech Development Zone, Xi’an China.


WHY US

1. 10 years experience

We’ve involved in optoelectronics business since 2008. Customers cover the aviation, aerospace, naval, electronics, and other high tech industrial groups, well-known universities, etc.

2. R&D service support

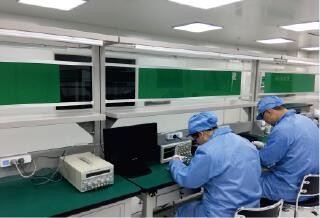

Our Chief engineers’ team has more than 10 years experiences which traced back to Xi’an Institute of Optics and Precision Mechanics, CAS in reference filed. ISO9001 approved factories, guarantee reliable quality.

3. Custom OEM solution

We provide advanced optoelectronics solution to consumer OEM system integrators. We are highly vertically integrated to optimize performance at low cost.

4. Flexible sales channels

Over the years continuous effort and development we have good cooperation relations with more than 20 of the world brand enterprises.  Meanwhile since our Hongkong head office’s geographical advantage, we can satisfy all customer’s various logistic requirements.
