Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Jiangsu, China
- Warranty: 6 Months
- After-sales Service Provided: Online support
- Spare Parts Type: Laser
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Hot Product 2021
- Brand Name: Metalaser
- Key Selling Points: Good stability
- Showroom Location: None
- Applicable Industries: Other, Laser
- Weight (KG): 0.2 KG

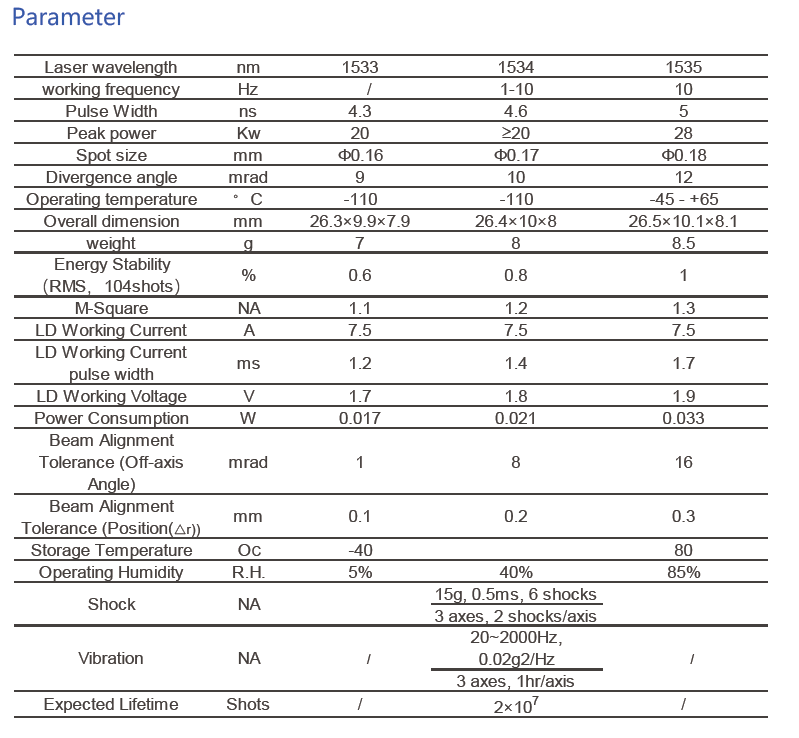

- Spot size: dia0.18mm
- Laser wavelength: 1535nm
- Working frequency: 10Hz
- Laser Ranging: 3-5km
- Pulse Width: 5ns
- Peak power: 28Kw
- Divergence angle: 12mrad
- Operating temperature: -45~ 65℃
- Overall dimension: 26.5*10.1*8.1mm
- LD Working Voltage: 1.9V
Description
Wavelength of 1.4-2.0 um is less harmful to the human eye, so a laser with this wavelength range is called the human eye-safe laser. This wavelength range is located in the atmospheric transmission window, the absorption and scattering of the laser is only 1/50 of the 1.06um laser, which is of great significance for long distance action, especially for military applications.
Application area
Laser ranging
Laser irradiation
Laser radar
Target recognition
Laser medical treatment
Optical fiber communication
Feature
Beam quality near diffraction limit
Small volume
Low power consumption
Good stability
High reliability
Wide temperature range
