Description
- Brand Name: LanYuXuan
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: CE
- Place of Origin: Jiangsu, China
- Condition: New
- Warranty: 1 Year
- After-sales Service Provided: Online support
- Spare Parts Type: laser
- Video outgoing-inspection: Not Available
- Machinery Test Report: Not Available
- Marketing Type: Hot Product 2019
- Brand Name: Crylink
- Key Selling Points: High-accuracy
- Showroom Location: Canada, United States, France, Germany, Viet Nam, Spain
- Applicable Industries: Other, Laser
- Weight (KG): 0.05 KG

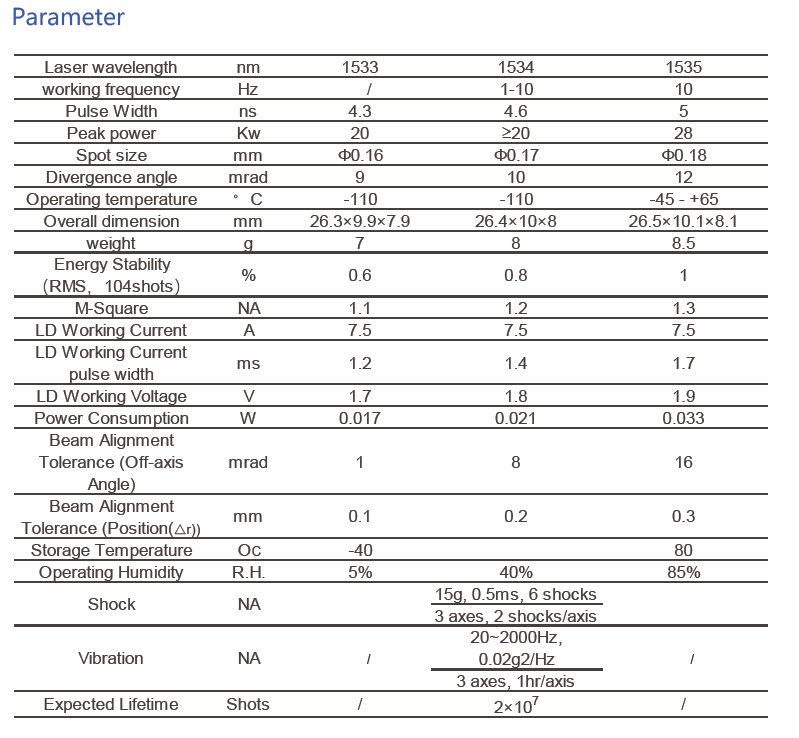

- Laser wavelength: 1535nm
- Working frequency: 10Hz
- Laser Ranging: 3-5km
- Pulse Width: 5ns
- Peak power: 28Kw
- Spot size: dia0.18mm
- Divergence angle: 12mrad
- Operating temperature: -45~ 65℃
- Overall dimension: 26.5*10.1*8.1mm
- LD Working Voltage: 1.9V
My friend, welcome to our store, if you need other models of this product, please contact me WhatsApp +8615111224853, I will send the product link for you to buy
Description
Wavelength of 1.4-2.0 um is less harmful to the human eye, so a laser with this wavelength range is called the human eye-safe laser. This wavelength range is located in the atmospheric transmission window, the absorption and scattering of the laser is only 1/50 of the 1.06um laser, which is of great significance for long distance action, especially for military applications.
Application area
Laser ranging
Laser irradiation
Laser radar
Target recognition
Laser medical treatment
Optical fiber communication
Feature
Beam quality near diffraction limit
Small volume
Low power consumption
Good stability
High reliability
Wide temperature range
