Product Description

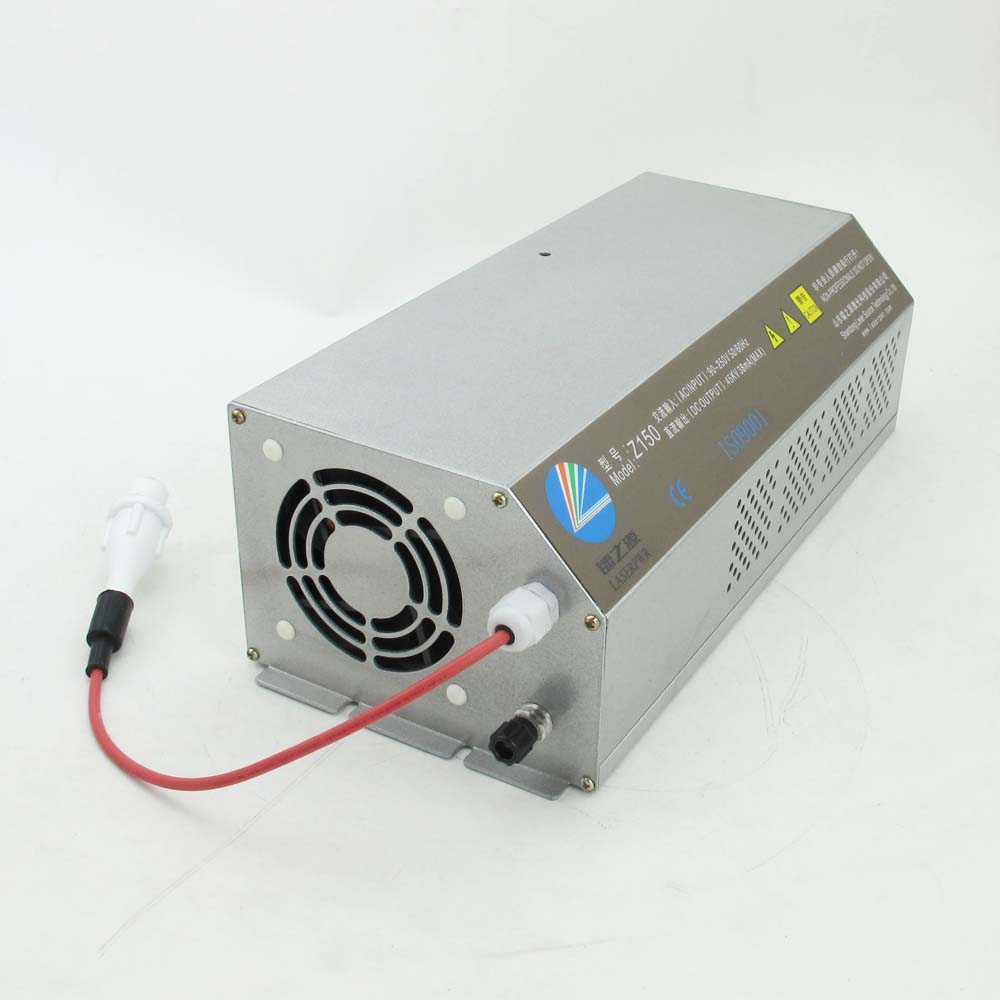

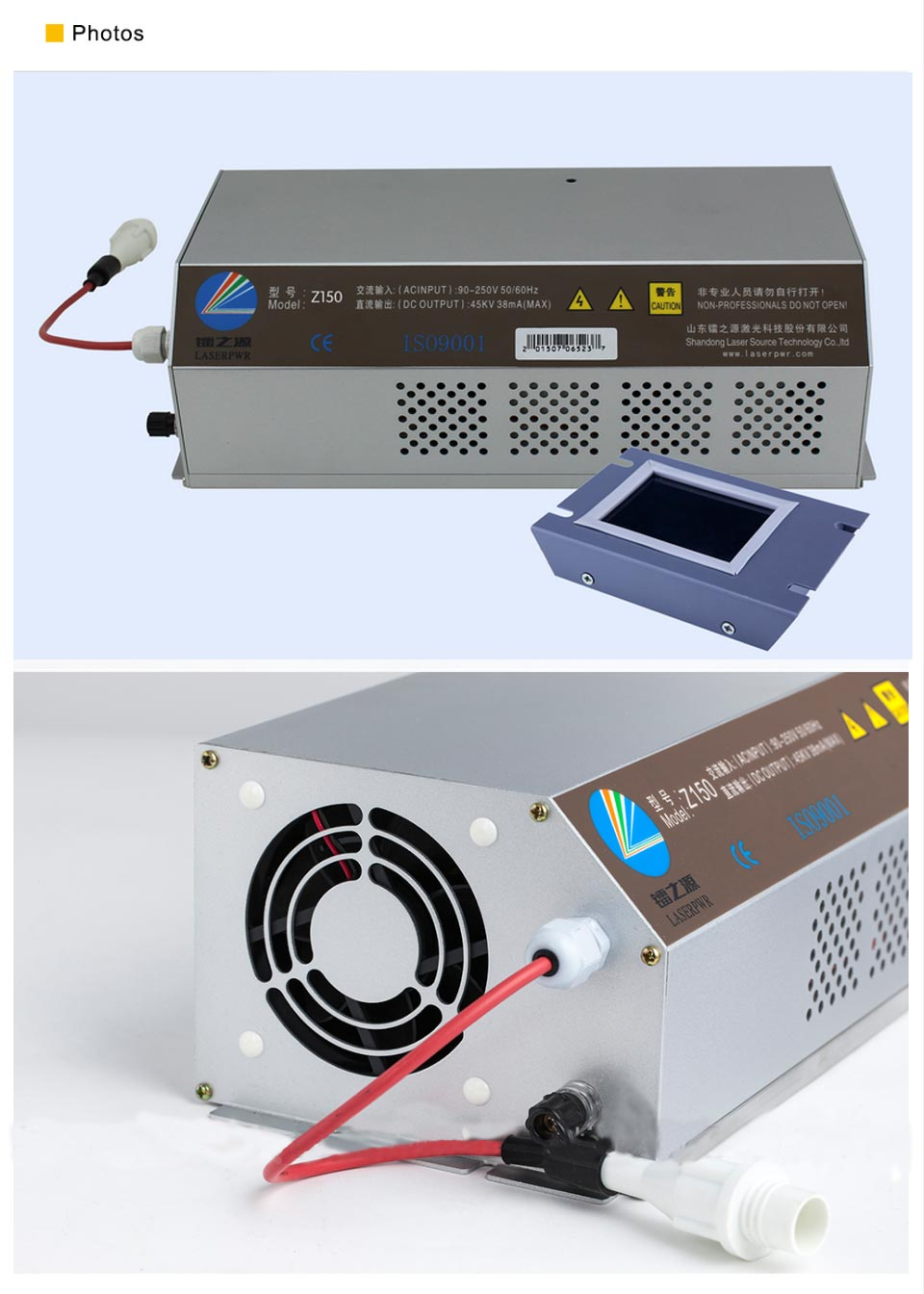

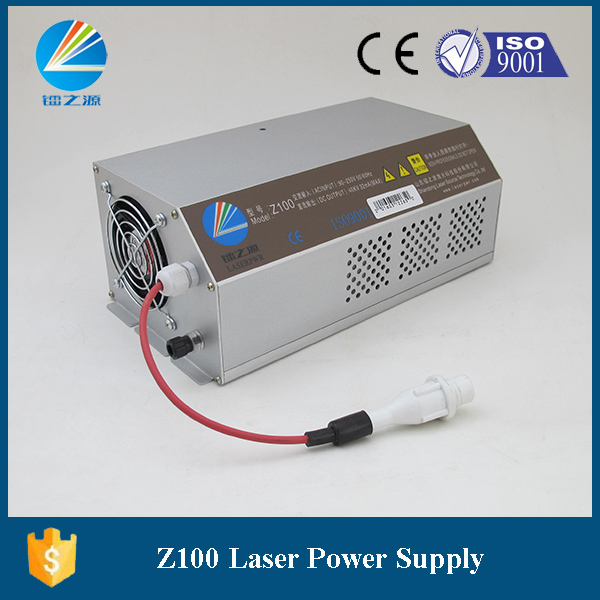

Model: Z150 laser power supply for RECI,EFR,YONGLI,WEEGAINT 130watt/150watt laser lamps

Packing List

<1> Z115 laser power supply*1pc;

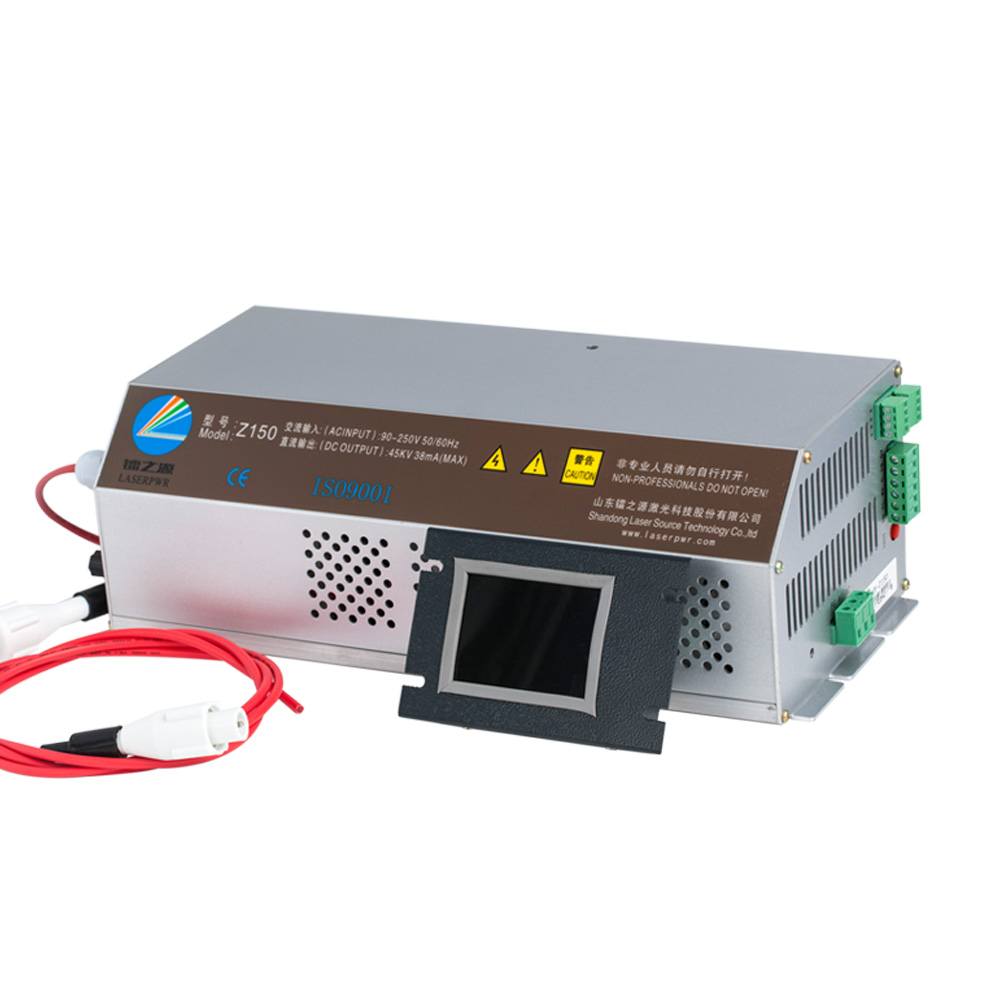

<2> Z Screen*1pc;

<3> 2m HV cable with connector*1pc



I. Z150 Intelligent Laser Power Supply with Screen Main Feature

1. PFC wide voltage AC90V-AC250V input, global universal.

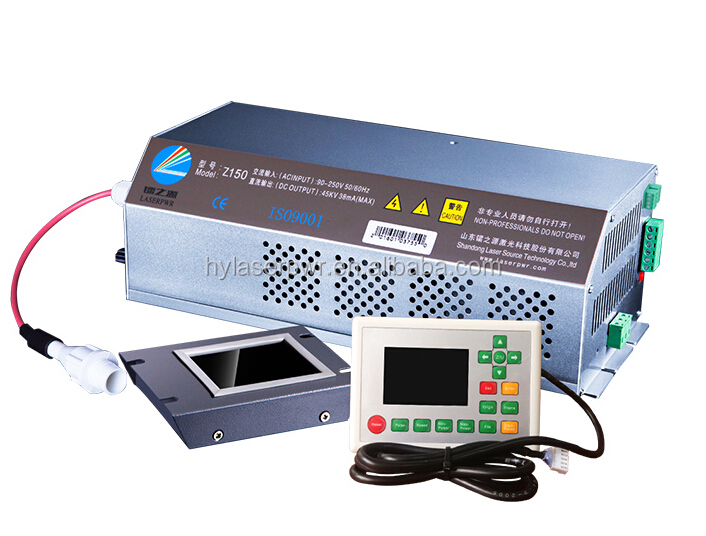

2.  High intelligence: Z150 power supply can communicate with motion controller,the controller panel can display Z150 power supply working condition, the users can know and judge the fault easily

3. Open circuit protection function, if the output high voltage open circuit or not connected well, the Z150 power supply will automatically cut off the high voltage.

4.   Multi-function LCD screen: One LCD screen can show two Z150 power supplies working condition, easy used for 130w-150w double-heads laser cutting machines.

5.  High voltage discharge function, no residual voltage after turn off, very safe for user.

6. Excellent cover with patent design: Good appearance, better heat dissipation.



II. Z150 Laser Power Supply specifications

Item			Z80		Z100		Z150
Input	Input voltage		AC90-250V
	AC frequency		47—440Hz
	Max input power		500W		700W		900W
	Max input current (when 90V input)		6A		8A		10A
Output	Max output voltage		40KV		45KV		55KV
	Max output current		28mA		32mA		38mA
Efficiency	≥90%(when full load)
MTBF	≥10000 hours
Response speed	≤1mS(the time from the signal is given to output current reaches 90% of set current)
Switch control mode	TTL
Power control mode	PWM(>20KHz) or 0-5V or 0-3.3V analogue
Communication mode	Special serial port
Withstand voltage	Input-output, input-shell:AC1500V 10mA 60s;
Working environment	Temperature(-10~40)℃, relative humidity:≤90%
Cooling	Force air cooling
Dimension	L*W*H(mm)	235*144*104		278*144*104		330*144*104
Weight	(KG)	2.15kg		2.45kg		3.2kg
Color	Silver









V.Z150 laser power supply Manual Test Method

Firstly make sure Z150 power supply and laser tube correct well, disconnect the control terminal and press the RED button” TEST” on Z150 power supply for 5-10seconds to check if there is laser output from laser tube.This method is easily to judge if power supply is ok.
