1500W MAX MFSC Fiber Laser Cutting Source

$6,859.10

SKU: 3452145018651 Category:

Description

Product Description

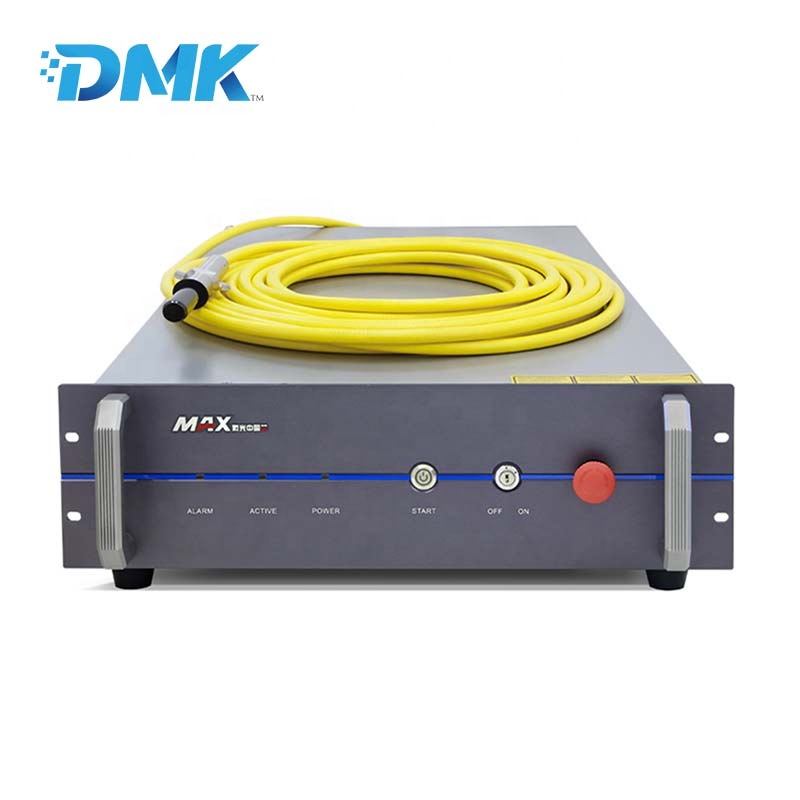

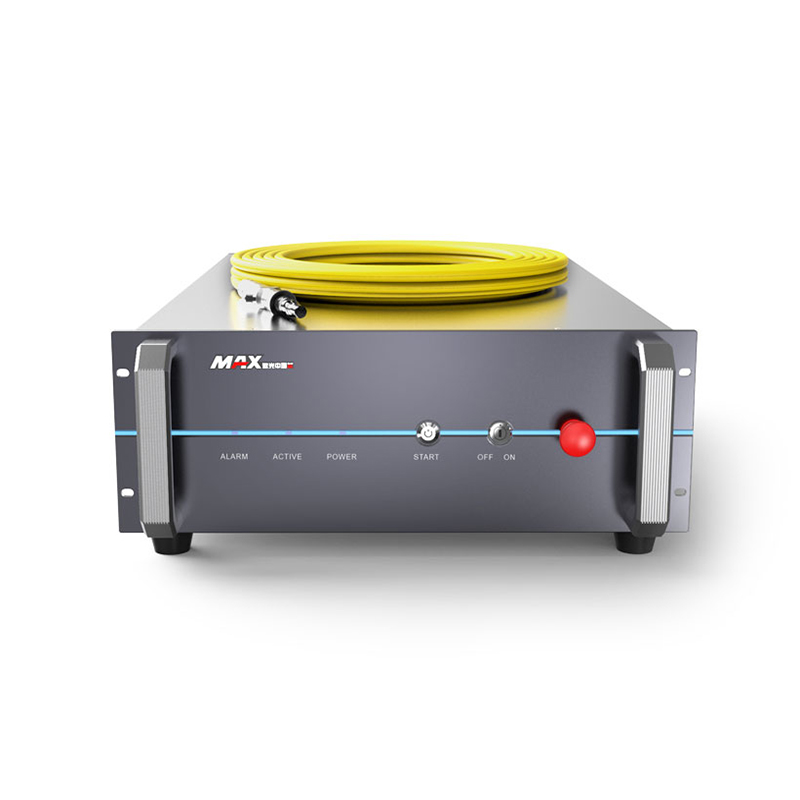

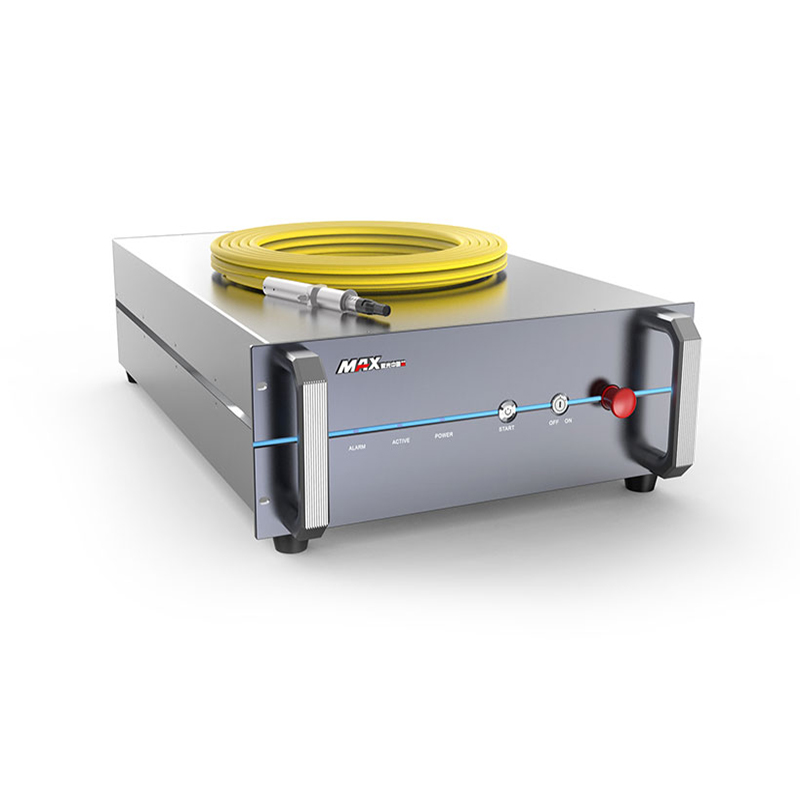

 MAX MFSC-1500W

MFSC 700W-1500W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.

Product Paramenters

 Model
MFSC-700W

MFSC-800W

MFSC-1000W

MFSC-1200W

MFSC-1300W

MFSC-1500W

 Optical Properties

 Output Power(W)
700
800
1000
1200
1300
1500
Operating Mode
Continuous/ Pulse

Power Adjust Range(%)
10-100

Wavelemgth (nm)
1080(±10)

Spectral Bandwidth (nm)
3-5

Laser Beam Quality(M2)
1.3 (20u-QBH)

2.8 (50u-QBH)

Laser on time(μs)
50-100

50-80

Laser off time(μs)
50-100

30-50

Modulation Power(KHz)
20

20-50

Indicating Red Light Power(μW)
150

Output Optical Cable Parameters

Output Mode
QBH(LOC)

Fiber Cable Length(m)
15

Fiber Core Diameter

(μm)

50( 30/100 optional)

Bending Radius(mm)
200

Electrical Parameters

Voltage(VAC)
220

Rated Power Consumption(KW)
2.5

2.8

3.5

4.8

5.2

6.0

Other Parameters

Working Temperature (oC)
10-40

Relative Humidity(%)
10-85

Cooling Method
Water Cooling

Storage  Temperature (oC)
-10—60

Size(mm)
800*482.6*193.2

Weight(KG)
50(±3)

88

Features

MAX MFSC 700—1500W

* Modular design, stable performance

The internal structure adopts the photoelectric module separation design, and the operating performance is more stable.

*Easy maintenance, reduce downtime
Optical modules, electrical modules, control units, and drive units can be directly replaced, upgraded, and maintained at the client.

*Customized to meet various needs
Users can choose different size of fiber core diameters in accordance with the different process requirements to meet differentiated processing needs.
*Uniform spot energy distribution
Reduce welding spatter, thick plate cutting ability is more stable.

*Multiple applying scenarios
It can be used with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc.; Laser fine cutting, precision welding processing, used in 3C, hardware, medical, automotive, aviation and other fields.



Application

Additional information

Model Number

MFSC-1500W
